Best Power Quality Analyzer 2026: Comparison & Buying Guide
Schneider ION7400A vs CET iMeter5 vs YADA YDPQ200-A
Choosing the right power quality analyzer is critical for ensuring electrical system stability, reducing downtime, and improving energy efficiency.
In this 2026 guide, we compare leading high-end models, including:
You’ll learn how to select the best analyzer based on accuracy, harmonics, communication, and application scenarios.
Overview of High-End Power Quality Analyzers
High-end PQ analyzers are designed for:
- Grid and substation monitoring
- Data center power management
- Industrial power quality compliance
- Renewable energy systems (solar / EV / storage)
Key standards include:
- IEC 61000-4-30 Class A
- IEC 62053-22 (0.2S accuracy)
- EN 50160 / IEEE 519
2016 High-End Power Quality Analyzers Comparison
Basic Information
| Item | Schneider ION7400A (METSEION7410A)
|
CET iMeter5
|
YADA YDPQ200-A
|
|---|---|---|---|
| Brand | Schneider Electric (France) | Shenzhen CET (China High-End) | YADA Electronics (Guangdong, China) |
| Positioning | High-end grid / data center / industrial | High-end modular, compact, compliant monitoring | Mid-high end, multi-functional, cost-effective |
| Accuracy Class | Class 0.2S (IEC 62053-22) | Class 0.2S (IEC 62053-22:2020) | Active Energy: Class 0.2S; Reactive Energy: Class 1.0 |
| Panel Size | 96×96mm | 96×96mm (DIN96) | 144×144mm |
| Display | 3.5-inch TFT color screen | Color IPS LCD, touch | Large color screen (waveform / spectrum) |
| Warranty | 1–2 years | Min. 12 months | 2 years |
Accuracy & Sampling Performance Comparison
Precision Level (Critical for Billing & Compliance)
| Parameter | ION7400A | iMeter5 | YDPQ200-A |
|---|---|---|---|
| Voltage Accuracy | ±0.1% | ±0.1% | ±0.1% |
| Current Accuracy | ±0.1% | ±0.1% | ±0.1% |
| Power / Energy | Class 0.2S | Class 0.2S | Class 0.5S |
✔ Insight:
All three meet high-end requirements, but ION7400A and iMeter5 are stronger in billing-grade compliance.
Sampling Rate & Transient Capture
| Model | Sampling Rate | Transient Capture |
|---|---|---|
| ION7400A | 512 points/cycle | ½ cycle |
| iMeter5 | 512 points/cycle | 40μs |
| YDPQ200-A | 512 / 1024 optional | Transient (½ cycle update)/ event capture within 1ms |
✔ Insight:
- iMeter5 leads in ultra-fast transient capture
- YDPQ200-A provides higher waveform resolution (1024 sampling)
- ION7400A balances performance with system integration
Harmonics & Power Quality Capabilities
All three analyzers support:
- Up to 63rd harmonics + interharmonics
- THD / TDD / Unbalance
- Voltage sag, swell, interruption
PQ Standard Compliance
| Function | ION7400A | iMeter5 | YDPQ200-A |
|---|---|---|---|
| Harmonic Analysis | 63rd harmonics + interharmonics | 63rd harmonics + interharmonics | 63rd harmonics + interharmonics |
| IEC 61000-4-30 | Class A (Advanced) | Class S / A (model dependent) | Supported (Class A) |
| Flicker (Pst/Plt) | Supported | Supported (IEC 61000-4-15) | Supported (IEC 61000-4-15) |
| Unbalance / THD / TDD | Full support | Full support | Full support |
| Voltage Sag / Swell / Interruption | Capture + waveform recording | Capture + waveform recording | Capture + waveform recording + logging |
| EN 50160 / IEEE 519 | Supported | Supported | Not supported |
| Waveform Recording | Up to 512 samples/cycle | Supported | Fault recording + disturbance logging + RMS logging |
✔ Insight:
- ION7400A = strongest compliance + global acceptance
- iMeter5 = flexible compliance (S/A selectable)
- YDPQ200-A = solid Class A at lower cost
Communication & Integration Capabilities
Protocol Support (Key for SCADA / EMS)
| Interface | ION7400A | iMeter5 | YDPQ200-A |
|---|---|---|---|
| Ethernet | Dual-port (10/100M) | Dual Ethernet (daisy chain) | Ethernet |
| RS-485 | 1 port | 1 port | 1 port |
| USB | Yes | No | Yes |
| Optical / IR | ANSI C12.18 | – | – |
| Protocols | Modbus TCP/RTU, ION, BACnet/IP, SNMP, DNP3, IEC 61850 | Modbus TCP/RTU, BACnet/IP, SNMP, IEC 61850, IEC 60870-5-104 | Modbus TCP/RTU, IEC 61850 |
| Time Sync | NTP/IRIG-B/GPS (1ms) | NTP/IRIG-B/GPS 1PPS | GPS/Beidou/SNTP |
✔ Insight:
- ION7400A = strongest ecosystem integration (EcoStruxure)
- iMeter5 = best balance for export projects
- YDPQ200-A = essential protocols, simpler integration
I/O & Expandability
| I/O & Expansion | ION7400A | iMeter5 | YDPQ200-A |
|---|---|---|---|
| DI | 3 DI (built-in) | 4 DI | 6 DI |
| DO | 1 DO (built-in) | 2 DO | 4 DO (optional) |
| Pulse Output | 2 channels | Supported | Supported |
| Expansion Module | Supported | RJ45 I/O expansion | Supported |
✔ Insight:
👉 YDPQ200-A offers the most flexible I/O configuration
Ideal for industrial automation and control scenarios
Data Logging & Storage
| Storage & Logging | ION7400A | iMeter5 | YDPQ200-A |
|---|---|---|---|
| Memory | 512MB | 512MB/2GB/4GB (model dependent) | 32MB SDRAM |
| Event Logging | Event log | SOE + long-term waveform recording | Steady-state (sec) / transient (ms) logging |
| Data Logging | 51 data loggers | 3 years (15-min interval) | Timed / over-limit / event logging, IEC 61850 log, COMTRADE, PQDIF |
✔ Insight:
- iMeter5 = best for long-term data storage
- ION7400A = most advanced logging system
- YDPQ200-A = sufficient for most industrial use cases
Typical Applications
Schneider ION7400A
Best for:
- Grid & substations
- Nuclear & utility projects
- Large-scale data centers
- High-end EPC projects
CET iMeter5
Best for:
- Data centers
- Semiconductor manufacturing
- Export compliance projects
- Industrial monitoring

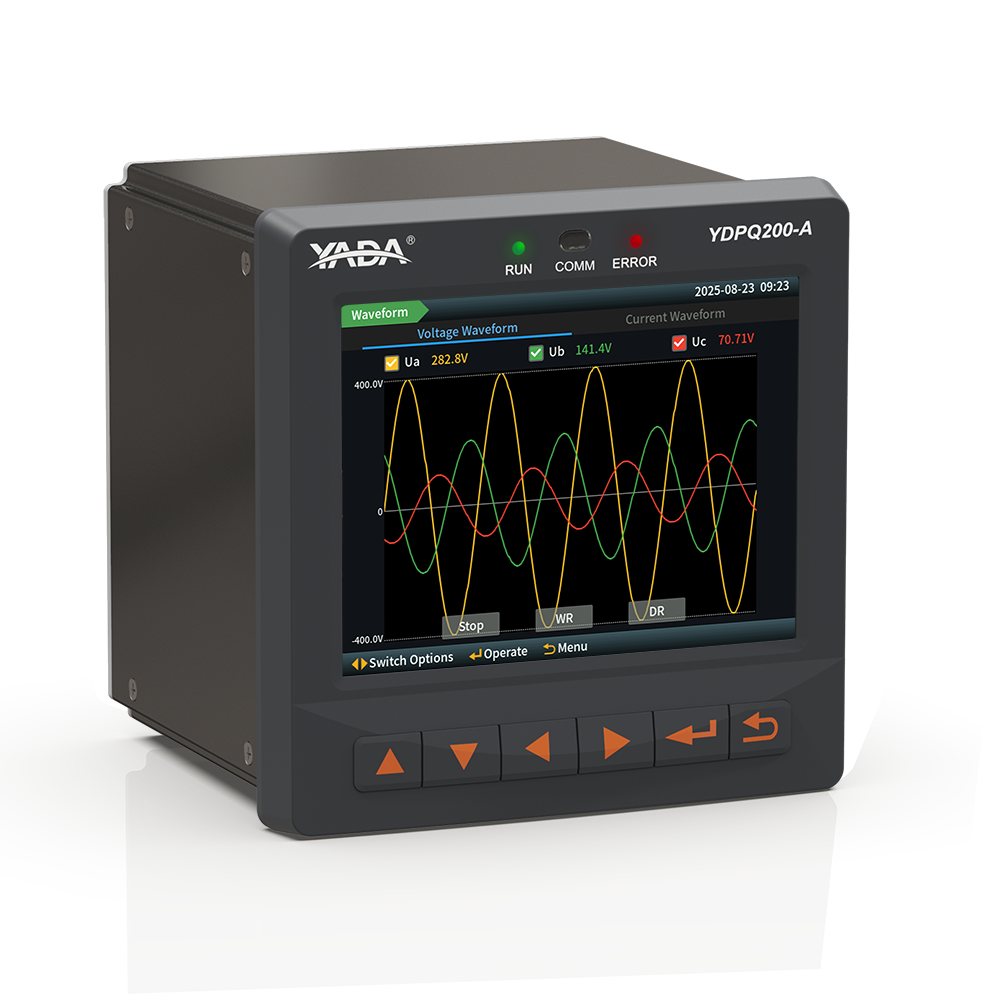

YADA YDPQ200-A
Best for:
- Intelligent buildings
- Industrial plants
- Distribution systems
- Cost-sensitive data centers
Price & Market Positioning
| Positioning | ION7400A | iMeter5 | YDPQ200-A |
|---|---|---|---|
| Price Range | High (imported brand) | Mid-high (China high-end) | Mid (China cost-effective) |
| Strengths | Brand, system integration, global service | Accuracy, functions, size, warranty, price | Large screen, rich I/O, cost-effective |
| Weaknesses | High cost, long lead time | Brand awareness lower than Schneider | Brand awareness lower than Schneider,new product, limited market feedback |
✔ Insight
- Brand-driven → Schneider
- Performance/price balance → CET
- Budget + functionality → YADA
Which Power Quality Analyzer Should You Choose?
✔ Choose ION7400A if:
- You need global certification & brand recognition
- Your project is grid-level or EPC international bidding
👉 Best for high-end reliability and integration
✔ Choose iMeter5 if:
- You need Class 0.2S + compact size (96mm)
- You focus on export compliance + long-term logging
👉 Best Chinese high-end alternative
✔ Choose YDPQ200-A if:
- You need large display + rich I/O
- Your project is industrial or budget-sensitive
👉 Best cost-performance solution
FAQ
What is the best power quality analyzer in 2026?
For high-end applications, ION7400A leads in brand and system integration, while iMeter5 offers the best performance-price ratio.
What is IEC 61000-4-30 Class A?
It is the highest standard for power quality measurement accuracy, required for compliance monitoring and grid analysis.
Which power analyzer is best for data centers?
- High-end → ION7400A
- Cost-effective → YDPQ200-A
- Balanced → iMeter5
Conclusion
In 2026, the high-end power quality analyzer market is clearly segmented:
- Premium Tier: Schneider ION7400A
- High-Value Tier: CET iMeter5
- Cost-Effective Tier: YADA YDPQ200-A
For global buyers, the choice depends on:
- Budget
- Compliance requirements
- System integration level
- Project scale
If you’re looking for a cost-effective, high-performance solution, the YADA YDPQ200-A is an excellent choice.
