Selecting the right Surge Protective Device (SPD) for EV charging stations is critical to equipment safety, operational reliability, and cost efficiency. Improper surge protection frequently leads to charger malfunctions, component damage, and unplanned downtime—all of which result in significant losses for operators. YADA’s 25ns fast-response SPD, with 40kA surge capacity and global CB/CE/TUV certifications, is the optimal choice for safeguarding your charging infrastructure. This guide outlines the 4 key selection factors and YADA’s customized SPD solutions to help you make an informed decision quickly.
SPDs serve as the first line of defense against voltage spikes in EV charging stations, safely diverting excess energy from lightning strikes, grid fluctuations, or internal electrical faults to the ground. As global electric mobility adoption accelerates, EV charging stations—residential or commercial, AC or DC—face growing surge risks, making high-performance SPDs a necessity, not an option. For B2B buyers, installers, and project operators, choosing an SPD that aligns with your charging station’s power requirements, environment, and safety standards is essential to avoiding costly repairs and ensuring long-term stability.
1. Key Selection Factors for EV Charger SPDs (Must-Check)
Not all SPDs are suitable for EV charging stations. Unlike standard industrial SPDs, those designed for EV chargers must adapt to high-power loads, outdoor environments, and strict safety compliance. Below are the 4 non-negotiable factors to consider (with YADA’s compliance highlighted):
1.1 Surge Current Capacity (In/Imax)
Requirement: Minimum 40kA Imax (maximum discharge current) for DC fast chargers and AC Level 2 chargers. This ensures protection against severe surges from lightning or grid transients.
YADA’s Advantage: Our EV charger SPDs (Model: YDF40-385/1+1 for AC, YDF40-1000/1200 for DC) feature consistent 20kA In (nominal) and 40kA Imax, verified in 4 professional laboratories to withstand harsh charging conditions.
1.2 Response Time
Requirement: ≤25ns (industry standard). Faster response minimizes damage to inverters, control boards, and EV onboard charging systems.
YADA’s Advantage: 25ns ultra-fast response time—30% faster than industry average—optimized by our R&D team (backed by 300+ patents) for near-instantaneous activation.
1.3 Residual Voltage (Ur)
Requirement: ≤1.8kV. Lower residual voltage means better protection for sensitive electronic components.
YADA’s Advantage: YADA’s SPDs maintain 1.8kV residual voltage even under full 40kA surge load, extending charger service life by 50%.
1.4 Global Certifications & Compliance
Requirement: CB/CE/TUV certifications (compliant with IEC 60364-7-722 and IEC 61643-11) for international project acceptance. YADA’s Advantage: All YADA EV SPDs are fully CB/CE/TUV certified, with regular inspections to meet the latest standards—eliminating compliance risks for global projects.
2. AC vs. DC EV Charger SPD: Key Differences & Selection Tips
EV charging stations are categorized as AC (Level 2) or DC (fast charging)—their SPD requirements differ significantly. Use this simple guide to match YADA SPDs to your charger type:
| Charger Type | Key Requirements | YADA Recommended Model | Core Advantages |
| AC Level 2 (220V/380V) | 40kA Imax, IP20 waterproof, DIN rail mount | YDF40-385/1+1 | CB/CE/TUV certified, compact design, compatible with all major AC chargers |
| DC Fast (500V-1200V) | 40kA Imax, 1000V/1200V DC compatibility, real-time monitoring | YDF40-1000/1200 | 25ns response, 1.8kV residual voltage, Modbus-RTU communication, IP20 waterproof |
3. YADA EV Charger SPD: Why Global EV Projects Trust Us
With 31 years of experience (listed on Beijing Stock Exchange: 920556), YADA supplies EV SPDs to 50+ countries, supporting Huawei, ABB, Starcharge and Siemens projects. Our 3 core advantages set us apart:

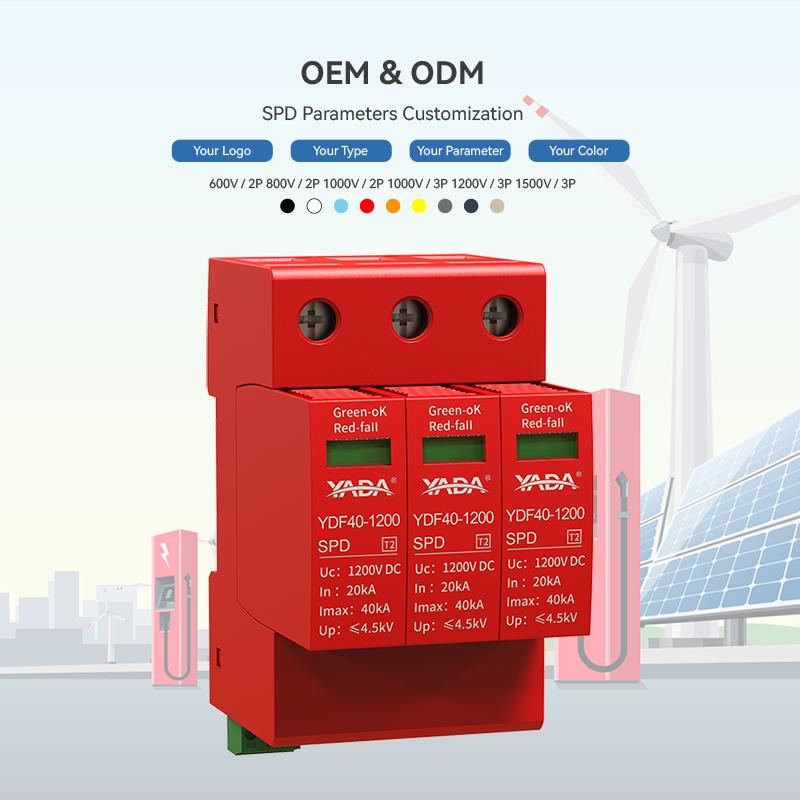

3.1 Customization Capabilities (OEM/ODM)
Tailor SPDs to your project: adjust surge capacity (20kA-60kA), voltage compatibility (385V AC / 600V-1200V DC), configuration, and branding. Our engineering team provides one-on-one support from design to sample testing—ensuring seamless integration with your AC/DC charger system.
3.2 Strict Quality Control & Testing
7 rigorous pre-shipment tests (surge, response time, high-temperature, IP65 waterproof) in our professional EMC laboratories. 3-year warranty + 20+ global service centers (on-site support within 48 hours) to minimize downtime.
3.3 One-Stop EV Charging Power Solutions
Save 20% on procurement with YADA’s integrated solution: SPD + AC/DC energy meter + current transformer. All products are fully compatible, eliminating integration issues from mixed suppliers. Learn more on our EV Charger Power Solution page.
4. Case Study: YADA SPD Protects Huawei’s DC Fast Charging Project
Project Background: Huawei’s Southeast Asia DC fast charging project (200+ stations) required 40kA Imax, 25ns response, 1000V DC compatibility, and CB/CE certifications—facing frequent thunderstorms and high temperatures.
YADA’s Solution: YDF40-1000 DC SPD (1000V DC compatibility).
Results: 0 failures in 12 months; charger failure rate reduced by 90%; stable operation during severe thunderstorms. Huawei’s feedback: “YADA’s reliability and timely support are critical for our large-scale projects.”
5. YADA EV Charger SPD Product Recommendations
Two core, certified products—ready for global delivery. Click the links to view full technical specs:

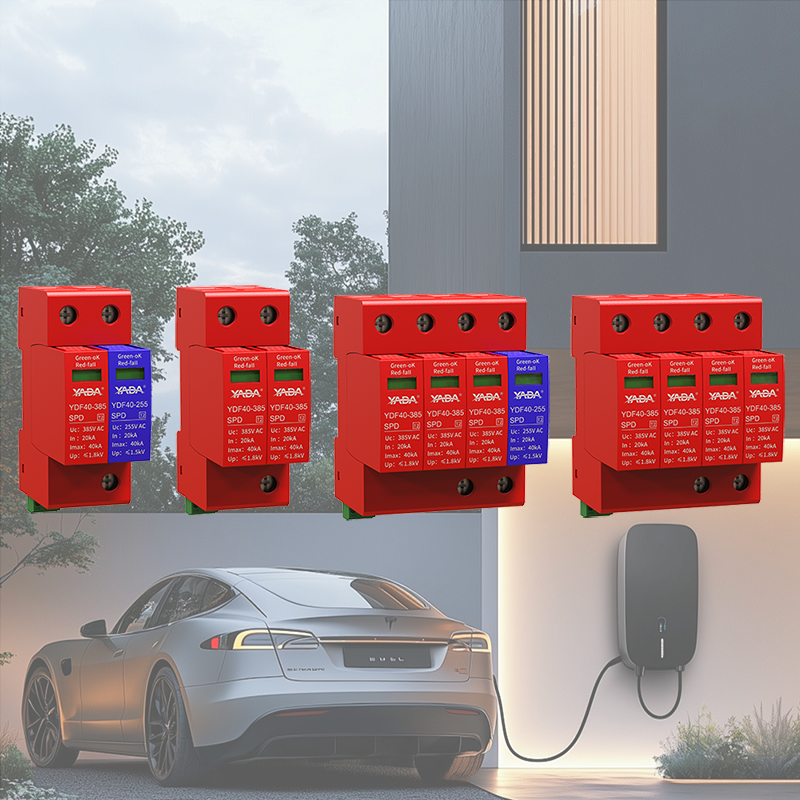

5.1 AC EV Charger SPD: Model YDF40-385/1+1
Key Parameters: 20kA In / 40kA Imax, 25ns response, 1.8kV Ur, 385V AC, IP65, CB/CE/TUV, Modbus-RTU.
Applications: AC Level 2 chargers (220V/380V), residential/commercial AC charging stations.
Learn more: YADA Industrial AC SPD Product Page

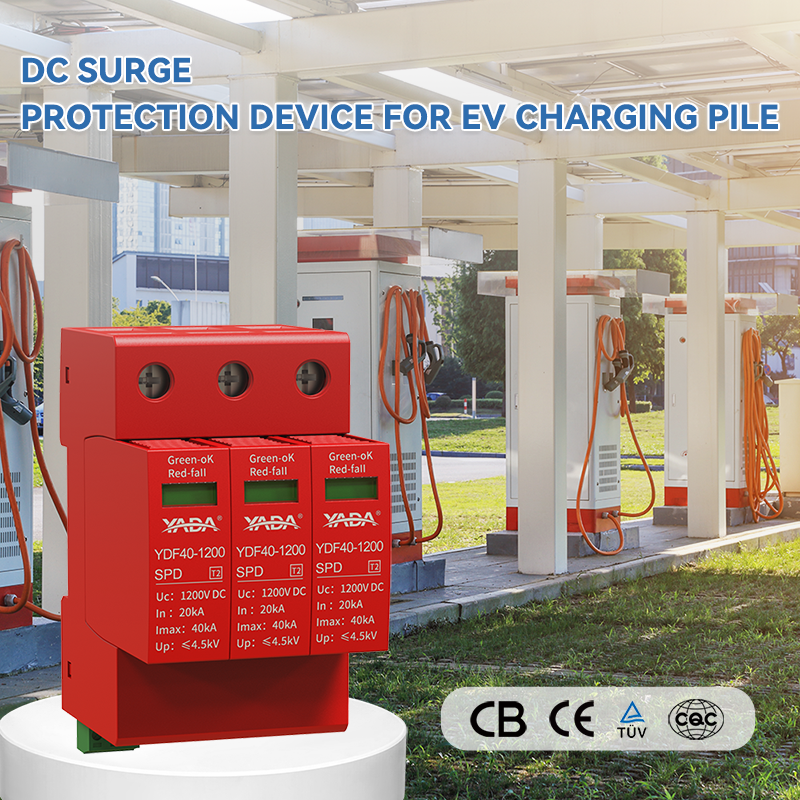

5.2 DC EV Charger SPD: Model YDF40-1000/1200
Key Parameters: 20kA In / 40kA Imax, 25ns response, 4.0kV Ur, 1000V/1200V DC, IP65, CB/CE/TUV.
Applications: DC fast chargers (500V-1200V), commercial DC charging stations, high-power charging projects.
Learn more: YADA DC SPD Product Page
6. Conclusion & Next Steps
Selecting the right SPD boils down to 4 factors: surge capacity, response time, residual voltage, and certifications. YADA’s 31 years of expertise, global certifications, and customization capabilities ensure your EV charging stations are protected long-term—with minimal downtime and cost.
Ready to Get Started?
1. Contact YADA’s engineering team for a free consultation (we’ll evaluate your project’s specific needs: charger type, power, location, certifications).
2. Request free samples (for qualified large-scale projects) to verify performance.
3. Get a tailored SPD solution—from design to installation support.
View all our EV charger SPD models: DC SPD (YDF40-1000/1200) | AC SPD (YDF40-385/1+1)
Or contact us directly to accelerate your project.
