High-Performance YADA SCT24L Split-Core Current Transformer 50 A–300 A → 10 mA Output | Compact Design for Energy Monitoring & Metering

Product Overview

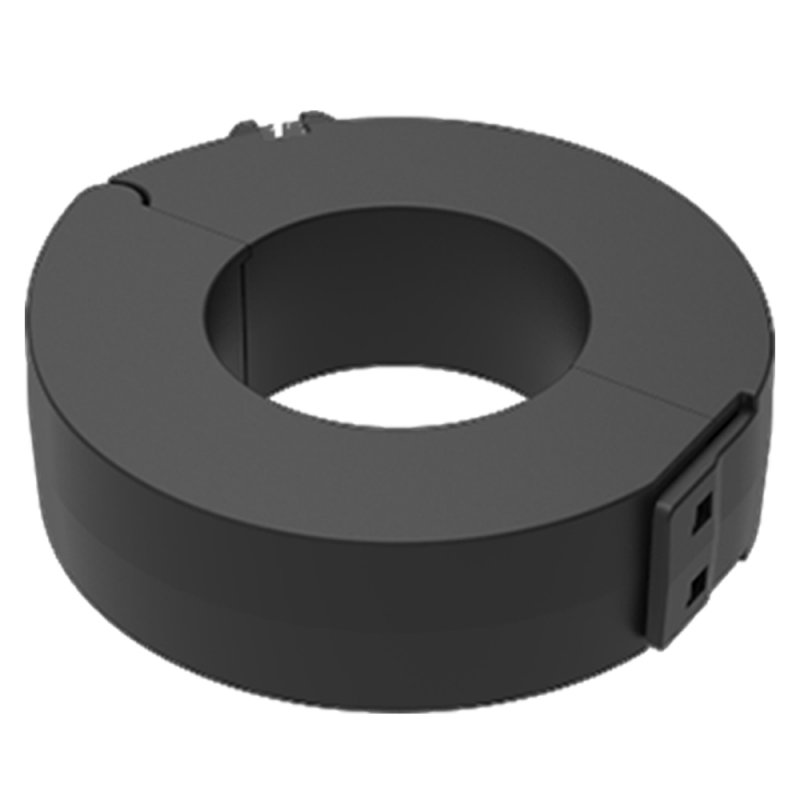

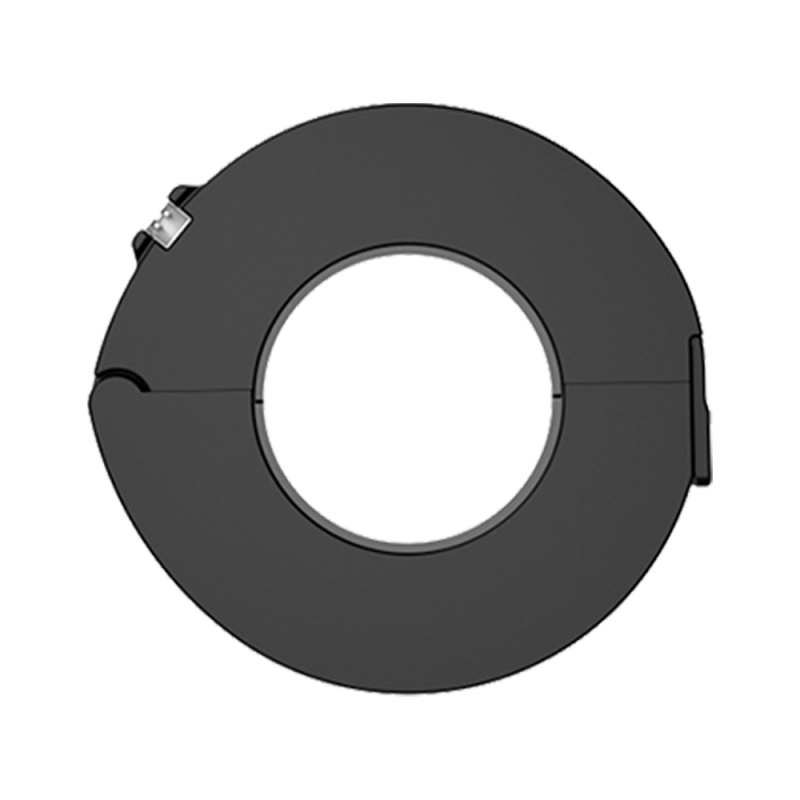

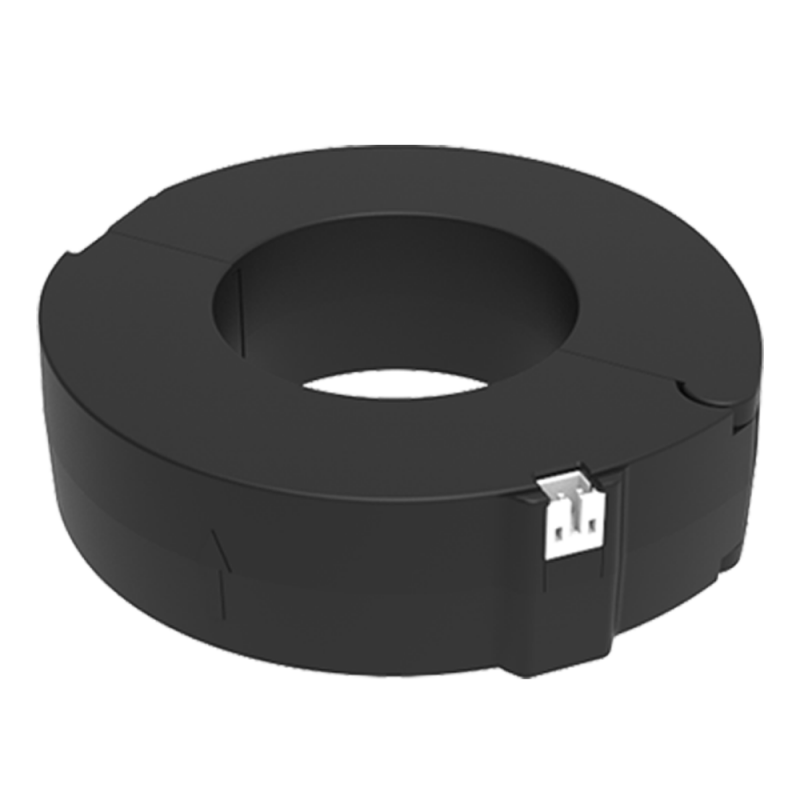

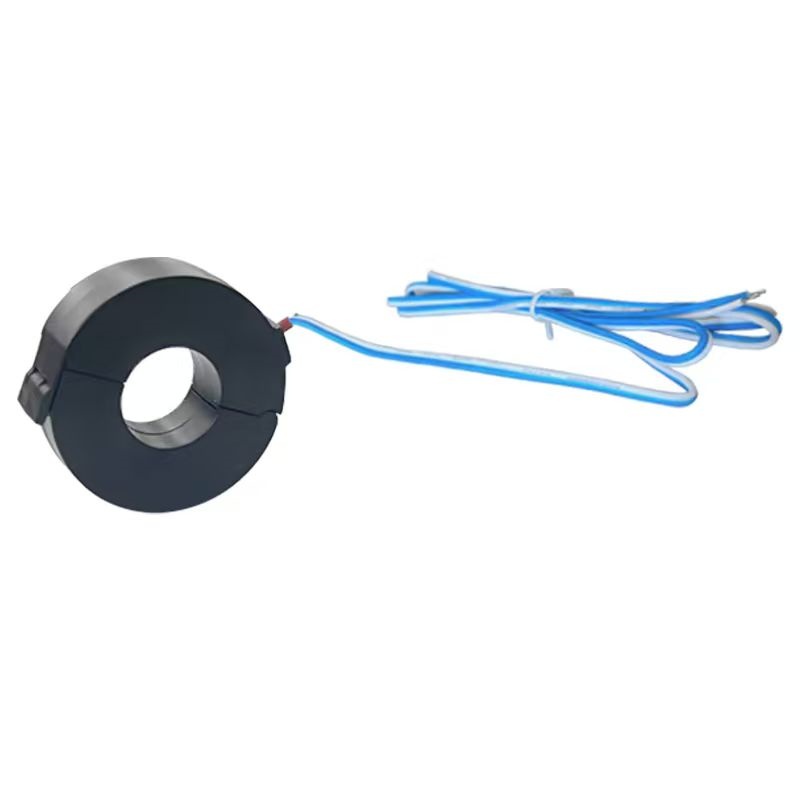

The YADA SCT24L is a split–core current transformer (CT) designed for accurate current sensing in power monitoring systems. Covering a wide primary current range of 50 A to 300 A, it outputs a precise 10 mA secondary current, making it ideal for energy management, sub-metering, industrial monitoring, and smart building applications. The split-core construction enables easy retrofitting into existing cable runs without disconnecting conductors, reducing installation downtime.

Model Description

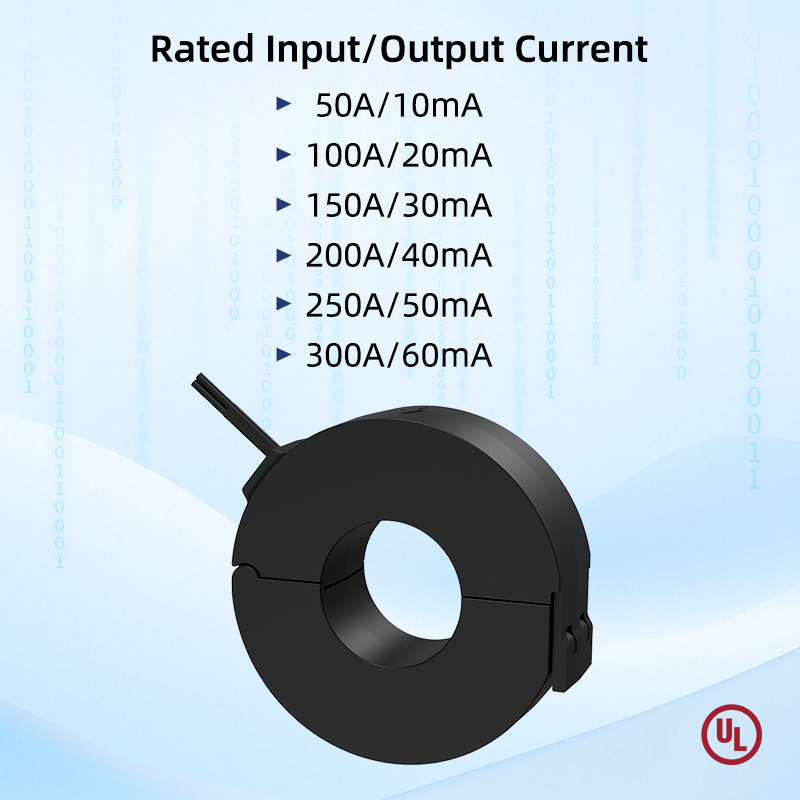

Model	Input current	Output current	Aperture(mm)	Accuracy
SCT24L-5K-50	50A	10mA	24	0.5
SCT24L-5K-100	100A	20mA	24	0.5
SCT24L-5K-150	150A	30mA	24	0.5
SCT24L-5K-200	200A	40mA	24	0.5
SCT24L-5K-250	250A	50mA	24	0.5
SCT24L-5K-300	300A	60mA	24	0.5

Technical Specifications

Parameter	Typical Value / Options
Model	SCT24L
Transformer Type	Split-Core Current Transformer
Primary Current Range	50 A – 300 A (client to specify operating range)
Secondary Output	10 mA – 60mA
Accuracy Class	Class 0.5
Frequency	50 / 60 Hz
Insulation / Safety Rating	2.5 kV isolation (1 min @ 50 Hz) for robust electrical safety
Operating Temperature	-40 °C to +50 °C
Mounting Style	Split-core
Lead Length / Connection	Standard long leads, facilitating the connection of monitoring equipment
Certification / Compliance	UL / CAN / CSA compliance under CAN/CSA-C61869 and IEEE C57.13 standards.

Key Features

• Wide Measurement Range: Primary current from 50 A up to 300 A, supporting different load scenarios.

• Low Secondary Current (10 mA): Provides a low-current analog signal, minimizing burden on your monitoring devices and making it compatible with low-current input meters or controllers.

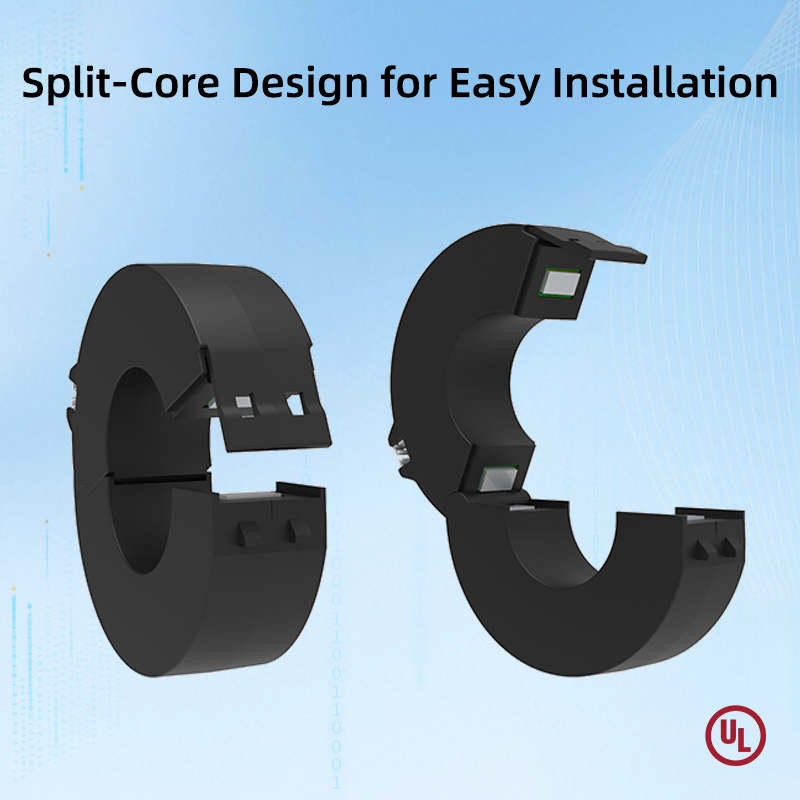

• Split-Core Design: Easy “clamp-on” installation; no need to break the circuit or shut down power, ideal for retrofits.

• High Accuracy and Stability: Class 0.5，Engineered for reliable performance in long-term monitoring.

• Robust Insulation: Durable housing and insulation ensure safe operation in industrial or commercial environments.

• Compact Form Factor: Small footprint to fit within tight spaces in panels or enclosures.

• Export-Friendly Manufacturing: Produced in a dedicated export-oriented factory — competitive FOB pricing, OEM / ODM options available.

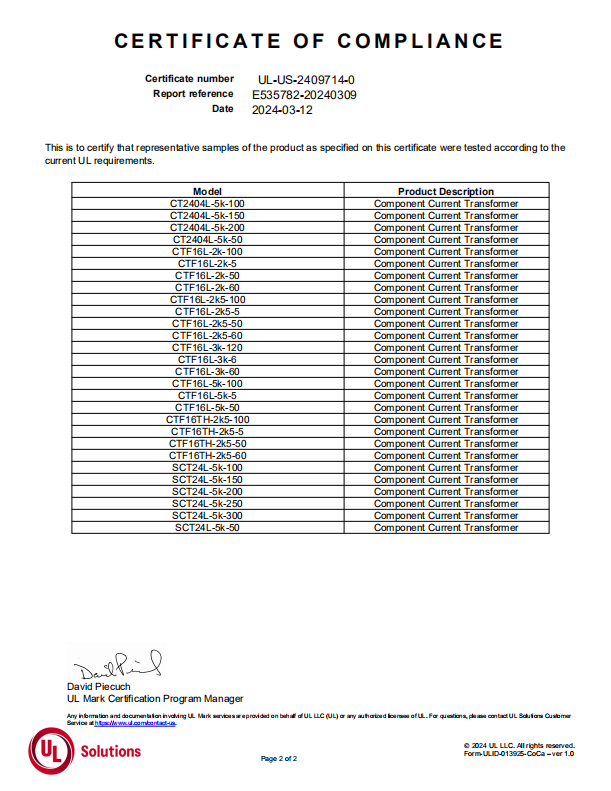

UL Certified

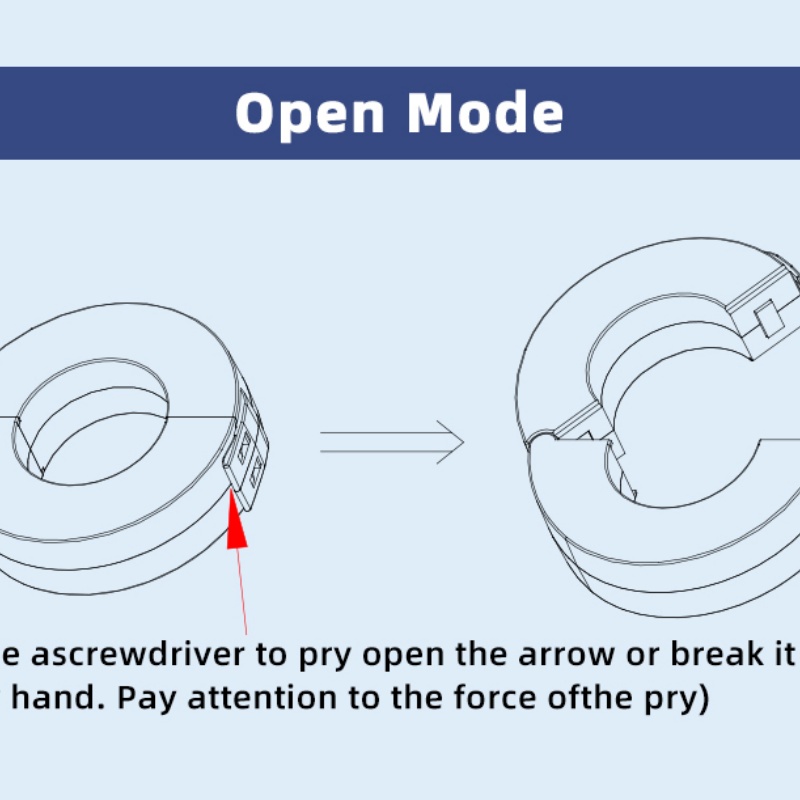

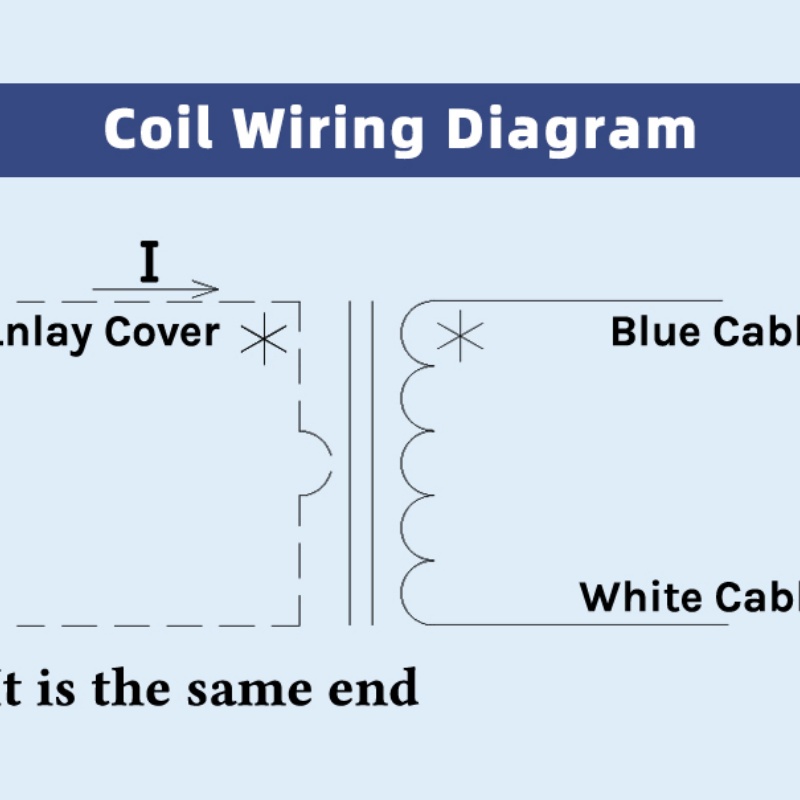

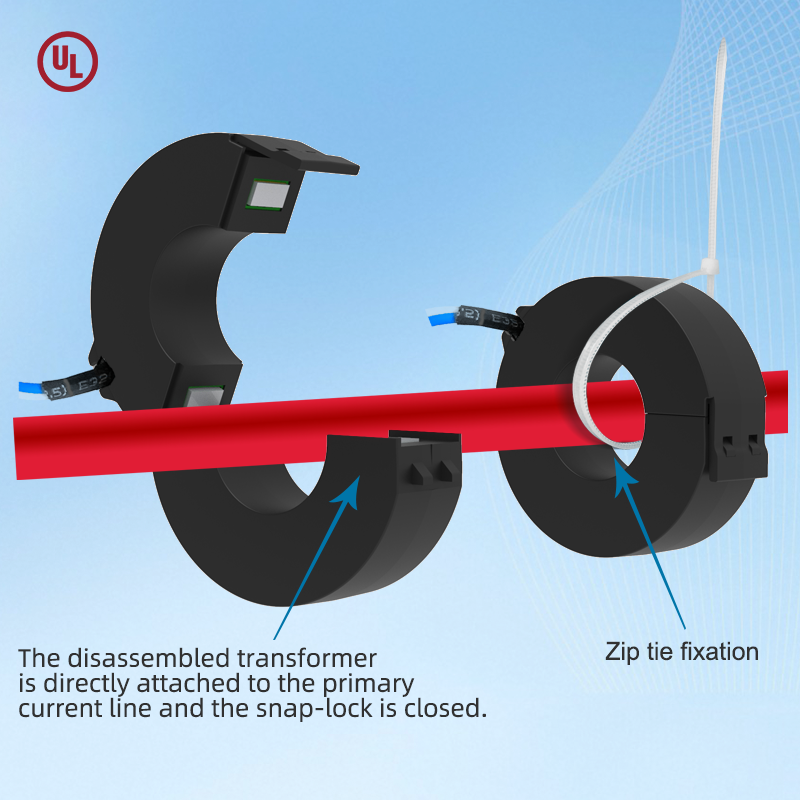

Installation & Wiring

Typical Applications

• Energy management systems (EMS) in commercial buildings

• Sub-metering for tenant billing or departmental load tracking

• Industrial power panel monitoring and load analysis

• Smart grid and data logging systems for power consumption

• Retrofitting into existing installations without power interruption

Advantages for B2B Buyers

1. Easy Retrofit: Its split-core clamp design allows installation on live cables without disconnection, reducing labor and downtime.

2. Low Burden Monitoring: The 10 mA output reduces the loading effect on meters, making it suitable for sensitive analog input devices.

3. Flexible Sourcing: As a factory-direct manufacturer, we offer competitive pricing, custom options, and export support.

4. Scalability: Suitable for both small installations (single panel) and large-scale deployment (multiple CTs for building-wide energy monitoring).

5. Reliable Performance: Engineered for long operational life with stable output, minimizing maintenance and calibration needs.

Support & Customization

We provide OEM / ODM services: you can customize parameters such as primary current range, secondary output, lead wire length, label / marking, and accuracy class. Additionally, our export-oriented sales and technical teams are available to support your design, certification, and integration needs.
