YADA CT Series – High Precision Miniature Current Transformer (5A to 200A)
Optimize your power measurement systems with the YADA CT Series. Engineered for industrial-grade precision and reliability, these miniature current transformers (CTs) convert high primary currents (5A–200A) into precise secondary signals (10mA–100mA), making them the perfect interface for energy meters, PLC controllers, and smart monitoring systems.

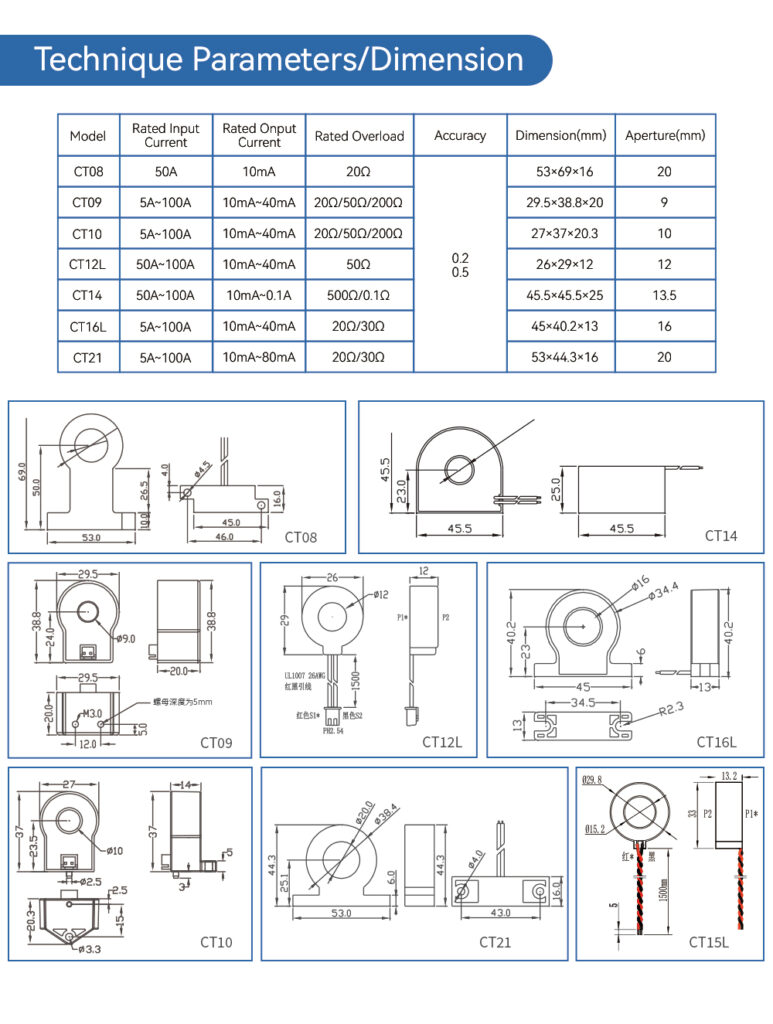

Product Overview & Core Specifications

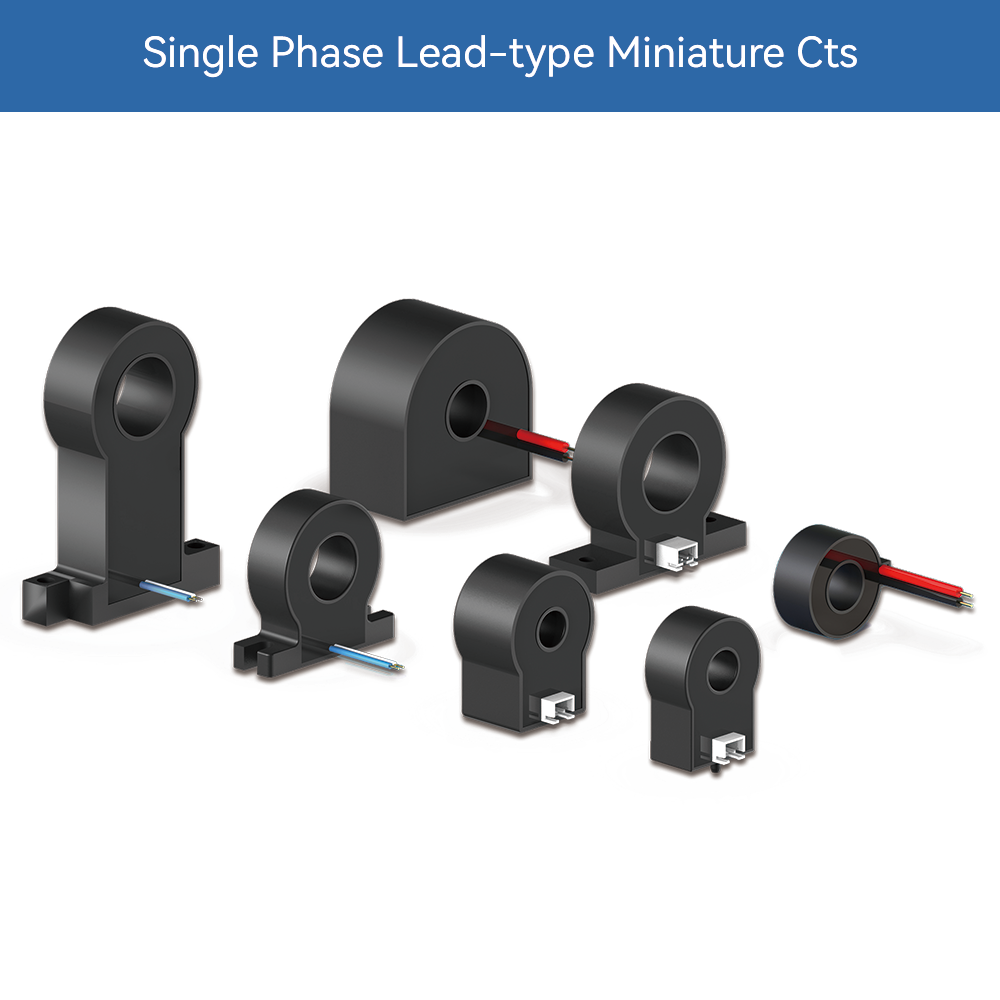

The YADA CT Series is a single-phase, lead-wire type miniature instrument transformer designed for space-constrained industrial environments. With an accuracy class of up to 0.2, it ensures minimal error in critical data acquisition.
Core Technical Data:
| Parameter | Specification |
|---|---|
| Input Current Range | 5A – 200A AC |
| Output Current Range | 10mA – 100mA |
| Accuracy Class | Class 0.2 / Class 0.5 |
| Rated Voltage | 0.66kV (660V) |
| Operating Frequency | 50Hz / 60Hz |
| Insulation Material | Flame-retardant Plastic + Epoxy Resin Potting |
| Temperature Range | -40°C to +70°C |
| Altitude Capability | ≤4000m |

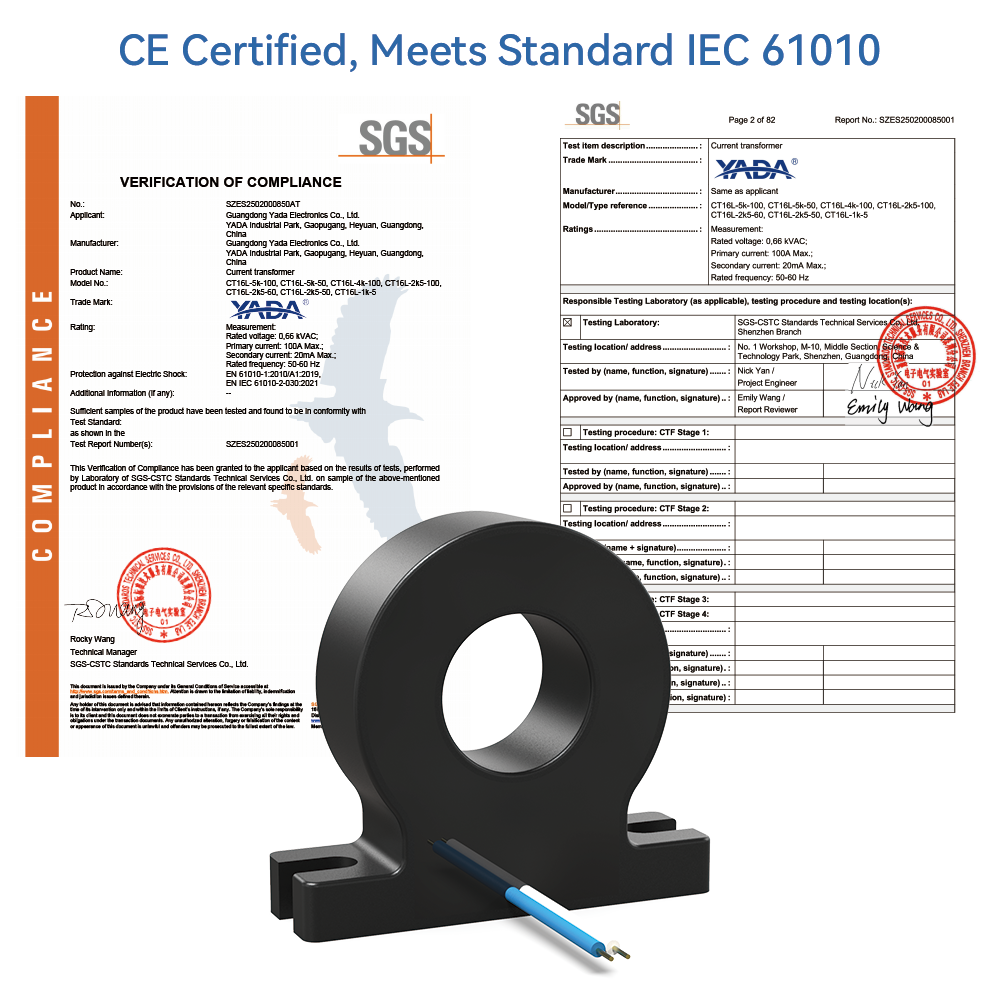

| Certifications | CE, LVD, IEC 61010 |
Key Advantages (Why Choose YADA?)
- Ultra-High Precision (Class 0.2): Delivers laboratory-grade measurement accuracy for billing and high-end industrial automation.
- Built-in Open-Circuit Protection: Features an integrated safety device to prevent high-voltage spikes during secondary open circuits, protecting both your equipment and personnel.
- Advanced Insulation Technology: Vacuum-filled with high-grade epoxy resin, offering superior moisture resistance, anti-vibration properties, and electrical insulation.
- Durability in Harsh Environments: Fully operational from -40°C to +70°C and tested for high-altitude performance (up to 4000m), ensuring stability in diverse geographical locations.
- Flame-Retardant Safety: Encased in high-impact, flame-retardant housing for maximum fire safety and a professional aesthetic.
Applications
The YADA CT Series is widely used in:
- Industrial Automation: Real-time current monitoring for PLCs and SCADA systems.
- Smart Energy Management: Sub-metering for data centers, telecom base stations, and commercial buildings.
- Power Quality Analysis: Harmonics measurement and load balancing in low-voltage distribution.
- IoT Power Sensors: Integration into smart grid hardware and wireless monitoring nodes.
Customization & OEM Services
As a leading power measurement solution provider, Yada offers full customization to meet your project-specific needs:
- Customized rated current (Primary/Secondary)
- Specific lead-wire lengths and connector types
- Private labeling and custom housing colors
- Phase shift and linearity optimization
Looking for a Reliable CT Supplier for Your Next Project?
Contact our engineering team today for a technical consultation or a quick quote. We provide samples within 7 days and volume discounts for bulk industrial orders.
