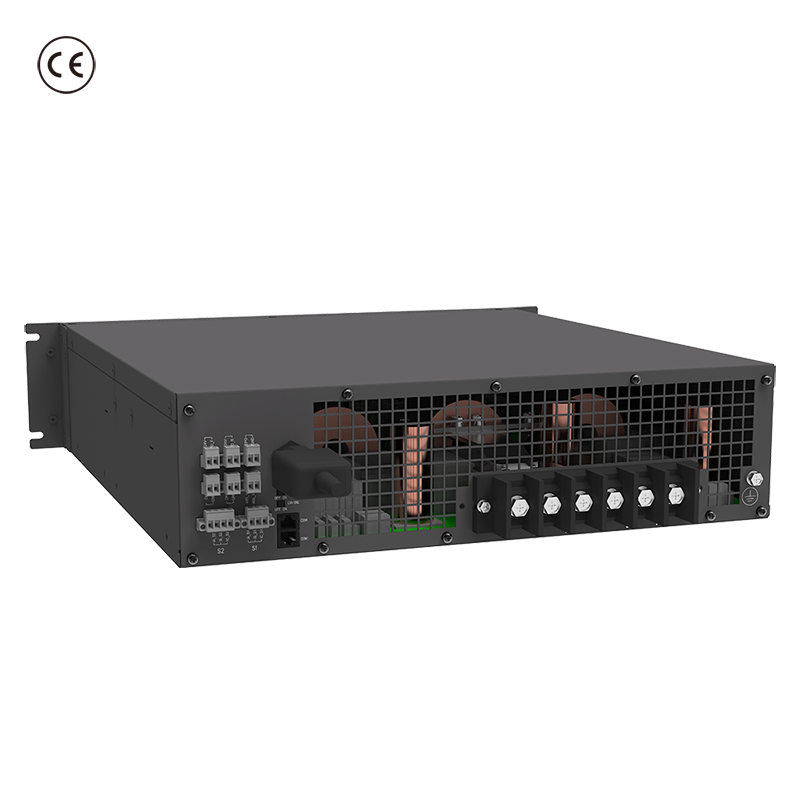

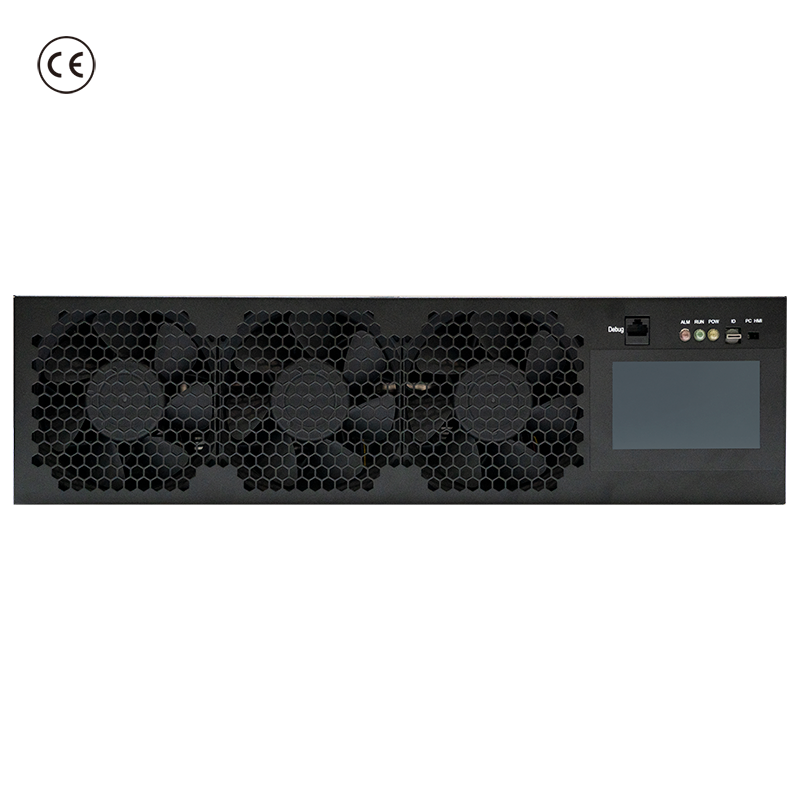

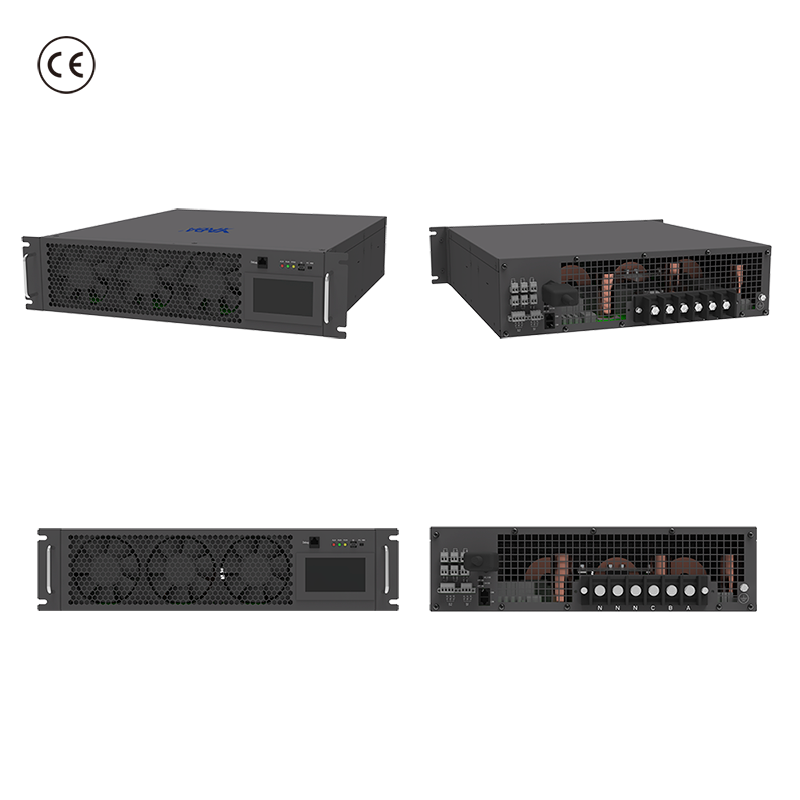

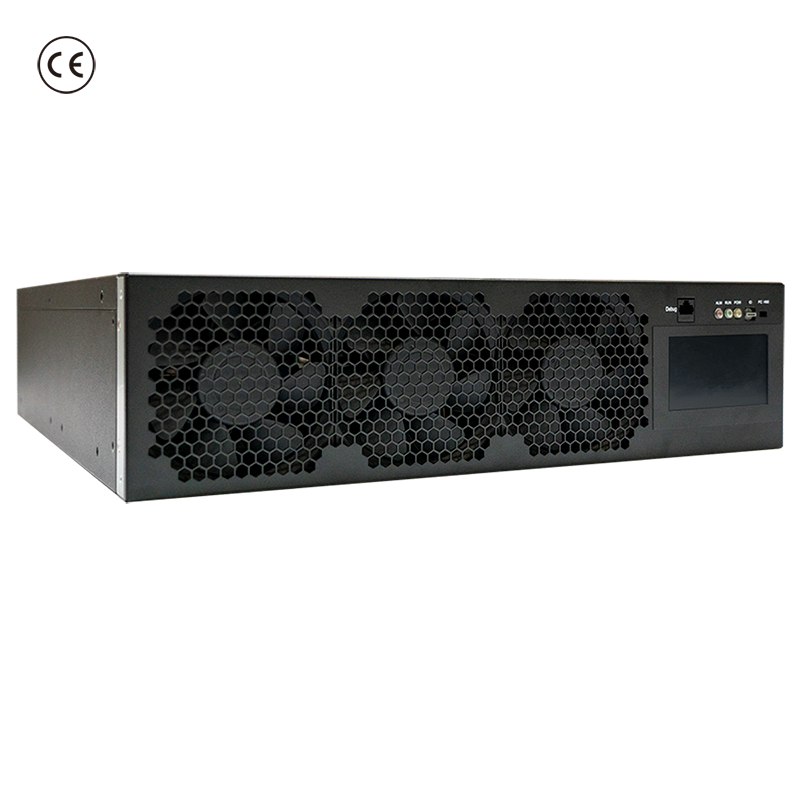

YADA Active Harmonic Filter (AHF) 400V, Anti-Pollution Standard, 3-Phase, Modular Design – Harmonic Mitigation Solution for Industrial Power Systems

Product Overview

The YADA Active Harmonic Filter (AHF) is a high-performance harmonic mitigation device designed to efficiently reduce harmonic distortion in industrial power systems. Operating at 400V, the AHF provides superior power quality solutions, filtering out both voltage and current harmonics, thus ensuring enhanced power system harmonic control and compliance with industry standards. This modular active harmonic filter is equipped with advanced anti-pollution technology, making it ideal for industrial applications in harsh environments.

Module Parameters
Voltage Class	400VAC
Current Class	AHF 50A	AHF 75A	AHF 100A	AHF 150A	AHF 200A
Power Class	SVG 35kvar	SVG 50kvar	SVG 75kvar	SVG 100kvar	SVG 150kvar
System Parameters
Input Voltage	400VAC (-20% ~ +15%)
Frequency	50Hz / 60Hz
The number of parallel units	≤16 Unit
Ploss	< 2%, stable under working conditions
Power Grid	3P4W or 3P3W
CT	150:5 ~ 10,000:5
Performance Standards
Filtering Range	2~50 Order
Filtering Capability	THDi＜5%（Rated load, THDu < 1%
Fast response time	< 50μs
Response Time	< 5ms
Target Power Factor	­1 to +1
Noise Level	< 60dB
Communication Control
Communication Port	RS485, network interface
Communication Protocol	Modbus, TCP/IP, CAN
Indicators	4.3 inch Screen, LED Indicator
Mechanical Properties
Mounting Method	Wall Mount / DIN rail Mount
Dimensions	500mmX550mmX130mm
Net Weight	25kg	27kg	29kg	32kg	35kg
Color	Industrial black (customizable)
Environment Requirements
Altitude	≤1500m；1500m~4000m
Operating Temperature	-40°C ~ +55°C
Humidity	5% ~ 95%,without condensation
Protection Level	IP20
Applicable Standards
International Standards	IEEE 519, IEC61000-3-6, ER GS/4
Safety Standards	DL/T 1216-2019

Key specifications

• Voltage Rating: 400V

• Phase Configuration: 3-Phase Harmonic Filter

• Current Range: 25A – 150A (depending on the model)

• Frequency: 50/60Hz

• Technology: Active Harmonic Filter (AHF) with Anti-Pollution Standard

• Modular Design: Customizable for varying power capacities

• Compliance: Meets international standards for harmonic distortion reduction and power quality.

---

Product Advantages

1. Efficient Harmonic Mitigation: The AHF is a cutting-edge harmonic mitigation device, reducing total harmonic distortion (THD) to ensure smoother operation and enhanced equipment longevity.

2. Advanced Anti-Pollution Design: Built with anti-pollution technology, this active harmonic filter performs reliably even in harsh industrial environments with dust, chemicals, and pollution, ensuring long-term stability.

3. Modular Flexibility: The modular design offers scalability, allowing the filter to adapt to systems of varying sizes, from small commercial setups to large industrial power systems.

4. Real-Time Monitoring: Equipped with monitoring features, the filter provides real-time insights into system health, enabling swift action to maintain optimal performance.

5. Cost-Effective Solution: By mitigating harmonic distortion and improving power quality, the YADA AHF reduces energy loss and maintenance costs, making it a cost-effective solution for long-term power system efficiency.

---

Key Features & Selling Points

• Active Harmonic Filter Technology: Reduces both voltage and current harmonic distortion, ensuring that the system operates efficiently and equipment remains protected.

• Industry-Leading THD Reduction: Achieves up to 30% reduction in total harmonic distortion (THD), leading to improved power quality and smoother operation.

• Easy Installation and Integration: Its modular active harmonic filter design makes installation quick and easy, minimizing downtime and integrating seamlessly into existing systems.

• Robust Environmental Protection: Designed with anti-pollution capabilities to withstand harsh environments, ensuring consistent performance in industrial settings.

• Global Compliance: Meets global standards for power system harmonic control and harmonic distortion reduction, including IEEE 519 and IEC 61000-4-7, ensuring hassle-free certification.

---

Applications

• Industrial Power Systems: The AHF is a perfect solution for factories, manufacturing plants, and energy-intensive industries where harmonic mitigation and power quality solutions are critical.

• Data Centers: Ideal for maintaining stable power quality and reducing harmonic distortion in sensitive data operations.

• Renewable Energy Systems: Works seamlessly with solar, wind, and other renewable energy systems, improving system efficiency and harmonic control.

• Commercial Buildings: Protects sensitive electrical equipment in commercial and retail environments, ensuring harmonic distortion reduction.

---

Why Choose YADA AHF?

1. Guaranteed Performance: YADA’s Active Harmonic Filter technology is designed for superior harmonic distortion mitigation, ensuring the highest power quality solutions for your systems.

2. Flexible Solutions: The modular design makes the AHF adaptable for systems of all sizes, offering a scalable and customizable solution for different industrial power requirements.

3. Global Reach: Trusted worldwide for its performance and durability, YADA’s modular active harmonic filter has been deployed in numerous industries, including manufacturing, data centers, and renewable energy.

4. Expert Support: Our team of experts provides pre-sale consultations, technical assistance, and after-sale services, ensuring smooth integration and ongoing system optimization.

Ready to improve your power system’s efficiency? The YADA Active Harmonic Filter (AHF) is your solution to harmonic distortion reduction and power quality optimization. Contact us today for a consultation or request a tailored quote based on your specific needs.
