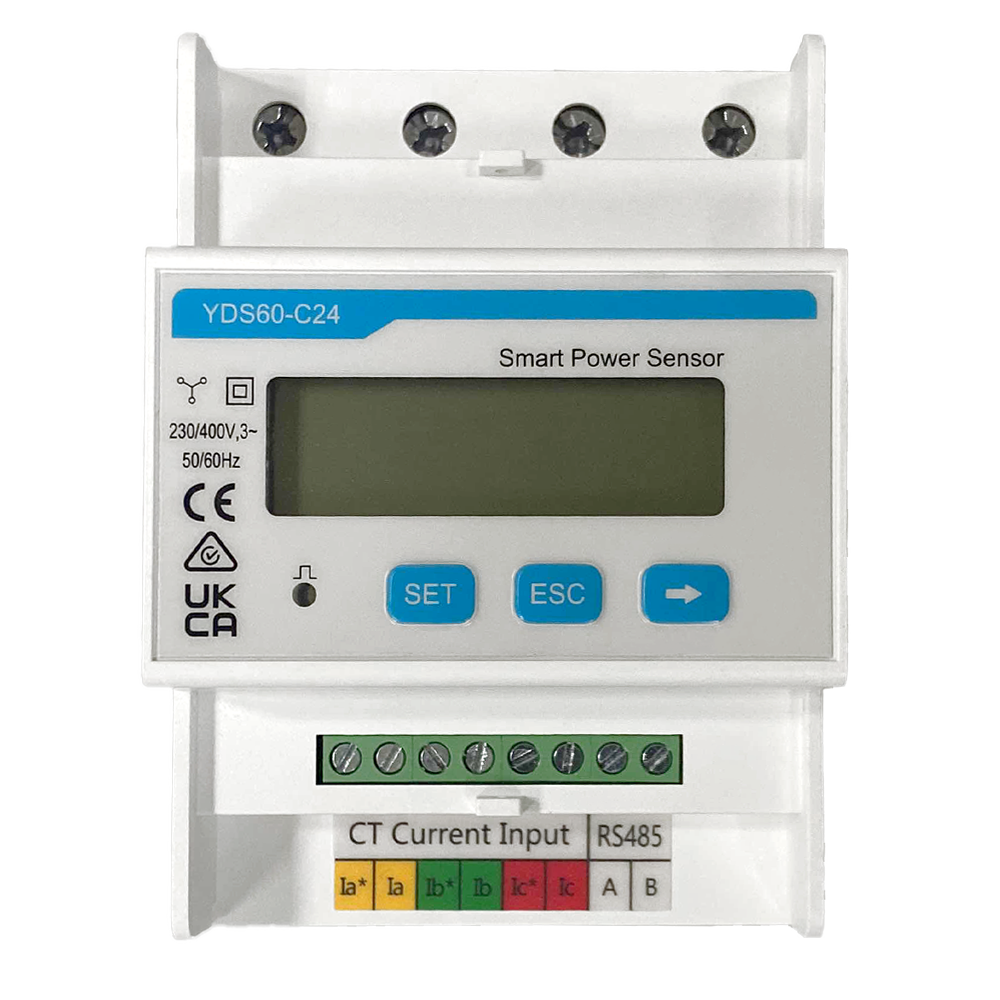

Product Overview
The YADA YDS60-C24 is a high-precision, three-phase smart power sensor designed for comprehensive energy monitoring in industrial and renewable energy systems. Certified with CE, UKCA, and RCM, this device ensures compliance with international safety and quality standards. Equipped with RS485 Modbus communication, it facilitates seamless integration into smart energy management systems, making it an ideal choice for solar photovoltaic (PV) installations and industrial applications requiring accurate energy measurement and monitoring.
Key Features
1. Class 1 Accuracy
Reliable three-phase energy measurement for commercial, industrial and distributed energy systems.
2. Bidirectional Energy Monitoring
Measures import and export energy for grid-tied PV, self-consumption and battery charging/discharging applications.
3. 250A CT Input
Supports external 250A/50mA CT measurement, making it suitable for distributed PV and commercial power distribution monitoring.

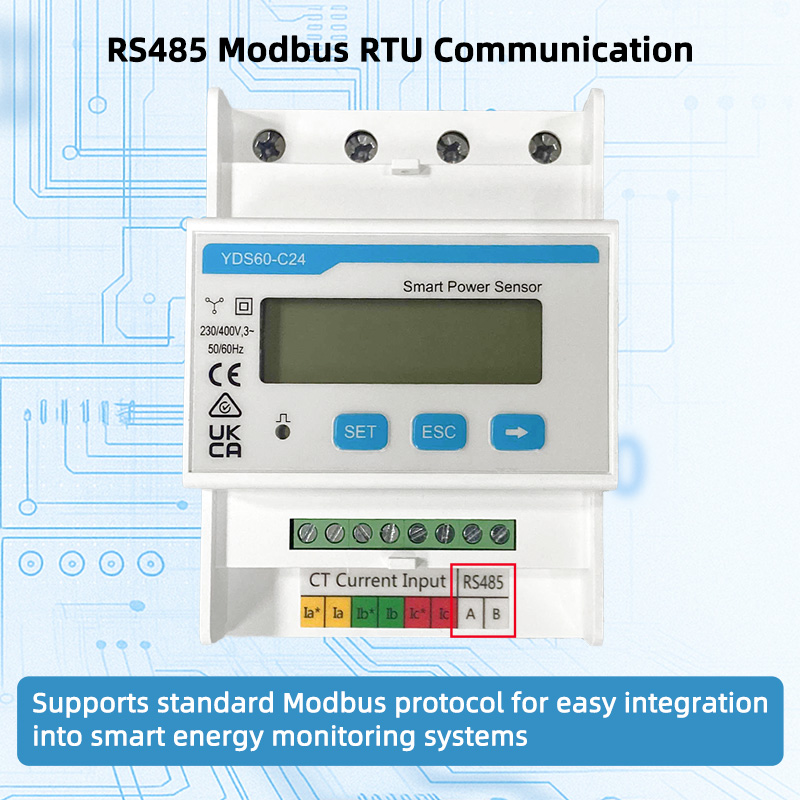

4. RS485 Modbus RTU
Provides real-time electrical data communication with EMS, inverters and other energy management systems.
5. EMS Front-End Integration
Functions as a field-level power sensing node for Solar PV, ESS and energy management applications.
Technical Specifications
| Product Name | YDS60-C24 Smart Power Sensor |
| Meter Type | 3 Phase Energy Meter |
| Model No. | YDS60-C24 |
| Brand Name | YADA |
| Display Type | LCD Display |
| Measuring Energy Range | 0-99999.99kWh |
| Phase | Three Phase |
| Accuracy Class | Class 1.0 |
| Operating Temperature | -25℃~ 60℃ |
| Communication | RS485(Modbus-RTU) |

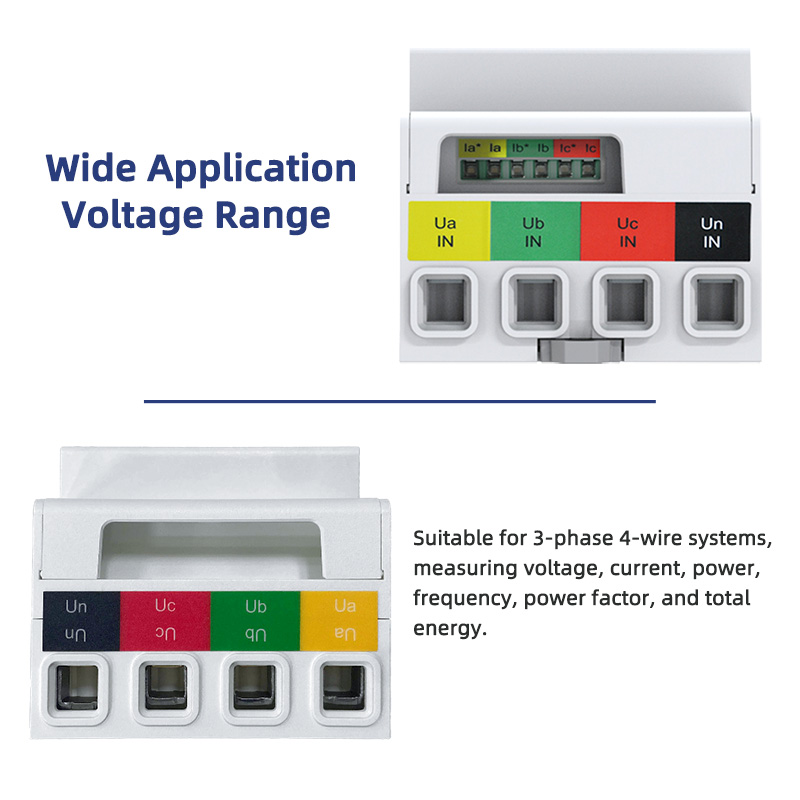

| Installation | 3-Phase 4-wire, 3-Phase 3-wire, 35mm DIN rail |
| Input current | 250A/50mA |
| Input Voltage | AC230V/400V |
| Certificate | CE/UKCA/RCM Certification(EN61010-1:2010+A1:2019, EN61010-2-030:2021+A11:2021,
EN 61326-1:2013, EN 61326-2-2: 2013) |
| Warranty | 2 Years |

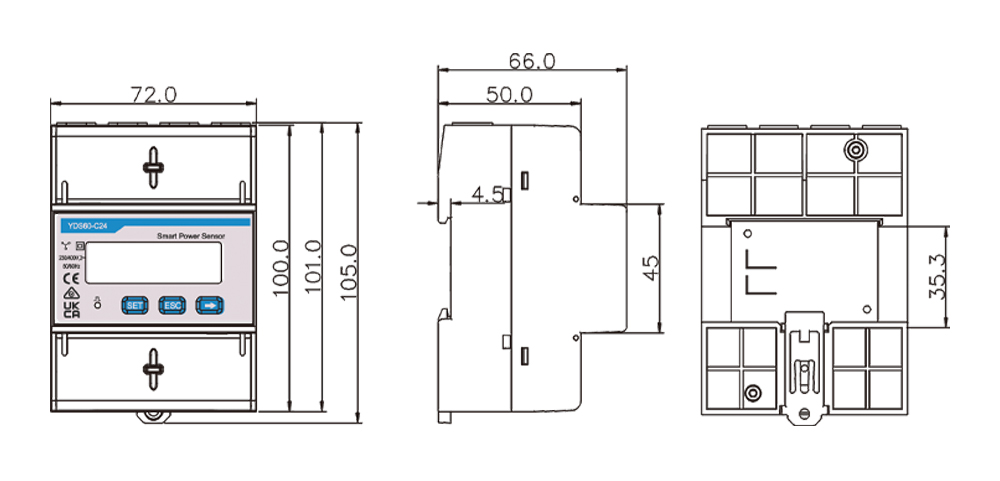

| Dimensions | 72.0mm*100.0mm*66.0mm |
| Application | Data center, Telecommunication, Charge station, Industrial, IoT, Household and other Power Management System. |
Applications
-
Solar Photovoltaic Systems: Monitor energy production and consumption in solar PV installations.
-
Industrial Energy Management: Track and optimize energy usage in manufacturing and industrial facilities.
-
Smart Grid Integration: Integrate with smart grid systems for enhanced energy distribution and management.
-
Energy Storage Systems: Monitor energy flow in battery storage solutions
Installation & Wiring

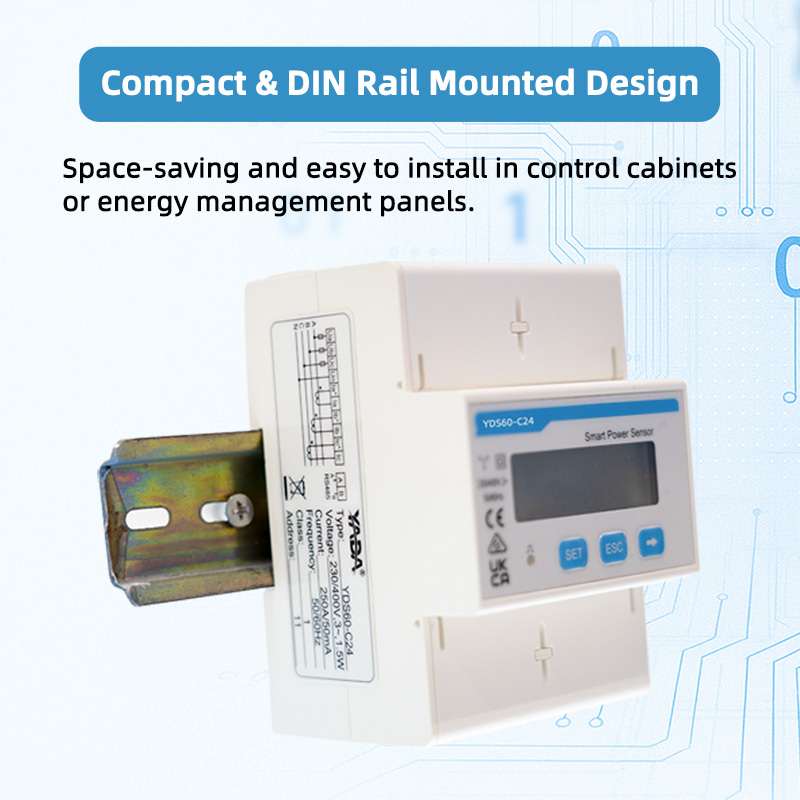

The YADA YDS60-C24 is designed for easy installation on a standard 35mm DIN rail. Ensure all power is disconnected before installation. Connect voltage and current transformer cables as per the provided wiring diagram. For RS485 communication, use a shielded twisted pair cable with a cross-sectional area of 0.25–1.5 mm². Refer to the user manual for detailed installation instructions.
Compatibility & Integration

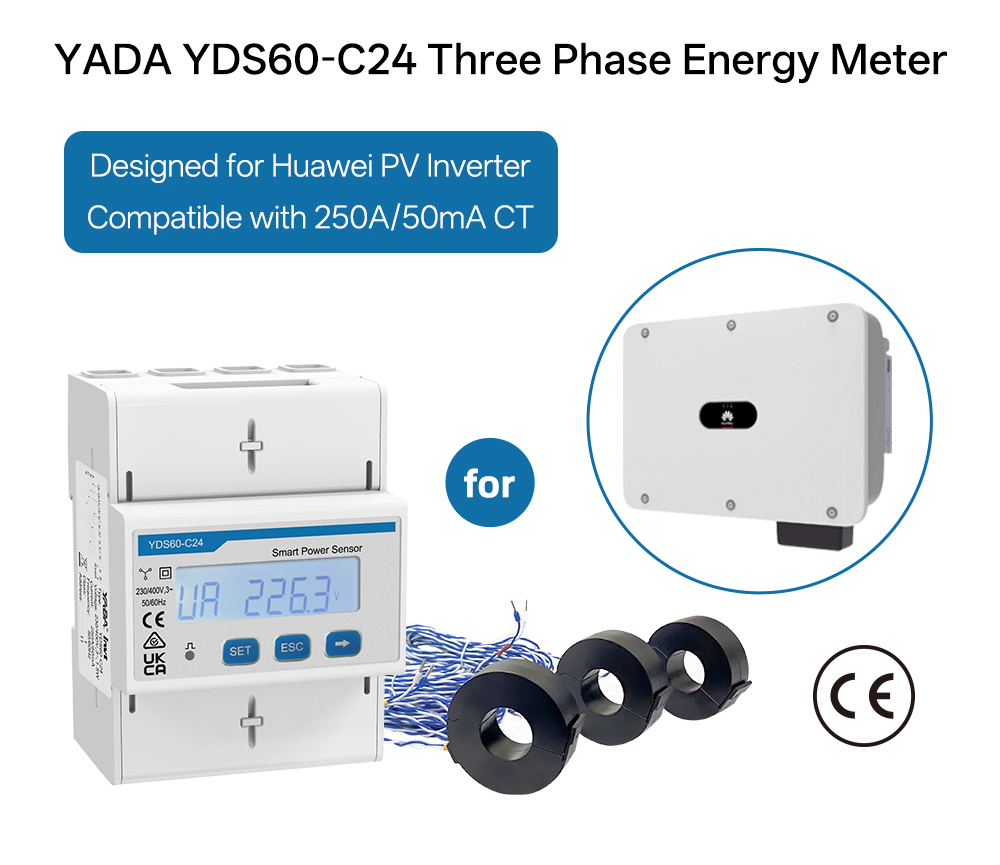

The YADA YDS60-C24 is compatible with various energy management systems and inverters, including Huawei’s FusionSolar Smart PV Monitoring System. Its Modbus RTU communication protocol ensures seamless integration with existing infrastructure. For a list of supported devices, refer to the official documentation.
Quality Assurance & Certifications
Manufactured by Guangdong Yada Electronics Co., Ltd., the YADA YDS60-C24 adheres to stringent quality control processes. It holds CE, UKCA, and RCM certifications, ensuring compliance with international safety and environmental standards.
Global Project Support
YADA provides professional power measurement and control products for industrial, commercial and new-energy applications.
With in-house R&D, manufacturing, testing and technical support capabilities, YADA supports OEM, ODM and project-based requirements.
Need a Suitable Configuration?
Send us your:
- System voltage
- Current or CT ratio
- 3P3W or 3P4W system
- Communication requirements
- Application
Our engineers can recommend the suitable meter configuration and compatible CT solution for your project.
Contact YADA for Technical Recommendation and Project Support.
