| Module Parameters | ||

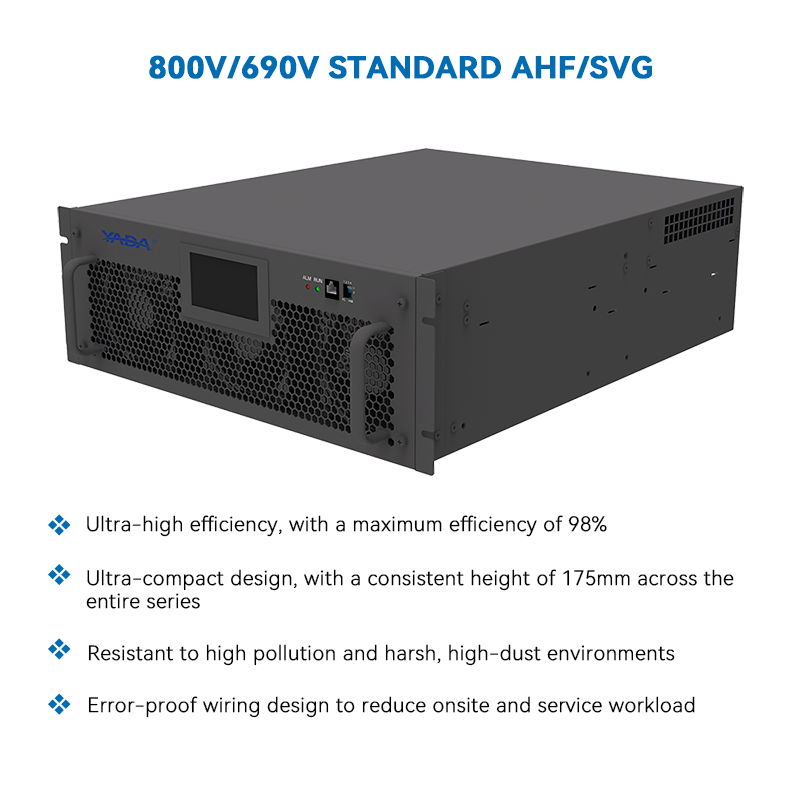

| Voltage Class | 800V | 690V |
| Current Class/Power Class | AHF 85A，SVG 120Kvar | AHF 100A，SVG 120Kvar |
| System Parameters | ||
| Input Voltage | 800V/690V（-20%~+10%） | |
| Frequency | 50Hz / 60Hz | |
| The number of parallel units | ≤16 Unit | |
| Ploss | < 2%, stable under working conditions | |
| Power Grid | 3P3W | |
| CT | 150:5 ~ 10,000:5 | |
| Performance Standards | ||
| Filtering Range | 2~50 Order | |
| Filtering Capability | THDi＜5%（Rated load, THDu < 1% | |
| Fast response time | < 50μs | |
| Response Time | < 5ms | |
| Target Power Factor | 1 to +1 | |
| Noise Level | < 60dB | |
| Communication Control | ||
| Communication Port | RS485, network interface | |
| Communication Protocol | Modbus, TCP/IP, CAN | |
| Indicators | 4.3 inch Screen, LED Indicator | |
| Mechanical Properties | ||
| Mounting Method | Wall Mount / DIN rail Mount | |

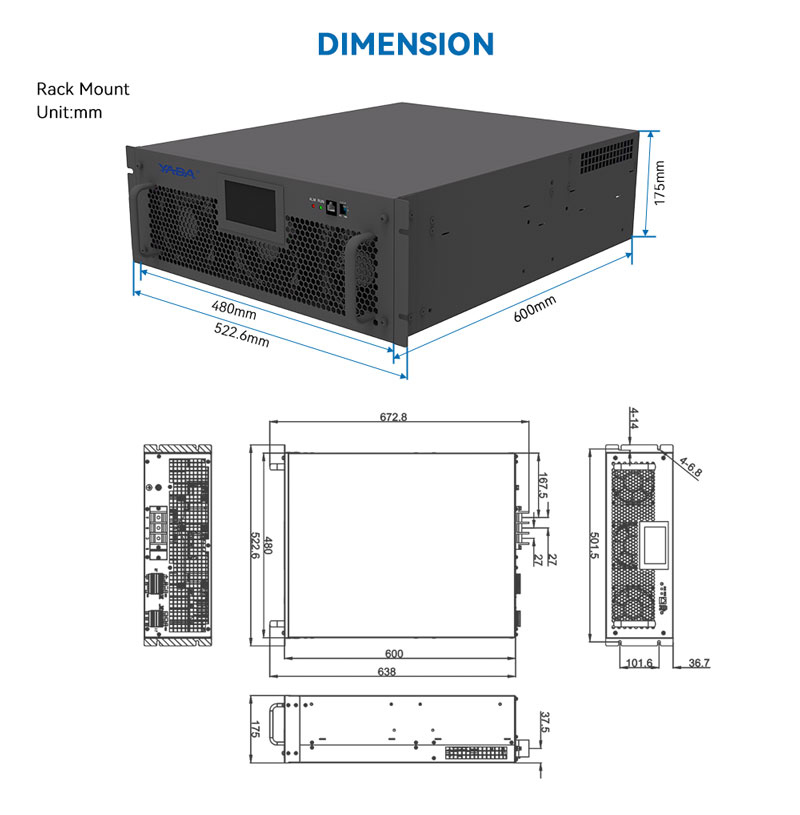

| Dimensions | 480mmX600mmX175mm | |
| Net Weight | 40kg | |
| Color | Industrial black (customizable) | |
| Environment Requirements | ||
| Altitude | ≤1500m；1500m~4000m | |
| Operating Temperature | -40°C ~ +55°C | |
| Humidity | 5% ~ 95%,without condensation | |
| Protection Level | IP20 | |
| Applicable Standards | ||
| International Standards | IEEE 519, IEC61000-3-6, ER GS/4 | |
| Safety Standards | DL/T 1216-2019 | |

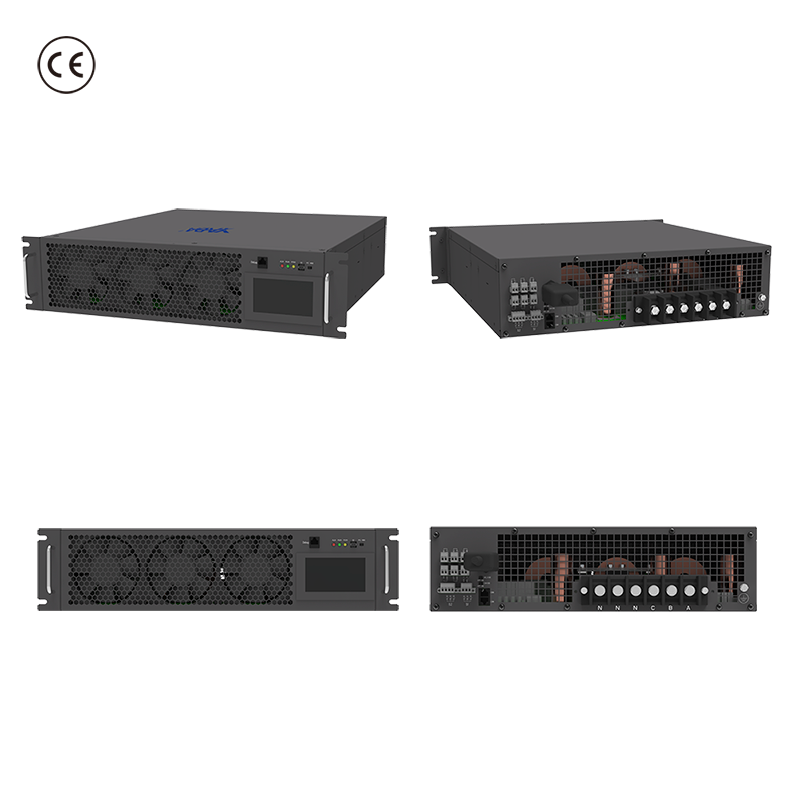

| Module Parameters | |||||
| Voltage Class | 400VAC | ||||
| Current Class | AHF 50A | AHF 75A | AHF 100A | AHF 150A | AHF 200A |
| Power Class | SVG 35kvar | SVG 50kvar | SVG 75kvar | SVG 100kvar | SVG 150kvar |
| System Parameters | |||||
| Input Voltage | 400VAC (-20% ~ +15%) | ||||
| Frequency | 50Hz / 60Hz | ||||
| The number of parallel units | ≤16 Unit | ||||
| Ploss | < 2%, stable under working conditions | ||||
| Power Grid | 3P4W or 3P3W | ||||
| CT | 150:5 ~ 10,000:5 | ||||
| Performance Standards | |||||
| Filtering Range | 2~50 Order | ||||
| Filtering Capability | THDi＜5%（Rated load, THDu < 1% | ||||
| Fast response time | < 50μs | ||||
| Response Time | < 5ms | ||||
| Target Power Factor | 1 to +1 | ||||
| Noise Level | < 60dB | ||||
| Communication Control | |||||
| Communication Port | RS485, network interface | ||||
| Communication Protocol | Modbus, TCP/IP, CAN | ||||
| Indicators | 4.3 inch Screen, LED Indicator | ||||
| Mechanical Properties | |||||

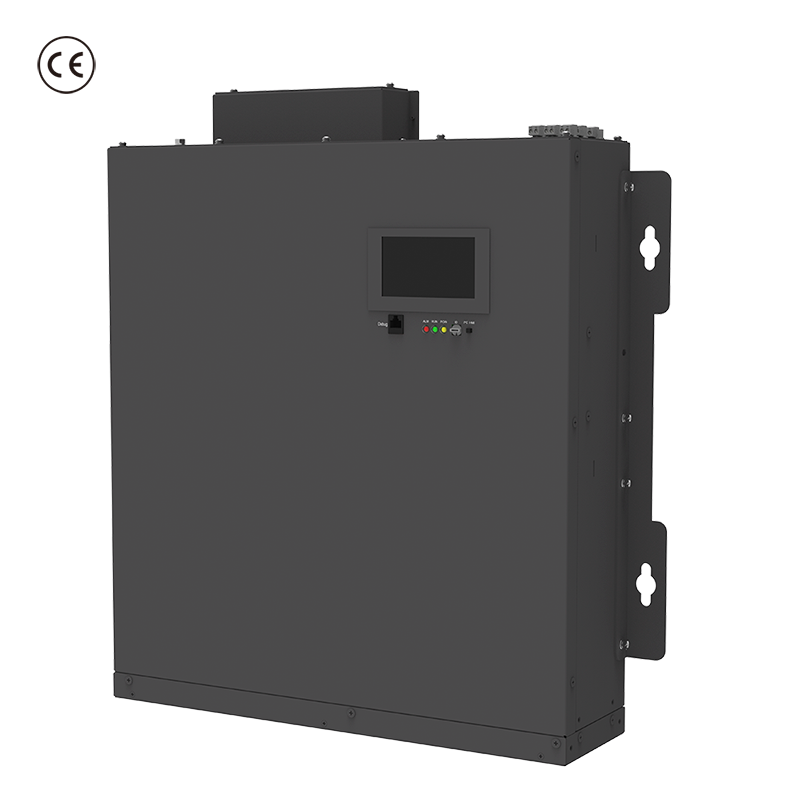

| Mounting Method | Wall Mount / DIN rail Mount | ||||

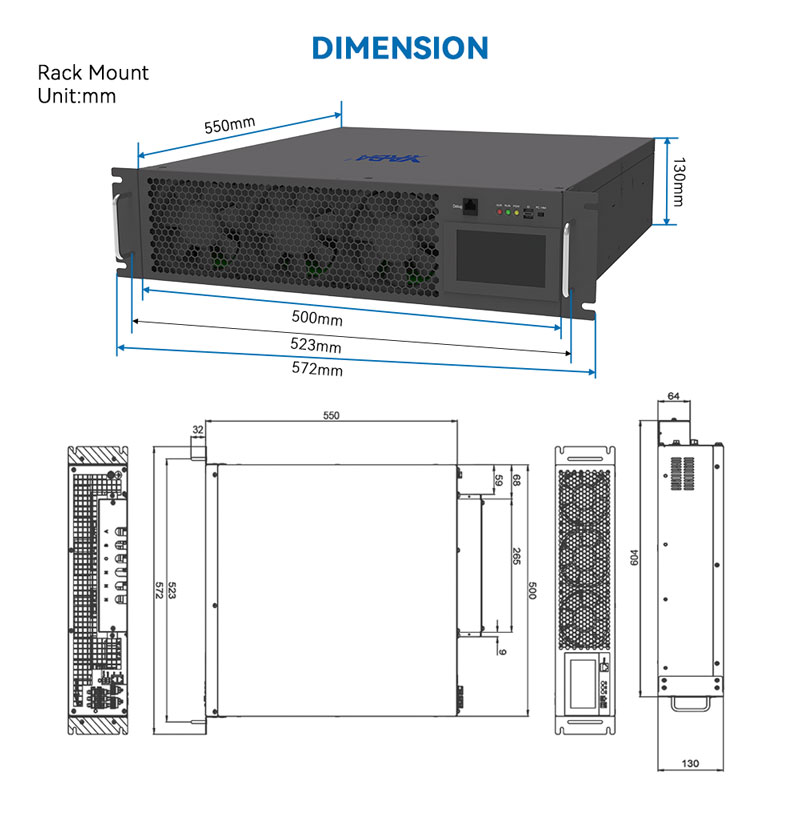

| Dimensions | 500mmX550mmX130mm | ||||
| Net Weight | 25kg | 27kg | 29kg | 32kg | 35kg |
| Color | Industrial black (customizable) | ||||
| Environment Requirements | |||||
| Altitude | ≤1500m；1500m~4000m | ||||
| Operating Temperature | -40°C ~ +55°C | ||||
| Humidity | 5% ~ 95%,without condensation | ||||
| Protection Level | IP20 | ||||
| Applicable Standards | |||||
| International Standards | IEEE 519, IEC61000-3-6, ER GS/4 | ||||
| Safety Standards | DL/T 1216-2019 | ||||

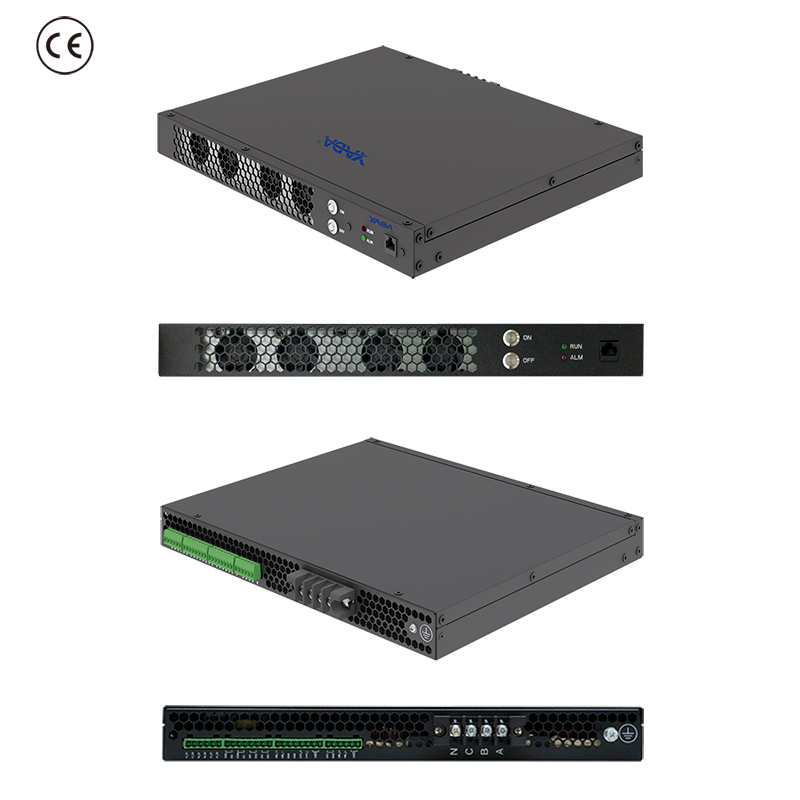

| Module Parameters | |
| Voltage | 400VAC |
| Power | AHF 15A, SVG 10kvar |
| System Parameters | |
| Input Voltage | 400VAC (-20% ~ +15%) |
| Frequency | 50Hz/60Hz (±3Hz ~ ±3Hz) |
| The number of parallel units | 1 Unit |
| Ploss | < 2%, stable under working conditions |
| Power Grid | 3P4W or 3P3W |
| CT | 150:5 ~ 10,000:5 |
| Performance Standards | |
| Response Time | < 5ms |
| Target Power Factor | 1 to +1, the sensitivity range is continuously adjustable. |
| Compensation Mode | Harmonic suppression / reactive power compensation / imbalance compensation, 11 modes can be combined arbitrarily |
| Noise Level | < 60dB |
| Communication Control | |
| Communication Port | RS485, network interface |
| Communication Protocol | Modbus, TCP/IP, CAN |
| Indicators | Mechanical keys,LED display, independent indicator lights |
| Mechanical Properties | |
| Mounting Method | Rack Mounting |

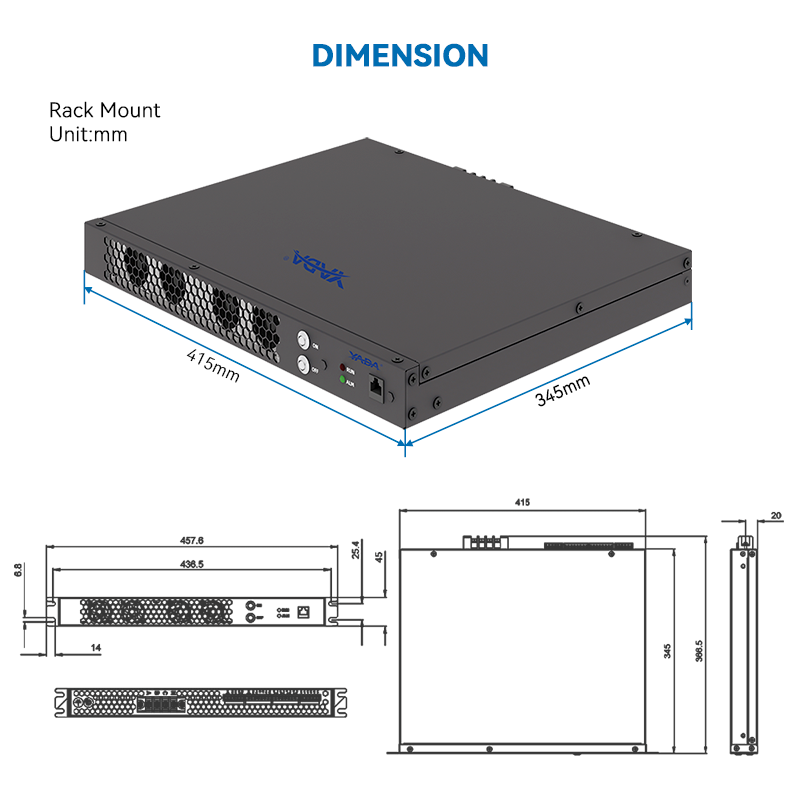

| Dimensions | 340 x 410 x 45 mm |
| Net Weight | 7.5 kg |
| Height | 45mm |
| Color | Industrial black (customizable) |
| Environment Requirements | |
| Altitude | ≤ 150m; 150m ~ 300m |
| Operating Temperature | -40°C ~ +55°C |
| Storage Temperature | -45°C ~ +70°C |
| Humidity | 5% ~ 95% |
| Protection Level | IP20 |
| Applicable Standards | |
| International Standards | IEEE 519, IEC61000-3-6, ER GS/4 |
| Safety Standards | JBT 11667-2011, DL/T 1216-2019 |
