Product Description
Overview

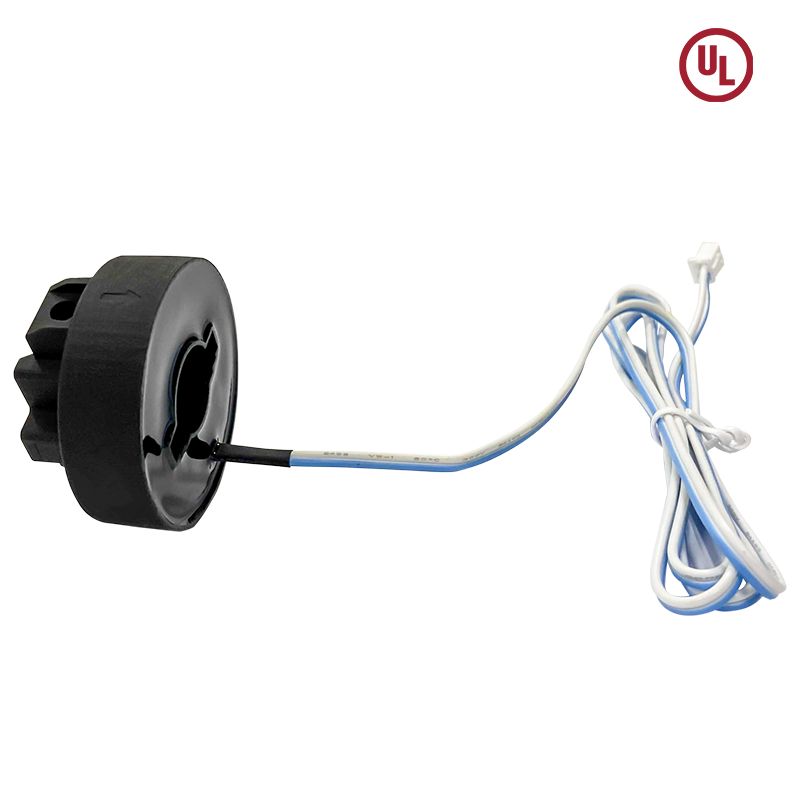

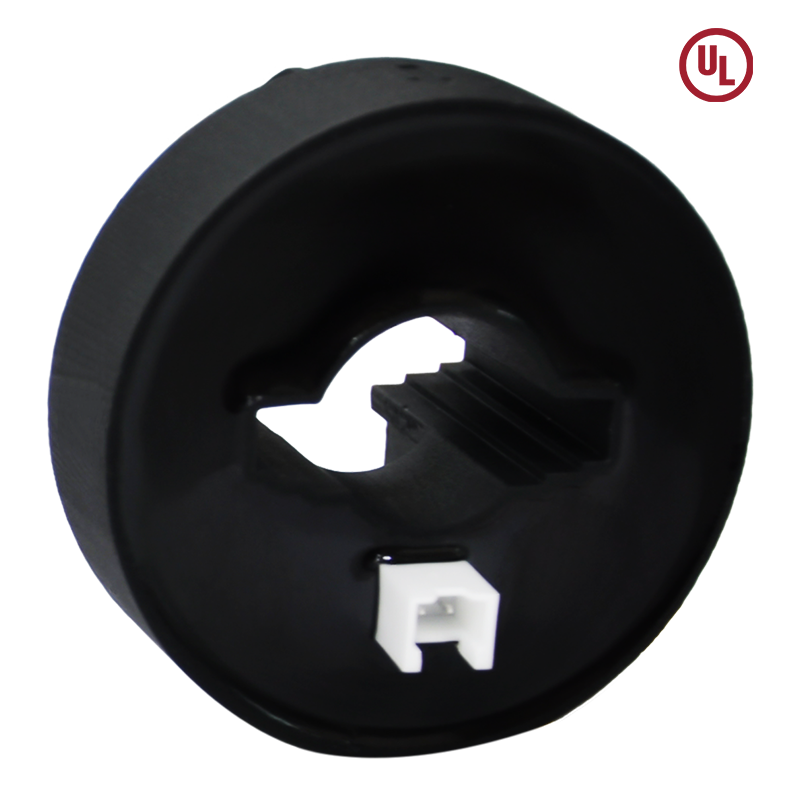

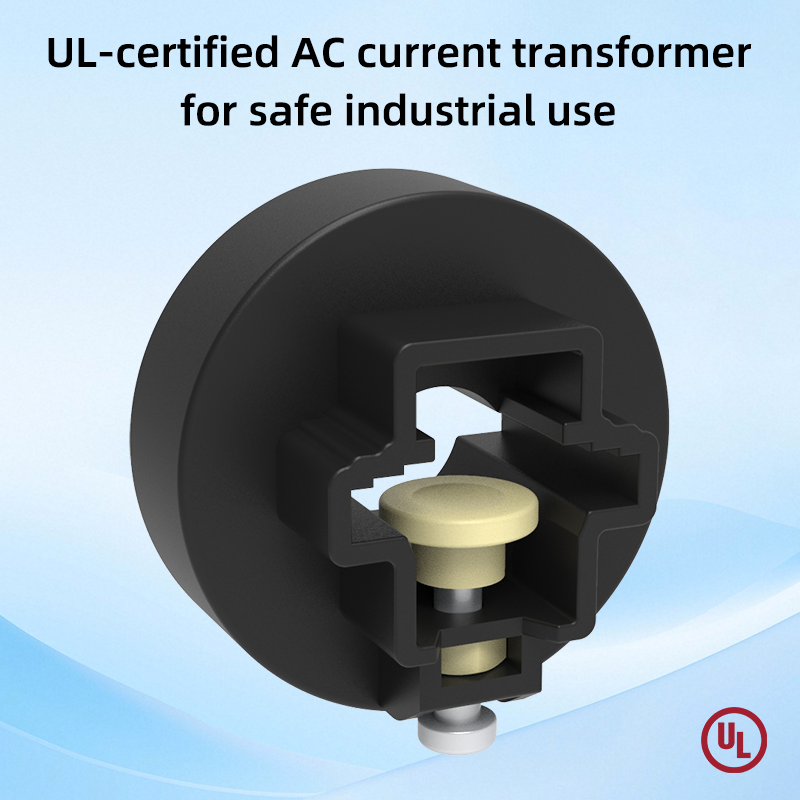

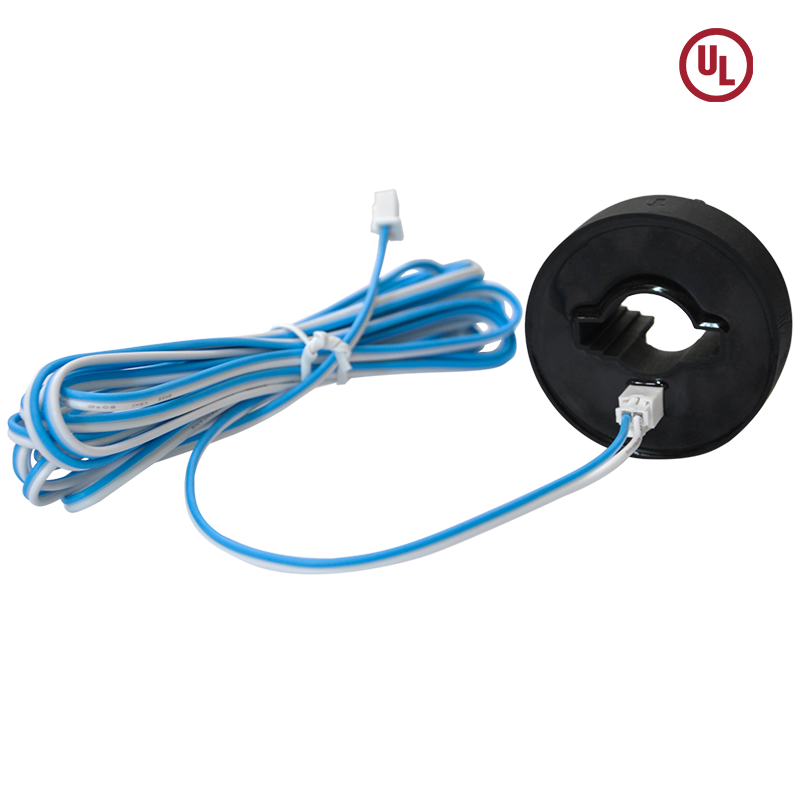

This UL-certified AC current sensor ensures industrial-grade safety and global compliance, providing reliable and stable performance for power measurement, energy monitoring, and industrial automation applications across factories, smart buildings, and renewable-energy systems.

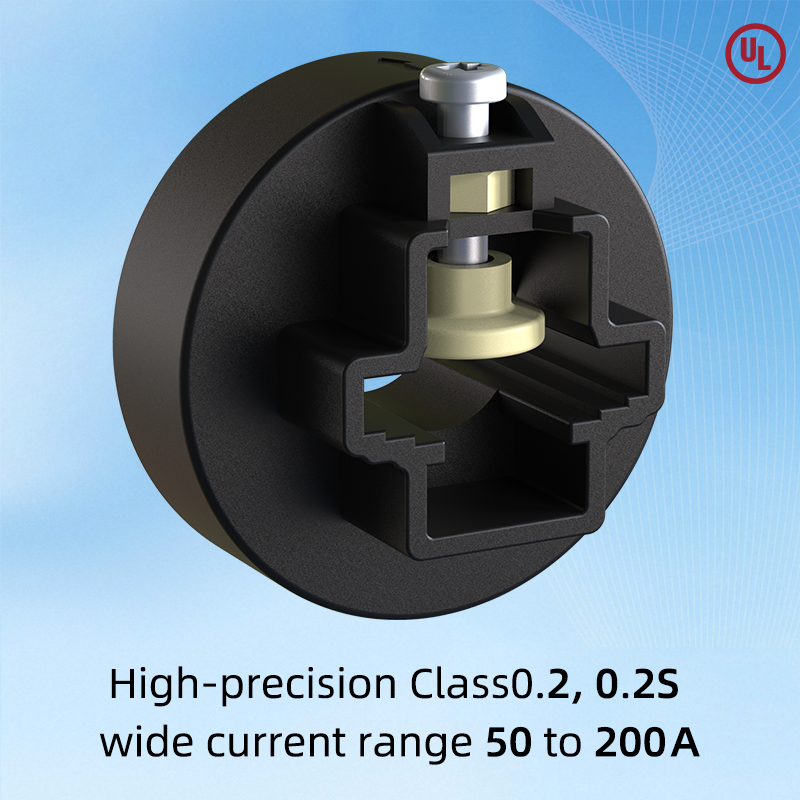

Featuring high-precision Class 0.2S accuracy and a wide current range from 50 A to 200 A, it delivers precise and consistent current data under fluctuating loads, making it ideal for smart meters, power analyzers, and real-time energy management systems.

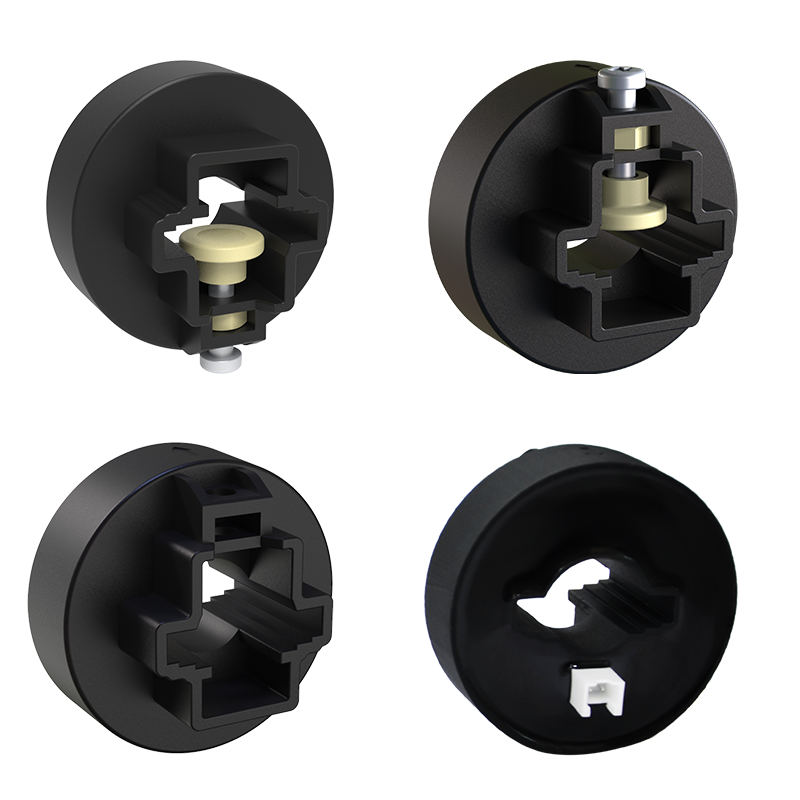

The split-core design enables easy, tool-free installation without disconnecting existing wiring, allowing for quick retrofits, system upgrades, and maintenance with minimal downtime, saving labor and installation costs.

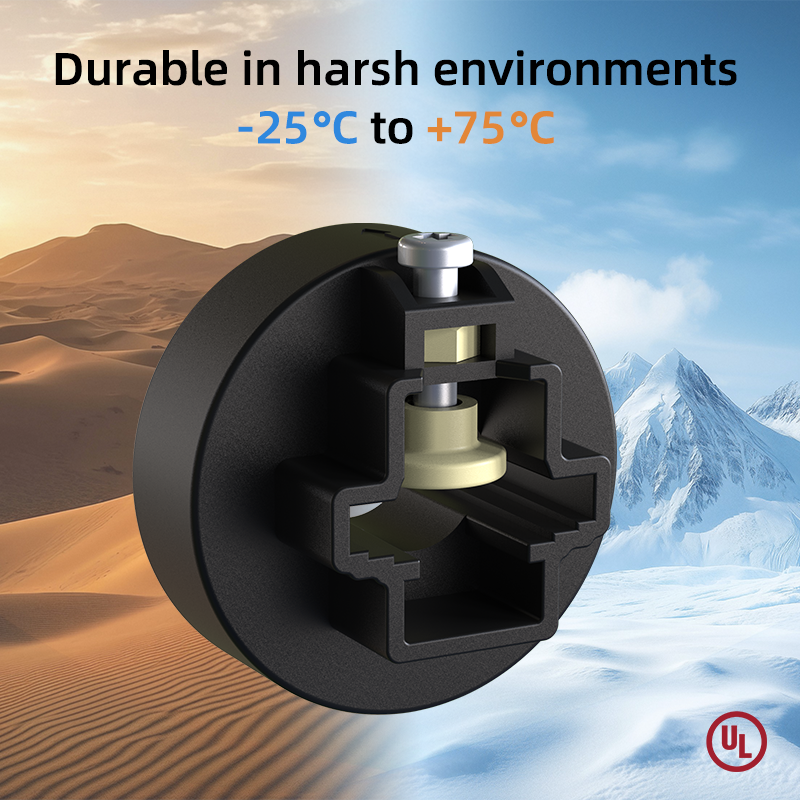

Constructed with robust, flame-retardant materials and high dielectric strength, it operates reliably in harsh industrial environments between ‑25 °C and +75 °C, offering long-term durability in control panels, switchgear, and distribution boards.

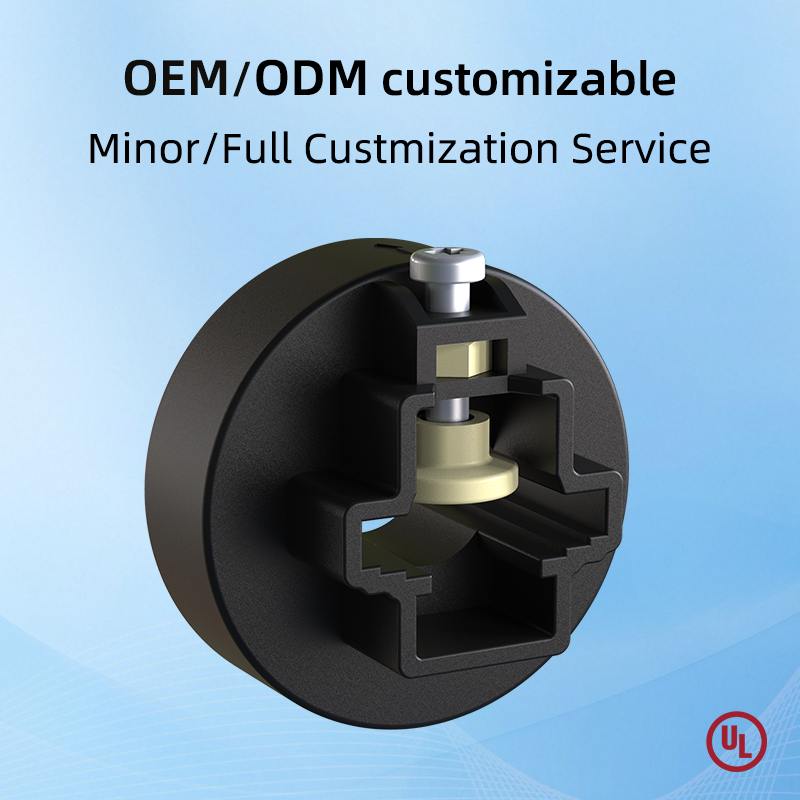

With OEM/ODM customization options, multiple secondary output types, and recognized certifications including UL, this current transformer is perfectly suited for global B2B buyers seeking precise, safe, and versatile CT solutions for energy monitoring, smart factory integration, and export-ready power systems.
Key Features & Advantages
-
UL Certified & IEC/ANSI Compliant: Built to UL standards for reliability in industrial environments.
-
High Accuracy Performance: Ideal for metering and protection systems requiring minimal error and phase shift.
-
Wide Current Range Support: Suitable for various primary currents (e.g., from tens to hundreds of amperes) depending on configuration.
-
Low Burden & Low Core Loss: Minimizes impact on the measured circuit while maintaining accuracy.
-
Secure Galvanic Isolation: Protects measurement circuits by isolating them from high-voltage primary conductors.
-
Double-insulated, Durable Construction: Equipped for harsh environments, stable operation and long life.
-
Direct Retrofit & OEM Friendly: Compatible installation footprint for panel boards, switchgear, metering cabinets and retrofits.
Technical Specifications
|
Model
|

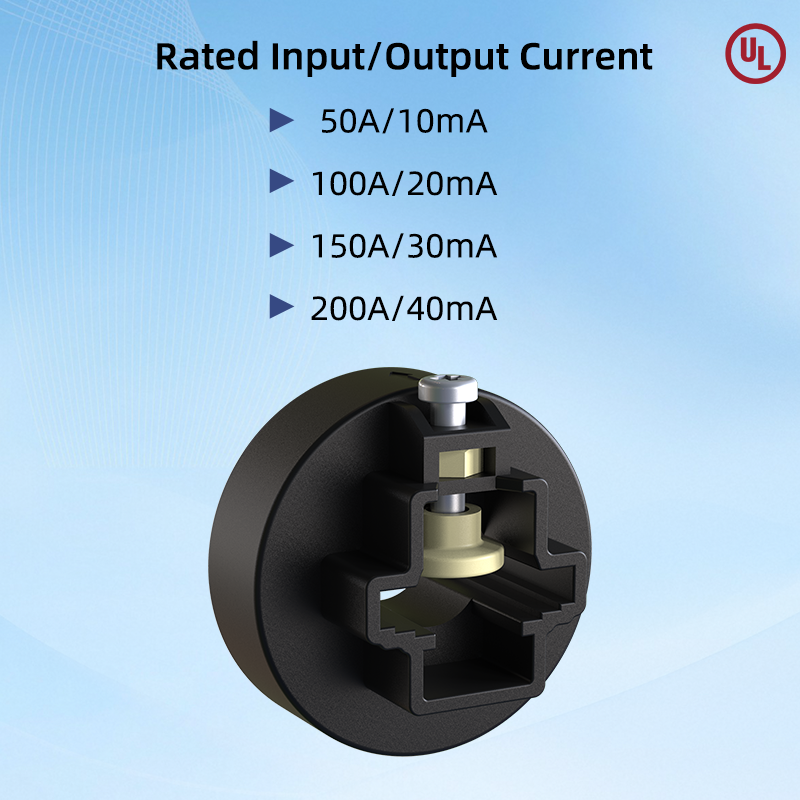

Rated Input/Output
|
Accuracy
|
Withstand Voltage
|

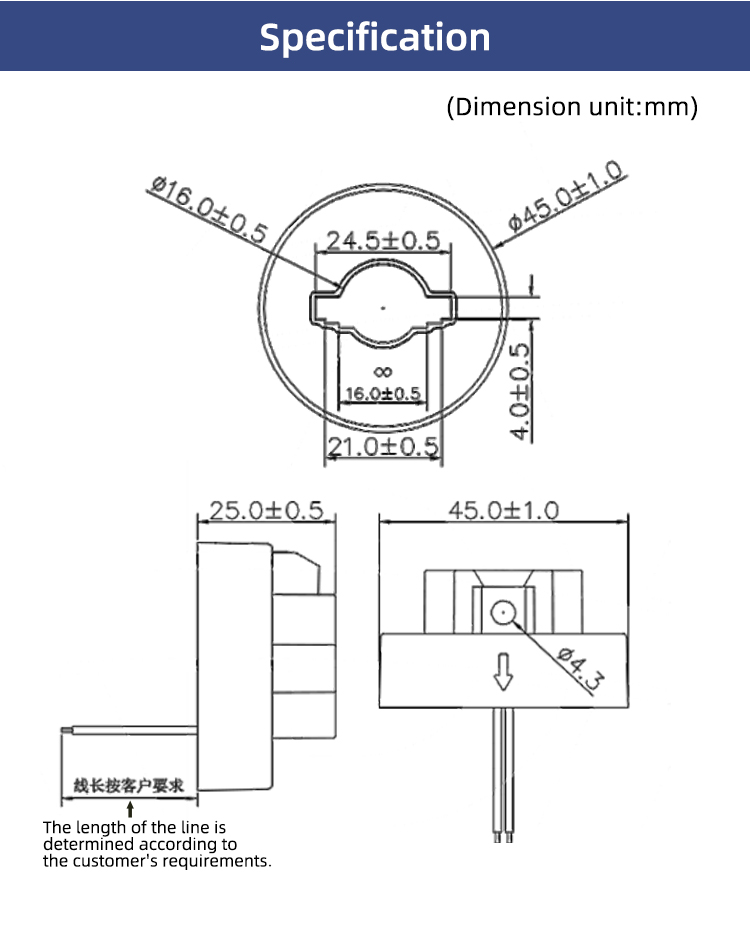

Threading Aperture
|
|
CT2404L-5K-50
|
50A/10mA
|
0.2, 0.2S
|
4.0kV
|
Φ16mm / 24.5×4mm
|
|
CT2404L-5K-100
|
100A/20mA
|
0.2, 0.2S
|
4.0kV
|
Φ16mm / 24.5×4mm
|
|
CT2404L-5K-150
|
150A/30mA
|
0.2, 0.2S
|
4.0kV
|
Φ16mm / 24.5×4mm
|
|
CT2404L-5K-200
|
200A/40mA
|
0.2, 0.2S
|
4.0kV
|
Φ16mm / 24.5×4mm
|
* Operating Temperature: -25°C ~ +75°C
* Storage Temperature: -40°C ~ +75°C
* Relative Humidity: 10% ~ 95% RH

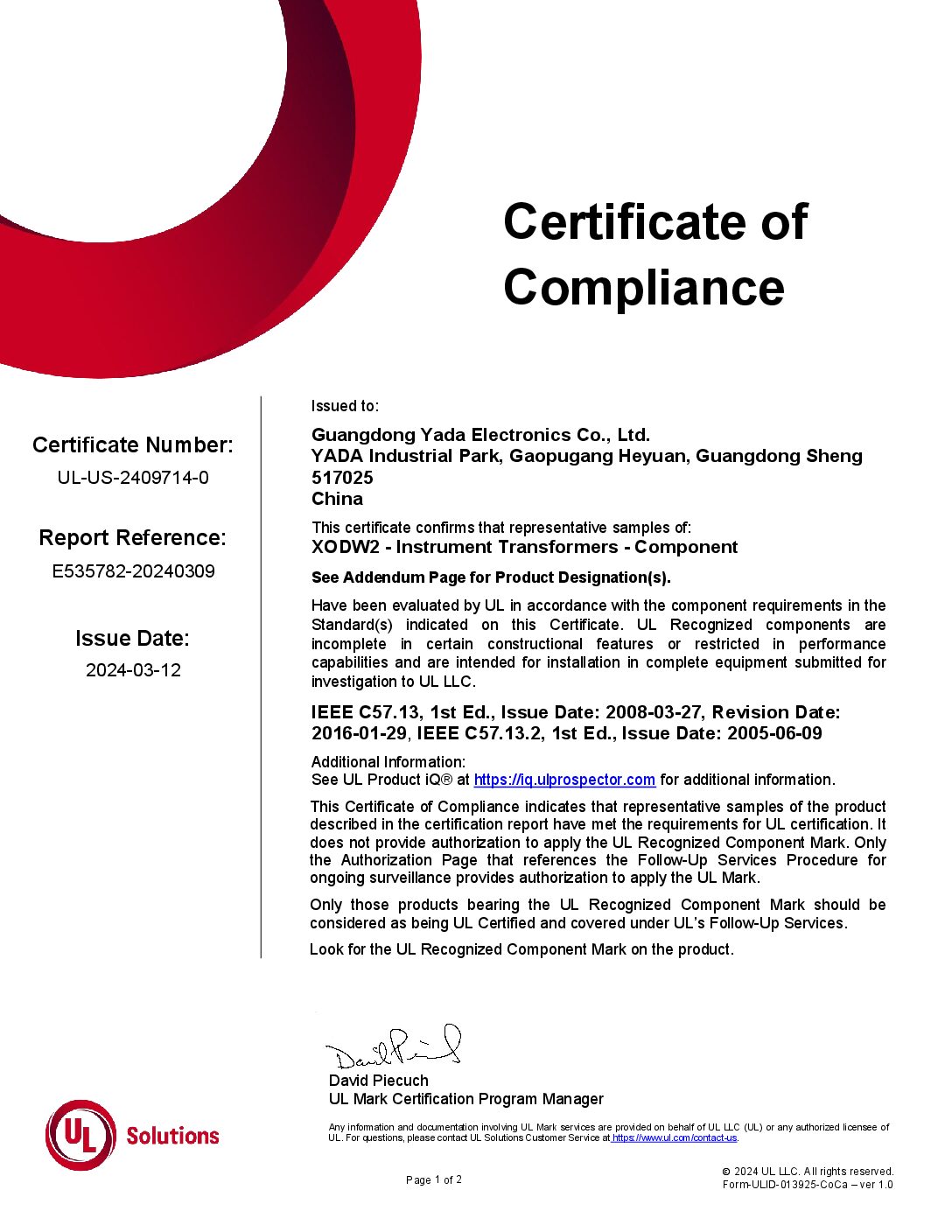

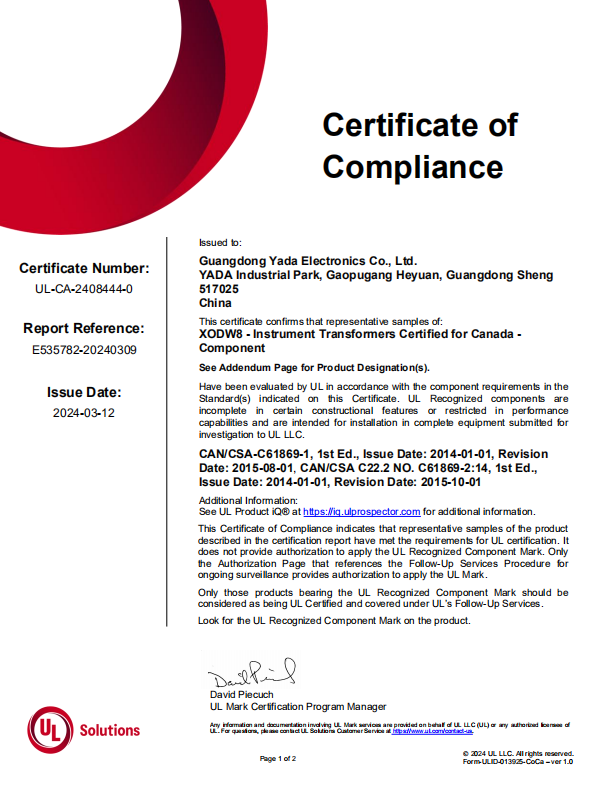

Certifications
UL Certification: E353782
Complies with international safety standards for current transformers
Applications
-
Energy Metering & Billing Systems: Accurate current measurement for commercial/industrial metering.
-
Power Monitoring & EMS / SCADA Integration: Real-time current data for analytics and control.
-
Switchgear & Distribution Panels: Current sensing for load tracking, diagnostics and protection.
-
Renewable & Hybrid Energy Systems: Compatibility with solar, wind, battery systems for current monitoring.
-
Industrial Automation & Motor Control: Use in motor drives, heavy-load equipment, fault detection systems.
Installation & Best Practices
-
Always de-energize the conductor before installation.
-

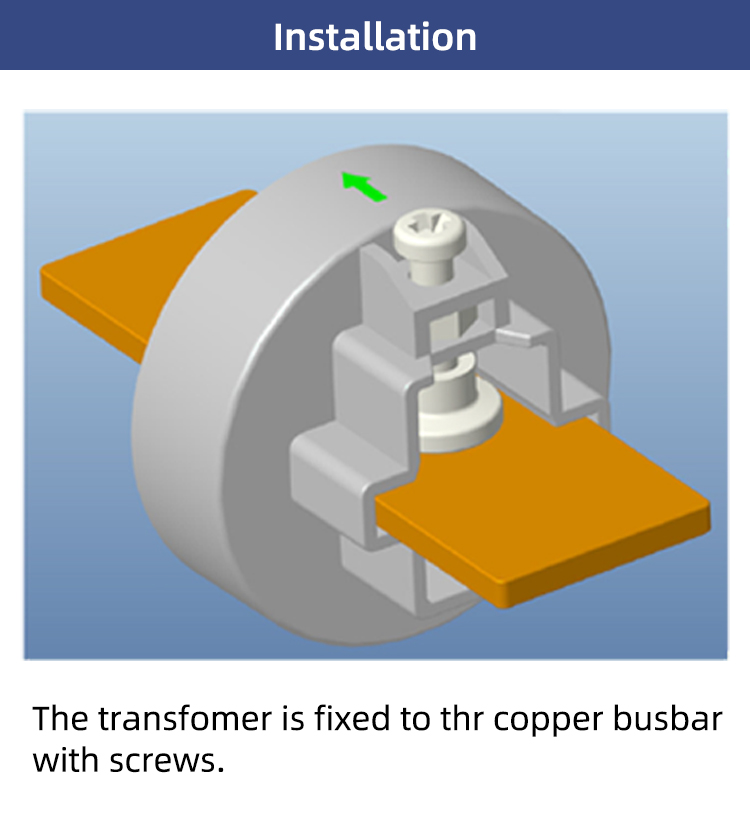

Secure primary conductor or busbar through CT window or mount per spec.
-
Connect secondary terminals correctly and maintain burden within specified limits.
-
Avoid leaving secondary open-circuited while primary is energized—risks damage and accuracy error.
-
Use shielded wiring and good earthing practices in high-electromagnetic-noise environments.
-
Verify calibration after installation to ensure accuracy.
Why Choose YADA CT2404L?
With decades of expertise in power instrumentation, YADA offers a cost-effective, export-ready solution for integrators, OEMs and system suppliers. The CT2404L combines metering-grade accuracy, industrial robustness and global compliance — making it perfect for ambitious B2B projects in energy management, smart grid and industrial power systems.
