YADA CTY10 UL-Certified Current Transformer supports 10A/4mA, 50A/20mA, 100A/40mA outputs, offers 0.2 accuracy and multiple mounting options. Ideal for energy monitoring & metering systems.
| CTY10 Series Model Description | |||||
| Model | Rated input current | Rated output current | Accuracy | Angle difference | Aperture (mm) |
| CTY10-2k5-10 | 10A | 4mA | 0.2 | ≤10′ | Φ10mm |
| CTY10-2k5-50 | 50A | 20mA | 0.2 | ≤10′ | Φ10mm |
| CTY10-2k5-100 | 100A | 40mA | 0.2 | ≤10′ | Φ10mm |

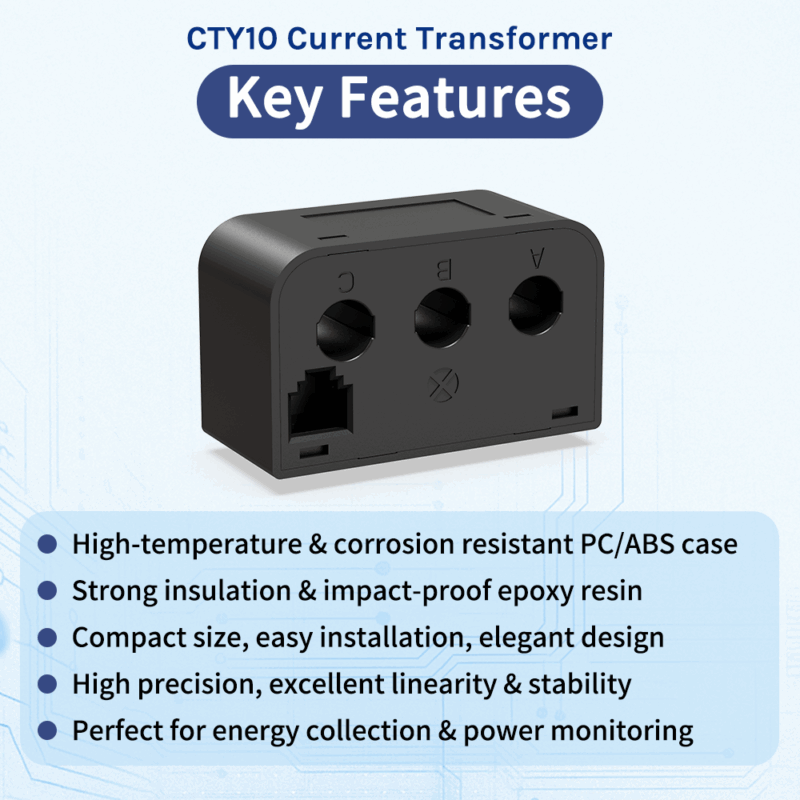

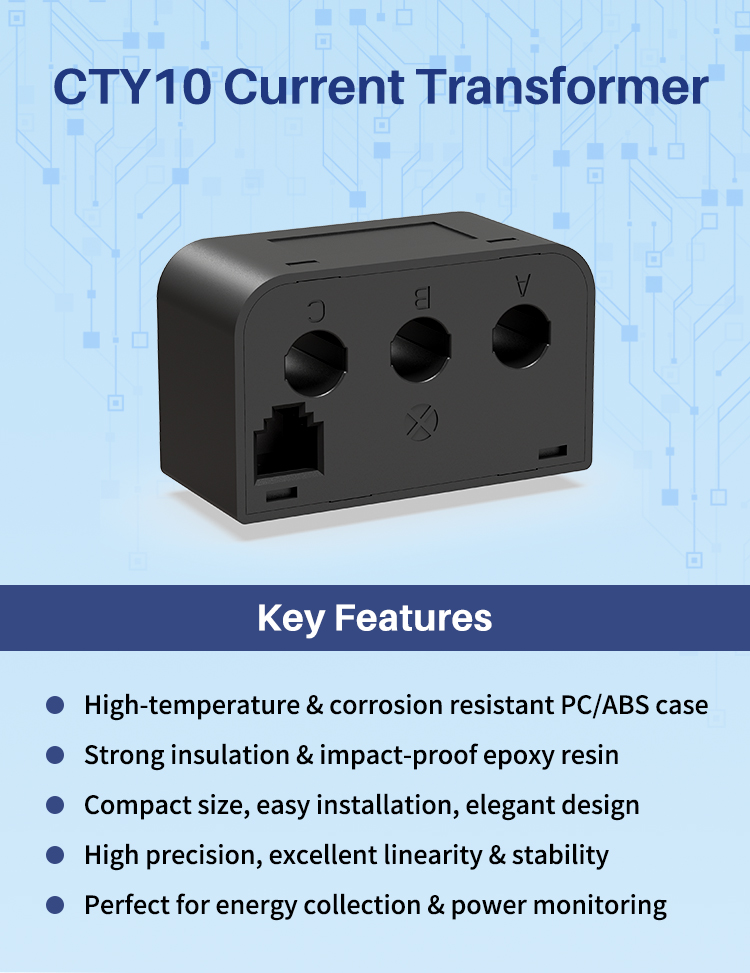

Key Features & Selling Points
-
UL Certification & Safety Compliance
YADA CTY10 meets UL / CAN/CSA-C61869-1 standard, facilitating seamless acceptance in North American and global markets. -
Multi-Tap Output Options
Offers 10A→4 mA, 50A→20 mA, 100A→40 mA configurations, allowing flexible integration into various metering / monitoring systems. -
High Precision & Linear Response
Accuracy class 0.2 and linearity ≤ 1 % ensure the measured signal retains fidelity even under load changes. -
Robust Operating Range
Supports ambient temperature from –40 °C to +50 °C, storage up to +75 °C, and relative humidity 10%–95% RH. -
Versatile Mounting Options
Supports band fixation, screw fixation, and guide-rail mounting to suit diverse installation environments. -
Compact & Durable Construction
Housed in PC/ABS casing for thermal, chemical, and mechanical resilience
Applications & Use Cases
1. Energy Management & Monitoring Systems
The CTY10 is ideal for energy monitoring systems (EMS), building management systems (BMS), and energy dashboards, providing precise current measurement inputs to data loggers and controllers.
2. Metering & Billing Infrastructure
Used in conjunction with smart meters, submetering systems, and utility metering setups, CTY10 provides accurate current-to-current or current-to-mA conversion for revenue-grade measurement.
3. Renewable Energy & Storage Systems
In photovoltaic inverters, battery storage systems, and hybrid systems, CTY10 helps track AC currents, system performance, and power flow.
4. Industrial & Automation Equipment
Suitable for automation controllers, PLC systems, motor protection circuits, and power monitoring in factories, the CTY10 can act as a reliable sensing module in complex production lines.
Certification, Quality & Testing
-
UL / Safety Compliance
YADA CTY10 is UL-certified and follows CAN/CSA-C61869-1 standard, facilitating acceptance in North American and global markets. -
In-house / 3rd-Party Testing
Each unit undergoes strict factory testing: insulation resistance, dielectric withstand voltage, linearity verification, output stability, and environmental stress testing. -
Quality Assurance & Traceability
Every unit is assigned a serial number, with test reports archived for traceability. YADA maintains ISO 9001 quality management process (if applicable). -
Warranty & Reliability
A standard warranty period and support policy (e.g. 12 months) should be clearly stated to reinforce buyer confidence.
Customization, Ordering & Logistics
Customization Options
-
Custom output current taps (other mA outputs)
-
Custom aperture / through-hole diameter
-
Logo / label printing, packaging customization
-
Special mounting solutions or cable lead length customization
Ordering Terms & MOQ
-
Minimum Order Quantity: e.g. 5 pcs (or per your policy)
-
Lead Time: e.g. 7 days for samples, 30 days for bulk (or negotiable)
-
Packaging: e.g. 15 × 15 × 8 cm box, 1.0 kg gross weight per unit
Shipping & Terms
-
FOB / EXW / CIF pricing as per Incoterms
-
Suggested shipping methods: sea freight, air freight, express
-
Export documentation & certification support available
FAQ
Q: Does CTY10 support DC currents?
A: The CTY10 is designed primarily for AC applications (50/60 Hz). For DC or mixed current measurement, please contact us for specialized models.
Q: Can I order a custom output (e.g. 15 mA)?
A: Yes. Custom output taps can be made on request, subject to MOQ and technical feasibility.
Q: What is the minimum order quantity (MOQ)?
A: The standard MOQ is 5 pcs for stock models; customization may require higher MOQ.
Q: Is there a sample policy?
A: Yes, we can provide samples (e.g. within 7 days) upon request for evaluation.
Q: How to mount or wire CTY10?
A: You may fix it using band straps, screws, or a guide rail. Wiring is standard two-wire (mA output) with polarity marking. (You should include a wiring diagram / connection schematic.)
