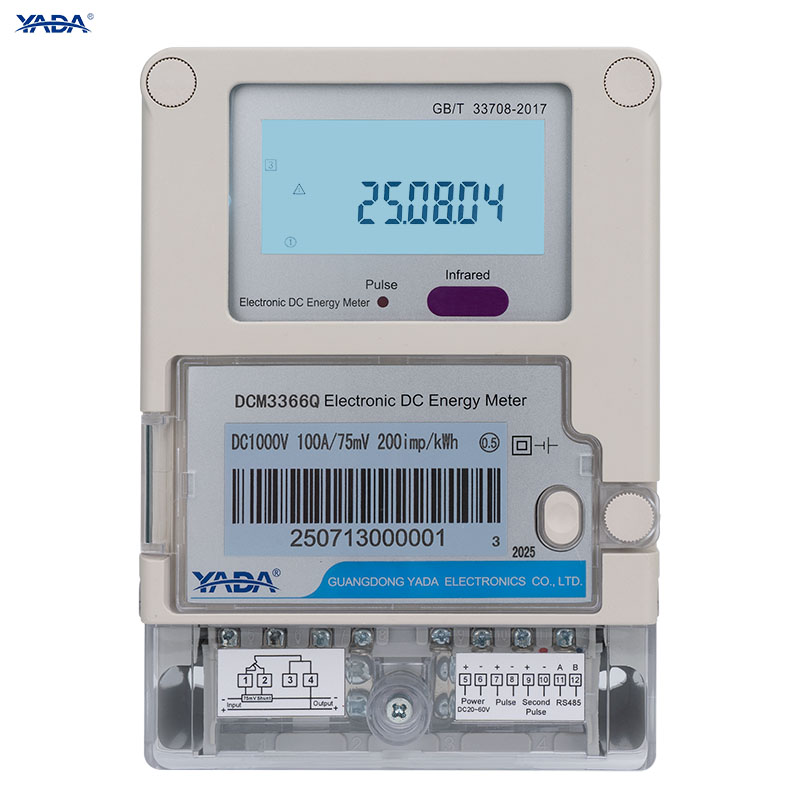

Product Overview
The DCM3366Q meter is designed for DC measurement — typical in solar PV strings, DC combiner boxes, or battery systems. It accurately monitors DC voltage, DC current (via external shunt), instantaneous power, and cumulative energy. The unit supports bidirectional energy accounting (forward, reverse, net), enabling energy export / feedback scenarios.
With specifications supporting up to DC1000 V input, rated currents from 50A up to 500A (customizable), and supporting auxiliary power via DC20–60 V or AC85–265 V (or optional DC100–330V), it’s flexible for many DC system architectures. The meter is compliant with Class 0.5 / 1.0 accuracy levels and supports energy display up to 999,999.99 kWh.
Other featuring items include clear LCD blacklight display, RS-485 (Modbus RTU) interface, and robust design for operating temperatures between –25 °C and +60 °C.
| Product Name | YADA DCM3366Q Electronic DC Energy Meter | |||
| Meter Type | DC Energy Meter | |||
| Model No. | DCM3366Q | |||
| Brand Name | YADA | |||
| Display Type | LCD Display | |||
| Measuring Energy Range | 0-99999.99kWh | |||
| Accuracy Class | Class 0.5/1.0 | |||
| Operating Temperature | -25℃~60℃ | |||
| Communication | RS485 communication port and infrared | |||
| Relative humidity | ＜75% | |||
| Installation | Screw Fixation, M4 hook screws+M5×35 self-tapping screws | |||
| Rated voltage | 24V，48V，100V，350V，500V，700V，750V，1000V | |||
| Rated current(In) | 50A，100A，200A，300A，500A (Customized) | |||
| Auxiliary power supply | DC20V~60V or AC85~265V or DC100~330V | |||
| Certificate | CE/UKCA/RCM Certification(EN61010-1:2010+A1:2019, EN61010-2-030:2021+A11:2021, EN 61326-1:2013, EN 61326-2-2: 2013) | |||
| Warranty | 2 Years | |||
| Dimensions | 160mm *112mm *58mm | |||
| Weight | 0.5kg | |||
| Appication | Data center, Telecommunication, Charge station, Industrial, IoT, Household and other Power Management System. | |||

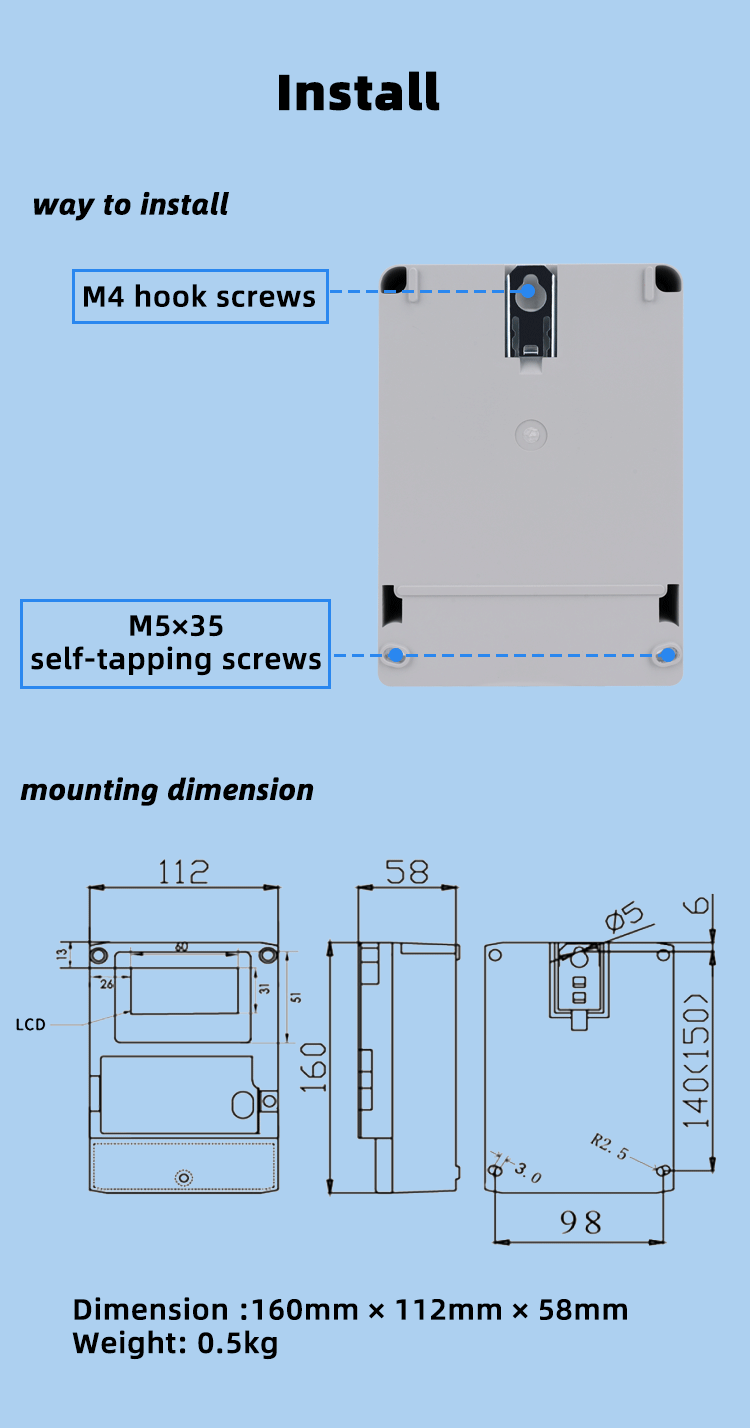

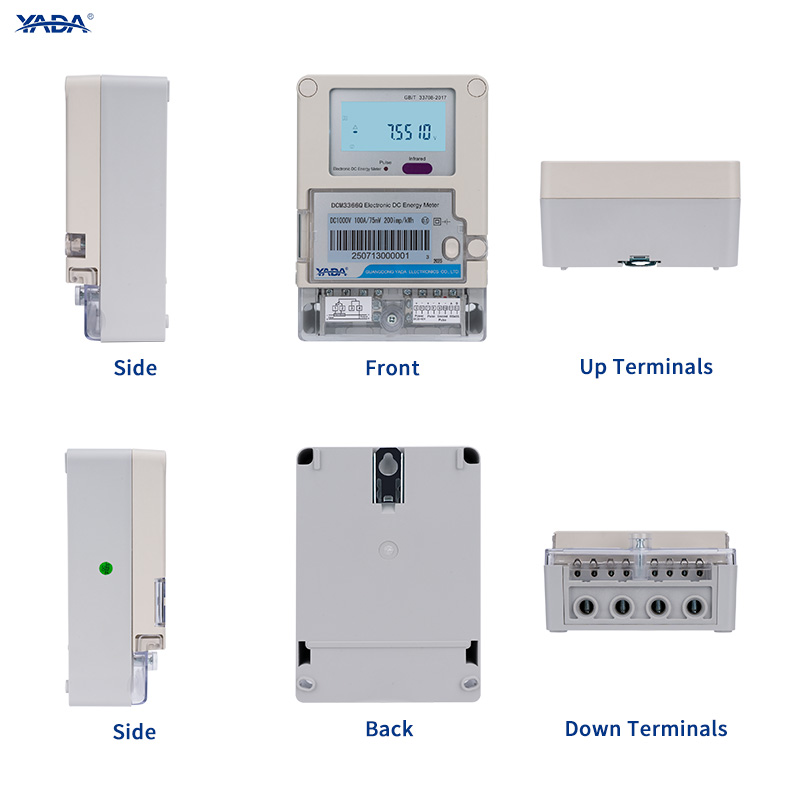

Dimension & Installation

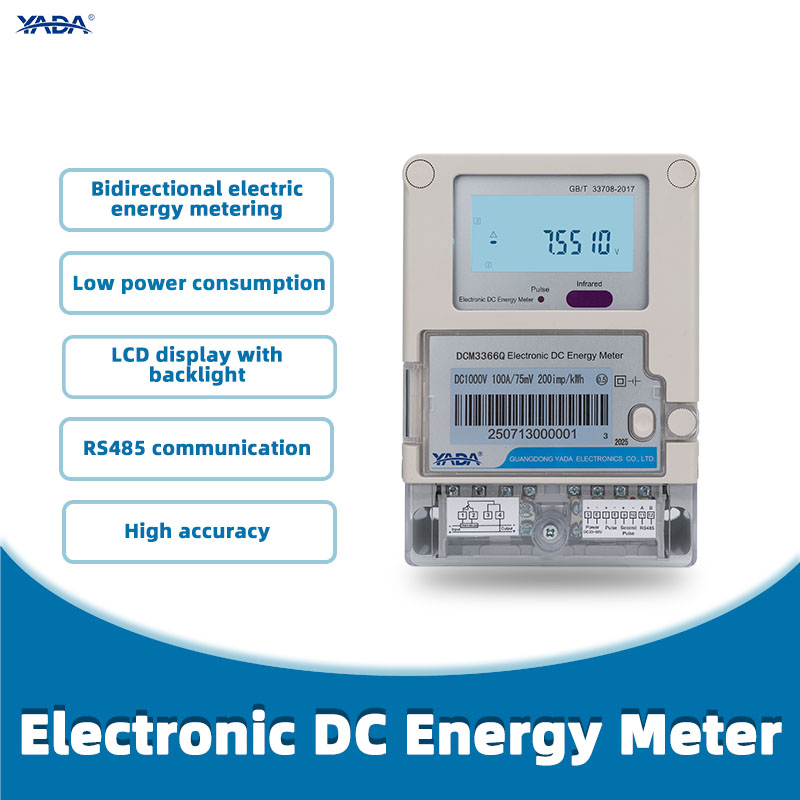

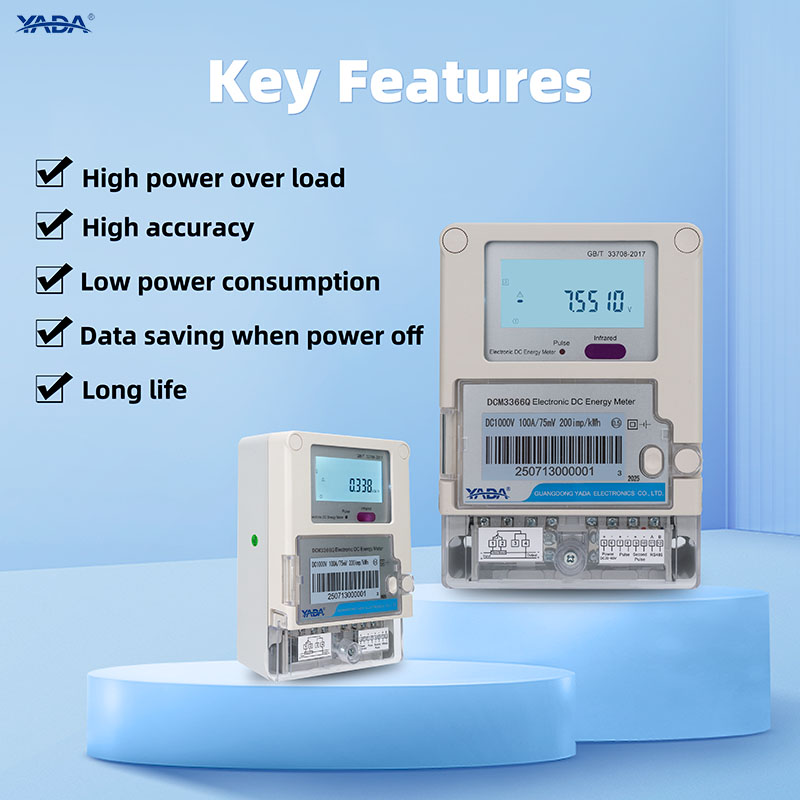

Key Features & Benefits
-
DC Measurement — Ideal for solar panel strings, battery systems, DC distribution
-
Bidirectional Energy Accounting — Supports forward, reverse, and net energy modes
-
High Accuracy — Class 0.5 / 1.0 options ensure reliable metering for energy auditing
-
Wide DC Voltage Range — Supports up to DC1000 V input
-
Flexible Current Ratings — 50A, 100A, 200A, 300A, 500A (customizable)
-
Robust Communication — RS-485 with Modbus RTU protocol for system integration
-
Auxiliary Power Options — DC20–60V or AC85–265V, optional DC100–330V input
-
Clear LCD Display — Backlit for field visibility
-
Wide Operating Conditions — –25 °C to +60 °C, ≤75% RH
-
Compact & Mountable — Dimensions 160 × 112 × 58 mm
-
Durable & Safe — Engineered for DC environments, robust enclosure and insulation
Applications
-
Solar panel DC string monitoring and energy export tracking
-
Battery / energy storage DC system monitoring
-
Photovoltaic arrays, microinverters, and DC combiner boxes
-
Telecommunication / telecom DC systems
-
DC power distribution in industrial / factory settings
-
Renewable energy projects with net export / feedback
-
DC energy audit and performance monitoring
Why Choose YADA DCM3366Q
-
Solar-focused DC Meter — purpose-designed for PV / battery DC systems
-
Bidirectional Energy Support — tracks energy flow in both directions for export or feedback
-
High Accuracy & Reliability — Class 0.5 / 1.0 ensures precise energy measurement
-
Flexible Configurations — multiple voltage/current model variants to match system specs
-
Professional Communication — RS-485 Modbus RTU ensures compatibility with industrial systems
-
Field-Ready Design — robust build, clear display, temperature tolerance
-
OEM / Project Customization — firmware, labeling, interfaces can be tailored for large-scale deployments
FAQ
Q: Is DCM3366Q suitable for monitoring solar panels?
A: Yes — it is designed for DC systems and supports solar string / panel monitoring with bidirectional energy tracking.
Q: Which current ranges are supported?
A: It supports models with 50A, 100A, 200A, 300A, 500A (customizable) per the variant.
Q: What DC voltage ranges does it accept?
A: The meter supports multiple voltage levels: 24V, 48V, 100V, 350V, 500V, 700V, 750V, 1000V (depending on model).
Q: What communication protocol is used?
A: It uses RS-485 with Modbus RTU for remote data integration.
Q: What is the operating temperature range?
A: –25 °C to +60 °C is the specified operating range.
