1. Product Overview

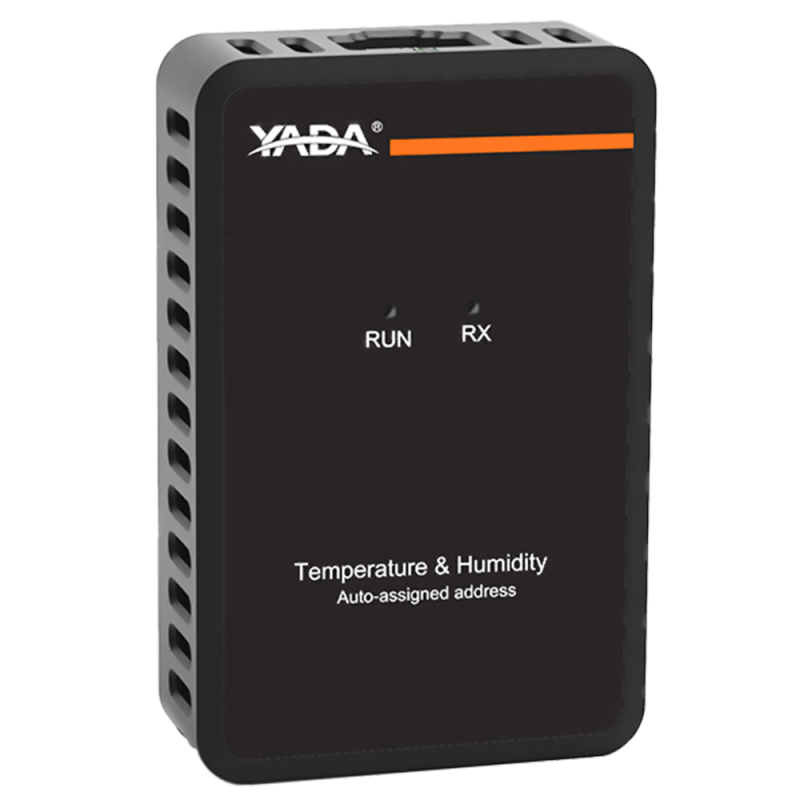

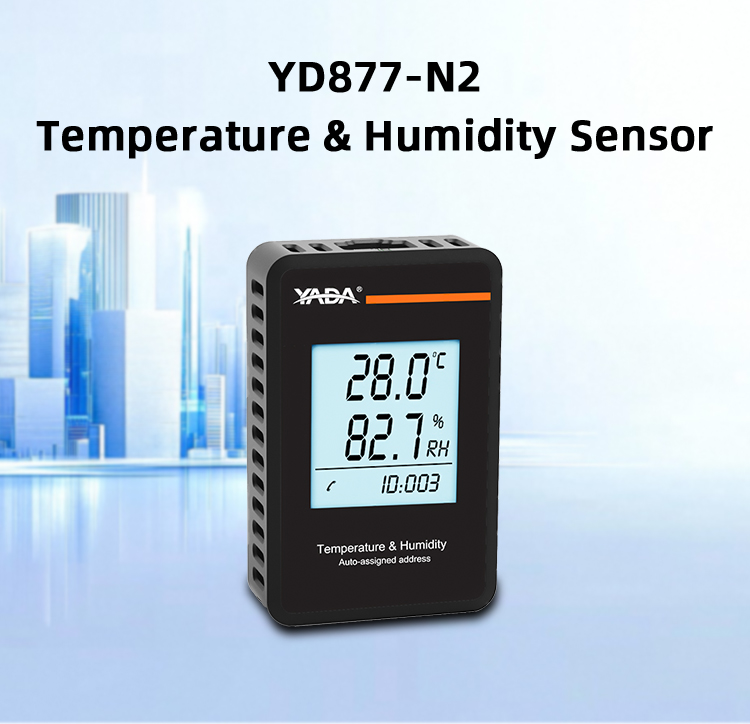

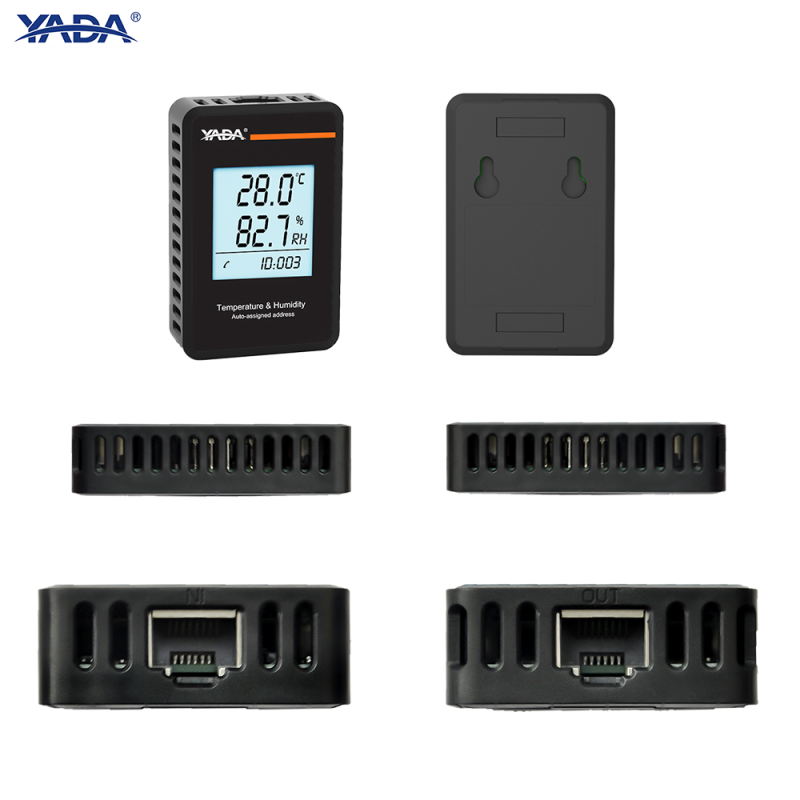

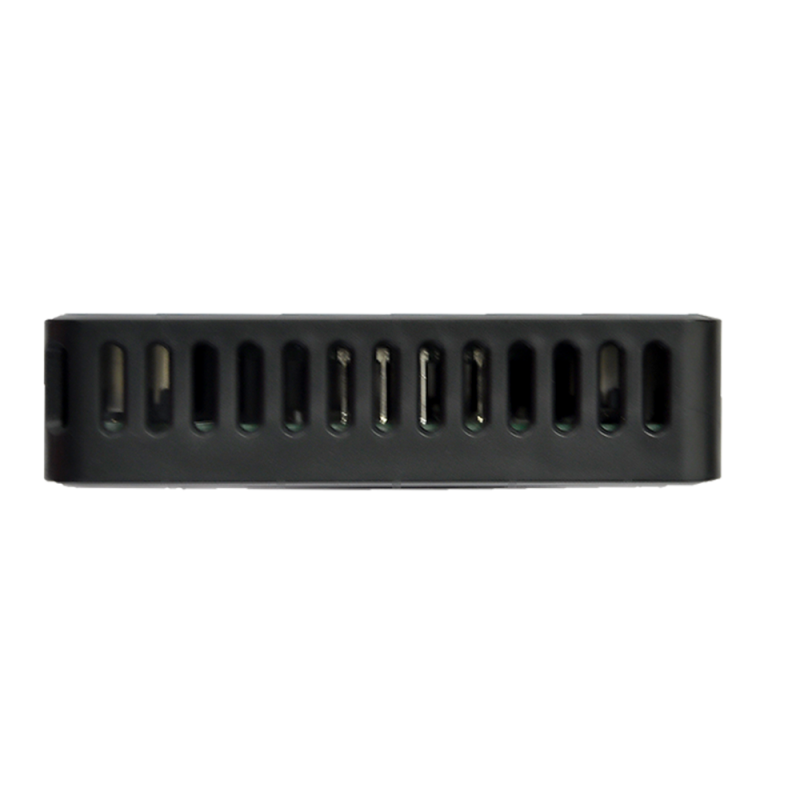

The YADA YD877Y-N2 Environment Sensor is an integrated temperature and humidity transmitter with digital RS485/Modbus output and built-in LCD display. It is designed for precise environmental monitoring in data centers, telecom rooms, warehouses, HVAC systems, and smart building applications.
It features high measurement accuracy, on-site self-calibration, and automatic networking support for multi-point deployment.
2. Key Features & Advantages
-
Integrated Temperature & Humidity Sensing — Monitor both parameters with one device.
-
RS485 / Modbus-RTU Output — Easy integration into BMS, SCADA, or IoT platforms.
-

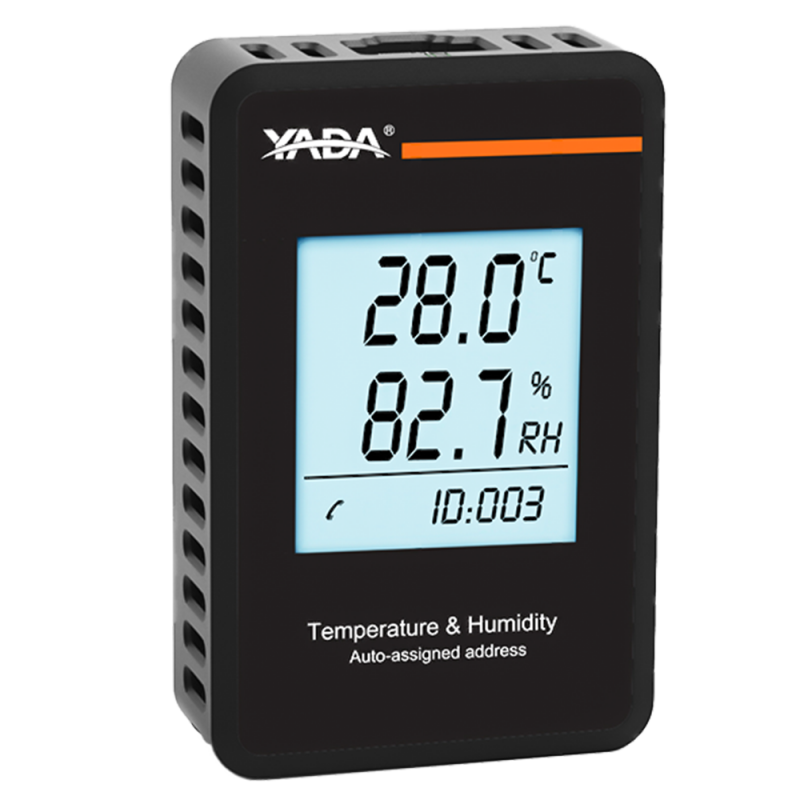

LCD Display — Real-time measurement, address, and communication status on screen.
-
High Accuracy Performance — Temperature accuracy ±0.5 °C (at 25 °C); Humidity accuracy ±3 %RH (20–80 %RH)
-
Wide Measurement Range — Humidity 5 %RH to 95 %RH; Temperature measurement per product spec.
-
Quick Installation & Self-Calibration — Supports on-site calibration and automatic networking for multi-point setups.
-
Durable Design — Suitable for indoor environmental conditions in telecom rooms, cabinets, etc.
3. Technical Specifications
| Parameter | Specification |
| Model | YADA YD877-N2/YD877Y-N2 |
| Communication | RS485 / Modbus-RTU |
| Temperature Accuracy | ±0.5 °C (at 25 °C) |
| Humidity Accuracy | ±3 %RH (20–80 %RH) (Alibaba) |
| Temperature Range | 20 ℃~80℃ |
| Humidity Range | 5 %RH to 95 %RH |
| Display | LCD (shows temp, humidity, address, comm status) |
| Power Supply | ≤0.4W |
| Operating Environment | Indoor cabinets, telecom rooms, data centers, etc. |
| Calibration & Networking | On-site self-calibration, supports cascading networked measurement points |
4. Applications
-
Data Centers & Server Rooms — Continuous monitoring of environmental conditions for equipment protection.
-
Telecom / Network Cabinets — Precise temperature and humidity sensing in enclosed cabinets.
-
HVAC & Building Automation — Integration into BMS systems for climate control and energy efficiency.
-
Warehouses & Cold-storage — Environmental monitoring in storage zones requiring humidity control.
-
Smart Building / IoT Monitoring — Networked deployment of multi-point sensors feeding to cloud or control systems.
5. Installation & Configuration
-

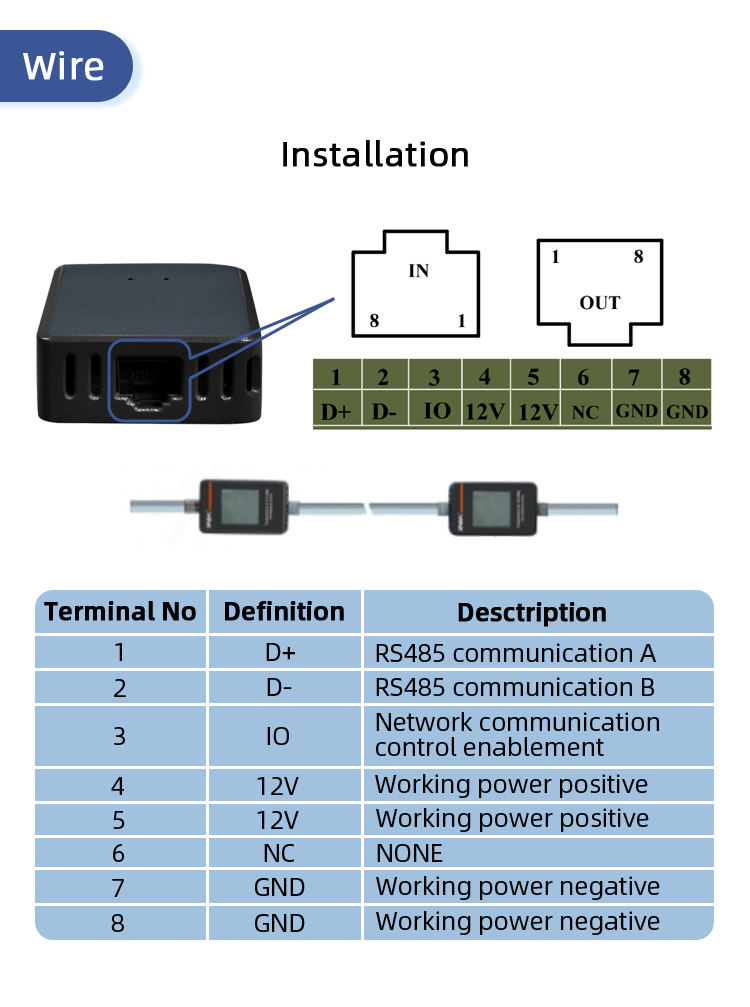

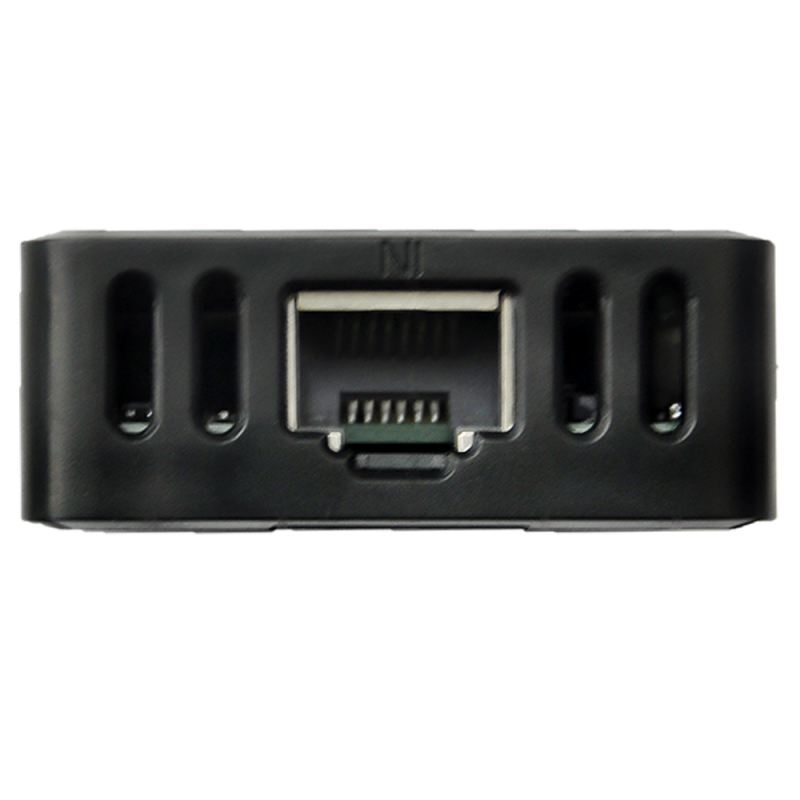

Wiring: Connect via RS485 twisted pair according to Modbus-RTU protocol.
-
Address & Communication: Configure device address and baud rate as needed.
-

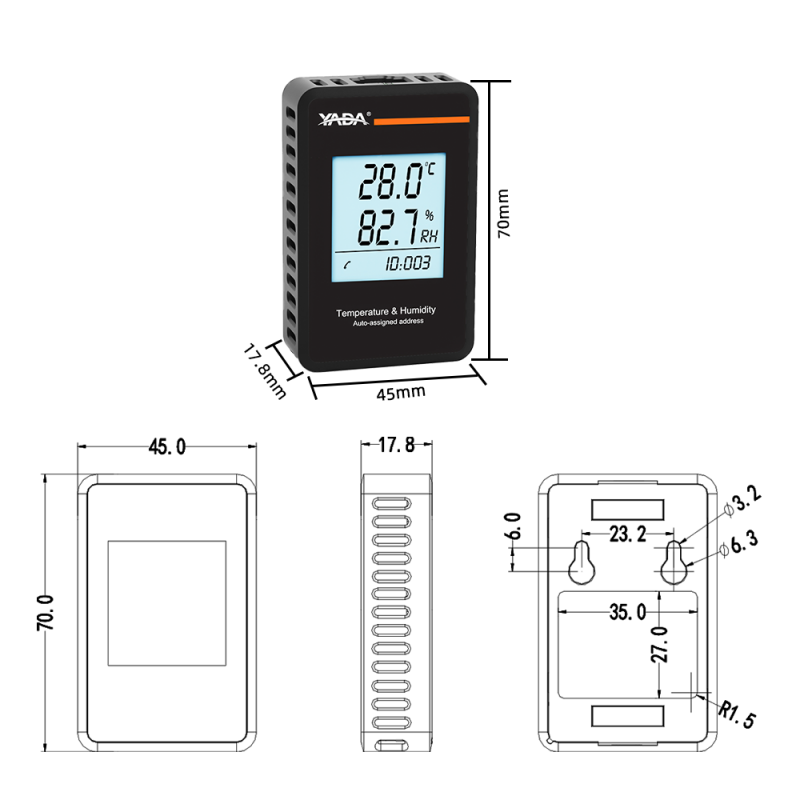

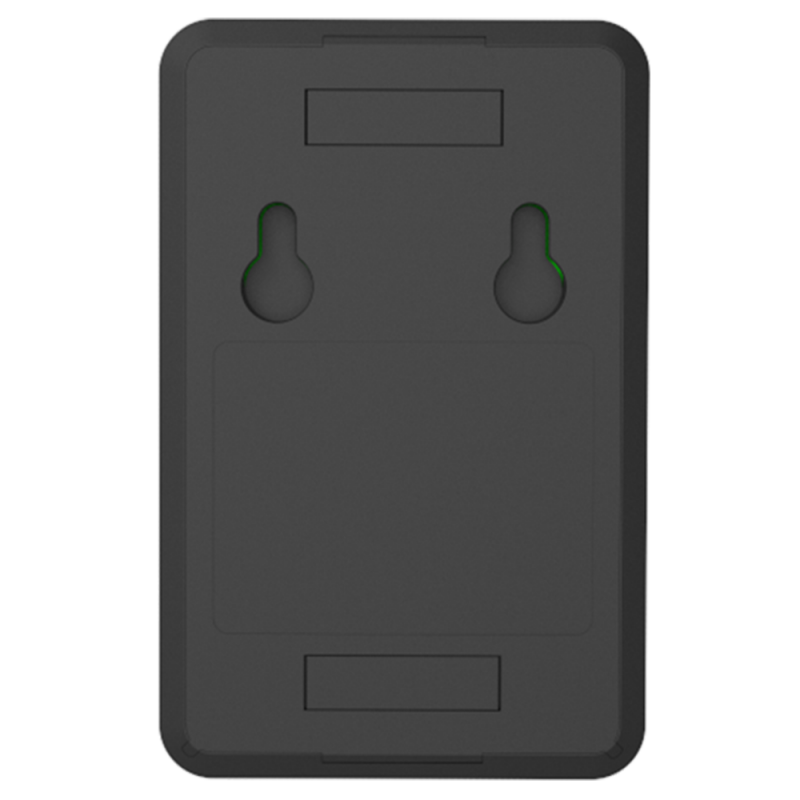

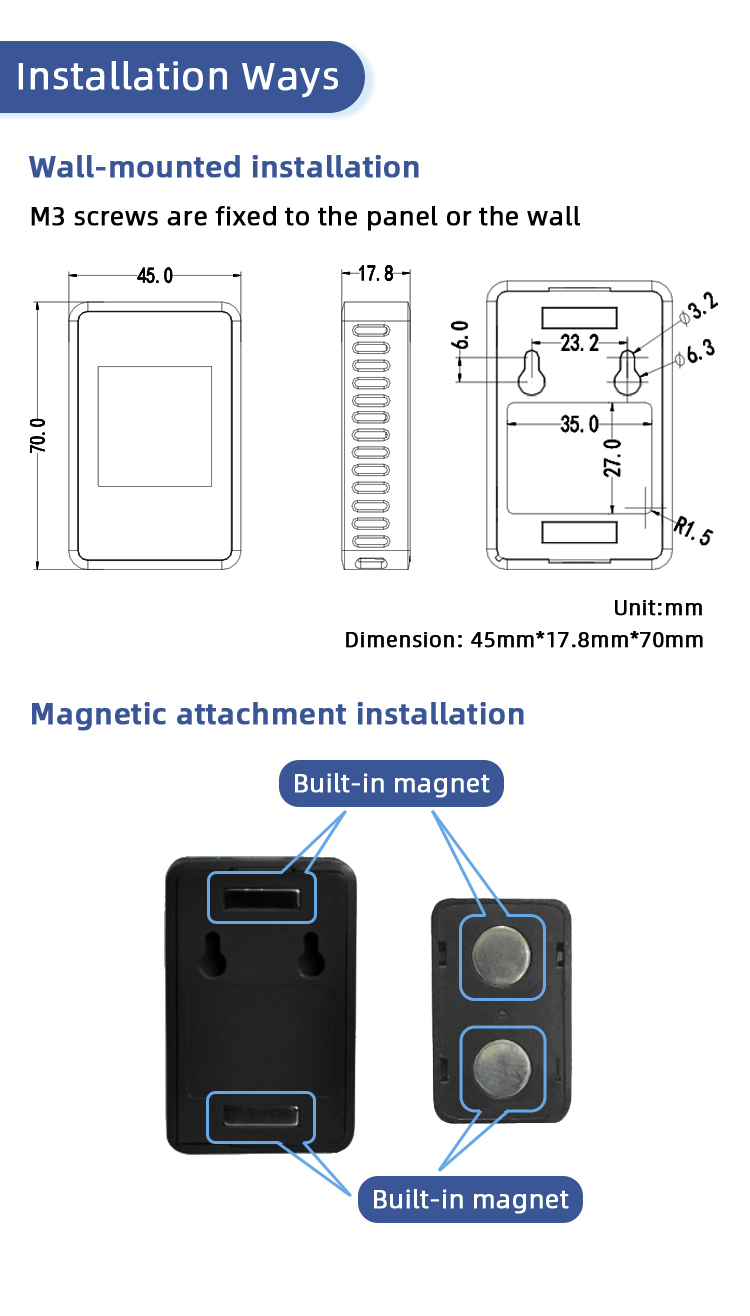

Mounting Options: Magnetic base or M3 screw mounting available (for easy installation)
-
Calibration: Perform on-site self-calibration to adjust offset.
-
Networking: Support cascaded networked deployment across multiple sensing points in a facility.
6. Why Choose YD877Y-N2 for B2B Projects
-
All-in-One Solution: Temperature + Humidity in one sensor reduces system complexity.
-
Standard Industrial Interface: RS485 / Modbus ensures compatibility with common control systems.
-
High Precision, Reliable Performance: Suitable for mission-critical environments.
-
Scalable Networking: Easy expansion to multi-point systems.
-
OEM & Custom Options: Flexible customization based on project needs.
-
Export-Ready & Professional Brand: YADA’s strong credentials in environmental and power sensing domain.
