Product Description
Overview

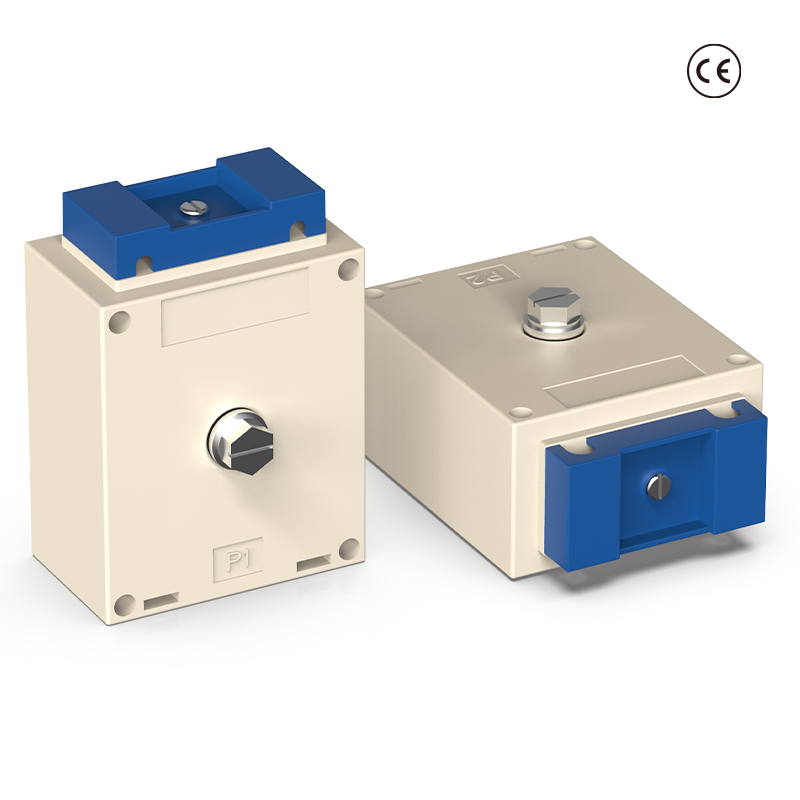

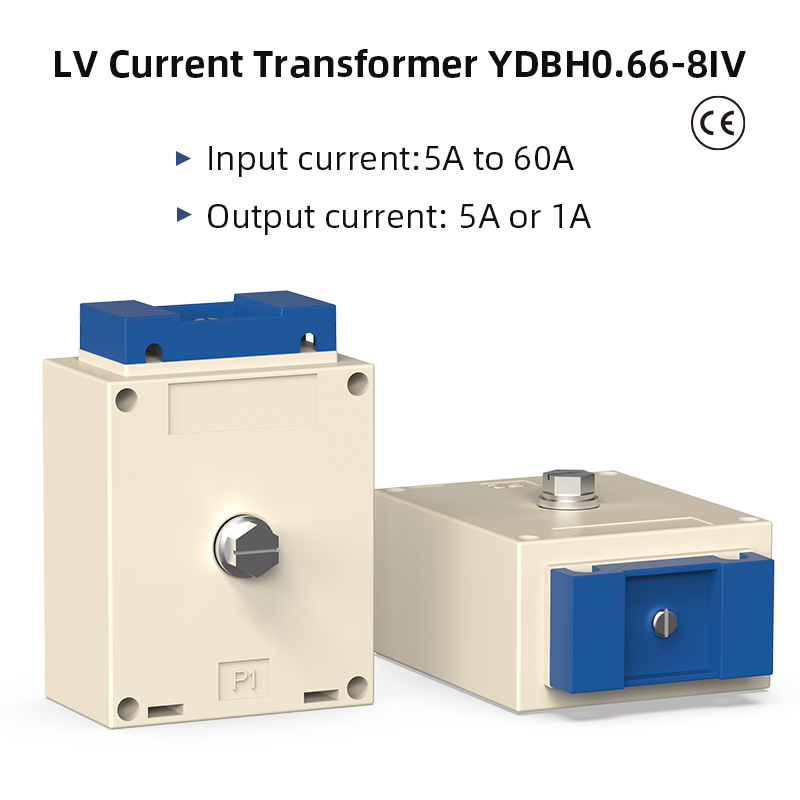

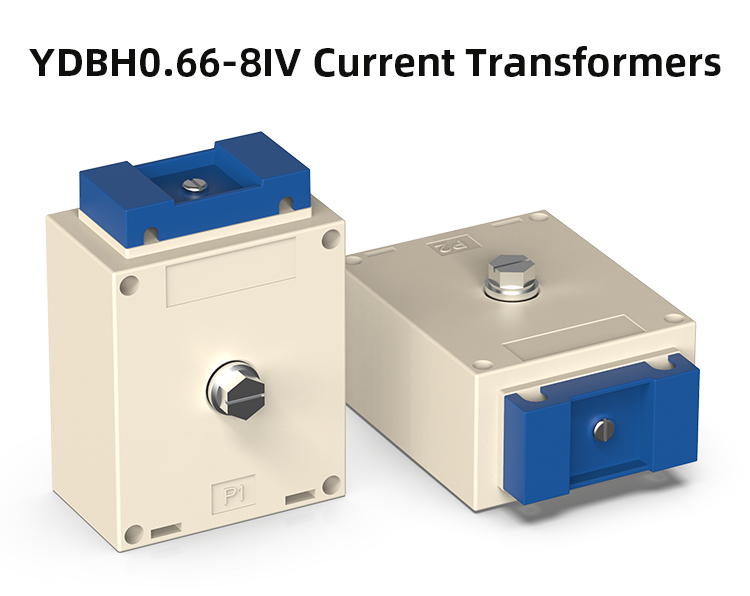

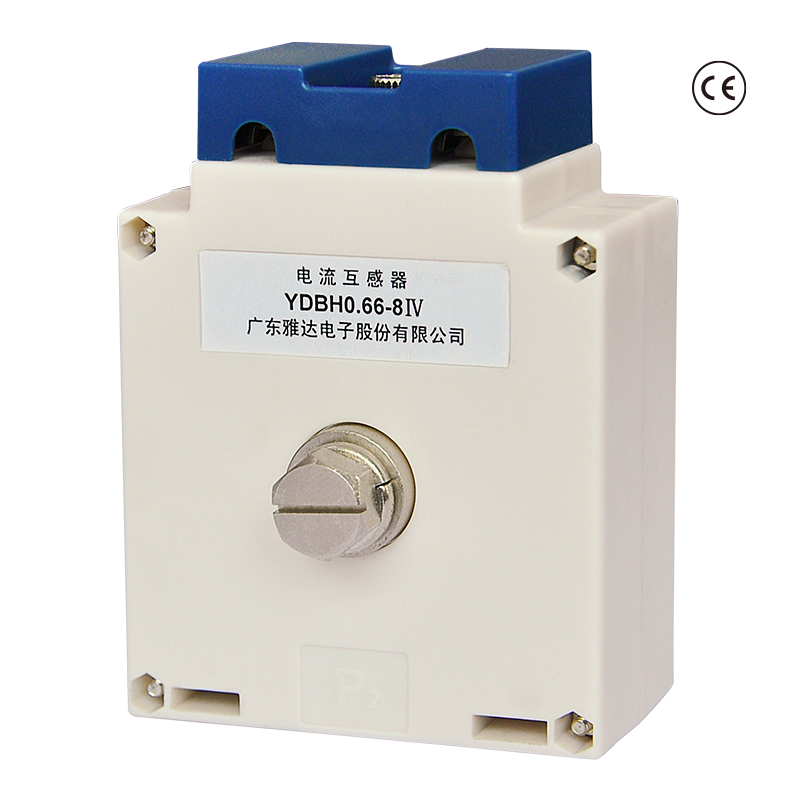

The YADA YDBH0.66-8IV Series Split-Core Current Transformer is a precision instrument transformer designed for industrial metering and power monitoring. With a primary current range from 5 A up to 60 A and offering a 5 A or 1 A secondary output, this series is ideal for low-voltage distribution, switchgear boards and energy management systems in commercial and industrial applications.
| Key Attributes | Specifications |
| Model Number | YDBH0.66-8IV |
| Brand Name | YADA |
| Type | Instrument Transformer, Distribution Transformer |
| Frequency | 50 Hz |
| Input Voltage | 0.66KV |

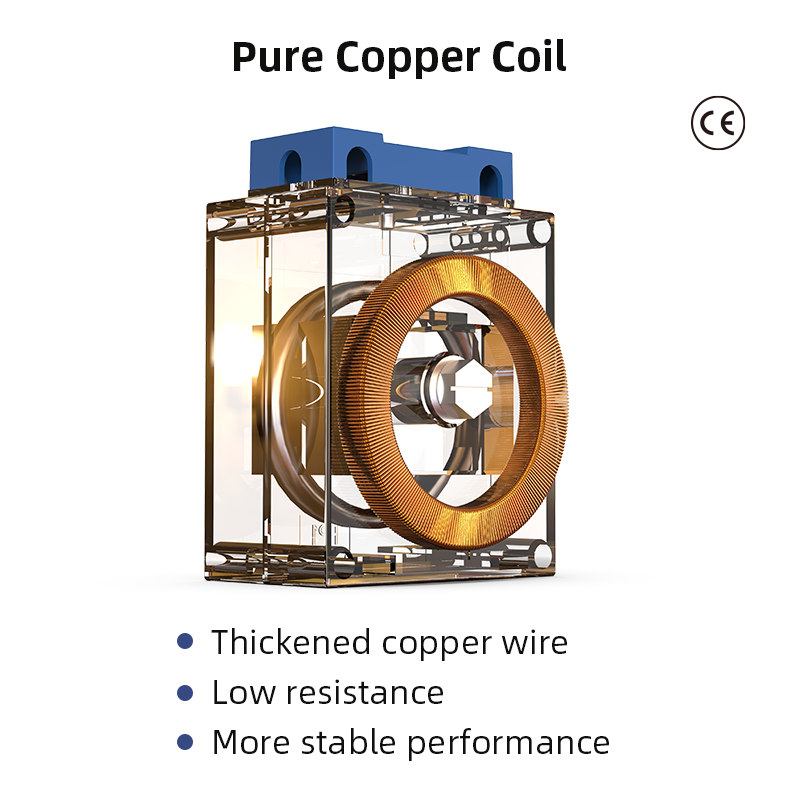

| Winding Material | Copper |
| Place of Origin | Guangdong, China |
| Coil Number | Multi-Winding Coil |
| Coil Structure | Wound Coil |
| Phase | Three |
| Material | Copper, Plastic |
| Shape | Rectangle |
| Application | Current |
| Product Name | YDBH0.66-8IV Series Low Voltage Current Transformer |
| Certificate | CE (EN 61010-1:2010+A1:2019) |
| Operating Temperature | -40℃ ~ +120℃ |
| Input Current | 5A to 60A |
| Output Current | 5A or 1A |
| Relative Humidity | 10% ~ 95% |
| Altitude | ≤4000m |
| Insulation Withstand Voltage | AC 3.0kV/min (secondary to ground) |
| Accuracy | Class 0.5, 1.0 |
|
Model
|
Rated input current
|
Rated output current
|
Rated overload
|
Accuracy
|

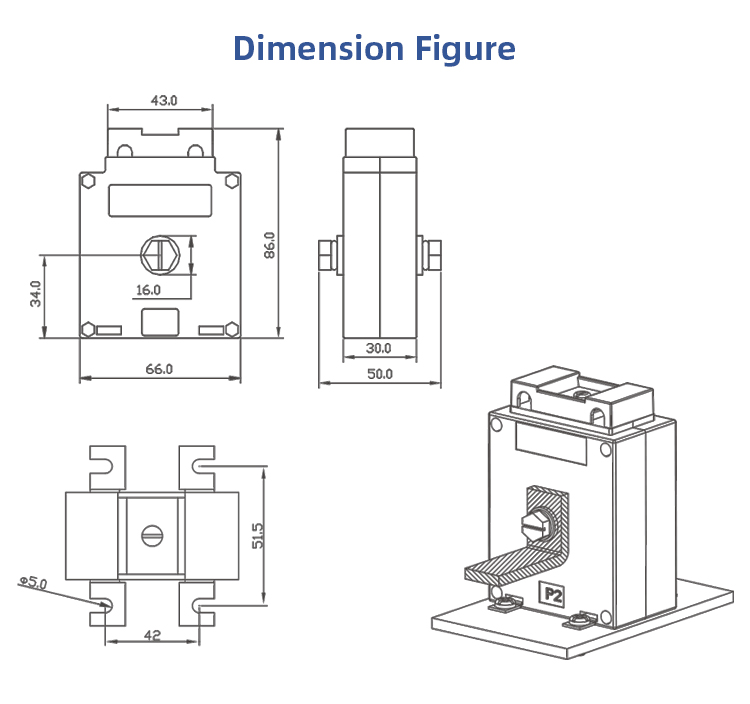

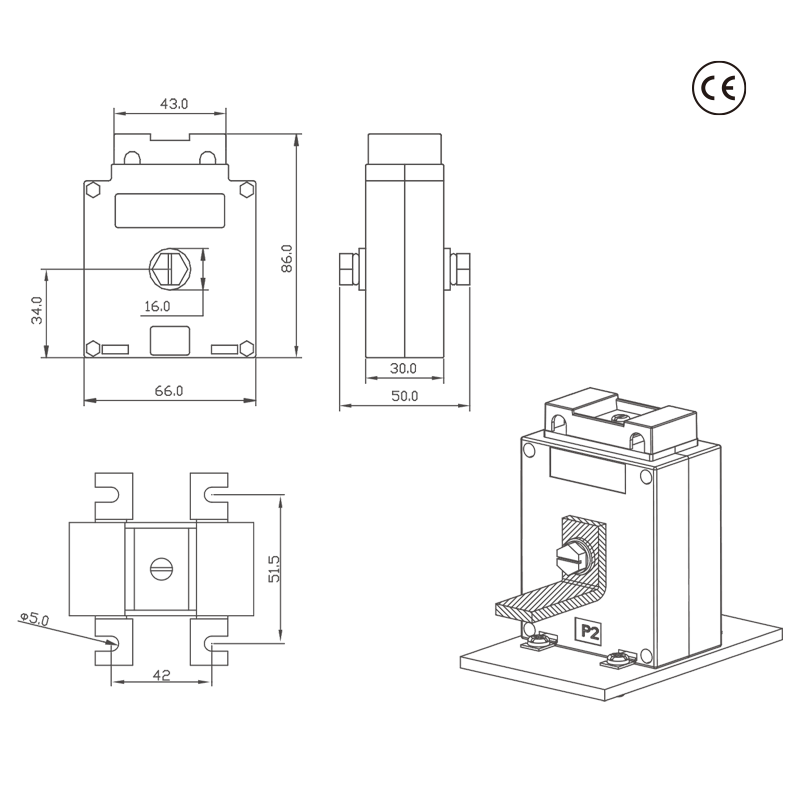

Dimesion(mm)
|
|
YDBH0.66-8IV
|
5A~60A
|
5A or 1A |
0.1VA
0.2VA 2.5VA |
0.5,
1.0
|
66×86×30
|
Key Features
-
Split-Core Design – Enables fast, safe installation or retrofit without disconnecting the conductor.
-
Wide Primary Current Range – Supports 5 A to 60 A primary currents for varied loads.
-
Secondary Output Options – Secondary current 5 A or 1 A provides compatibility with standard meters and relays.
-
CE Certified & Export-Ready – Ensures compliance with international safety and metering standards.
-
Low Burden & High Accuracy – Designed to minimize insertion impact on the measured circuit while maintaining measurement precision.
-
Robust Construction – Resin-encapsulated or flame-retardant housing suitable for panel-mount and industrial environments.
CE Certificates
Meets the Standard of EN 61010-1:2010+A1:2019
2025年 YDBH0.66系列电流互感器TUV证书 编号TASH-250918444-V1 (1)
Applications
-
Energy management systems (EMS) in factories, offices, commercial buildings
-
Current monitoring in power distribution panels and switchgear
-
Industrial automation for load estimation, fault detection and real-time analytics
-
Retrofit installations where minimal downtime is critical
-
Smart grid and renewable energy systems requiring accurate current sensing
Installation & Best Practices
-
Ensure main conductor is easy to access and the CT can clamp around it without disconnection.
-
Close the split core securely and install in panel or enclosure per local clearance rules.
-
Connect the secondary leads to your meter, EMS or relay system following manufacturer polarity recommendations.
-
Never leave the secondary side open-circuited when the primary is energized — always use proper burden or short the terminals.
-
Use shielded wiring or effective grounding practices in high-interference environments for best accuracy.
Why Choose YADA YDBH0.66-8IV?
With decades of experience in current sensing technology, YADA offers export-ready, high-accuracy CT solutions for system integrators, panel builders and energy service providers. The YDBH0-66-8IV Series delivers quick installation, flexible range options and compatibility with global energy monitoring and metering systems.
