Product Overview

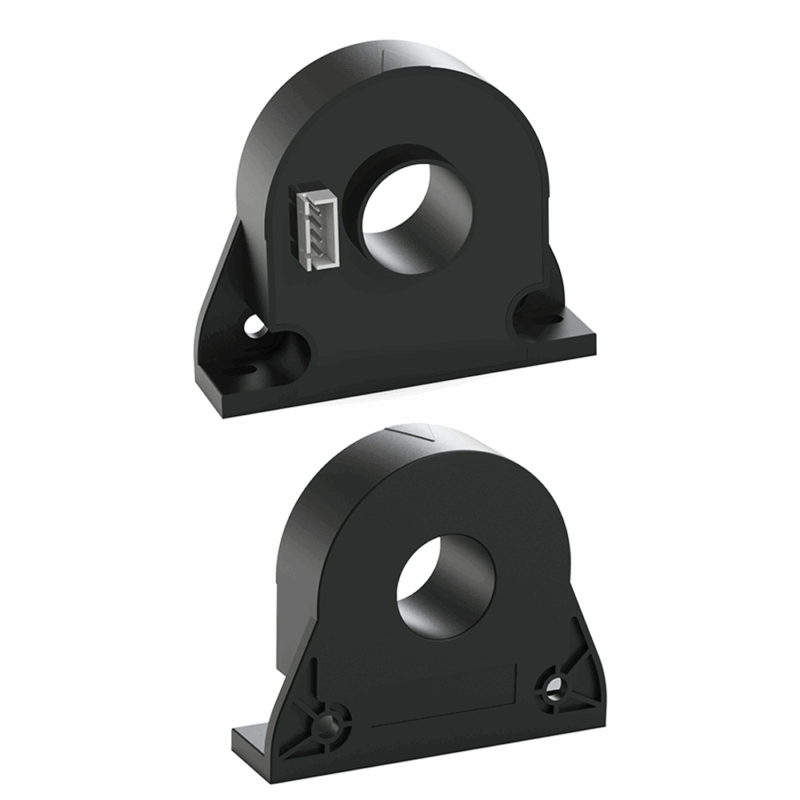

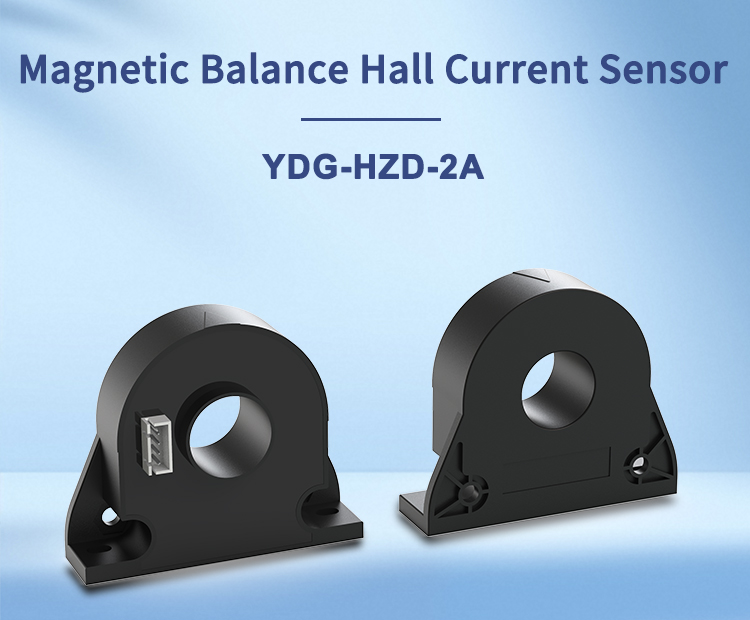

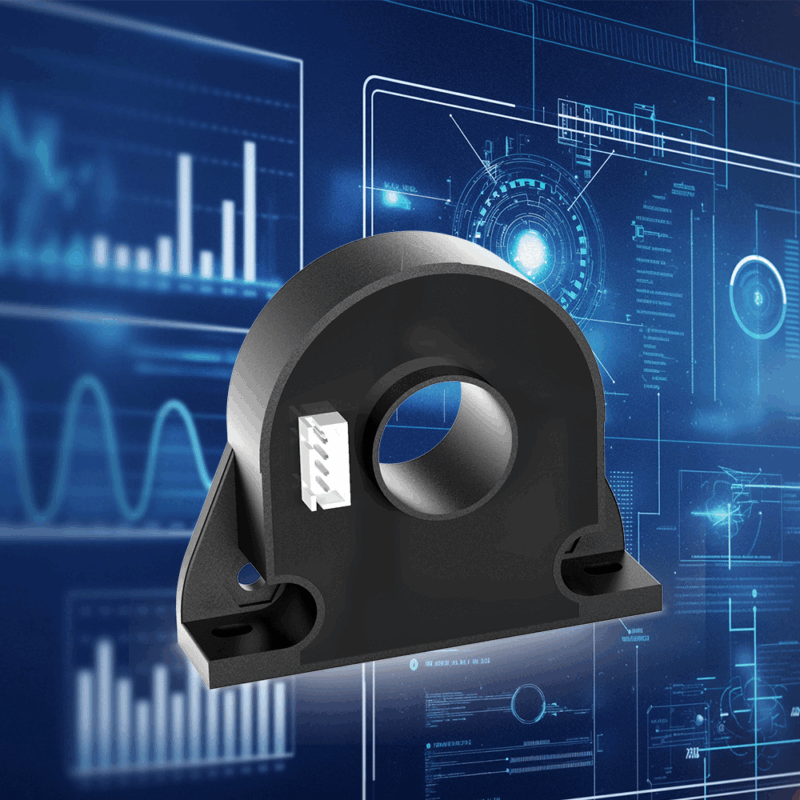

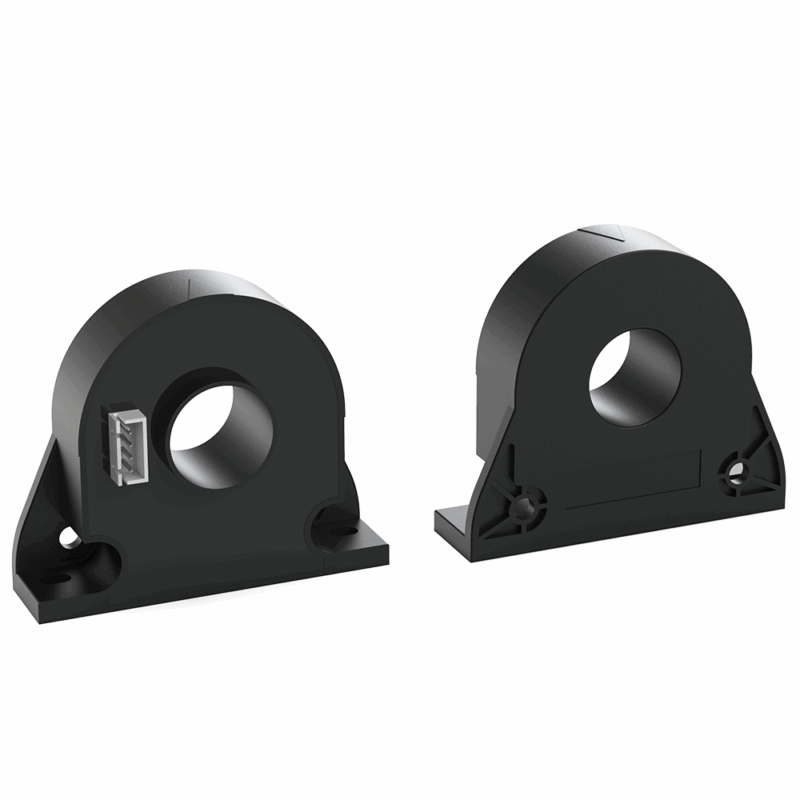

This sensor uses a magnetic balance (compensated) Hall effect architecture to maintain stable output across the measurement range. The device supports DC current input from 0 up to ±250 A and outputs a proportional ±40 mA signal. The housing is made from PC/ABS rated UL-94 V0, offering fire resistance and durability.
This sensor is ideally suited for integration with control systems, power measurement units, battery management systems, and instrumentation that accept mA-level input. It is especially useful in retrofit installations where safety, accuracy, and ease of integration are important.

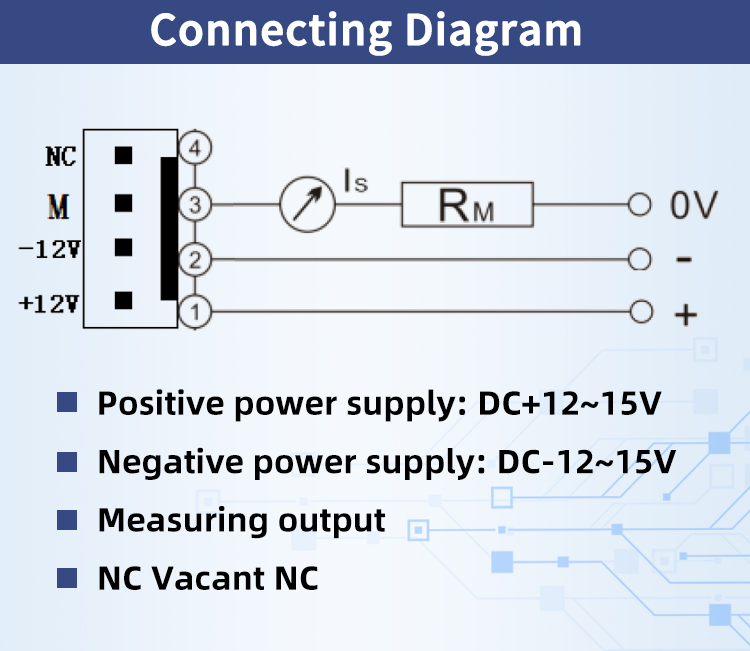

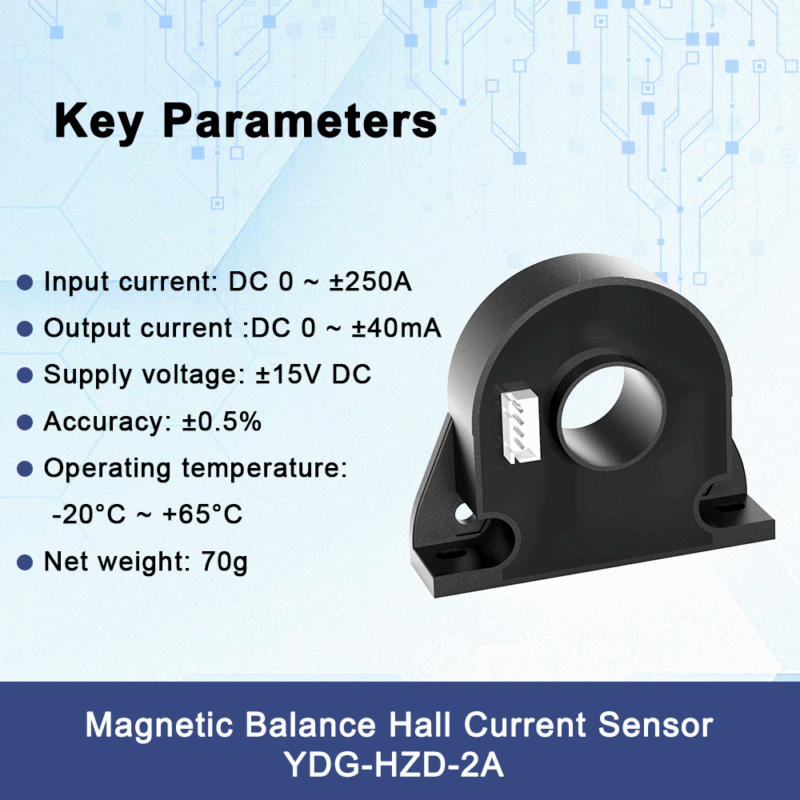

| Electrical data | ||||
| Primary nominal r.m.s. current (IP) | DC0~±250A | Supply voltage（±8%） | ±12~15V Vdc | |
| Primary current, measuring range(Max.) | 250A | Current consumption (@ ± 12V IP = 200A) | ≤1W | |
| Secondary nominal r.m.s. current ( IS ) | DC0~±40mA | Current consumption (@ ± 15V IP = 250A) | ≤1W | |
| Load resistance | with ±12V @ DC200A ≤ 50Ω | Rms voltage for AC insulation 50Hz 1min | 3.0kV | |
| with ±15V @ DC250A ≤ 75Ω | ||||
| Accuracy / Dynamic performance data | General data | |||
| Overall accuracy | ±0.5% | Operating ambient temperature | -20°C~+65°C | |
| Step response time to 90% of IP | <2μs | Storage ambient temperature | -40°C~+70°C | |
| di/dt accurately followed | >100A/μs | Net weight | 70g | |
| Frequency bandwidth (- 3dB) | DC…100kHz | |||

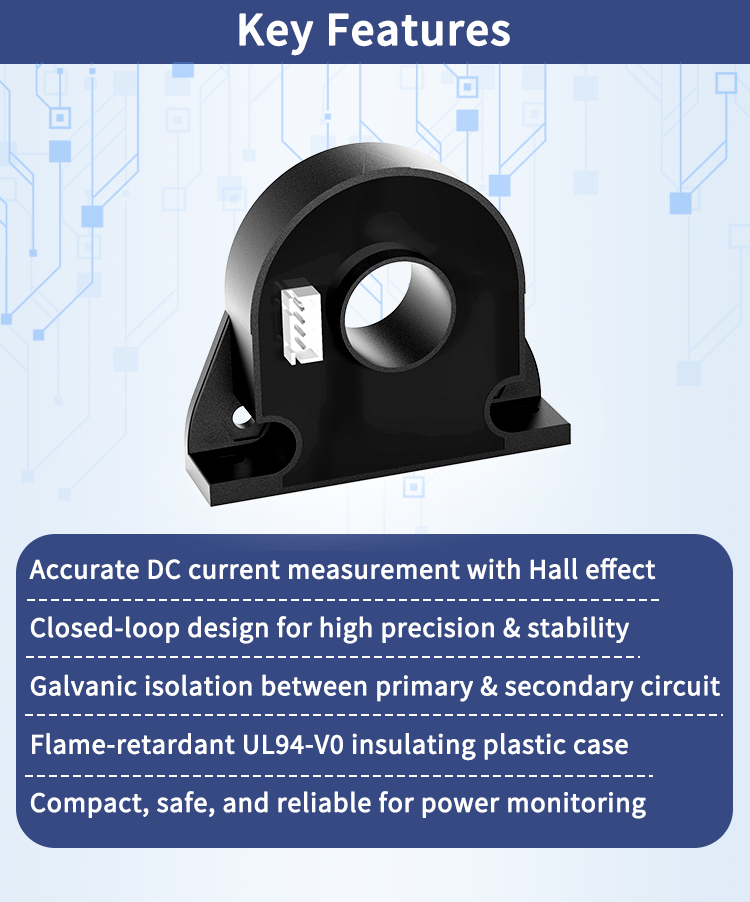

Key Features & Benefits
-
High Accuracy (±0.5 %) — Ensures precise measurement for control and monitoring
-
Closed-Loop Hall Technology — Maintains linearity and temperature stability
-
Wide Current Range — ±250 A input compatible with many power systems
-
Standard Output (±40 mA) — Useful for driving instrumentation and controllers
-
Fire-Resistant Housing — PC/ABS with UL-94 V0 rating provides durability and safety
-
Compact & Lightweight — 70 g net weight for ease of mounting
-
Wide Operating Temperature Range — –20 °C to +65 °C ensures robust performance

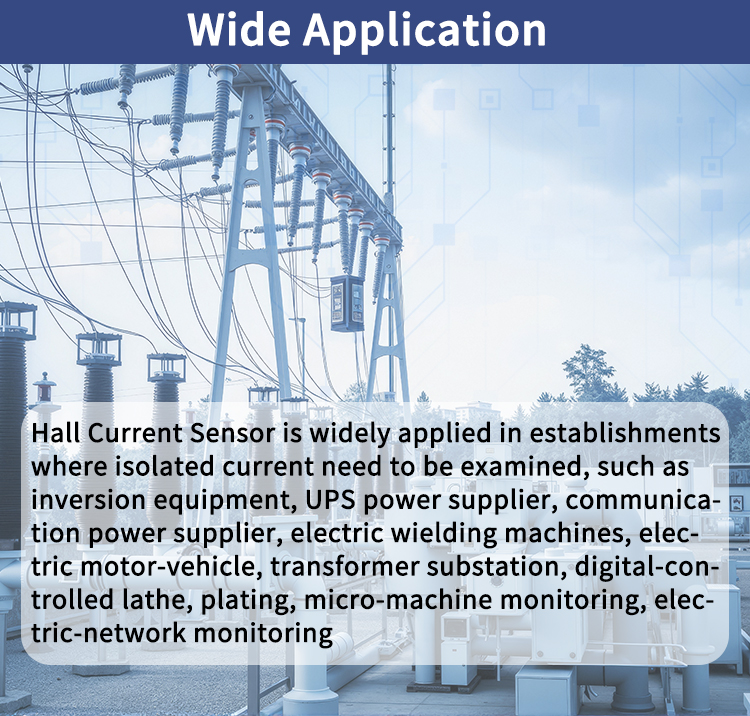

Applications

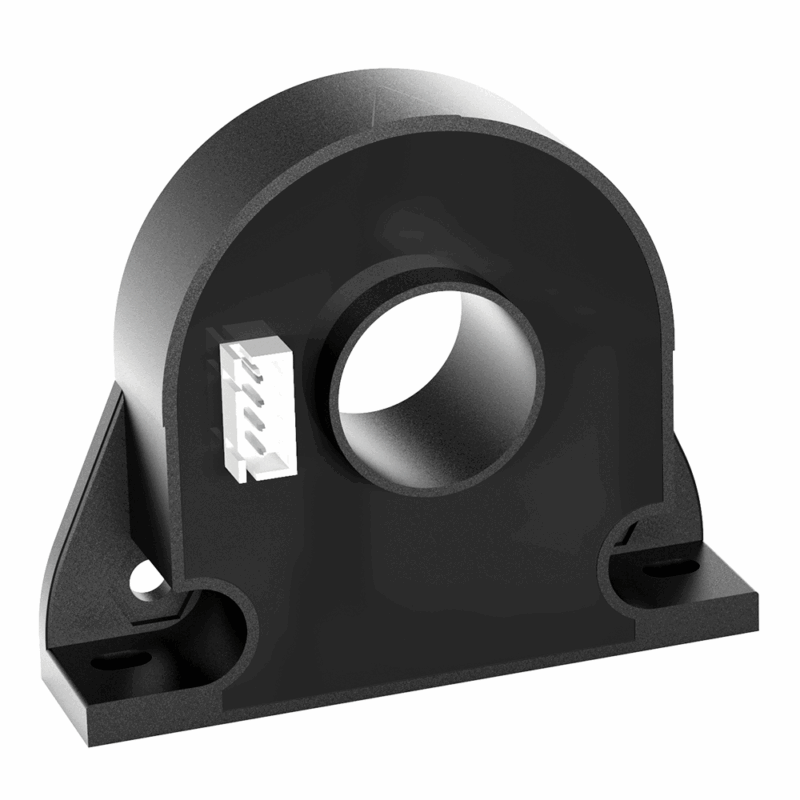

The YDG-HZD-2A Hall effect sensor is highly suitable for:
-
Battery management systems (BMS) in ESS (energy storage systems)
-
DC current monitoring in EV / E-mobility systems
-
Power electronics and inverter control systems
-
Renewable energy DC systems (solar, wind)
-
Laboratory instruments and test benches
-
Instrumentation and metering devices accepting mA-level input
-
Control and monitoring in industrial automation
Why Choose YADA YDG-HZD-2A?
-
Precise & Reliable — ±0.5% accuracy ensures trustworthy measurement
-
Fire-Safe Housing — UL-94 V0 rated enclosure for enhanced safety
-
Versatile Current Range — Supports up to ±250 A for many DC systems
-
Friendly Output Interface — ±40 mA output fits many control/monitoring systems
-
Robust in Harsh Conditions — Designed for –20 °C to +65 °C variation
-
Compact & Lightweight — Facilitates installation even in constrained spaces
-
Seamless Integration — Ideal for BMS, control boards, monitoring units
FAQ
Q: What is the input current range?
A: ±250 A DC standard input range according to Alibaba listing.
Q: What output does this sensor produce?
A: ±40 mA DC output, proportional to the input current.
Q: What is the accuracy class?
A: ±0.5 % typical accuracy.
Q: What supply voltage is required?
A: ±12 V to ±15 V DC per product spec.
Q: What’s the operating temperature range?
A: –20 °C to +65 °C.
Q: Is the housing flame-retardant?
A: Yes, the housing is PC/ABS rated UL-94 V0.
