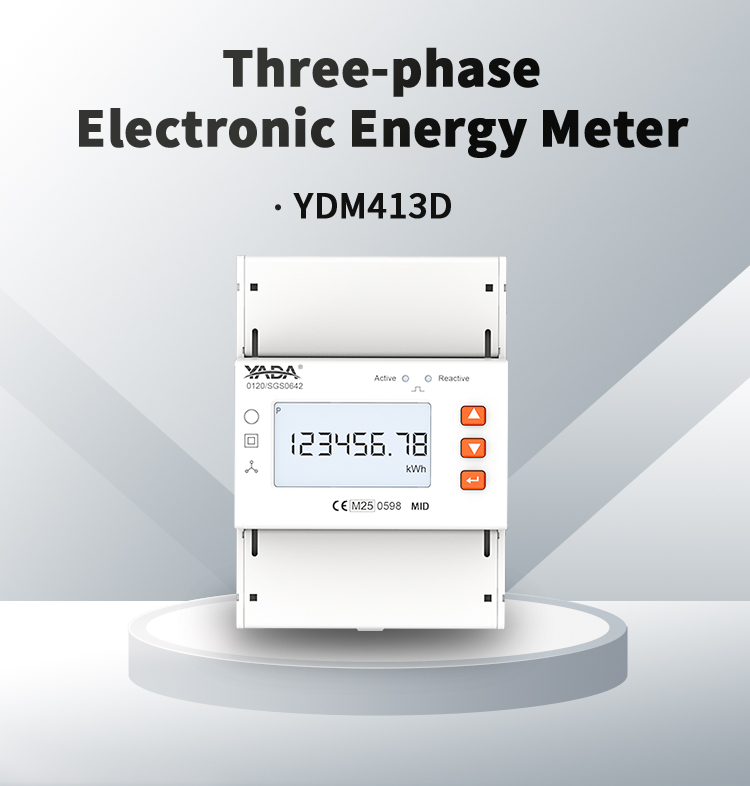

Product Overview
The YDM413D meter is engineered to measure three-phase AC electrical parameters accurately. Key specifications captured from the product listing include:
This meter is well suited for applications in EV charging stations, industrial panels, building energy management systems, and smart grid installations.
| Product Name | YADA YDM413D AC Energy Meter | |||
| Meter Type | 3 Phase Energy Meter | |||
| Model No. | YDM413D | |||
| Brand Name | YADA | |||
| Display Type | LCD Display | |||
| Measuring Energy Range | 0-99999.99kWh | |||
| Phase | Three Phase | |||
| Accuracy Class | Class B/C | |||
| Operating Temperature | -25℃~ 55℃ | |||
| Communication | RS-485 (dual line), isolated communication | |||
| ModBus-RTU and DL/T645-2007 Protocol | ||||
| Installation | 35mm DIN rail | |||
| Input current | 0.01 – 1 (6) A | |||
| Input Voltage | 3×230V/400 V | |||
| Certificate | MID, CE Certificationl (EN62052-11:2021, IEC50470-3:2022) | |||
| Warranty | 2 Years | |||
| Dimensions | 72.0mm*100mm*65.0mm | |||
| Application | Used for measuring the three-phase active electrical energy of the low-voltage network. | |||

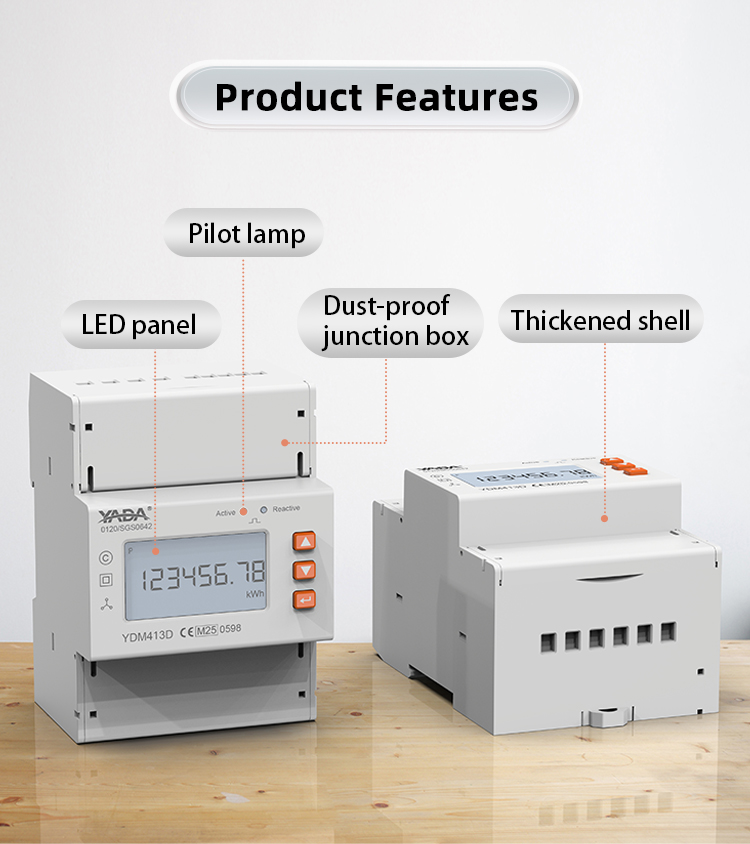

Key Features & Benefits
-
Certified & Trusted — MID and CE (plus other certifications) boost credibility in regulated markets
-
High Accuracy — Class 0.5 / 1.0 guarantees precise energy measurement for billing or audit
-
Three-phase Full Coverage — Monitors all three phases (A, B, C) in AC systems
-
RS-485 Communication — Dual isolated RS-485 lines for Modbus data transmission and system integration
-
LCD Display with Backlight — Provides real-time, multi-parameter readouts even in low light
-
Compact DIN-Rail Design — 35 mm DIN mounting for simplified installation
-
Wide Operating Temperature — Suitable for cold and hot environments (–25 °C to +55 °C)
-
Robust Build & Safety Standards — Meets EN / IEC standards for reliability and electromagnetic compatibility
-
Sub-metering & EV Compatibility — Often used in EV charging setups for sub-metering or load monitoring
-
Warranty & Support — 2-year warranty provides reassurance for B2B buyers

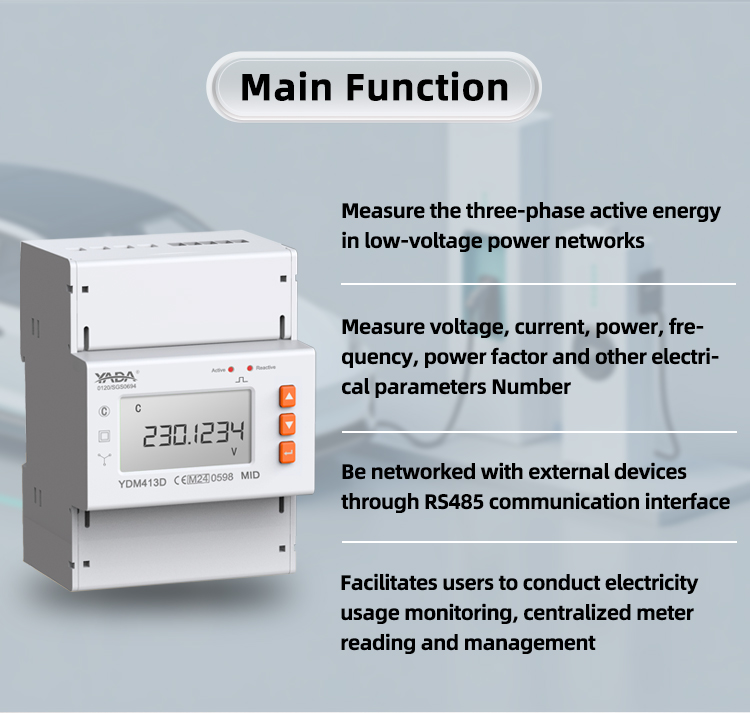

Main Functions

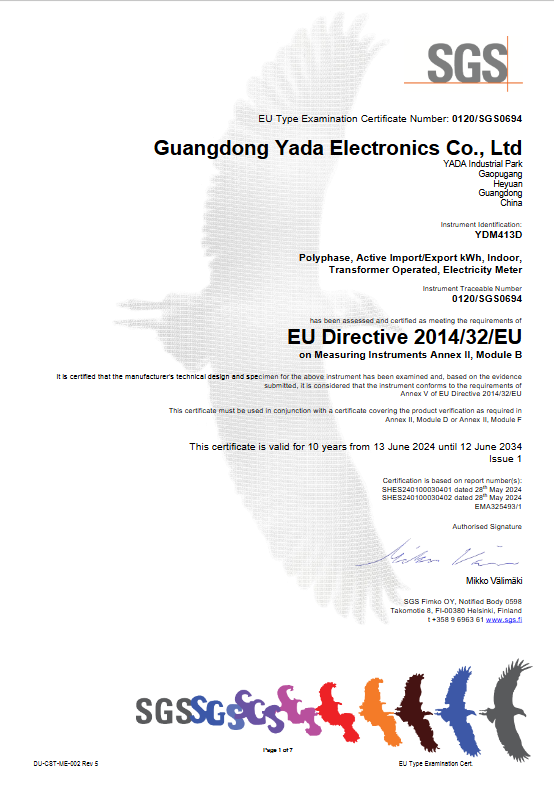

MID Certification

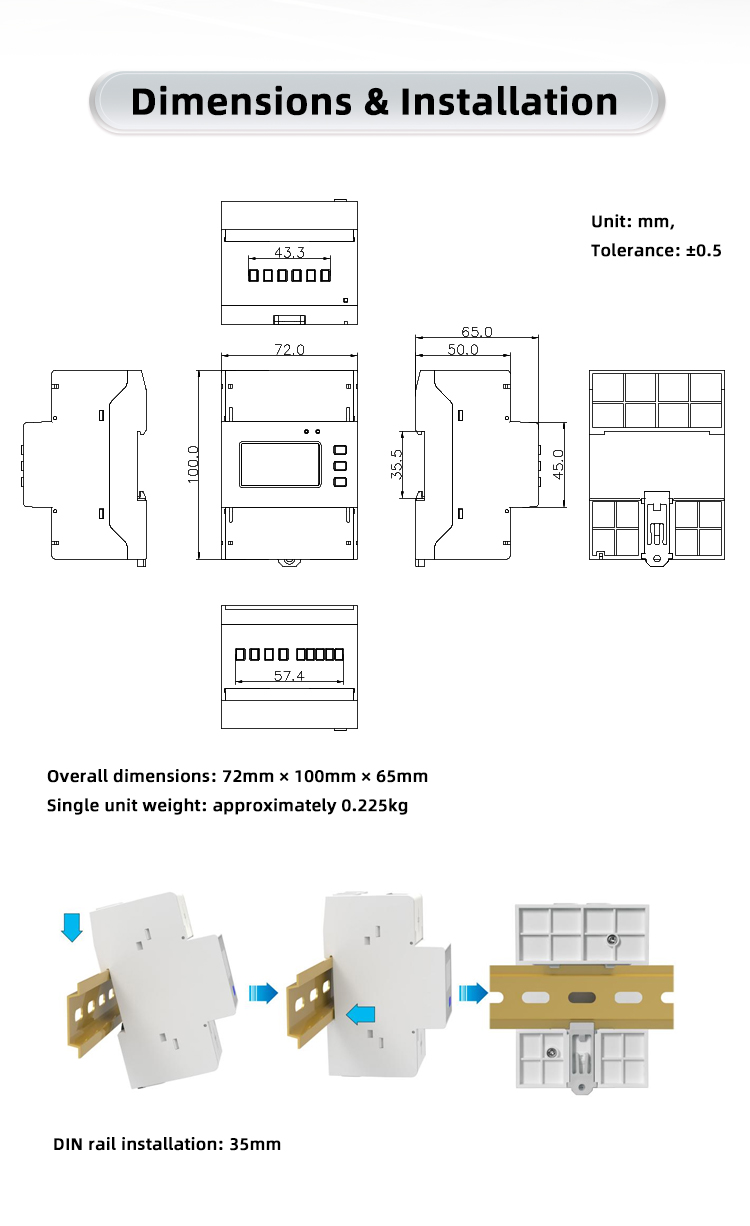

Dimension & Installation
Applications
The YDM413D is ideal for:
-
Sub-metering in EV charging stations
-
Industrial distribution panels monitoring
-
Commercial building energy management
-
Smart grid and microgrid implementations
-
Load monitoring and audit systems
-
Integration into SCADA, BMS, or EMS systems
Why Choose YADA YDM413D?
-
Export-Ready Certifications — MID & CE make it appealing for European and global markets
-
Trusted Measurement Accuracy — For clients needing reliable metering for billing or regulatory compliance
-
System-friendly Interface — RS-485 & Modbus make it compatible with many control platforms
-
Compact & Convenient — DIN-rail design saves panel space
-
Proven Manufacturing & Support — Long-term warranties and after-sales support for business customers
FAQ
Q: What accuracy class options are available?
A: The meter supports Class 0.5 and Class 1.0 accuracy per listing.
Q: What communication protocol does it use?
A: RS-485 (dual isolated lines) with Modbus support.
Q: What voltage and current ratings?
A: Input voltage 230V / 400V AC, rated current 6A.
Q: What certifications does this unit have?
A: It carries MID, CE, LVD, EMC, UKCA, and others.
Q: What is its temperature range?
A: –25 °C to +55 °C per product specs.
Related Solutions for Reference
Charging Pile Energy Management Solution
Request An AC Energy Meter Quote
Send the phase configuration, maximum load current, required accuracy class, communication protocol and whether the reading is used for billing. YADA’s engineering team confirms the model and CT ratio.
