Product Description
Specification
|
Item
|
Value
|
|
Place of Origin
|
Guangdong China
|
|
Brand Name
|
YADA
|
|
Model Number
|

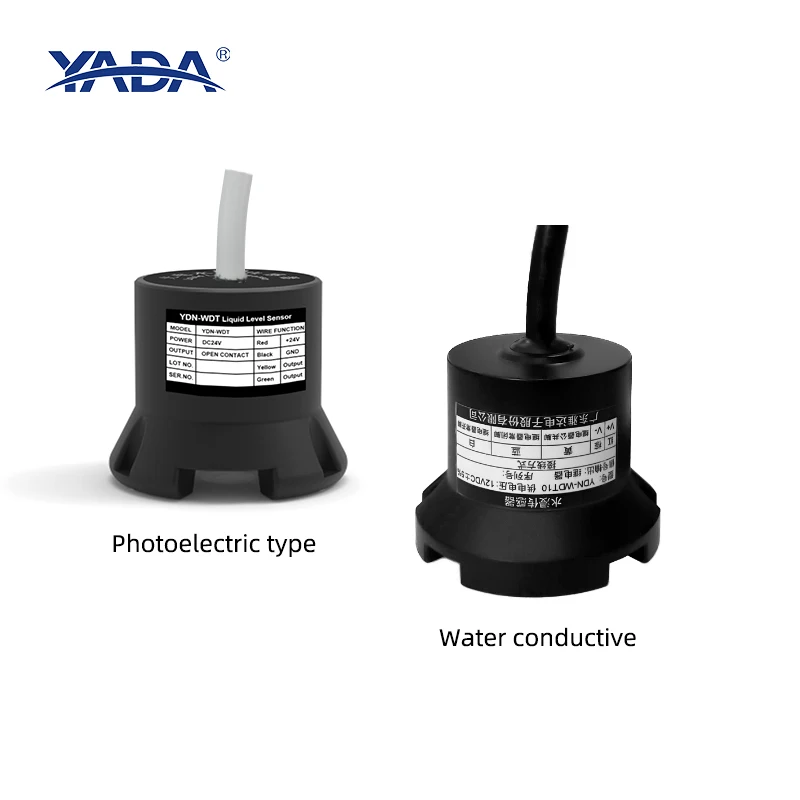

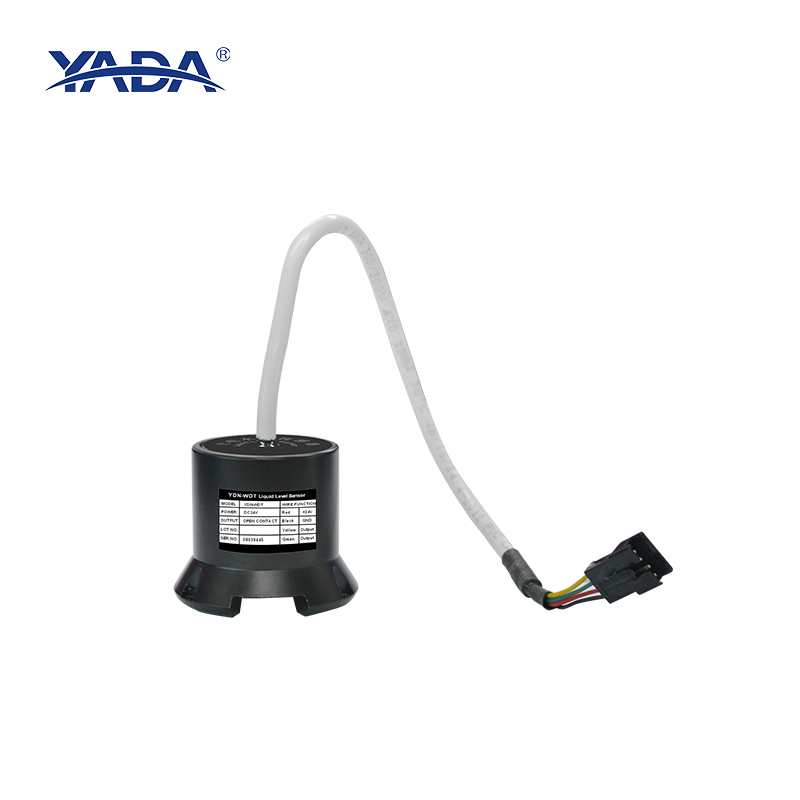

YDN-WDT: Photoelectric type YDN-WDT10: Water conductive
|
|
Accuracy (Detecting Sensitivity)
|
YDN-WDT10: 50kΩ±10kΩ
|
|
Lead Cable Length
|

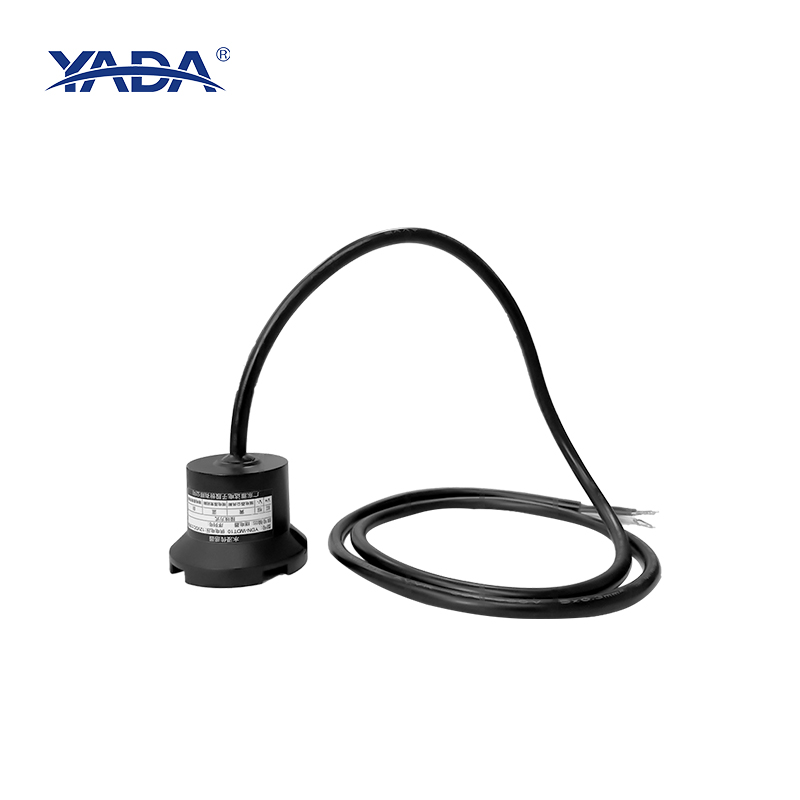

YDN-WDT: 1m/2m/3m YDN-WDT10: 1m
|
|
Output
|
DO (capacity of replay output：DC30V，1A)，NO or NC optional
|
|
Auxiliary Power
|
DC12V±10%/DC24V±15%
|
|
Operating Temperature
|
-10℃~ 50℃
|
|
Installation
|
screw Mounted
|
|
Dimensions
|
YDN-WDT: 48.0mm*38.0mm*40.0mm YDN-WDT10: 50.0mm*37.0mm*38.0mm
|

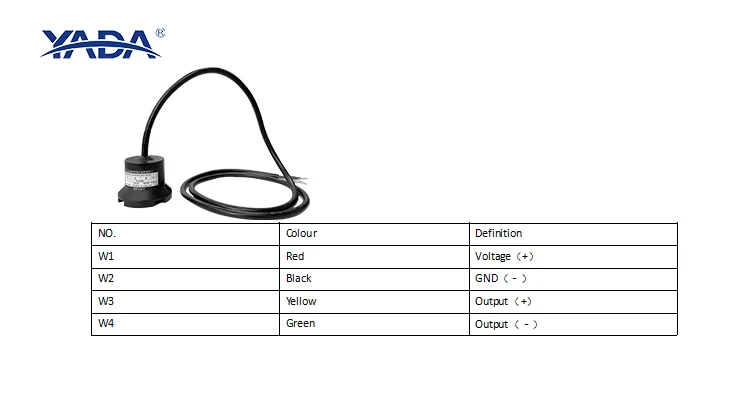

Wiring

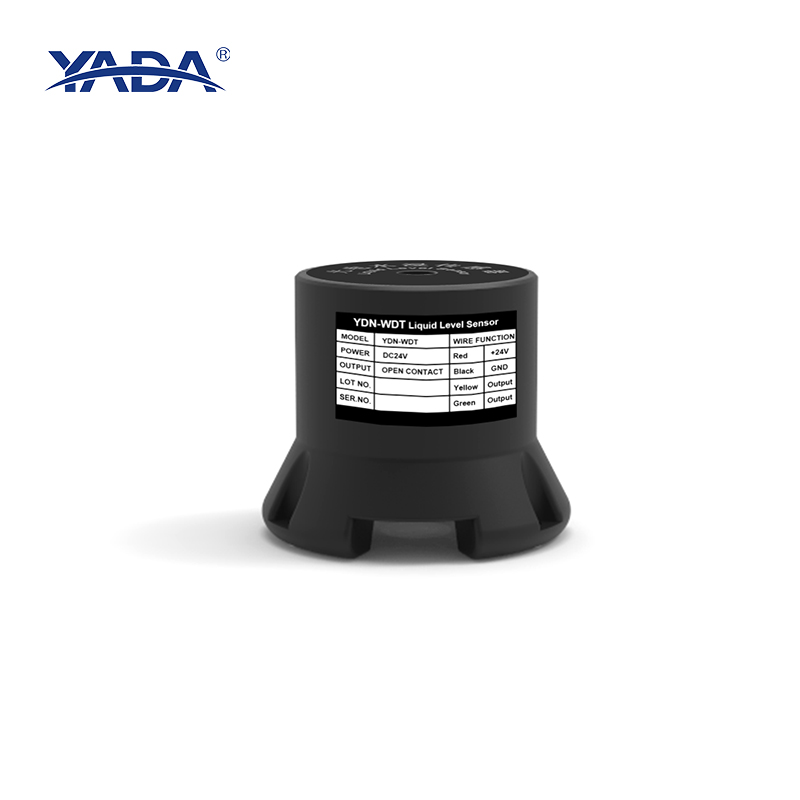

YDN-WDT: Photoelectric type

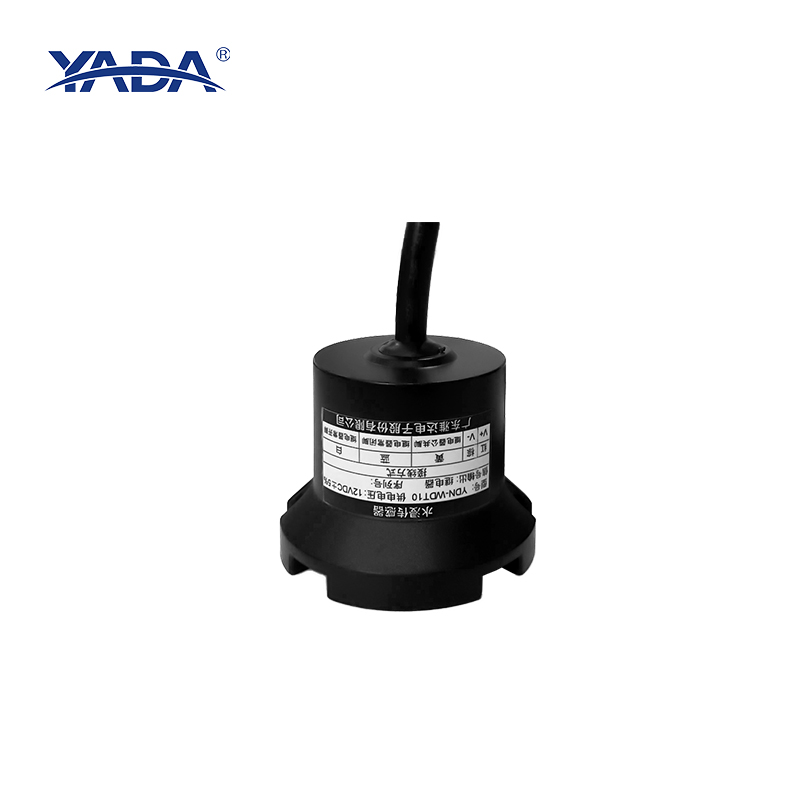

YDN-WDT10: Water conductive
Dimension
YDN-WDT: Photoelectric type
YDN-WDT10: Water conductive
Installation

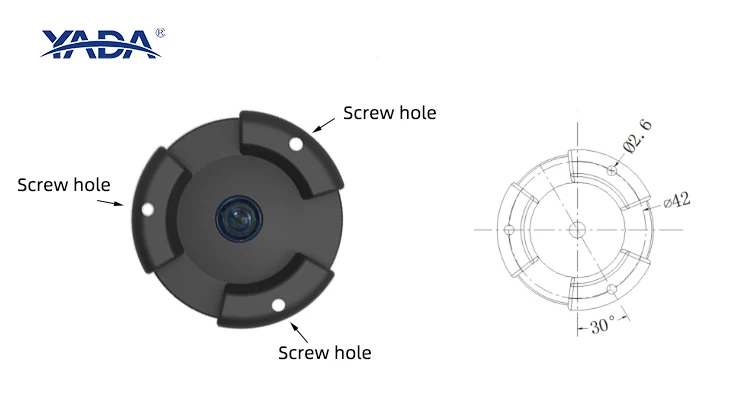

Screw mounted for YDN-WDT(Photoelectric type)

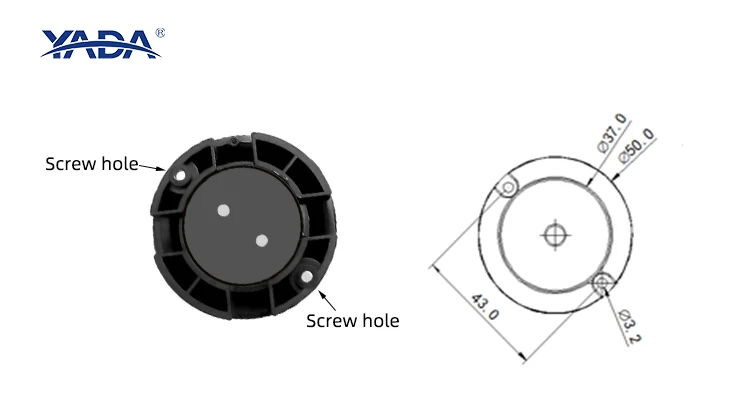

Screw mounted for YDN-WDT10(Water conductive)
