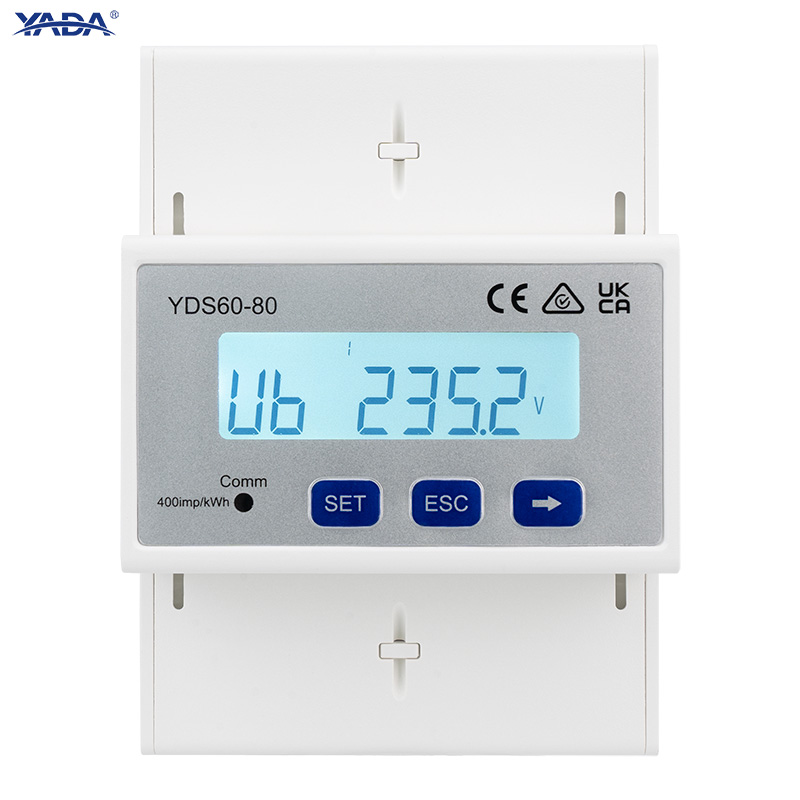

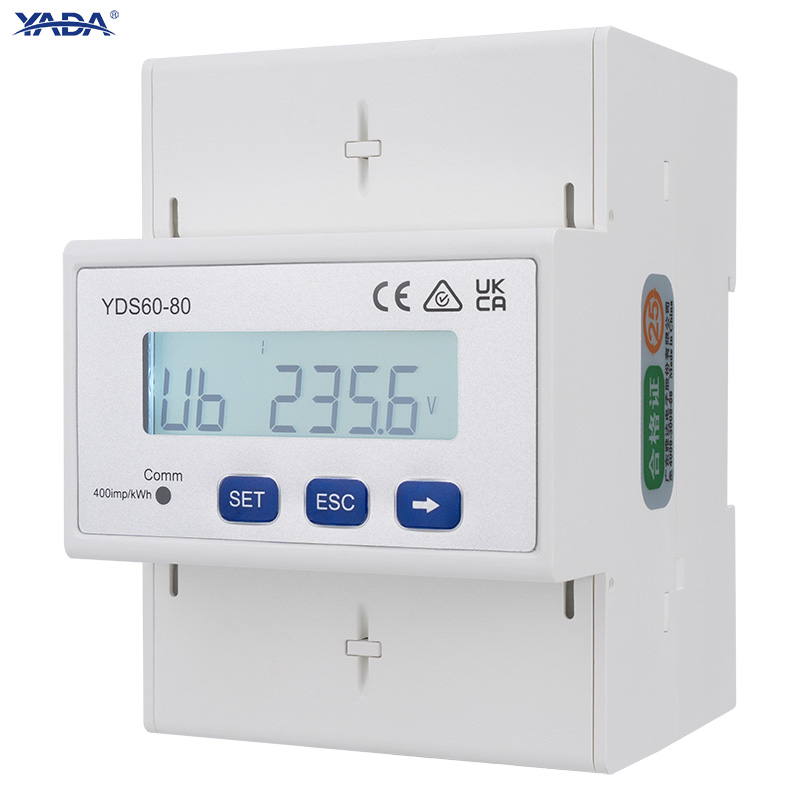

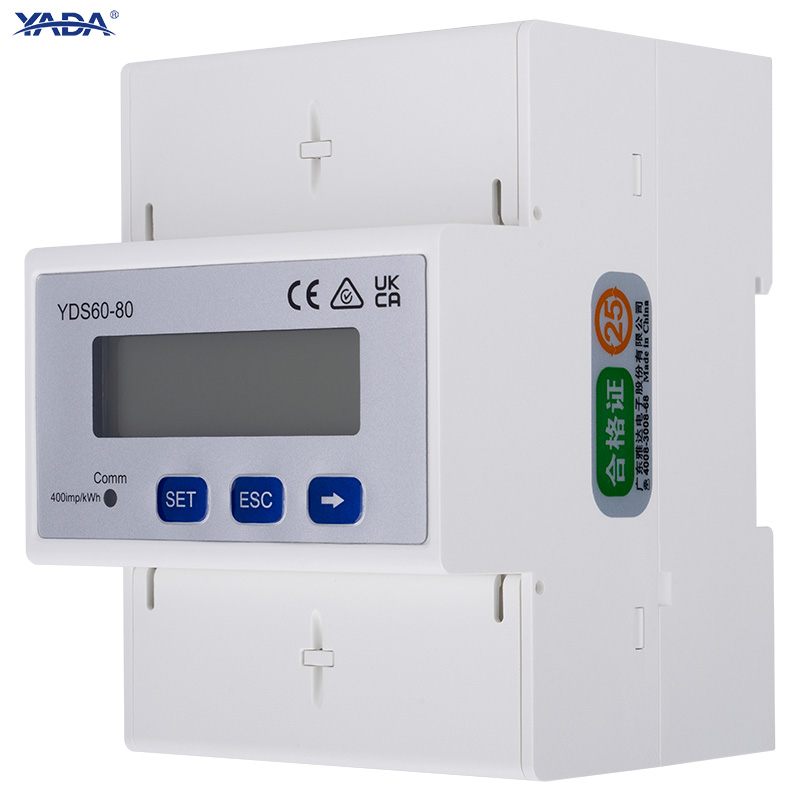

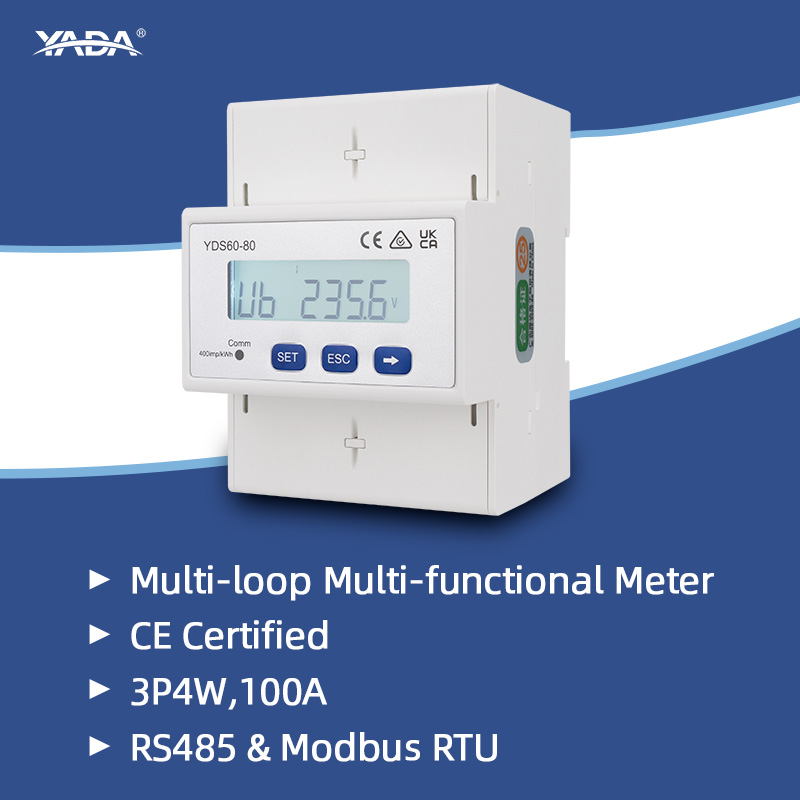

Product Overview
This meter combines intelligent measurement and networking in one device. It can monitor:
-
Phase voltages & currents
-
Active / reactive / apparent power
-
Power factor, frequency
-
Energy (kWh) with forward / reverse capability
-
Power quality and alarms
It supports both direct connection (≤ 80 A) and CT (current transformer) mode for higher currents.It is suitable for wiring modes of 3P3W and 3P4W systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YDS60-80 |
| Phase | Three-phase (3P3W / 3P4W) |
| Accuracy | Class 0.5 / 1.0 |
| Input Voltage | AC230V/400V |
| Input current | 1.5(6)A, 10(80)A |
| Communication | RS-485 Modbus RTU |
| Installation | DIN-rail (35 mm) mount |
| Display | LCD backlit |
| Operating Temp | –25 ℃ to +55 ℃ |
| Certifications | CE, UKCA, RCM, MID, EMC, LVD |
| Dimensions | 72 mm × 100 mm × 80 mm |
Key Features & Benefits
-
High Accuracy — 0.5 / 1.0 class measurement ensures reliable energy data
-
RS-485 Modbus RTU — Enables real-time data readout and system integration
-

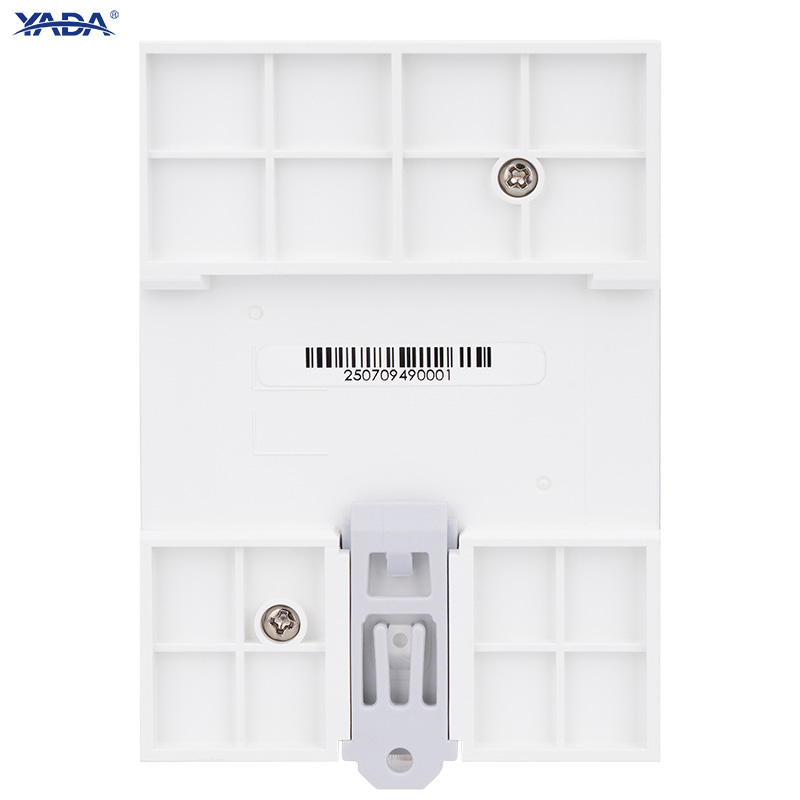

DIN-Rail Installation — 35 mm rail mounting for easy panel deployment
-

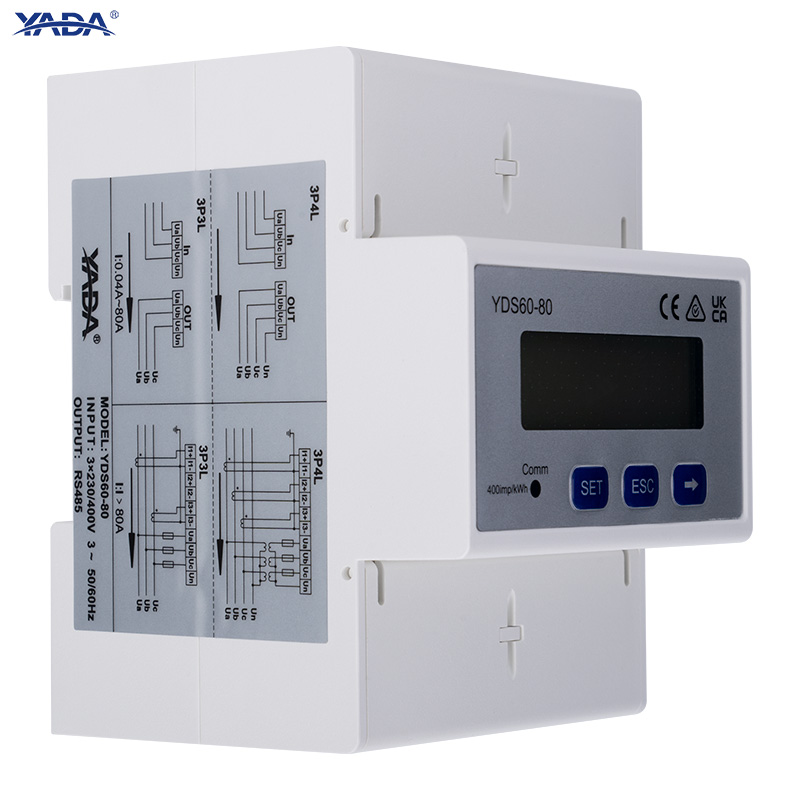

Dual Mode Current Measurement — Direct up to 80 A; for >80 A, use external CTs
-
Wide Voltage Range Handling — 90–1000 V (requires PT for > 500 V)
-
Compact & Robust — Dimensions 72 × 100 × 80 mm
-
Global Compliance — CE, UKCA, RCM, MID certifications ensure credibility in export markets
-
Data Retention & Alarms — Supports parameter settings and fault detection (such as CT/ PT failure)
Application Display

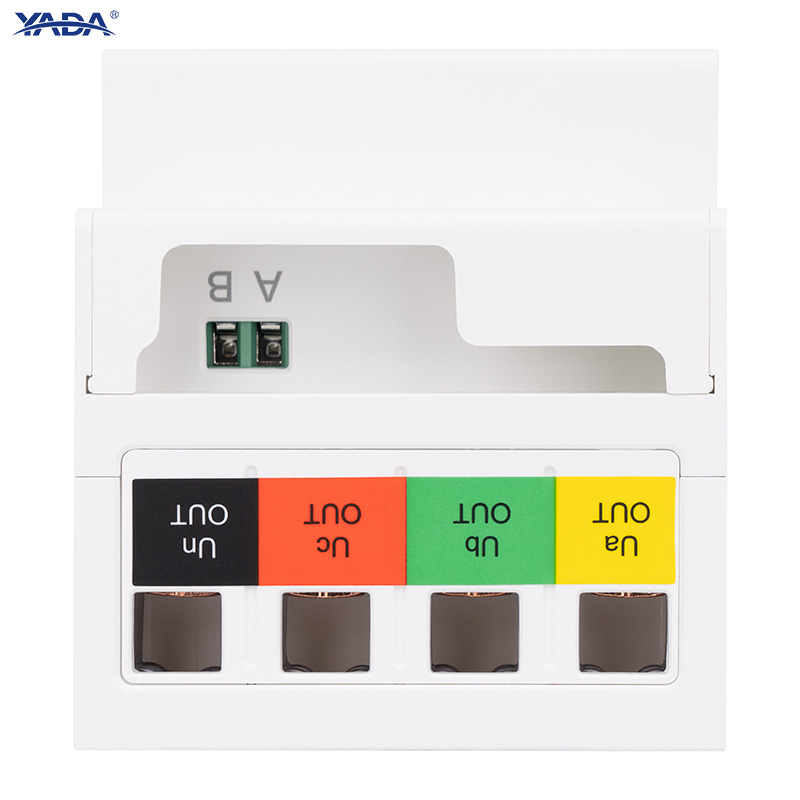

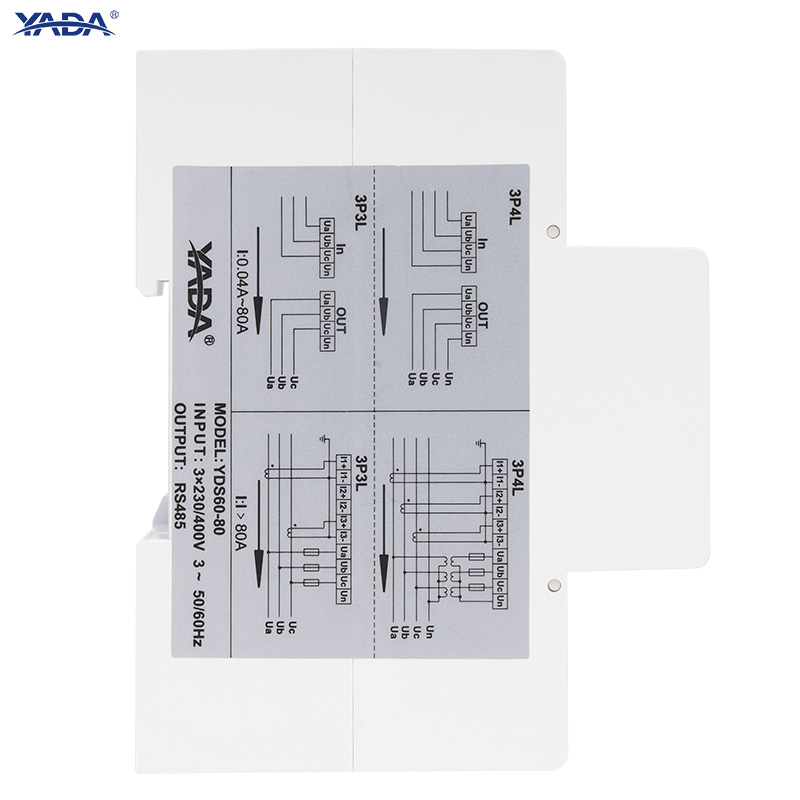

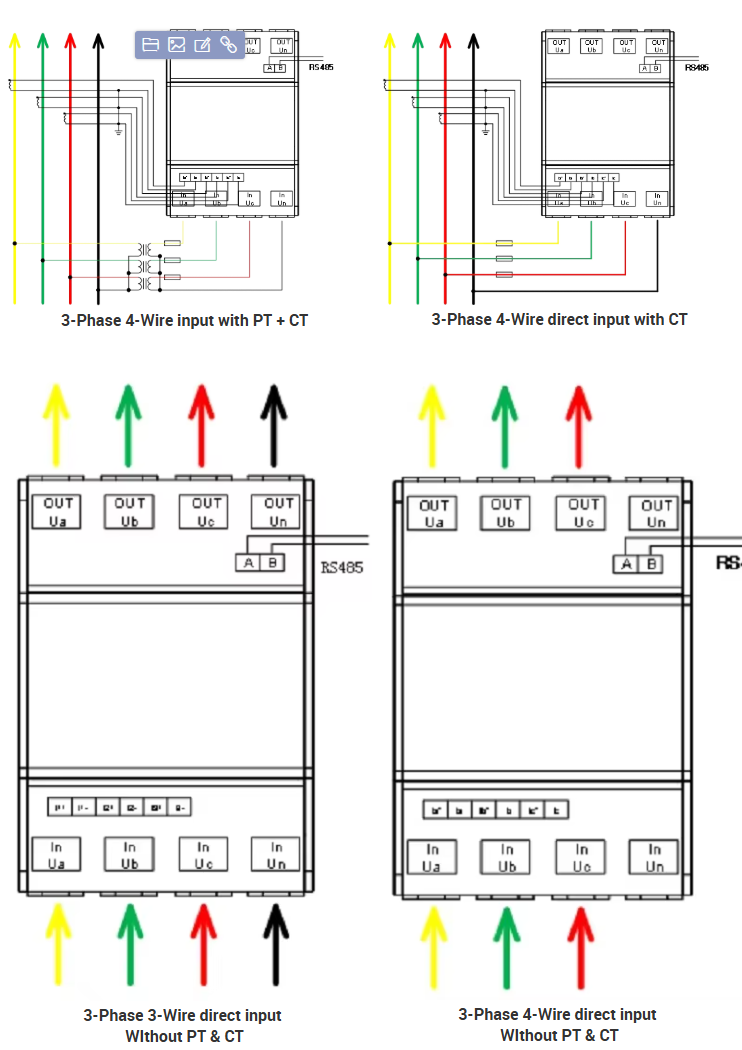

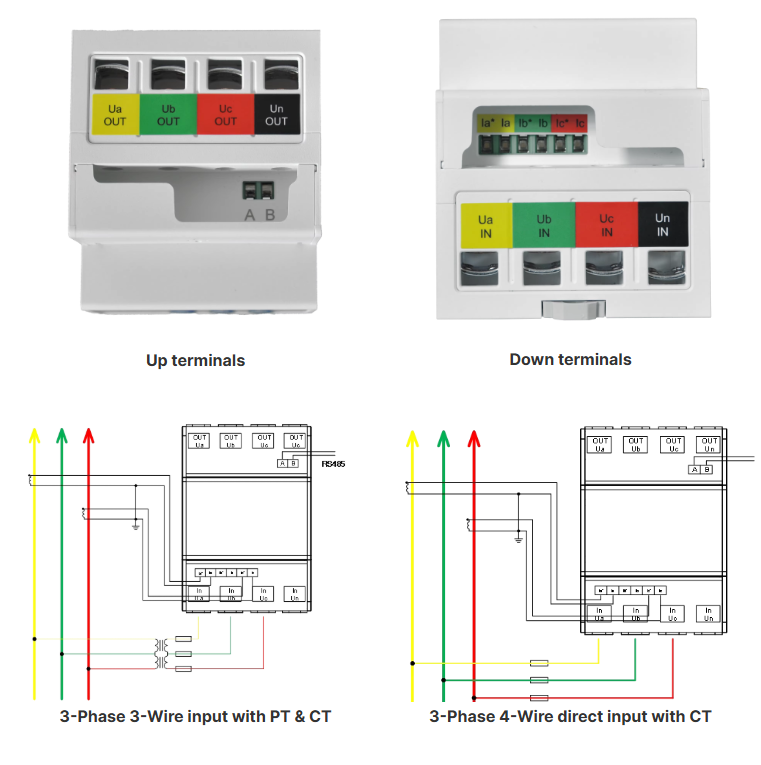

Wiring

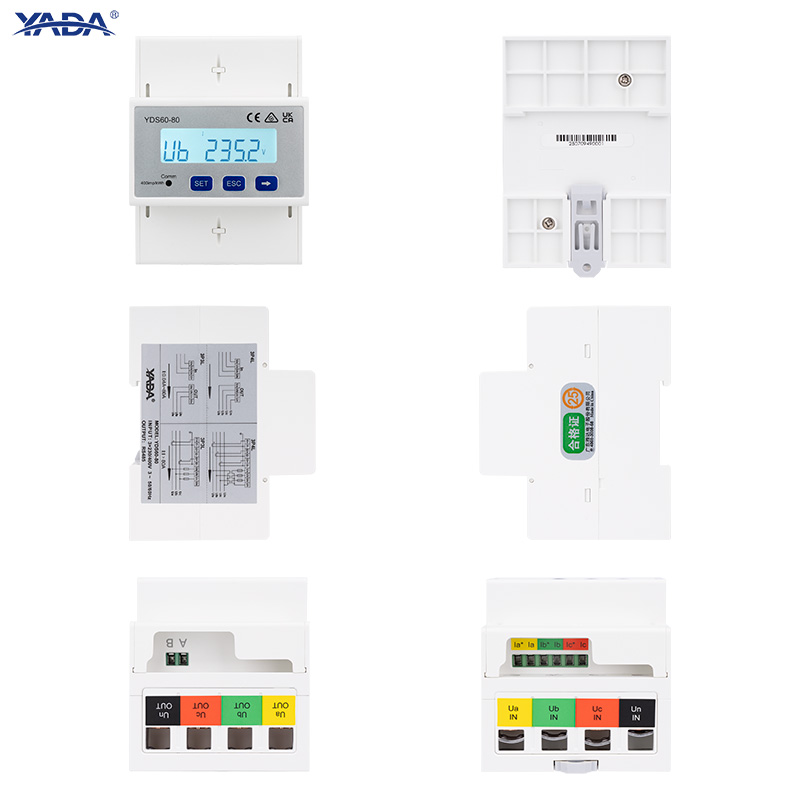

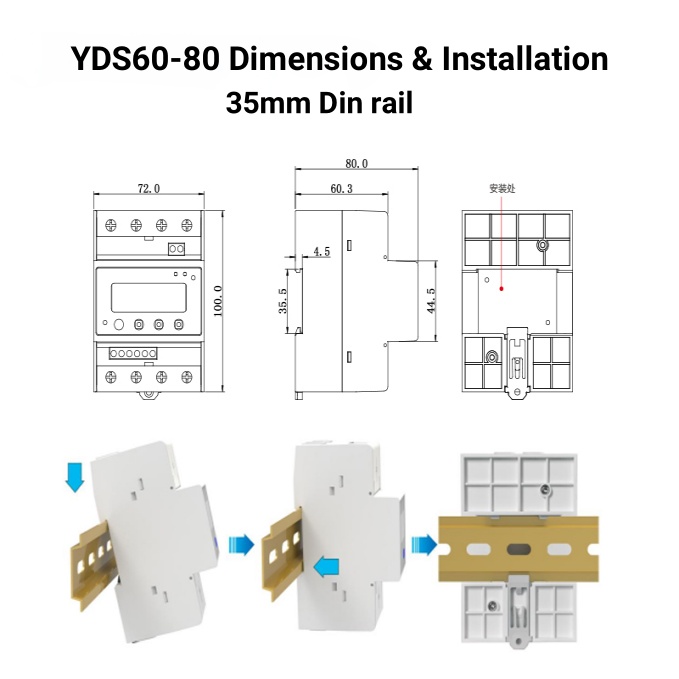

Dimension & Installation

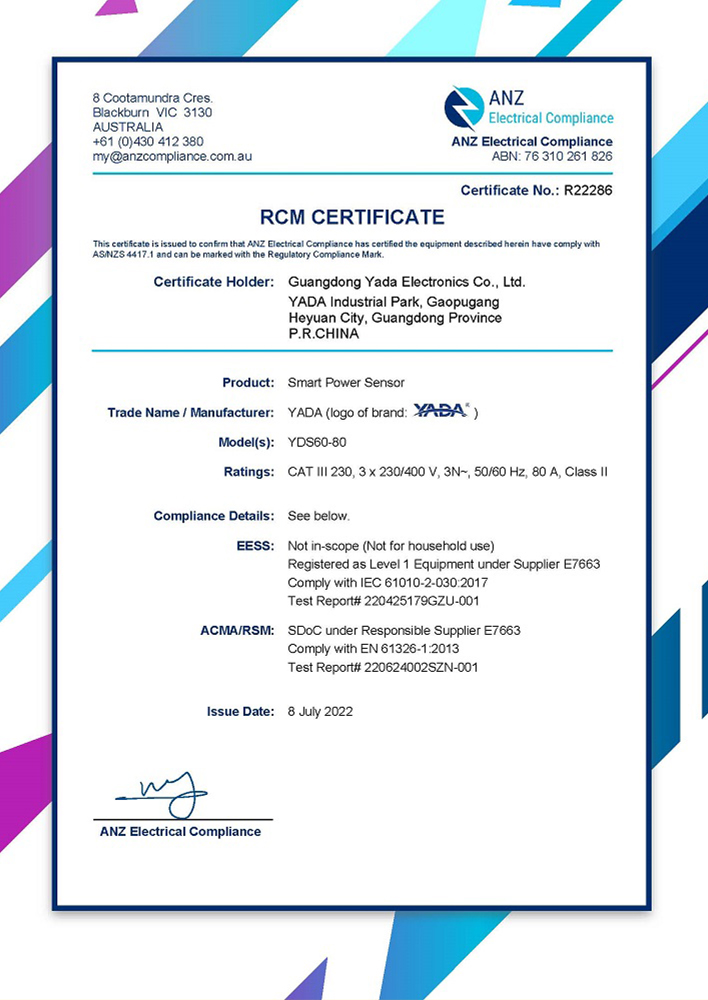

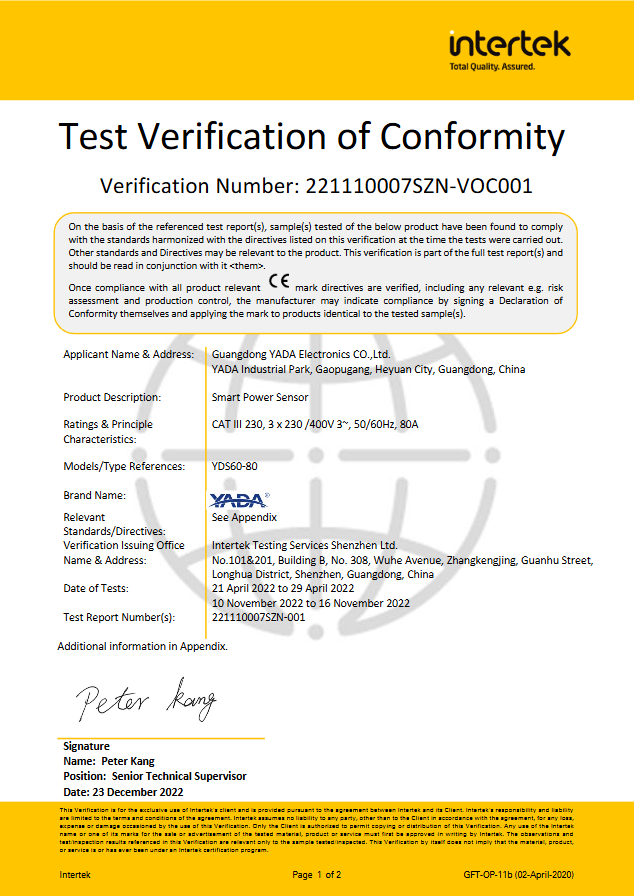

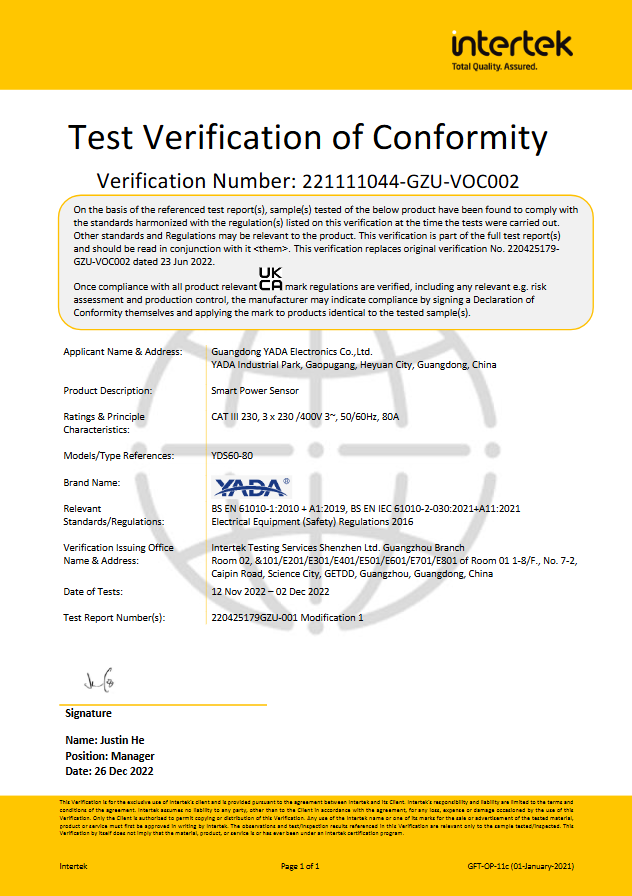

Certificates
Applications
-
Industrial power distribution monitoring
-
Commercial building energy management
-
Renewable energy / solar PV systems
-
EV charging station power measurement
-
Sub-metering in distribution panels
-
Power quality monitoring & fault detection
Why Choose YADA YDS60-80?
-
A trusted brand with strong export certification portfolio
-
Flexibility for direct and CT-based measurement
-
Compact format with DIN-rail mounting
-
Communication ready for EMS / SCADA systems
-
Suitable for broad markets (CE / UKCA / RCM)
-
Reliable in harsh environmental conditions
