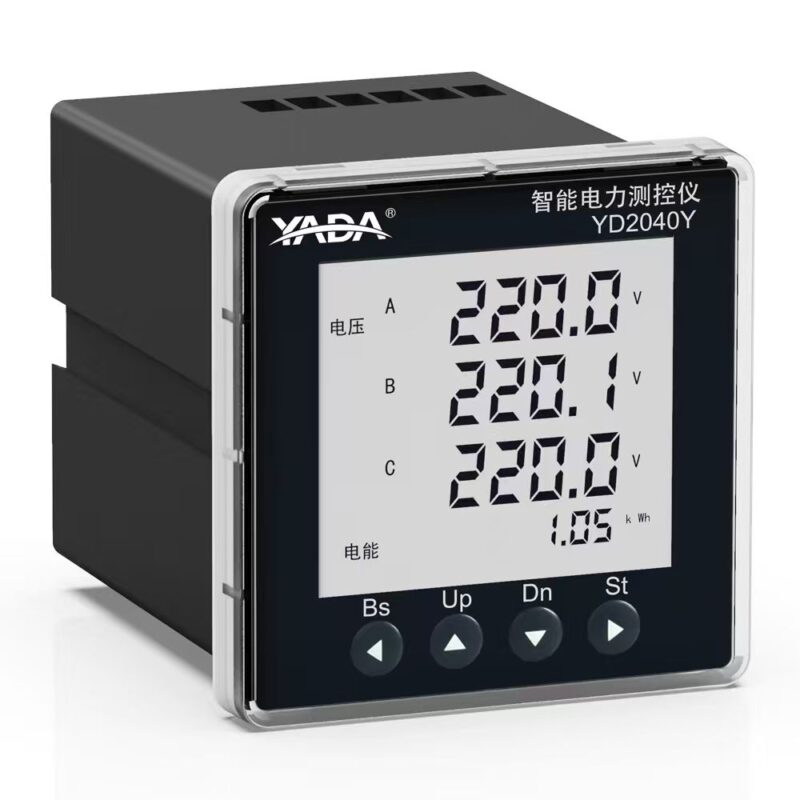

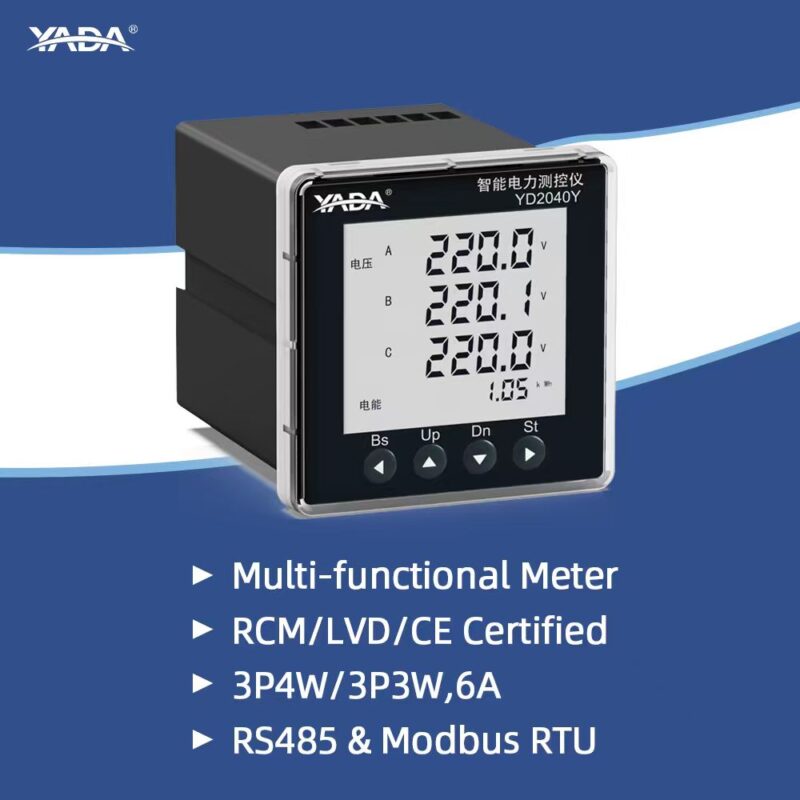

Product Overview
The YADA YD2040Y provides comprehensive electrical parameter measurement for three-phase AC systems. It features multiple functions including voltage, current, active/reactive/apparent power, power factor, harmonic analysis, and total energy (kWh / kVarh). With a Class 0.5S accuracy rating and support for high energy ranges up to 999,999.99 MWh, this meter is suited for demanding applications.
Designed for panel mounting (68 × 68 mm) with a clear LCD display, the YD2040Y offers robust performance under various conditions. Interfaces like RS-485 (Modbus RTU) allow integration into SCADA, BMS, and EMS systems.
|
Product Name
|
YADA YD2040Y Multi-functional Smart Power Meter
|
|||
|
Meter Type
|
Three Phase Power Meter
|
|||
|
Model No.
|
YD2040Y
|
|||
|
Brand Name
|
YADA
|
|||
|
Display Type
|
LCD Display
|
|||
|
Measuring Energy Range
|
0-99999.99kWh
|
|||
|
Phase
|
3 Phase
|
|||
|
Accuracy Class
|
Class 0.5
|
|||
|
Operating Temperature
|
-10℃~ 50℃
|
|||
|
Communication
|
RS485(Modbus-RTU)
|
|||
|
Installation
|
Panel Mounted, Size 92*92mm, 68*68mm optional
|
|||
|
Input current
|
5(6)A
|
|||
|
Input Voltage
|
AC220V/380V
|
|||
|
Auxiliary Power
|
AC85-265V / DC100-330V
|
|||
|
Certificate
|
CE Certification(EN61010-1:2010, EN61000-6-1:2007+A1:2011, EN61000-3-2:2014, EN61000-3-3:2013, EN61000-6-2:2005)
|
|||
|
Warranty
|
2 Years
|
|||
|
Dimensions
|
74mm*74mm*88mm
|
|||
|
Panel Mounted Size
|
68mm*68mm
|
|||
|
Appication
|
Data center, Telecommunication, Charge station, Industrial, IoT, Household and other Power Management System.
|
|||
Key Features & Benefits
-
High Accuracy & Wide Range — Accuracy Class 0.5S with energy measurement up to 999,999.99 MWh
-
Full Three-Phase Monitoring — Simultaneous measurement of all three phases and neutral
-
Comprehensive Parameters — Voltage, Current, Active / Reactive / Apparent Power, Power Factor, Harmonics, Frequency, Energy
-
Communication Support — RS-485 (Modbus RTU) interface for remote monitoring and control
-
Panel Mount Design — Standard 68 × 68 mm for easy installation in control panels
-
Durable & Reliable — Operates in temperature range –10 °C to +50 °C
-
Multiple Certifications — CE, MID, LVD, EMC, UKCA, ISO45001, ISO14001
-
OEM / Customization Support — Logo, packaging, and measuring range customization available
Main Functions
|
Real-time measurement
|
Current, phase voltage, wire voltage, atctive power, reactive power, apparent power,
power factor, frequency, angle, overload characteristic
|
|
Energy measurement |
Positive active power, reverse active power, combined active power energy measurement;
Quadrantless reactive power, combined reactive power 1, combined reactive power 2 energy measurement; Positive apparent power, reverse apparent power energy measurement;
|
|
Duplicate tariff electrical energy
|
|
|
Energy quality
|
Harmonic wave;Imbanlance |
|
Statistics
|
Demand measurement;Maximum |
|
Real-time alarm
|
|
|
Dispaly
|
Real time datas, Real time alarm, Equipments parameters, Display settings |
|
Historical data storage
|
Historical electricity datas storage, Historical alarm datas storage |
|
Communication
|
RS485, RS485 interface (MODBUS protocol and DLT645-2007 protocol); Communication baud rates: 1200 bps, 2400 bps, 4800 bps, 9600 bps are available.
|
Technical Indicators
|
Input voltage
|
|||
|
Rated voltage
|
AC3*220/380V；AC3*380V
|
Load
|
0.2VA
|
|
AC3*57.7/100V；AC3*100V
|
Measurement range
|
AC20V~400V
|
|
|
Input current
|
|||
|
Rated current
|
AC3*5(6)A
|
Load
|
0.5VA
|
|
Measurement range
|
AC0.05A~6A
|
Overload
|
2 times the rated current continuously
|
|
Working environment
|
|||
|
Storage temperature
|
-40℃~+70℃
|
Working temperature
|
-10℃~50℃
|
|
Humidity
|
20%~95%
|
Maximum temperature
|
-20℃~55℃
|
|
Working power supply
|
|||
|
Maximum power
|
4W
|
Input
|
AC85V~AC265V，50/60Hz
or DC100V~DC330V |

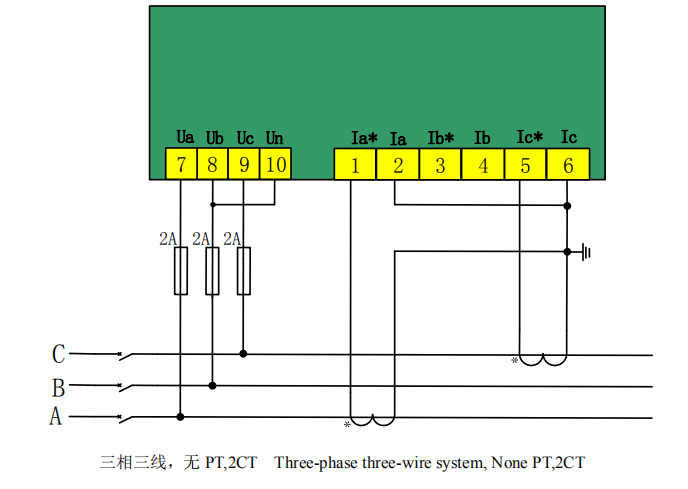

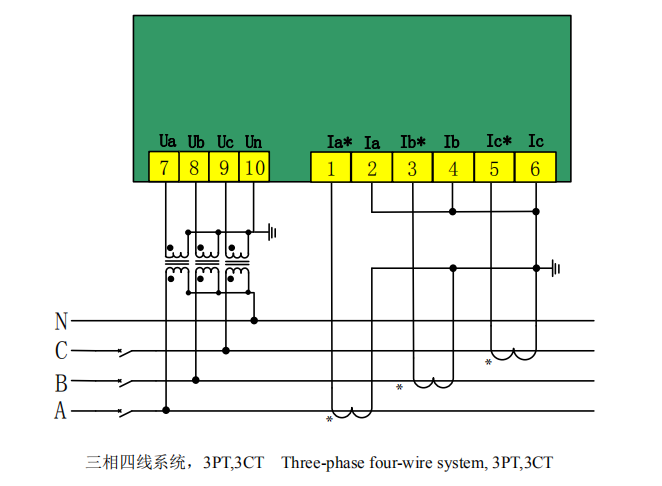

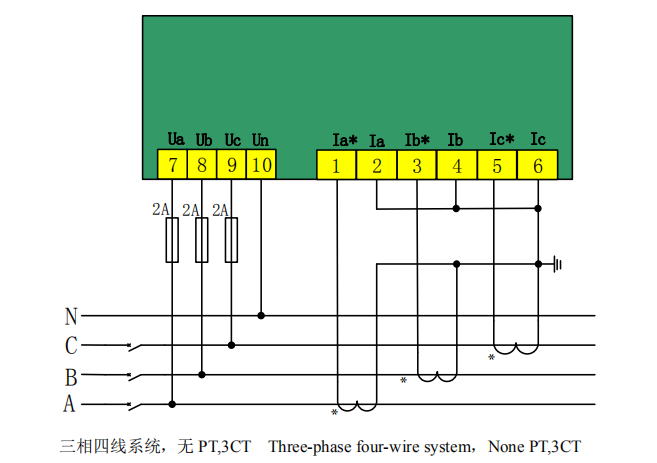

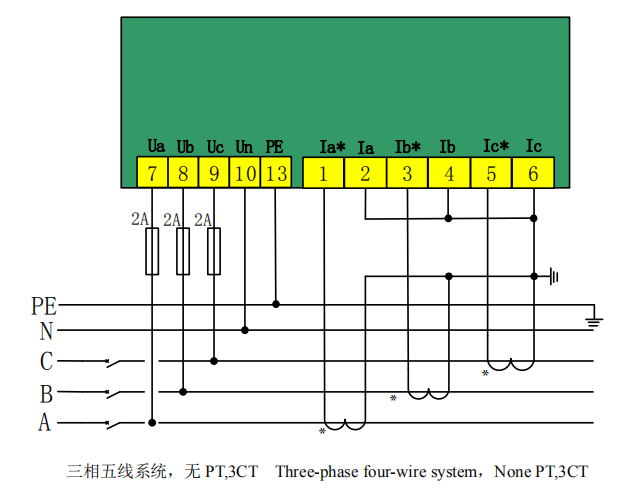

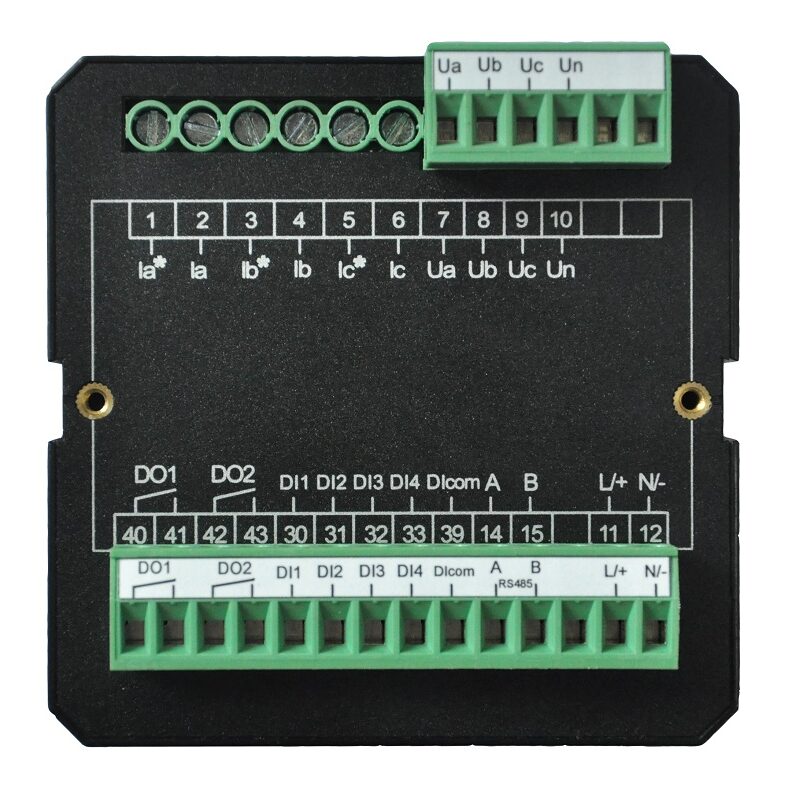

Wiring
Communication

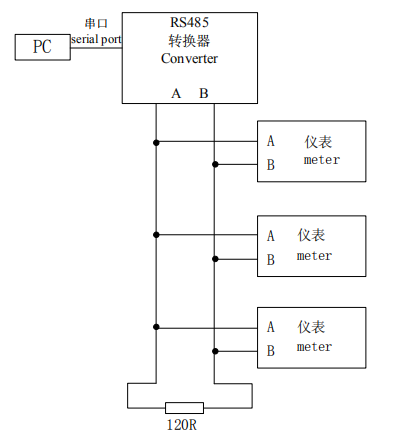

The RS-485 communication mode allows up to 32 DCM series energy meters to be connected to one bus, and is connected to the host computer through an RS-485 converter.Communication cable can adopt ordinary screened twisted pair, and the total length shall be no more than 1200 meters,all RS-485 ports of positive and negative polarity must be connected correctly.If shielded twisted-pair cable is longer, Suggestions on its end by one of about 120 Ω resistance in order to improve the reliability of communication.

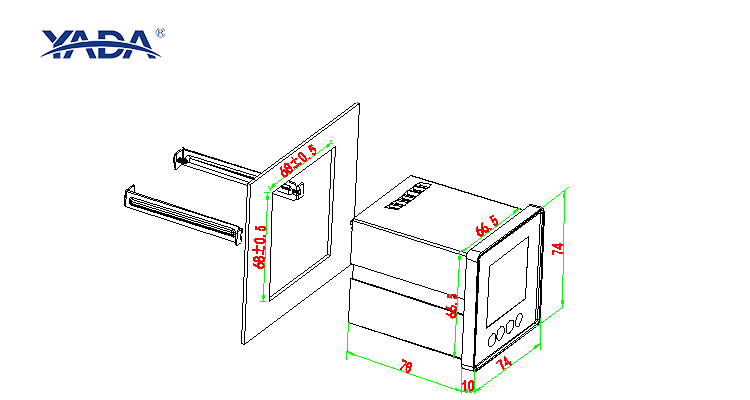

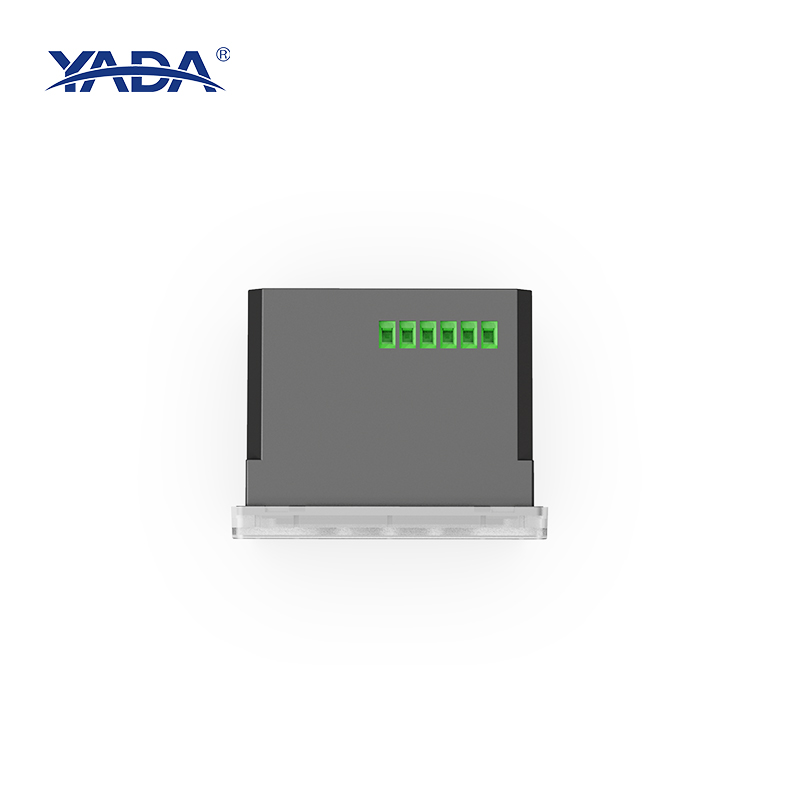

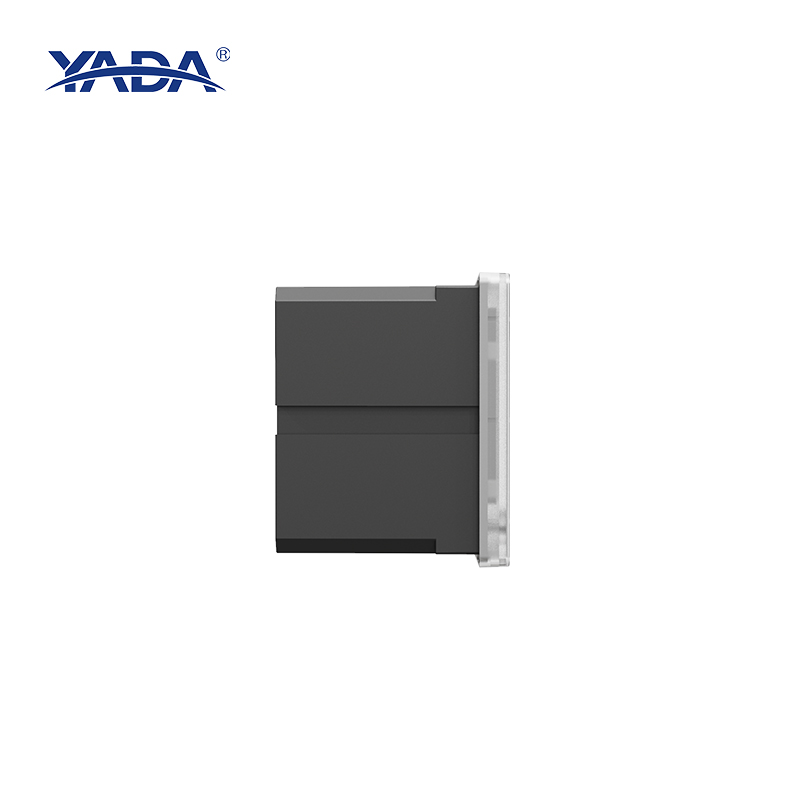

Dimension & Installation
Installation dimensions
- Unit:mm
- Tolerance: ±0.5
- Dimension: L*W*H (74±0.5)mm*(74±0.5)mm*(88±0.5)mm (No terminal is included)
- Bottom shell size: (66.5±0.5)mm*(66.5±0.5)mm
- Weight: About 0.327kg
Installation method
1.Install the meter to the opening size of 68±0.5mm×68±0.5mm.
2. Remove the meter from the mounting pin and push it from the front to the back.
3. Install the mounting pins through the slots on both sides of the meter and tighten them with screws.
Applications
The YADA YD2040Y multifunction power meter is highly versatile and suited for:
- Industrial automation and machinery
- Energy management systems in factories and commercial buildings
- Power distribution and monitoring panels
- Smart grids and substation systems
- IoT and telecommunication power systems
- Renewable energy monitoring, such as solar plants
- Load analysis, billing and energy auditing systems

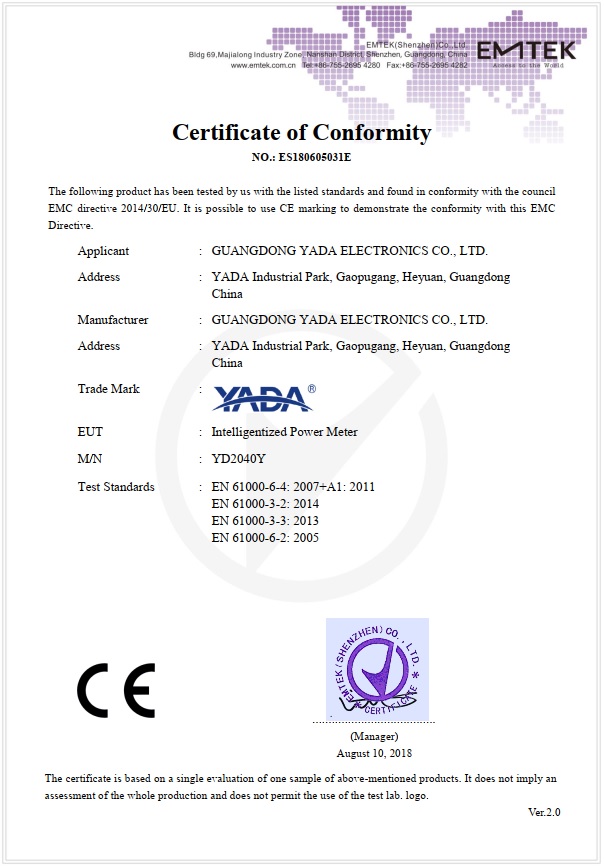

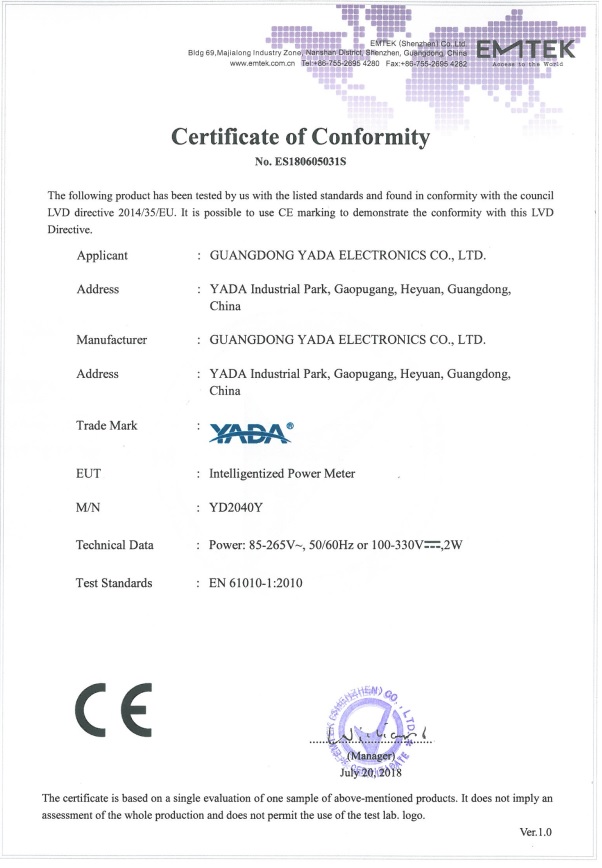

CE Certificates
