Explore YADA CE-certified Active Harmonic Filter (AHF) for industrial power quality. 3-phase modular AHF with 2nd-50th harmonic mitigation, reactive power compensation & SVG for industrial, solar, EV charging systems.
Quick Summary: Highlights
- YADA AHF is engineered for industrial power quality management (400VAC mainstream, 220V-800V AC compatible) with 2nd-50th harmonic order mitigation.
- Core functions: Harmonic filtering, reactive power compensation (SVG integration), power factor correction, energy efficiency improvement.
- Key features: 3-phase (3P3W/3P4W), modular design, 5A-200A current range, wall/rack mount, anti-pollution standard, CE certification.
- Customization: OEM/ODM supported for all models, with 120Kvar reactive power compensation and 85A/100A high-power options available.
- Ideal applications: Industrial power systems, solar PV plants, EV charging stations, data centers & high-power electrical equipment.
In modern industrial power systems, non-linear loads (e.g., variable frequency drives, inverters, EV chargers, solar PV inverters) generate severe harmonic distortion, leading to power factor degradation, equipment overheating, energy waste, and even unexpected downtime. Active Harmonic Filter (AHF) is the core solution for harmonic mitigation and power quality improvement—YADA’s CE-certified AHF series is exclusively engineered for industrial scenarios, integrating harmonic filtering, reactive power compensation (SVG), and power factor correction in a modular, compact design.
As a 31-year leader in power measurement and control (listed on the Beijing Stock Exchange: 920556), YADA’s Active Harmonic Filter (AHF) adheres to anti-pollution standards and global power quality norms, delivering high-efficiency harmonic mitigation for 2nd-50th harmonic orders. Our 3-phase AHF series covers a wide current range of 5A-200A (220V-800V AC), with wall/rack mount options and seamless SVG integration for reactive power compensation (up to 120Kvar). Trusted by global industrial clients, YADA AHF provides a one-stop power quality solution for industrial production lines, solar PV plants, EV charging stations, and data centers, reducing energy consumption by up to 20% and extending electrical equipment service life by 50%.
This blog will detail YADA AHF’s core features, technical specifications, application scenarios, and unique advantages—helping you select the optimal harmonic mitigation solution for your industrial power system.
1. What is an Active Harmonic Filter (AHF) & Why Industrial Power Systems Need It
An Active Harmonic Filter (AHF) is an intelligent power electronic device that real-time detects harmonic currents generated by non-linear loads in the power system, and injects equal-amplitude, opposite-phase compensation currents into the grid to cancel out harmonics, achieving pure sinusoidal grid current. YADA AHF further integrates SVG (Static Var Generator) functionality, realizing simultaneous harmonic mitigation and reactive power compensation for comprehensive power quality management.
Critical Pain Points Solved by YADA AHF
Harmonic distortion (caused by non-linear loads) brings fatal risks to industrial power systems—YADA AHF directly addresses these core issues:
- Equipment damage & downtime: Harmonics cause overheating, vibration and insulation aging of transformers, motors and switchgear, leading to frequent failures and unplanned production downtime.
- Low power factor & high energy costs: Harmonic distortion reduces grid power factor, resulting in penalty fees from power supply companies and increased energy consumption of electrical equipment.
- Precision instrument interference: Harmonics disrupt the normal operation of PLC, frequency converters and other industrial control equipment, leading to production accuracy decline and product quality defects.
- Grid pollution & non-compliance: Excessive harmonics pollute the public grid, failing to meet national and international power quality standards (e.g., IEC 61000) and facing regulatory penalties.
Core Functional Advantages of YADA AHF
YADA AHF is not just a harmonic filter—it is an all-in-one power quality optimization device with three core functions:
- 2nd-50th Harmonic Mitigation: High-precision real-time filtering of 2nd to 50th harmonic orders, harmonic elimination rate ≥97%, meeting strict industrial power quality requirements.
- Reactive Power Compensation (SVG Integration): Up to 120Kvar reactive power compensation, fast response to dynamic loads, improving power factor to ≥0.98 and avoiding grid penalty fees.
- Power Factor Correction: Active compensation of inductive/capacitive reactive power, balancing three-phase load, reducing line loss and improving overall grid efficiency.
2. YADA AHF Core Technical Specifications & Design Features
YADA AHF is designed for industrial scenarios with anti-pollution standards and modular design, adapting to harsh industrial environments and diverse load requirements. All models are CE-certified, complying with IEC 61000-3-4 international power quality standards, and support OEM/ODM customization for voltage, current, and installation methods.
Key Technical Parameters
| Item | Specifications |
|---|---|
| Rated Voltage | 220V-800V AC (400VAC mainstream) |
| Phase Configuration | 3-Phase 3-Wire (3P3W) / 3-Phase 4-Wire (3P4W) |
| Harmonic Filter Range | 2nd-50th harmonic order (elimination rate ≥97%) |
| Rated Current Range | 5A-200A (15A/85A/100A high-demand options available) |
| Reactive Power Compensation | SVG integration, up to 120Kvar dynamic compensation |
| Power Factor Correction | Up to ≥0.98 after compensation |
| Response Time | ≤20μs (real-time tracking of dynamic non-linear loads) |

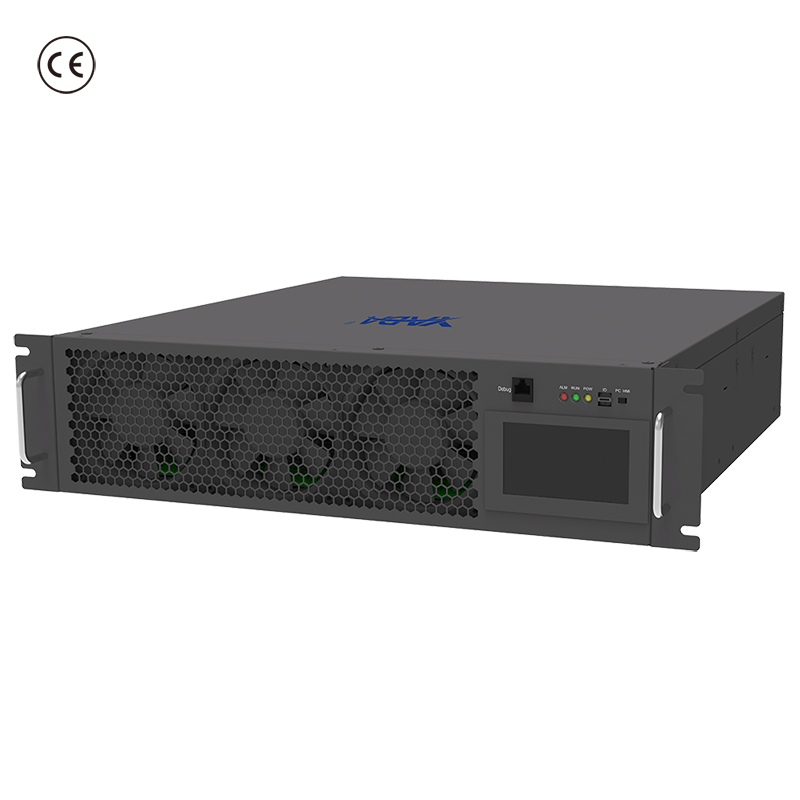

| Installation Method | Wall mount / Rack mount (modular design for on-site expansion) |
| Design Standard | Anti-pollution standard, IP20/IP30 protection grade (customizable for outdoor) |
| Certification | CE certified (compliant with IEC 61000-3-4, IEC 61642) |
| Communication Protocol | Modbus-RTU/485 (for remote monitoring and system integration) |
Industrial-Grade Design Highlights
- Modular Structure: Modular design allows on-site flexible expansion of current capacity and compensation power, no need to stop production for equipment upgrade, reducing project downtime.
- Anti-Pollution & High Reliability: Adheres to industrial anti-pollution standards, with dust-proof, anti-corrosion and anti-interference design, suitable for harsh industrial environments (e.g., manufacturing plants, refineries, PV power plants).
- Wide Voltage/Current Compatibility: 220V-800V AC voltage range and 5A-200A current range, adapting to all types of industrial non-linear loads and power system configurations.
- Fast Dynamic Response: ≤20μs response time, real-time tracking of harmonic currents generated by fast-changing dynamic loads (e.g., EV charging piles, PV inverters, CNC machine tools).
- Dual-Function Integration (AHF+SVG): Integrates harmonic filtering and reactive power compensation in one device, saving installation space and procurement costs compared to separate devices.
3. Key Application Scenarios for YADA AHF
YADA AHF is engineered for versatility—our 3-phase modular AHF series is suitable for all industrial scenarios with severe harmonic distortion caused by non-linear loads, with tailored solutions for new energy (solar PV, EV charging) and high-power industrial equipment. Below are the core application scenarios, with YADA AHF optimization highlights and integration details:
3.1 Industrial Production Lines & Heavy Manufacturing
Manufacturing plants, steel mills, refineries and other heavy industrial facilities use a large number of non-linear loads (e.g., frequency converters, induction furnaces, CNC machine tools), which generate severe 3rd/5th/7th harmonic distortion, leading to motor overheating and transformer failure.
- YADA AHF Solution: 85A/100A high-power AHF models (3P3W/3P4W), SVG 120Kvar reactive power compensation, rack mount modular design for distribution room installation.

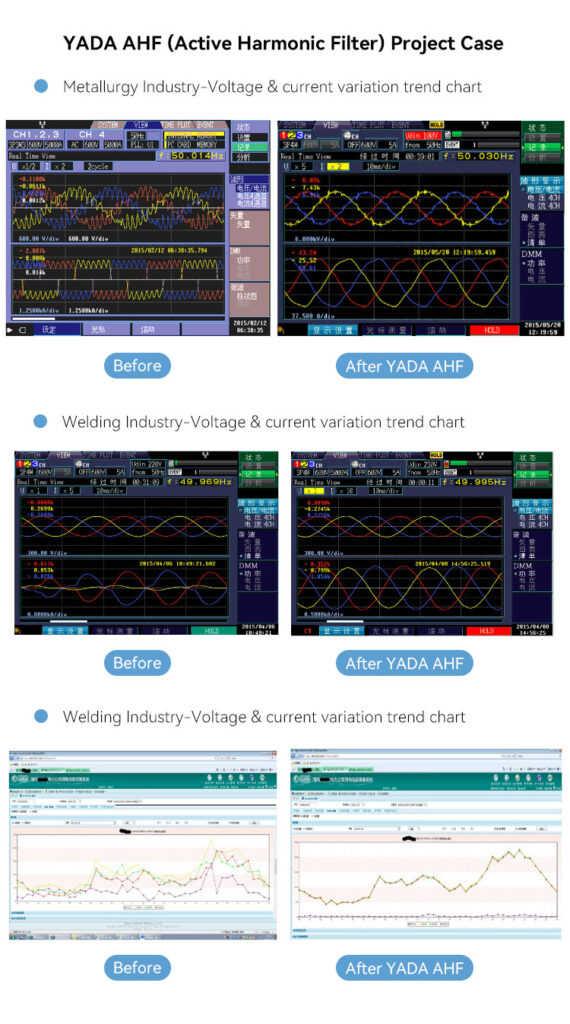

- Optimization Effect: Harmonic elimination rate ≥97%, power factor improved to ≥0.98, equipment temperature reduced by 15-20℃, energy consumption reduced by 10-20%, and production downtime reduced by over 80%.
- Integration: Seamless connection with YADA power meters and CTs for real-time power quality monitoring and harmonic data analysis, forming a one-stop industrial power management system.
3.2 Solar PV Power Plants (Ground-Mount/Rooftop)
Solar PV plants use a large number of inverters (non-linear loads) that generate harmonic distortion during power generation, leading to grid connection failure, power generation efficiency decline and battery storage system damage.
- YADA AHF Solution: 400VAC mainstream AHF models (5A-85A), IP30 protection grade, anti-pollution design for outdoor PV power station environments, SVG reactive power compensation for grid connection compliance.
- Optimization Effect: Meets national grid connection power quality standards, PV inverter power generation efficiency improved by 5-8%, battery storage system service life extended by 30%, avoiding grid connection penalty fees.
- Key Advantage: Fast response time (≤20μs) adapts to the dynamic power generation characteristics of PV plants, real-time filtering of harmonics caused by light intensity changes.
3.3 EV Charging Stations (AC Level 2/DC Fast Charging)
EV charging stations (especially DC fast charging stations) use high-power chargers that generate severe harmonic distortion and reactive power, leading to charging pile failure, grid voltage fluctuation and energy waste.
- YADA AHF Solution: 3P4W AHF models (15A-100A), seamless integration with YADA EV charging SPDs (YDF40 series) and CTs, wall mount design for compact charging station enclosures.
- Optimization Effect: Harmonic elimination rate ≥97%, charging pile operation stability improved by 90%, power factor ≥0.98, reducing charging station energy consumption by 10-15%.
- Key Advantage: AHF+SPD+CT one-stop solution, eliminating integration issues and saving 20% on procurement costs for EV charging project operators.
3.4 Data Centers & Precision Electrical Equipment
Data centers use a large number of UPS, server power supplies and air conditioning inverters, which generate low-order harmonics that disrupt the normal operation of precision equipment and cause power supply instability.
- YADA AHF Solution: Low-current high-precision AHF models (5A-15A), rack mount design for data center server cabinets, low noise and low power consumption, compatible with DCIM/BMS systems.
- Optimization Effect: Harmonic distortion rate reduced to ≤3%, power supply stability improved by 95%, avoiding precision equipment downtime and data loss, improving data center energy efficiency (PUE).
- Key Advantage: Silent operation and compact modular design, suitable for noise-sensitive and space-constrained data center environments.
3.5 Commercial & Industrial Buildings (HVAC/ Elevators)
Commercial malls, high-rise buildings and industrial workshops use a large number of HVAC systems, elevators and LED lighting (non-linear loads), leading to harmonic distortion, power factor decline and lighting flicker.
- YADA AHF Solution: 400VAC 3P3W AHF models (5A-85A), wall mount design for building distribution rooms, easy installation and remote monitoring via Modbus-RTU.
- Optimization Effect: Power factor improved to ≥0.98, eliminating lighting flicker and elevator voltage fluctuation, reducing building energy consumption by 8-12%, avoiding grid penalty fees.
4. YADA AHF Core Competitive Advantages
What sets YADA AHF apart from generic industrial harmonic filters? Our 31 years of power system expertise and customer-centric industrial design—every YADA AHF is engineered to solve the unique power quality pain points of global industrial clients, with unbeatable advantages in certification, customization, integration and reliability:
4.1 Global Certification & Standard Compliance
All YADA AHF models are CE certified, complying with IEC 61000-3-4 (international harmonic standard) and IEC 61642 (EMC anti-interference standard), as well as Chinese national power quality standards (GB/T 14549). Our anti-pollution design meets industrial power system requirements, eliminating compliance risks for your global projects (Europe, North America, Southeast Asia and other key markets).
4.2 AHF+SVG Dual-Function Integration
YADA AHF integrates harmonic filtering (AHF) and reactive power compensation (SVG) in one device—compared to purchasing separate AHF and SVG devices, our solution saves 30% on procurement costs and 50% on installation space, with unified communication protocols and easy system integration.
4.3 Full OEM/ODM Customization
Every industrial power system has unique harmonic mitigation needs—YADA offers end-to-end AHF customization with no minimum order quantity (MOQ) restrictions for standard parameter adjustments, and MOQ 500 pieces for custom branding:
- Custom voltage/current range (220V-1000V AC, 5A-300A);
- Custom protection grade (IP20-IP65 for outdoor/harsh environments);
- Custom installation method (wall/rack/embedded mount);
- Custom communication protocols (Modbus-TCP/Profinet for industrial control system integration);
- Custom branding (logo, labeling, packaging) for OEM/ODM partnerships;
- Custom reactive power compensation power (up to 200Kvar for high-power scenarios).
Our engineering team provides one-on-one technical support from design to sample testing, ensuring your custom AHF integrates perfectly with your existing power system, with sample delivery time of 7 days for small orders.
4.4 Seamless Integration with YADA One-Stop Power Solutions
Unlike generic AHF suppliers, YADA offers a complete industrial power ecosystem—our AHF series integrates seamlessly with YADA current transformers (CTs), power meters, and surge protective devices (SPDs) for a fully optimized one-stop power quality and protection solution:
- Reduces procurement costs by 20% (no need to source from multiple suppliers);
- Eliminates integration issues (unified communication protocols and mounting standards for all YADA products);
- Simplifies after-sales support (single point of contact for all power system components, 20+ global service centers);
- Holistic power management: Integrates AHF with CTs and power meters for real-time harmonic monitoring, fault alerting and energy analysis.
4.5 Strict Quality Control & Long-Term Industrial Reliability
YADA AHF undergoes 8 rigorous pre-shipment tests (harmonic elimination efficiency, reactive power compensation, high/low temperature, vibration, EMC anti-interference, dust-proof, overload, durability) in our 4 professional laboratories (environmental, EMC, safety, reliability), ensuring consistent performance in harsh industrial environments.
We offer a 3-year warranty for all standard YADA AHF products (2 years for custom models), with 20+ global service centers providing on-site maintenance and replacement within 48 hours if needed. Our AHF series has a mean time between failures (MTBF) of ≥100,000 hours, ensuring long-term reliable operation for your industrial power system and reducing maintenance costs and unplanned downtime.
5. YADA AHF Product Recommendation & Custom Solutions
YADA offers a full range of standard Active Harmonic Filter (AHF) models for immediate global delivery, covering the core current range of 5A-200A and mainstream 400VAC voltage. All models support OEM/ODM customization, and high-power options (85A/100A) and SVG 120Kvar reactive power compensation are available for high-demand industrial scenarios.
5.1 YADA AHF Basic Model (5A-15A) – For Small Non-Linear Loads
- Core Parameters: 220V-400V AC, 3P3W, 2nd-50th harmonic mitigation, 5A-15A, SVG 10Kvar-30Kvar, wall mount, CE certified.
- Ideal Applications: Small manufacturing workshops, commercial buildings, small PV power plants, low-power EV charging stations.
- Why Choose: Compact design, easy installation, cost-effective, perfect for small-scale harmonic mitigation needs.
5.2 YADA AHF Mid-Power Model (20A-85A) – For Medium Industrial Loads
- Core Parameters: 400VAC mainstream, 3P3W/3P4W, 2nd-50th harmonic mitigation, 20A-85A, SVG 50Kvar-100Kvar, wall/rack mount, CE certified, anti-pollution design.
- Ideal Applications: Medium-sized manufacturing production lines, rooftop PV power plants, medium-scale EV charging stations, data centers.
- Why Choose: The most versatile YADA AHF model, fits 80% of industrial harmonic mitigation needs, with modular design for on-site expansion.
5.3 YADA AHF High-Power Model (100A-200A) – For Heavy Industrial Loads
- Core Parameters: 400V-800V AC, 3P4W, 2nd-50th harmonic mitigation, 100A-200A, SVG 120Kvar (customizable up to 200Kvar), rack mount, anti-pollution standard, CE certified.
- Ideal Applications: Heavy manufacturing (steel mills/refineries), ground-mount PV power plants, large DC fast charging stations, high-power industrial equipment.
- Why Choose: High-power harmonic mitigation and reactive power compensation, rugged industrial design, suitable for harsh heavy industrial environments, supports on-site modular expansion.
5.4 YADA Custom AHF Solution – For Unique Industrial Scenarios
For special industrial power systems (e.g., ultra-high voltage/current, outdoor harsh environments, custom communication protocols), YADA’s R&D team provides tailored AHF customization—from parameter design to sample testing, one-on-one technical support to ensure the solution perfectly matches your project needs.
6. Conclusion & Next Steps for Your Industrial Power Quality Project
YADA Active Harmonic Filter (AHF) is the trusted choice for industrial power quality management—our CE-certified, 3-phase modular AHF series integrates 2nd-50th harmonic mitigation, SVG reactive power compensation and power factor correction, delivering high-efficiency power quality optimization for industrial, solar PV, EV charging and data center scenarios.
With 31 years of power system expertise, global certification, AHF+SVG dual-function integration, full OEM/ODM customization, and seamless integration with YADA one-stop power solutions, YADA AHF solves your harmonic distortion and power factor pain points, reducing energy costs, extending equipment life and ensuring stable industrial production.
Ready to Optimize Your Industrial Power Quality with YADA AHF?
- Free Power Quality Consultation: Contact YADA’s engineering team to analyze your industrial power system’s harmonic distortion and reactive power status, and provide a customized harmonic mitigation solution.
- Free Sample Testing: Request YADA AHF samples for qualified projects to verify harmonic elimination efficiency and power factor correction effect in your actual power system (sample delivery in 7 days).
- Custom AHF Design: Work with our R&D team to create fully custom AHF models (voltage/current/installation/communication) for your unique industrial scenario.
- One-Stop Power Solution: Bundle YADA AHF with CTs, power meters and SPDs for a fully optimized industrial power quality and protection system, saving 20% on procurement costs.
Visit our YADA Active Harmonic Filter (AHF) Product Page to view our full AHF range, download technical datasheets, and learn more about specifications. Or contact us directly to start your industrial power quality optimization project today—our global engineering team is ready to support your project from design to on-site installation and commissioning.
FAQ (For B2B User Engagement & SEO)
Q1: What harmonic orders can YADA AHF filter?
A1: YADA AHF filters 2nd to 50th harmonic orders with an elimination rate of ≥97%, covering all main harmonic orders generated by industrial non-linear loads (e.g., 3rd/5th/7th from frequency converters/inverters).
Q2: Can YADA AHF be used for both harmonic filtering and reactive power compensation?
A2: Yes—YADA AHF integrates AHF (harmonic filtering) and SVG (static var generator) in one device, realizing simultaneous harmonic mitigation and dynamic reactive power compensation (up to 120Kvar), no need for separate devices.
Q3: Is YADA AHF compatible with non-YADA power meters/CTs?
A3: Yes—YADA AHF supports standard Modbus-RTU/485 communication protocol, compatible with most mainstream industrial power meters and CTs. For optimal performance and seamless integration, we recommend pairing it with YADA CTs and power meters.
Q4: What is the lead time for YADA AHF?
A4: Standard models (5A-100A): 7-15 days for bulk global delivery. Custom OEM/ODM models: 30-45 days (depending on customization complexity and order quantity). Free samples are delivered within 7 days.
Q5: Does YADA provide on-site installation and commissioning for AHF?
A5: Yes—YADA’s 20+ global service centers provide on-site installation, commissioning and training for AHF projects, with a 48-hour on-site response time for overseas projects. Our engineering team also provides remote technical support for commissioning and troubleshooting.
