Product Overview
The DCM3366-4-W1 is designed specifically for DC applications. It measures DC voltage and DC current through external shunts, calculates DC power and accumulated energy, and supports forward/reverse/net energy modes — essential for bidirectional systems such as vehicle-to-grid (V2G), battery charge/discharge monitoring and PV+ESS installations.
With a readable LCD interface, robust surge and ESD protection, and standard RS-485 communications, the DCM3366-4-W1 is built for reliable field operation and seamless integration into energy management and telemetry systems.

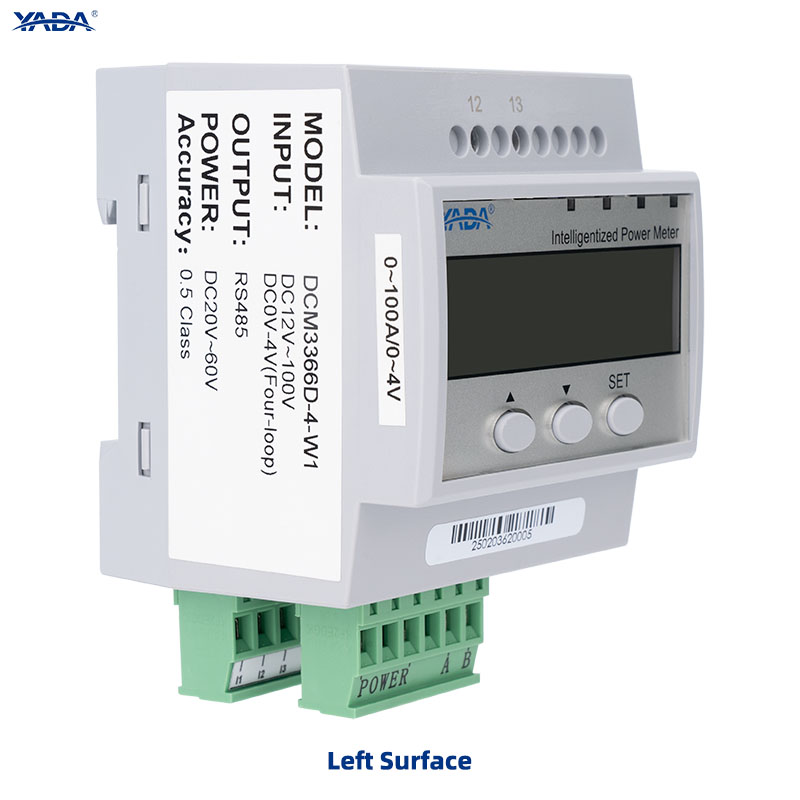

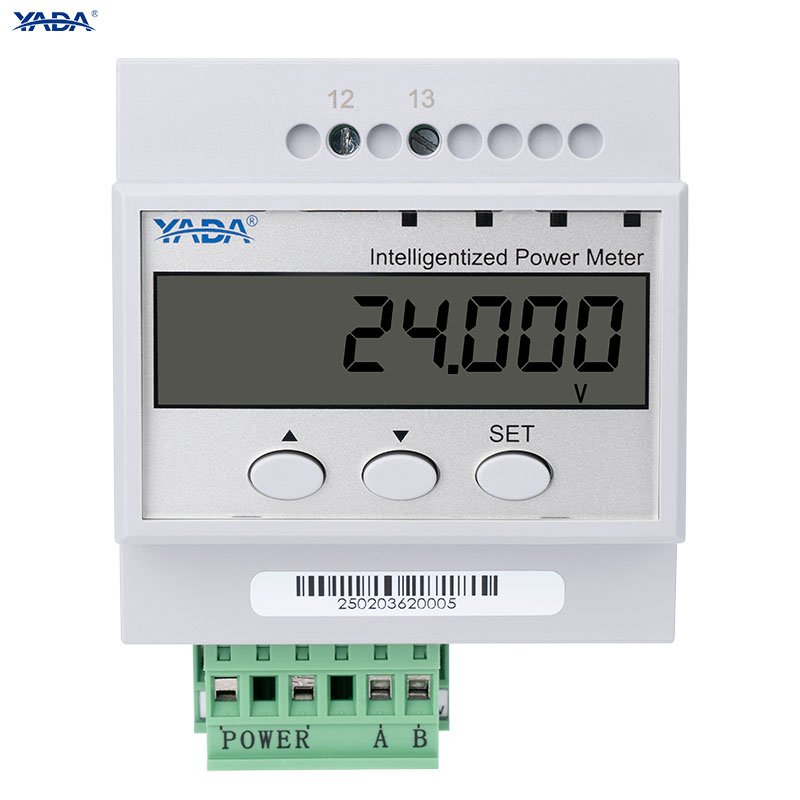

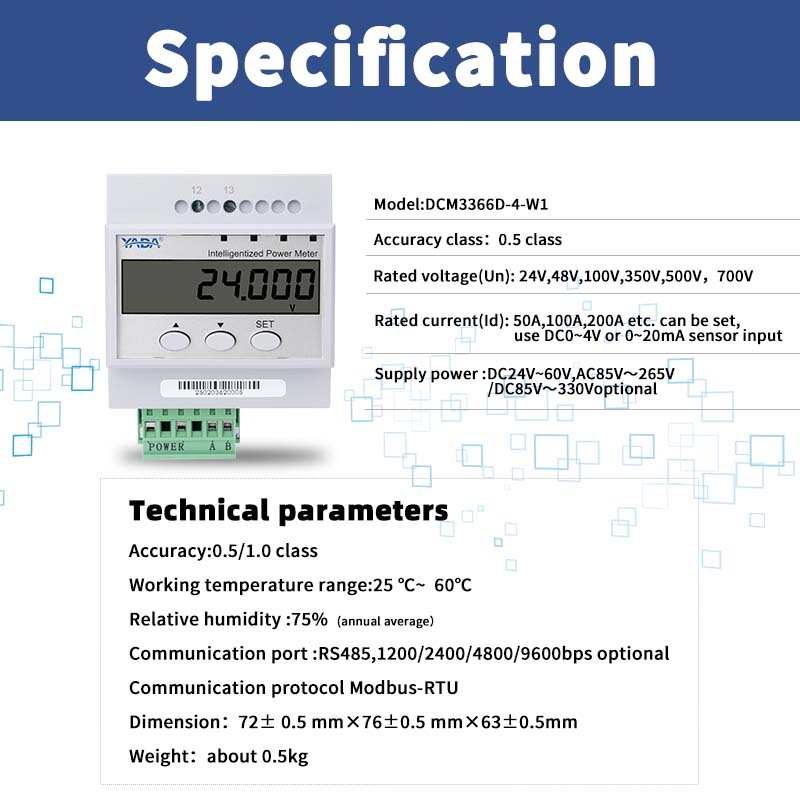

| Product Name | YADADCM3366D-4-W1 Digital DC Energy Meter | |||
| Meter Type | DC Energy Meter | |||
| Model No. | DCM3366D-4-W1 | |||
| Brand Name | YADA | |||
| Display Type | LCD Display | |||
| Measuring Energy Range | 0-99999.99kWh | |||
| Accuracy Class | Class 0.5 | |||
| Operating Temperature | -25℃~ 60℃ | |||
| Communication | RS485(Modbus-RTU) | |||
| Installation | 35mm DIN rail | |||
| Rated current | 50A,100A,200A etc. can be set, use DC0~4V or 0~20mA sensor input | |||
| Rated Voltage | 24V,48V,100V,350V,500V,700V | |||
| Certificate | CE | |||
| Warranty | 2 Years | |||
| Dimensions | 72.0mm*76.0mm*63.0mm | |||
| Appication | Batteries, solar panels power DC signal measurement and energy metering equipment. | |||

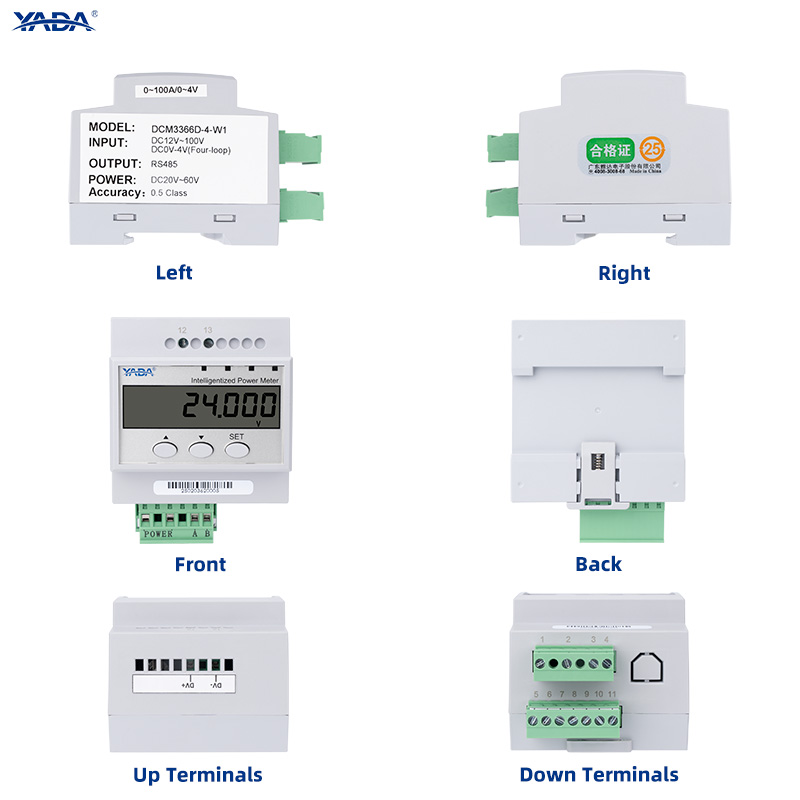

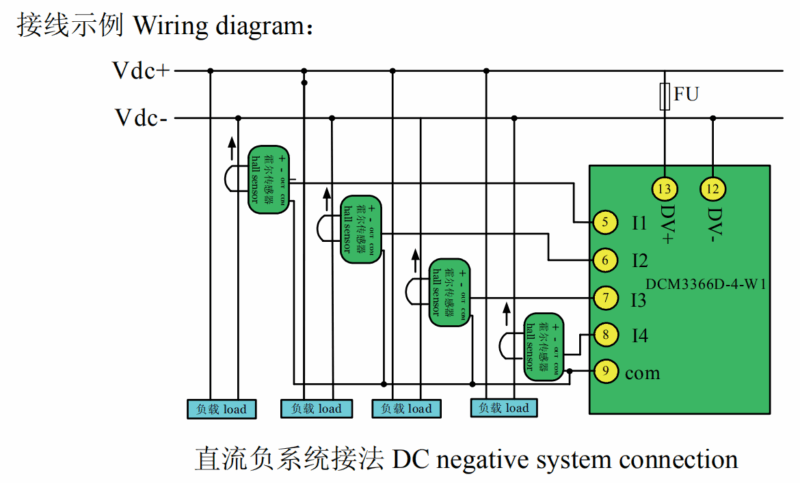

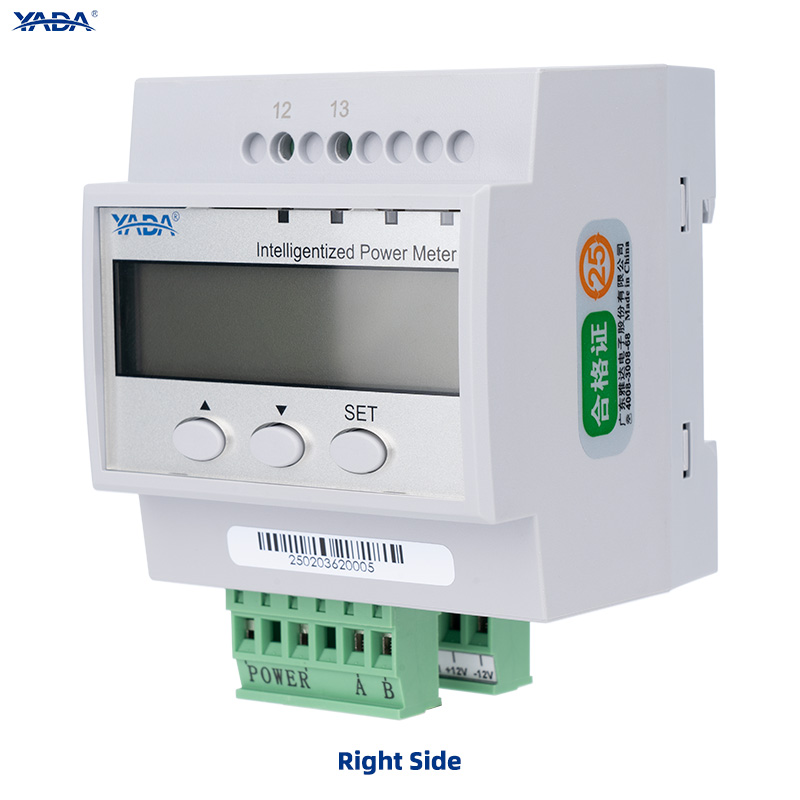

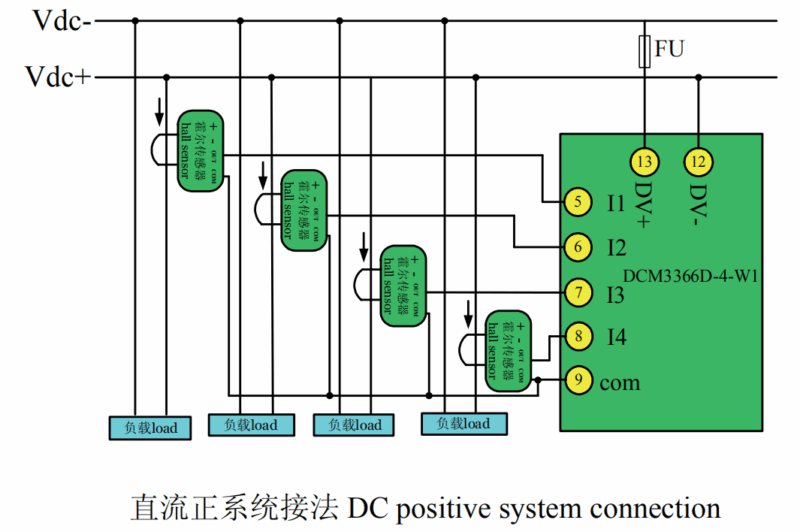

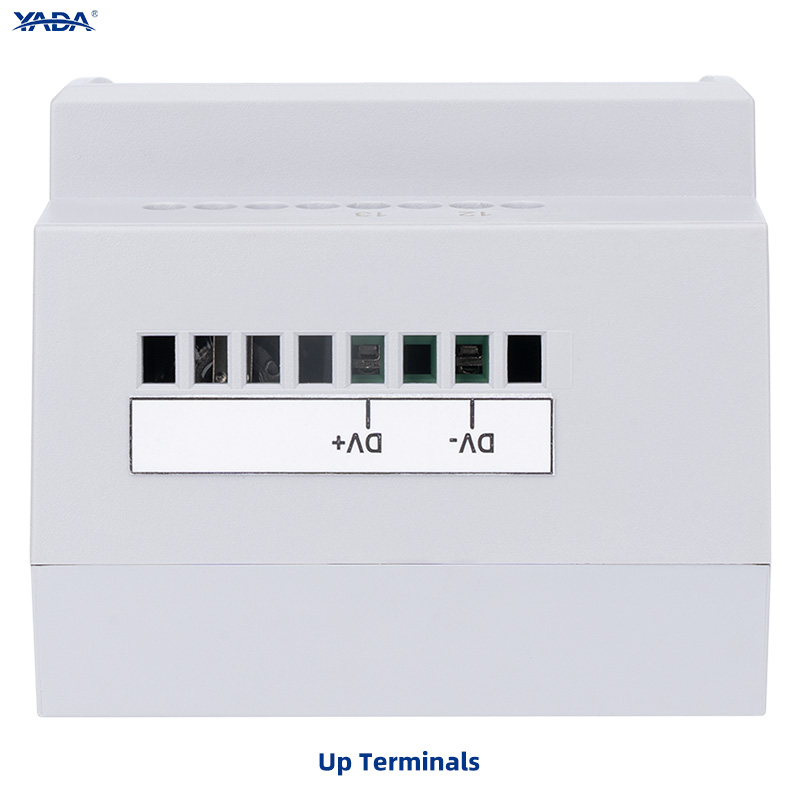

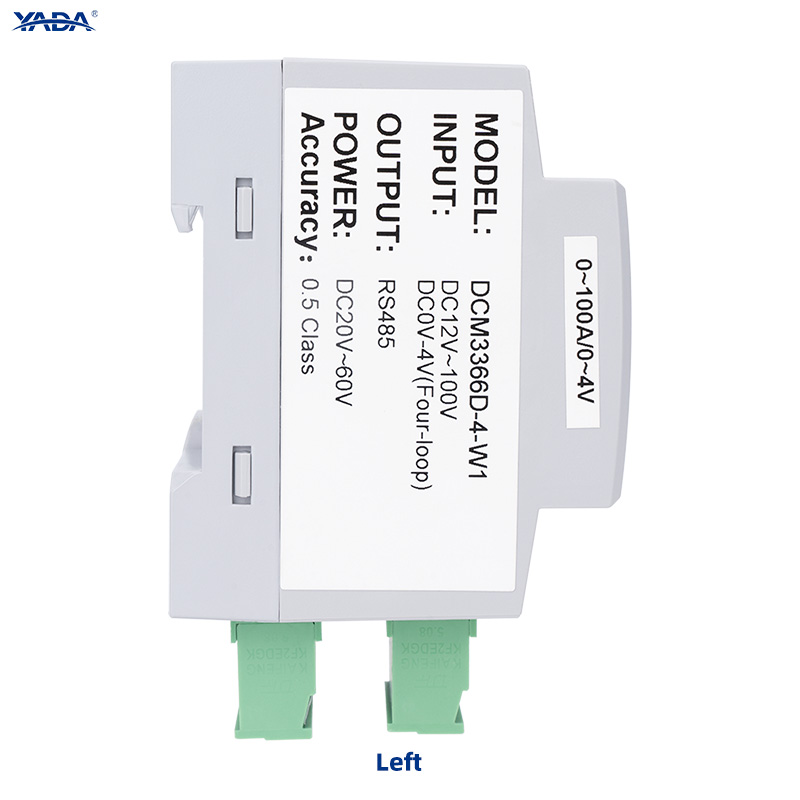

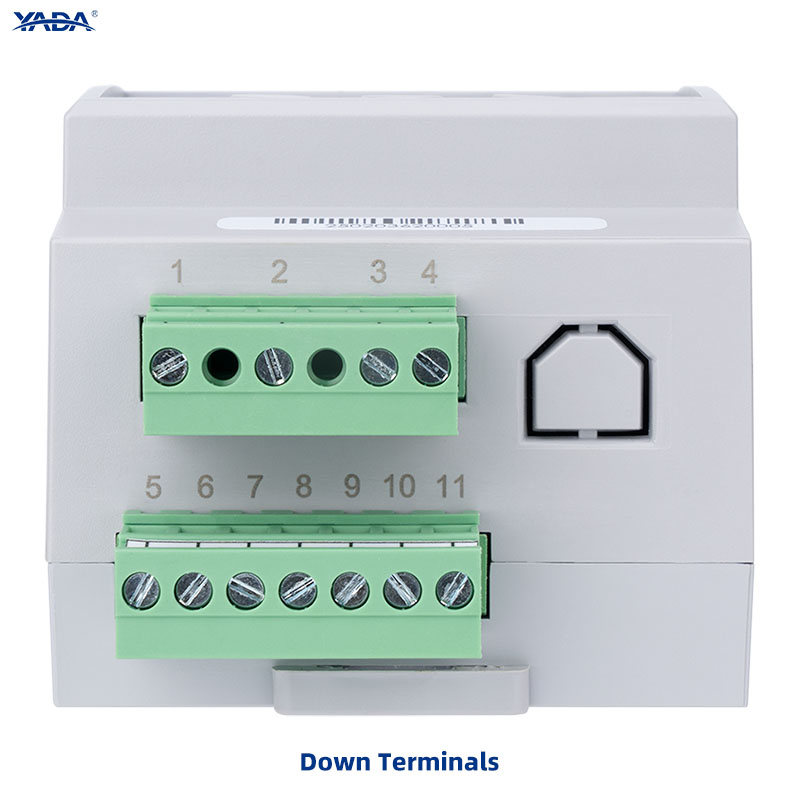

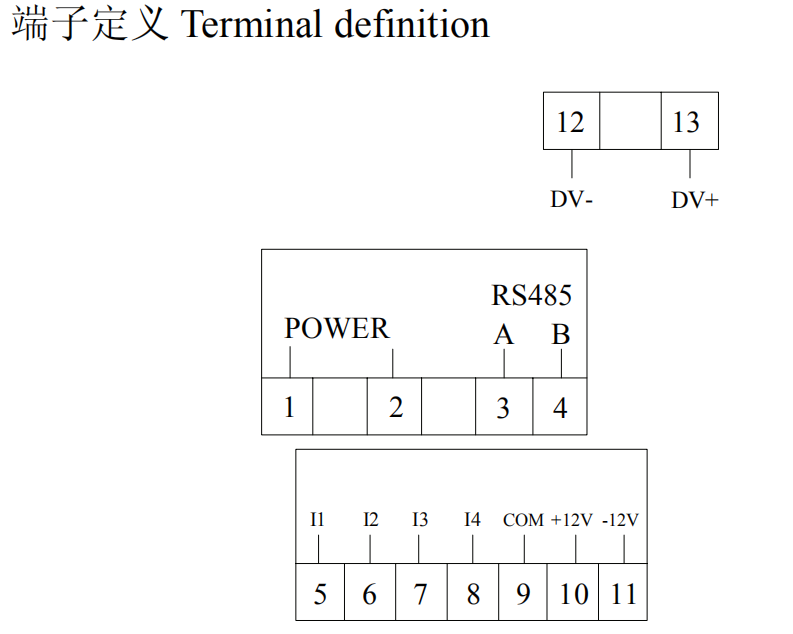

Wiring

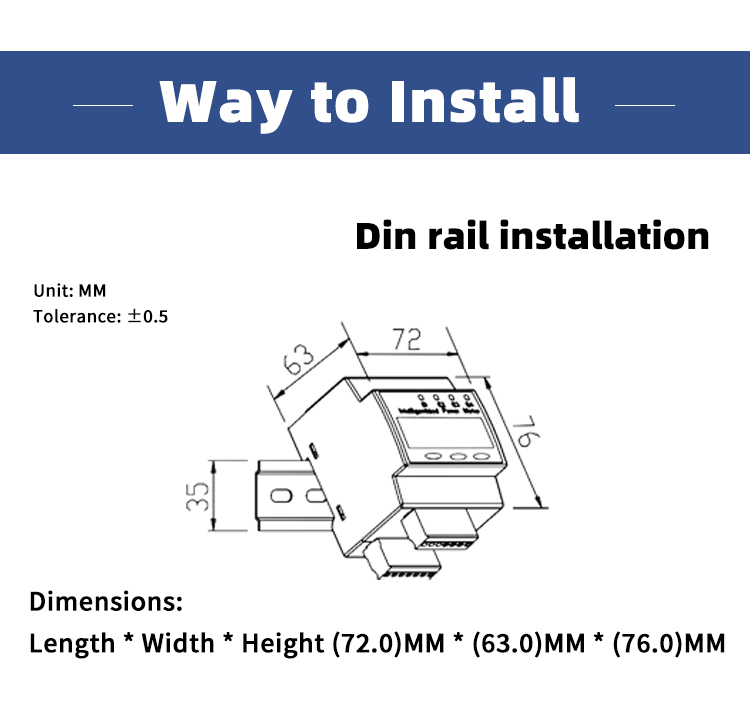

Installation
Key Features & Benefits
-
True DC Measurement — Dedicated DC meter measuring voltage, current, power and cumulative energy.
-
Bidirectional Energy Accounting — Forward, reverse and net energy tally for charging & discharging scenarios.
-
External Shunt Input — Works with industry standard shunt (e.g., 75 mV type) to support high-current measurement.
-
Industrial Communication — RS-485 interface with Modbus RTU (and optional protocol support) for SCADA/BMS/EMS integration.
-
Clear LCD Display — Multi-parameter LCD readout for quick on-site checks.
-
High Reliability & Protection — Designed with surge, burst and ESD immunity suitable for DC power environments.
-
Multiple Voltage Ranges (Model Options) — Available for common DC ranges used in EV/solar applications (replace with your confirmed model ranges).
-
Data Retention — Energy totals preserved during power interruptions.
-
OEM & Customization — Firmware, display layout, protocol, and mechanical adaptation available for volume projects.
Typical Applications
-
EV charging stations and DC charging modules (per-charger metering, station management)
-
Solar PV DC string monitoring and PV combiner / inverter DC-side measurement
-
Battery Energy Storage Systems (BESS) — charge/discharge monitoring and SOC reconciliation
-
DC microgrids and telecom DC power systems
-
DC power distribution in industrial automation and material handling
-
R&D and test benches requiring precise DC energy logging
Why Choose YADA DCM3366-4-W1?
-
DC-specialized design — purpose-built for DC systems rather than adapted AC meters.
-
Accurate bidirectional metering — essential for EV, BESS and net-metering workflows.
-
Industrial-grade communications — built to integrate into your telemetry and control stack.
-
Proven protections — electrical transient and ESD protections suited for harsh DC environments.
-
Scalable & customizable — supports OEM branding, protocol options and firmware adjustments for projects at scale.
-
Local & global support — documentation, calibration and certification support available for tender or procurement processes.
FAQ
Q: Is DCM3366-4-W1 suitable for EV chargers?
A: Yes — it supports bidirectional DC energy accounting and external shunt inputs commonly used in EV charging applications.
Q: How is current measured?
A: DC current is measured using an external precision shunt; specify shunt model/rating for accurate integration.
Q: Which protocols are supported?
A: Standard RS-485 with Modbus RTU. Additional protocol options can be customized for large projects.
Q: Can it measure both charge and discharge energy separately?
A: Yes — forward and reverse energy counters and net energy are supported (useful for BESS and V2G scenarios).
Q: What certification can you provide for tenders?
A: We provide standard certifications and can supply calibration or test reports on request — please indicate required documents in RFQ.
