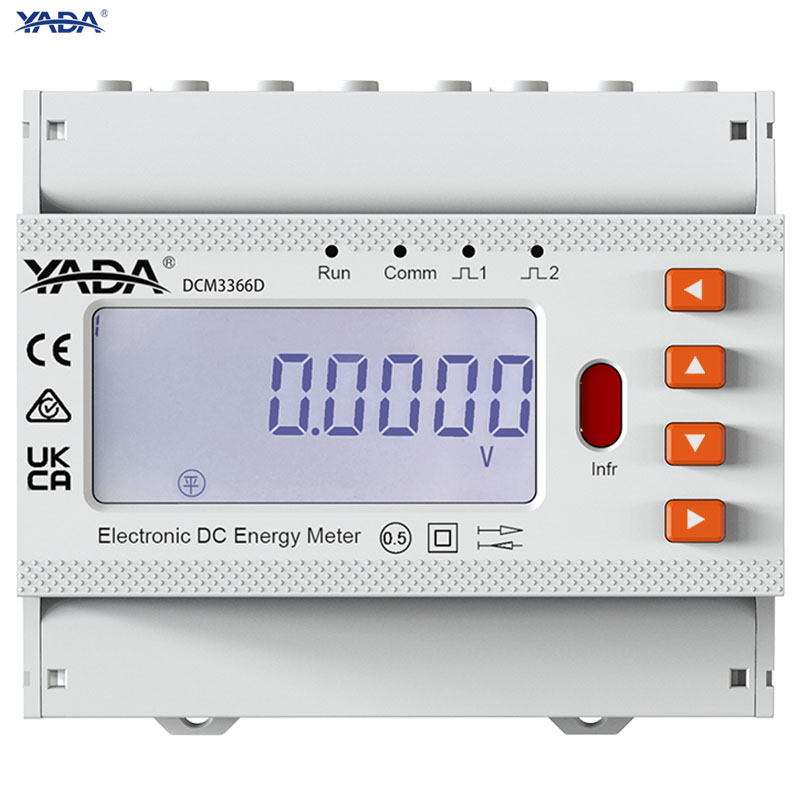

Product Overview
The DCM3366D is purpose-built for DC metering. It measures DC voltage and DC current (via external shunt), then computes DC power and cumulative energy metrics. With support for forward, reverse, and net energy modes, it is perfect for systems requiring both consumption and feed-back tracking (for example, battery discharge/charge cycles, solar export). The meter is CE and UKCA certified, ensuring compliance with key markets in Europe and the UK.
Equipped with an LCD interface, the device offers quick visual readouts. With RS-485 (Modbus RTU) communication, it can seamlessly integrate into BMS / EMS / SCADA systems. Its rugged design, surge immunity, and data retention capabilities ensure reliability in the field.
| Product Name | YADA DCM3366D DC Energy Meter | |||
| Meter Type | DC Energy Meter | |||

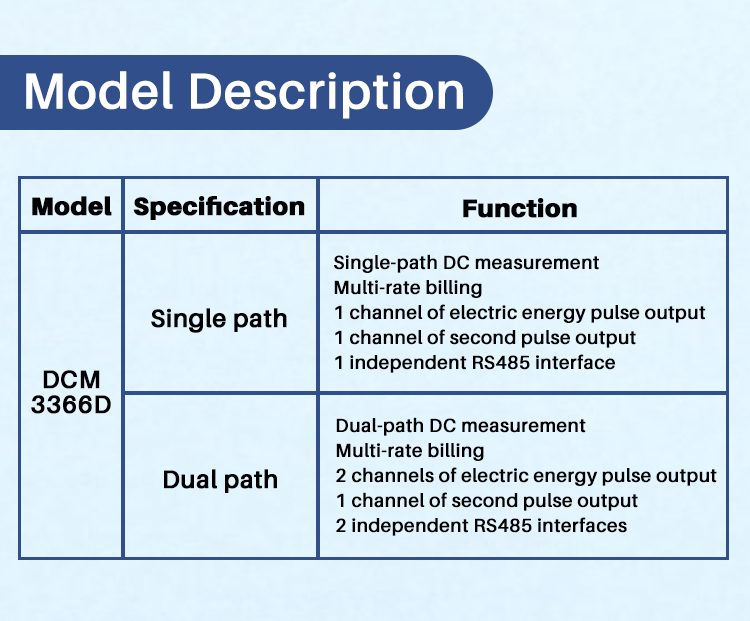

| Model No. | DCM3366D | |||
| Brand Name | YADA | |||
| Display Type | LCD Display | |||
| Measuring Energy Range | 0-99999.99kWh | |||
| Accuracy Class | Class 0.5 | |||
| Operating Temperature | -25℃~ 60℃ | |||
| Communication | 2*RS485 communication interfaces and 1* infrared communication interface. | |||
| ModBus-RTU and DL/T645-2007 Protocol | ||||
| Installation | 35mm DIN rail | |||
| Rated current | 50A-800A (An external 75mV shunt is adopted for input) | |||
| Rated Voltage | DC100V-DC1500V | |||
| Certificate | CE /UKCA Certification | |||
| Warranty | 2 Years | |||
| Dimensions & Weight | 90.0mm*78mm*65.0mm, 0.261kg | |||
| Appication | DC EV Charging Station (dual & multi DC chargers) | |||
Key Features & Benefits
-
CE & UKCA Certified — Complies with regulatory requirements for export to EU & UK markets.
-
Dedicated DC Metrology — Accurate DC voltage, current, power, and energy measurement.
-
Bidirectional Energy Mode — Forward, reverse, net energy counting for systems with energy return.
-
External Shunt Input — Compatible with standard low-voltage shunts to measure high current.
-
RS-485 Communication — Modbus RTU interface for remote monitoring and system integration.
-
LCD Display — Real-time multi-parameter readout for on-site verification.
-
Industrial-grade Protection — Surge, ESD, transient protection suited for DC systems.
-
Data Retention — Energy readings preserved through power disturbances.
-
Customization & Scalability — Firmware, protocol, appearance customization available for volume orders.

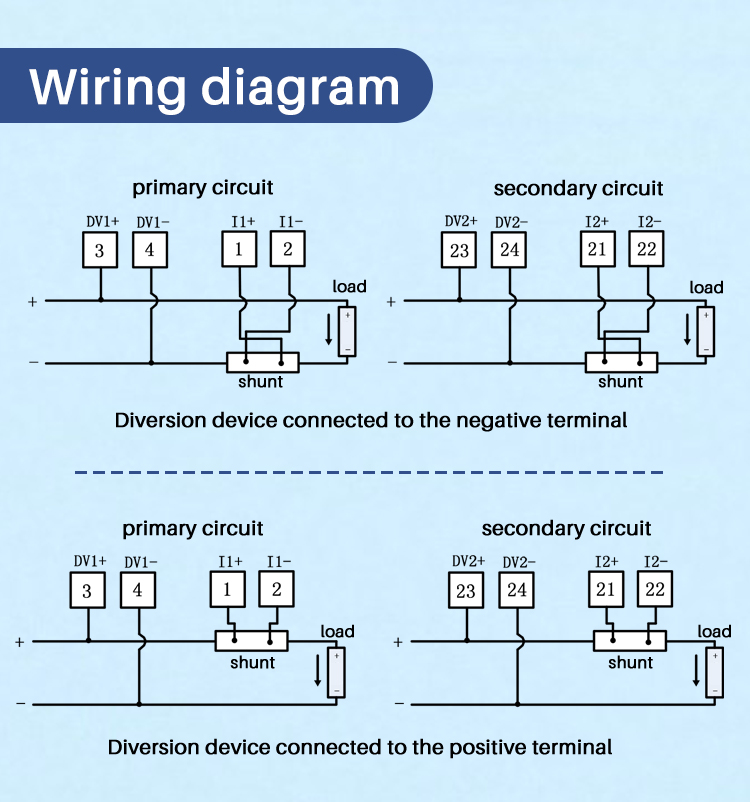

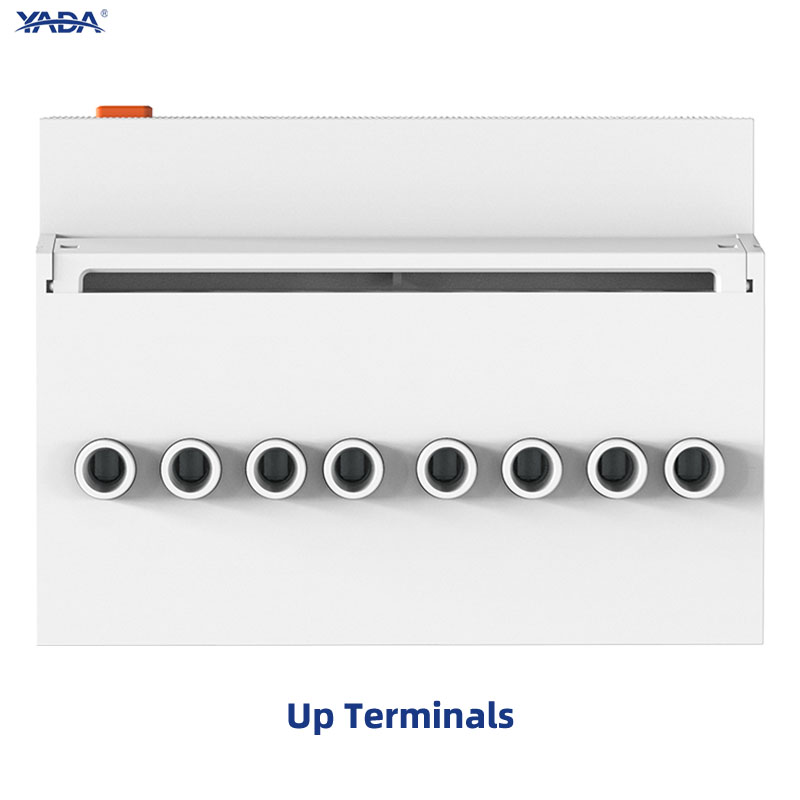

Wiring

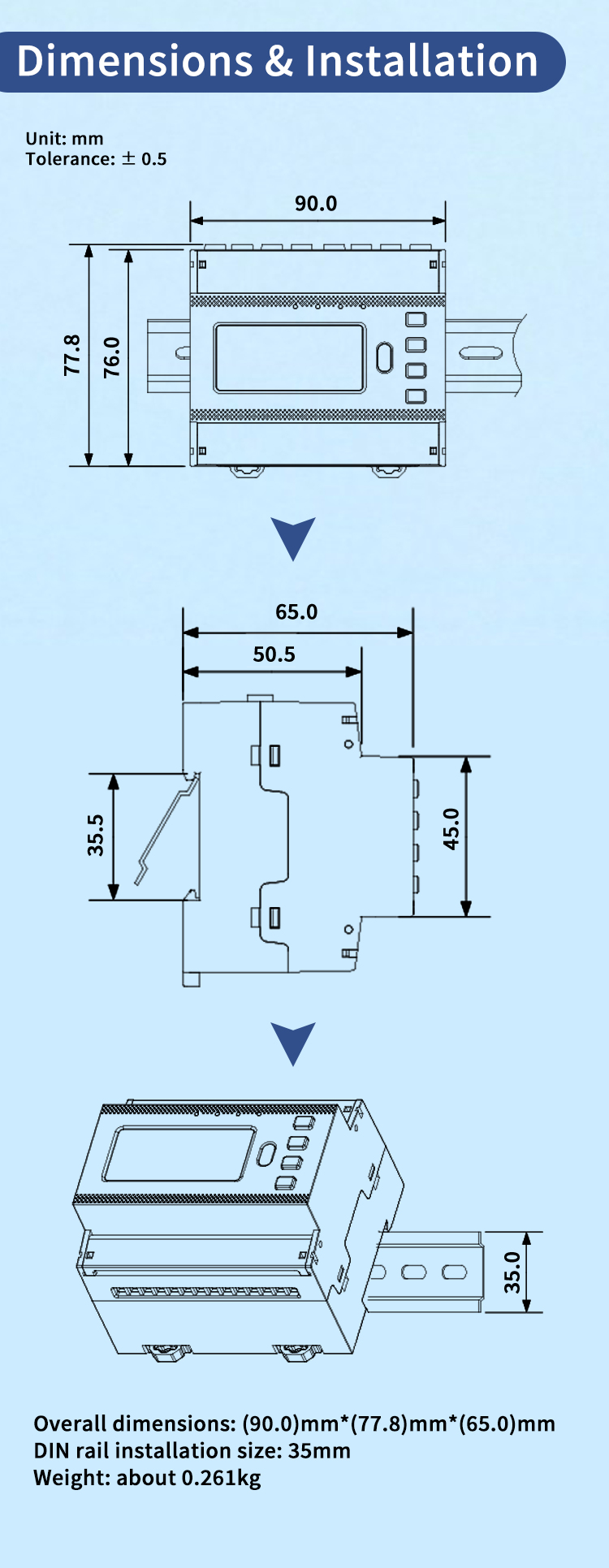

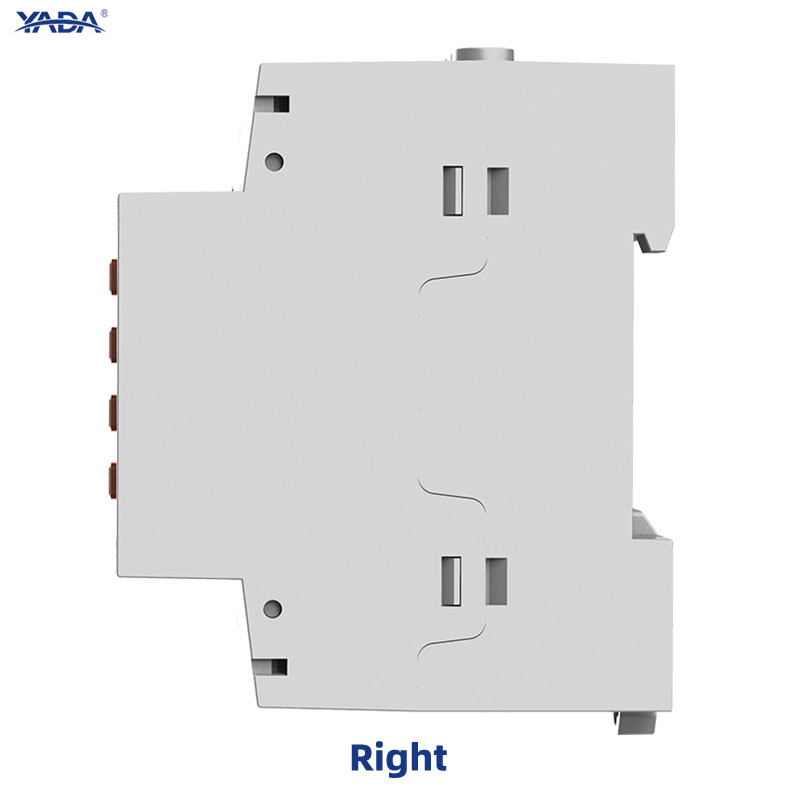

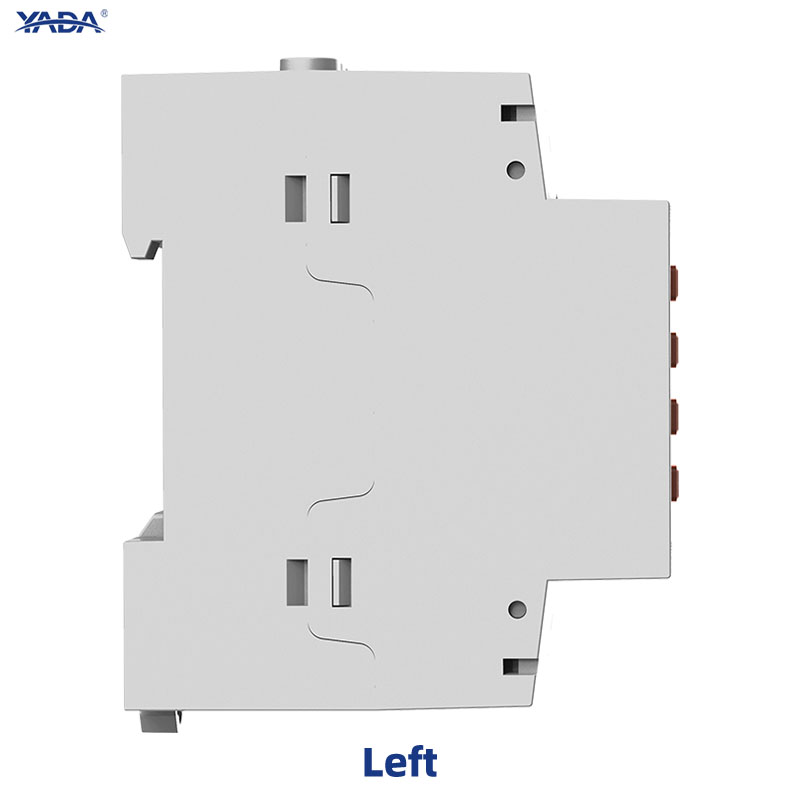

Dimension & Installation
Applications
-
EV DC charging stations / modules
-
Solar PV DC side monitoring
-
Battery Energy Storage Systems (BESS)
-
DC microgrids and hybrid systems
-
DC power distribution in industrial environments
-
Net metering and bidirectional energy feedback systems
-
DC power test benches, R&D sites, telecom DC systems
Why Choose YADA DCM3366D
-
Certified & Trustworthy — CE and UKCA certifications offer compliance reassurance for European and UK projects.
-
Specialized DC Metering — Designed exclusively for DC systems rather than adapted AC meters.
-
Bidirectional Counting — Essential for modern energy systems with two-way flows.
-
Industrial Integration — RS-485 Modbus RTU ensures compatibility with control and monitoring systems.
-
Robust Construction — With protection and retention features suited for field use.
-
Customization & OEM Ready — Firmware, labeling, protocol, mechanical design options for large-scale deployment.
-
After-sales & Support — Documentation, calibration support, spare parts, warranty—all available for commercial clients.
FAQ (Sample Questions)
Q: What makes this meter CE & UKCA certified?
A: It meets the regulatory safety, EMC and measurement directives required to export to EU and UK markets.
Q: Can it measure energy both ways?
A: Yes, it supports forward, reverse, and net energy modes — perfect for systems with energy feedback (e.g. battery, PV export).
Q: What communication protocol is supported?
A: RS-485 with Modbus RTU is supported by default; custom protocol support may be available.
Q: What is the operating temperature range?
A: (Replace with your spec) e.g. –25 °C to +60 °C — you should refer to actual model sheet.
Q: Do you provide calibration certificates or test reports?
A: Yes — we can arrange calibration and certification documentation per request, especially for tenders.
