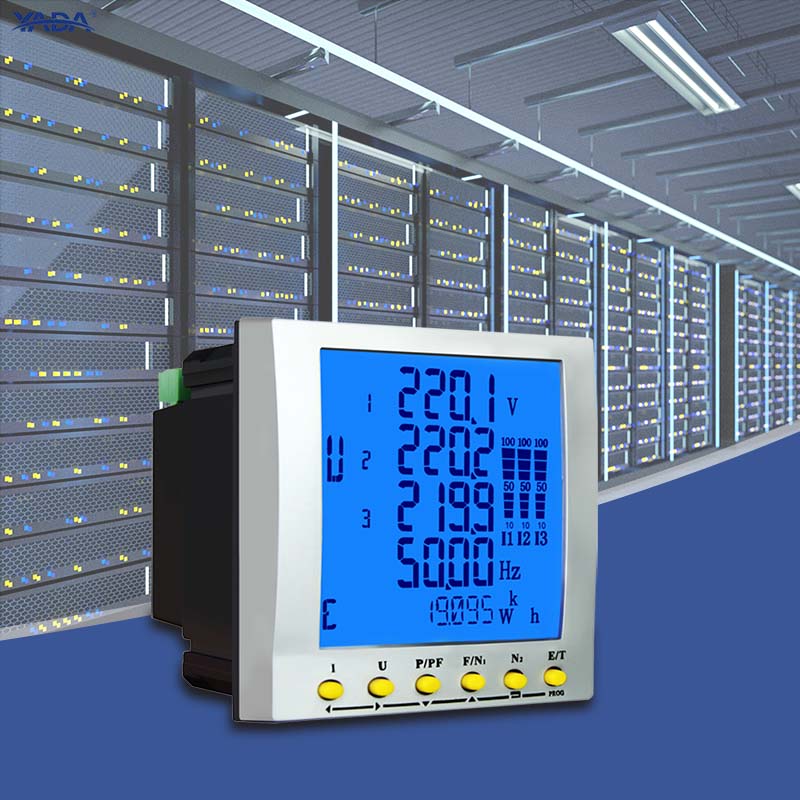

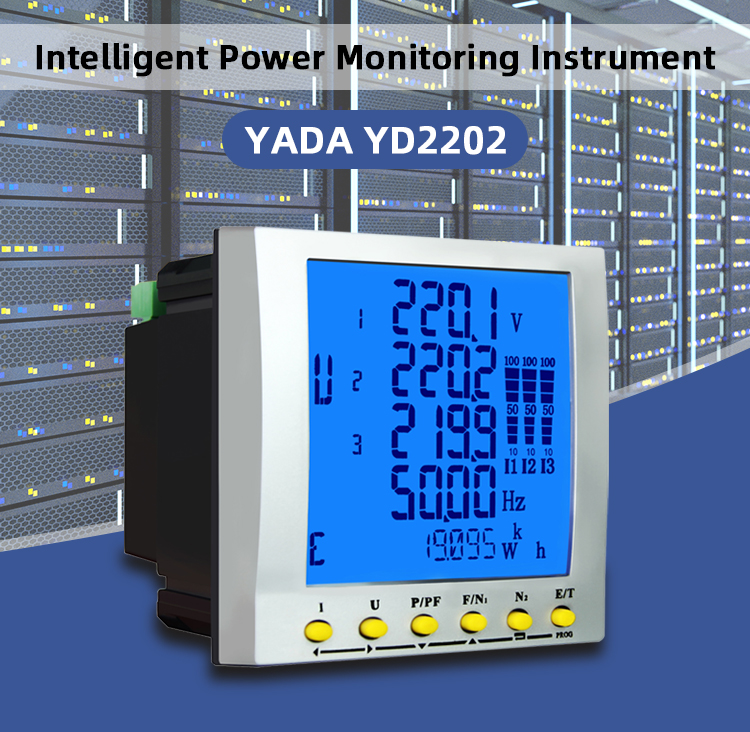

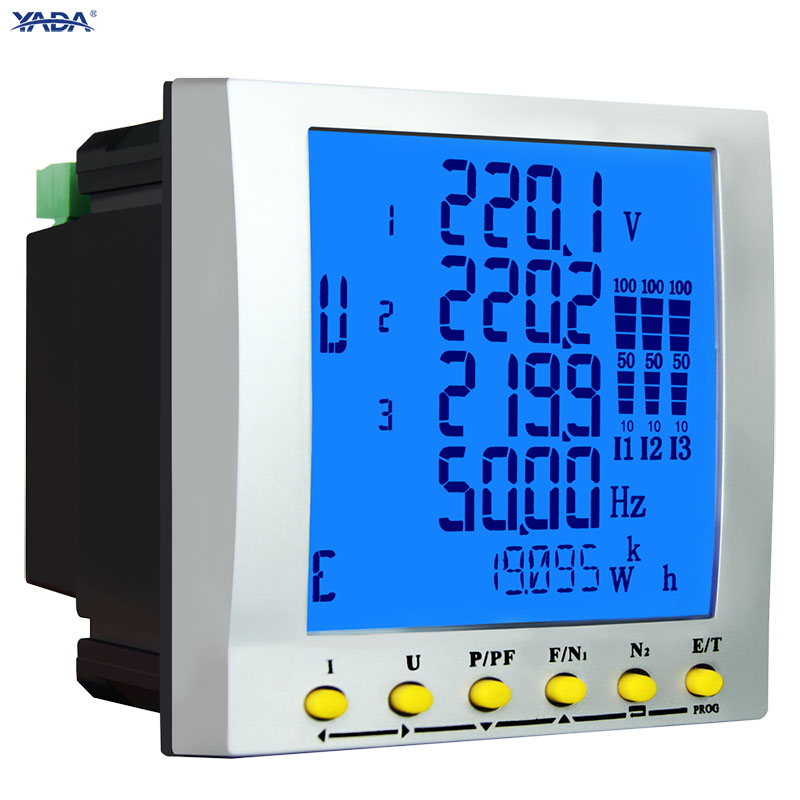

Product Overview
The YD2202 is engineered to monitor electrical parameters such as voltage, current, active/reactive power, power factor, frequency, and energy consumption. It features an intuitive LCD for real-time display and uses RS-485 communication for data transmission. This makes it suitable not only for conventional industrial panels, but also for IoT gateways, building automation systems, and energy monitoring platforms.
With measurement up to 6A, high measuring energy range (999,999.99 MWh), and support for both single-phase and three-phase configurations, the YD2202 is flexible enough for a wide range of applications. Its robust design performs stably in industrial environments.

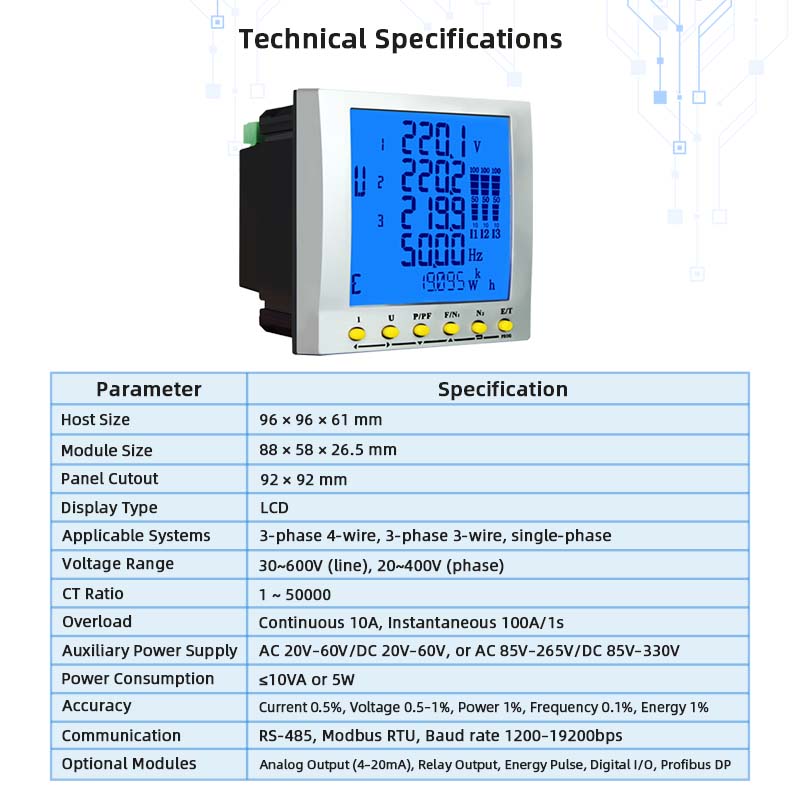

Technique Parameters
Appearance
|
Host dimension
|
96 mm×96 mm×61mm
|
||
|
Module dimension
|
88 mm×58 mm×26.5mm
|
||
|
Hole size
|
92 mm×92 mm
|
||
|
Display
|
LCD
|
||
|
Measurement
|
3 phase 4 wire, 3 phase 3 wire, 1 phase 3 wire, single phase grids
|
||
Voltage
|
Measurement range
|
Wire voltage: 30~600V Phse voltage: 20~400V
|
||
|
PT transformation ratio
|
1~50000
|
||
|
Input power consumption
|
≤0.25VA(220V), ≤0.60VA(600V)
|
||
|
Continous overload
|
800V
|
||
Current
|
Measurement range
|
0~6A
|
||
|
Measurement (Min)
|
5mA
|
||
|
CT transformation ratio
|
1~50000
|
||
|
Input power consumption
|
0.2VA
|
||
|
Continous overload
|
10A
|
||
|
Shock overload
|
100A/1s
|
||
Power
|
Single phase power
|
0~2400W/var/VA
|
||
|
General power
|
0~7200W/var/VA
|
||
Frequency
|
Measurement range
|
50/60Hz
|
||
Power factor
|
Measurement range
|
-1~1
|
||
Measurement Accuracy
|
Current
|
0.5%(0.5~6A)
|
||
|
Phase voltage
|
0.5%(20~400V)
|
||
|
Wire volatge
|
1.0%(30~600V)
|
||
|
Power
|
1.0%
|
||
|
Power factor
|
1.0%
|
||
|
Frequency
|
0.1%(50/60Hz)
|
||
|
Electric energy
|
1.0%(0.5L/0.5C)
|
||
Environmental conditions
|
Working temperature
|
-15~55℃
|
||
|
Storage temperature
|
-25~＋75℃
|
||
|
Relative humidity
|
20~95％RH without condensation
|
||
Communication
|
Interface
|
RS-485
|
||
|
Address
|
1~247
|
||
|
Bps
|
1200/2400/4800/9600/19200
|
||
|
Host communication protocal
|
Modbus RTU
|
||

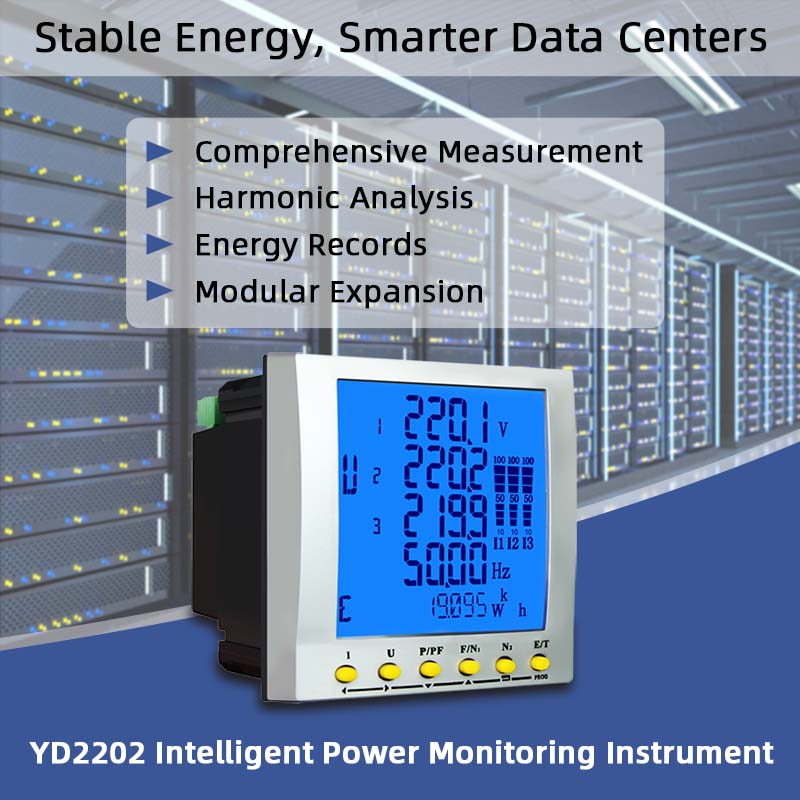

Key Features & Benefits
-
Single & Three-Phase Monitoring — Support for both wiring configurations
-
High Accuracy Options — Class 0.5% / 1.0% accuracy for precise measurement
-
Full Parameter Coverage — Voltage, Current, Active / Reactive Power, Power Factor, Frequency, Energy etc.
-
LCD Display — Clear visual readout of multiple parameters simultaneouslly
-
RS-485 Communication (Modbus RTU) — Enables remote monitoring and integration into control systems
-
Wide Measuring Range — Up to 6A basic current range
-
Energy Capacity — Can display cumulative energy up to 999,999.99 MWh
-
Panel Mount Design (92 × 92 mm) — Standard panel cut-out dimensions for ease of installation
-
Operating Conditions — Suitable for –15 °C to +55 °C environments
-
Warranty & Support — 24 months warranty, OEM customization available

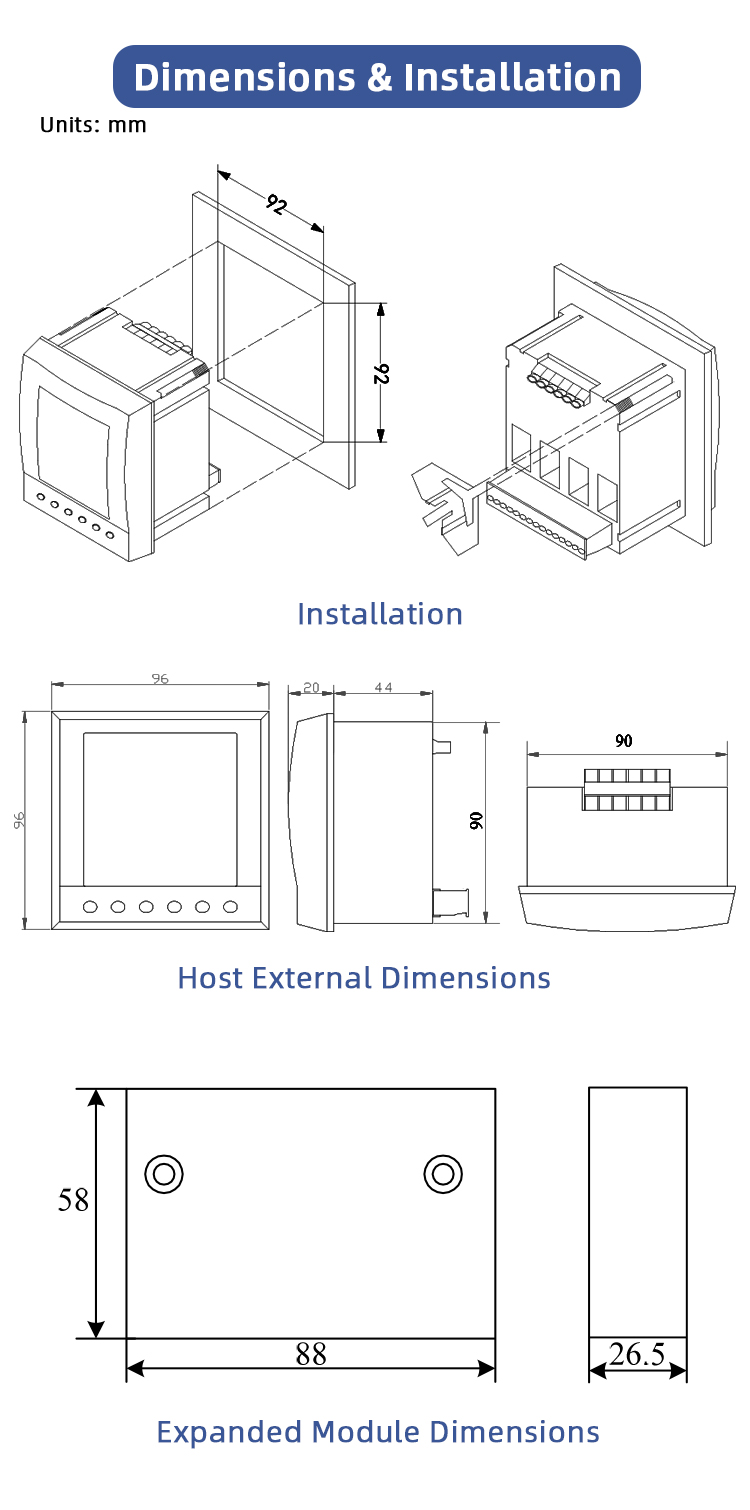

Dimensions & Installation

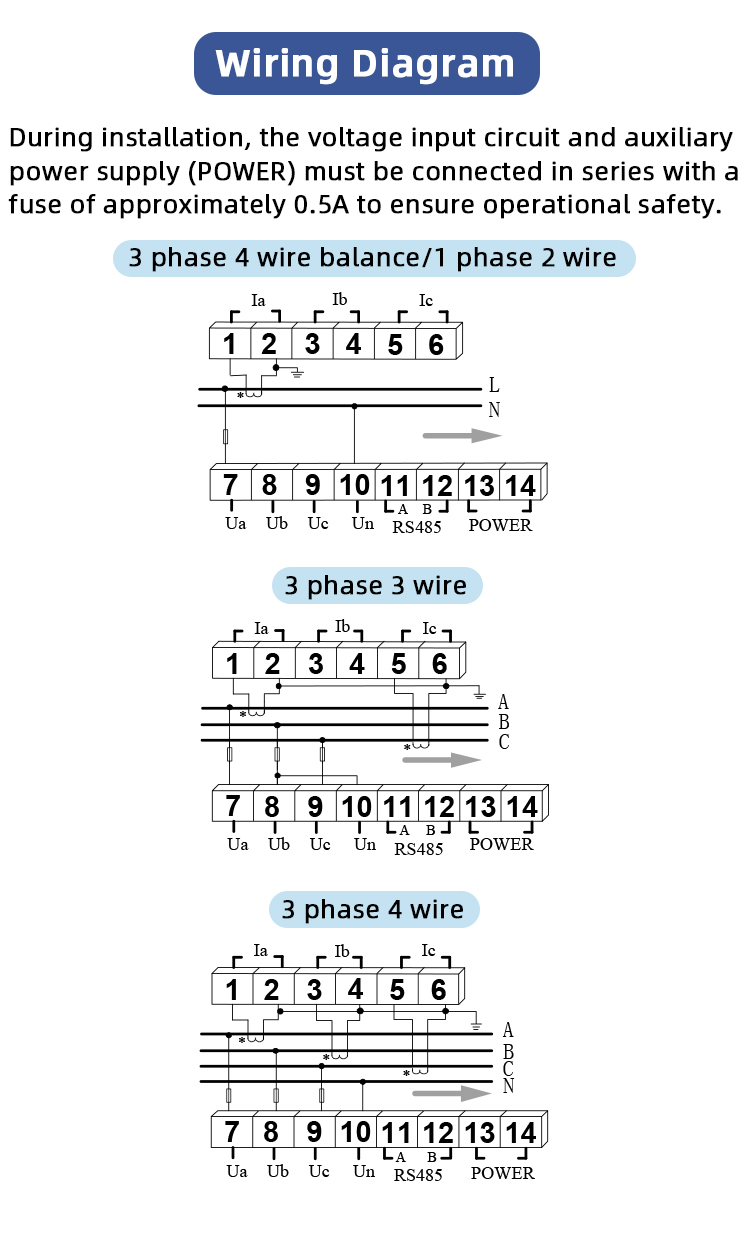

Wiring
Applications
The YD2202 can be used in:
-
Industrial equipment & automation systems
-
Building management / energy monitoring systems
-
IoT gateways and smart control panels
-
Telecommunications and data center systems
-
Power distribution cabinets
-
Energy auditing and billing measurement
-
Renewable energy installations (depending on wiring configuration)
Why Choose YADA YD2202?
-
Proven Expertise — YADA stands for reliability and years of specialization in power instruments
-
Accurate & Stable Operation — Performs continuously in industrial conditions with minimal drift
-
Seamless Connectivity — RS-485 with Modbus RTU ensures interoperability with existing systems
-
Versatile & Flexible Design — Supports both single & three-phase setups
-
Custom & OEM Ready — Offers firmware tweaks, branding, interface options
-
Comprehensive Support — 24-month warranty, global technical support
FAQ
Q1: Does YD2202 support both single-phase and three-phase wiring?
A: Yes, the meter is designed to support both single-phase and three-phase configurations.
Q2: What communication protocol is used?
A: It supports RS-485 using the Modbus RTU protocol for remote monitoring and data access.
Q3: What is the measuring range and accuracy?
A: It supports up to 6A current measurement, accuracy class is 0.5 % / 1.0 %.
Q4: What operating temperature range does it support?
A: It works reliably between –15 °C and +55 °C.
Q5: Can this product be customized?
A: Yes, OEM/ODM customization (branding, firmware, packaging) is supported.
