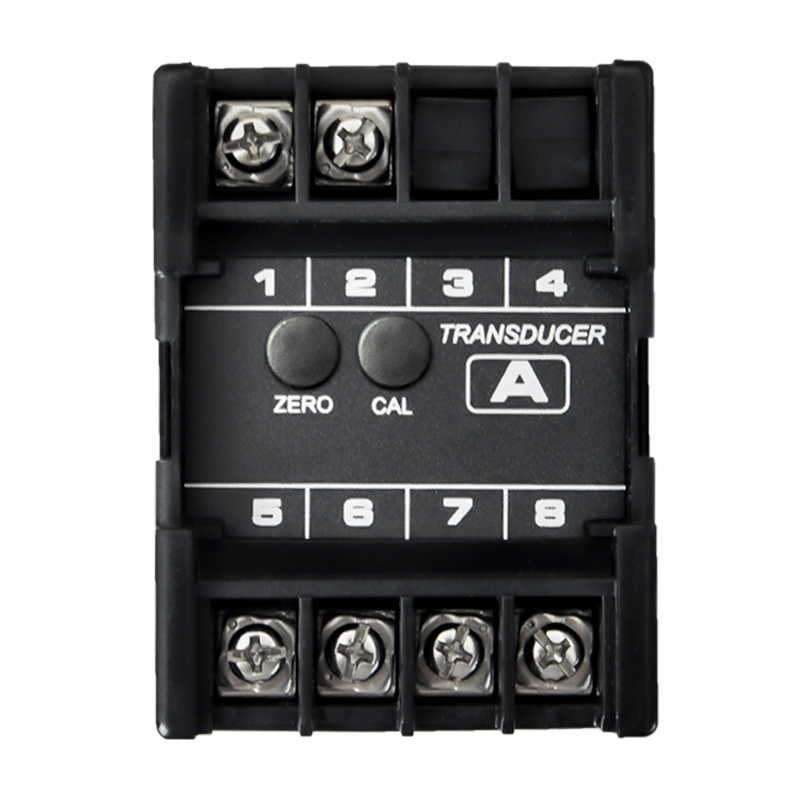

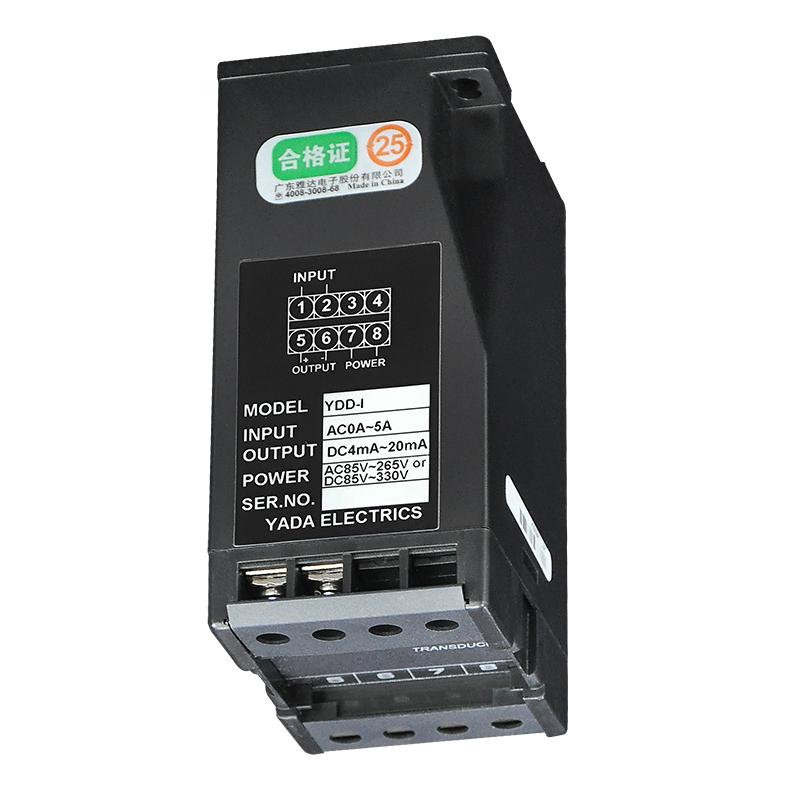

Product Description
The YADA AC Current Transducer (0-30A) is an advanced, high-precision device designed for industrial power monitoring systems. This current sensor is ideal for applications requiring accurate and reliable current measurements. It offers excellent performance in a wide range of electrical systems, including energy management, power distribution, and industrial automation.

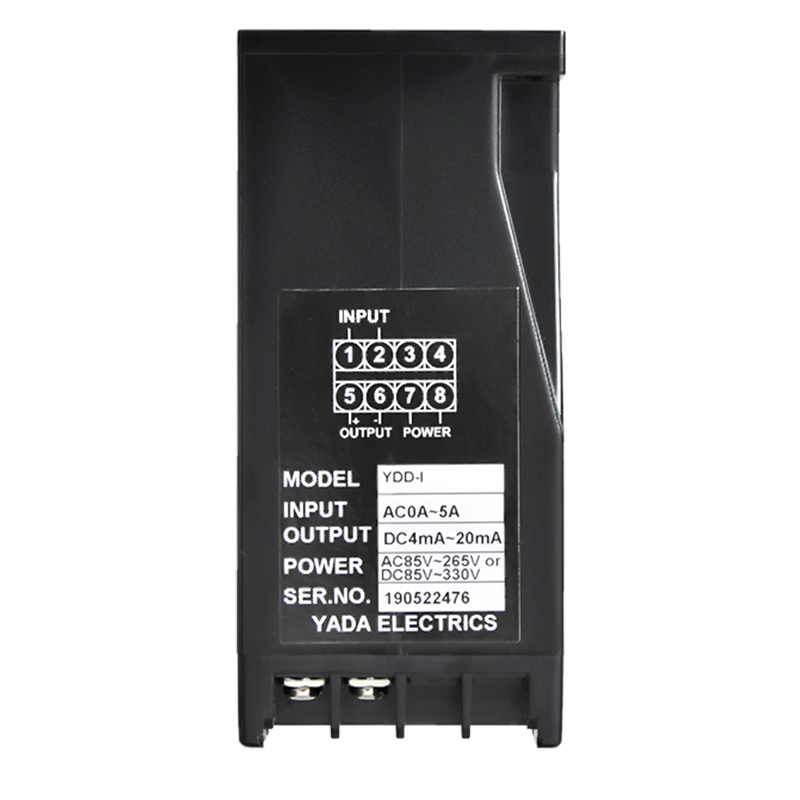

Model Description
| Type | I： Single Phase AC Current Transducer |
| U：Single Phase AC Voltage Transducer | |
| Ir：Single Phase AC Real RMS Current Transducer | |
| Ur: Single Phase AC Real RMS Voltage Transducer | |
| Input(AC) | 0~30A、0~500V（the range of optional） |
| Output (DC) | 0~5V, 0~10V, 1~5V, 0~20mA, 4~20mA（Optional） |
| Power Supply | AC220V±15％; DC20~60V; |
| AC85~265V or DC85~330V（Optional） |

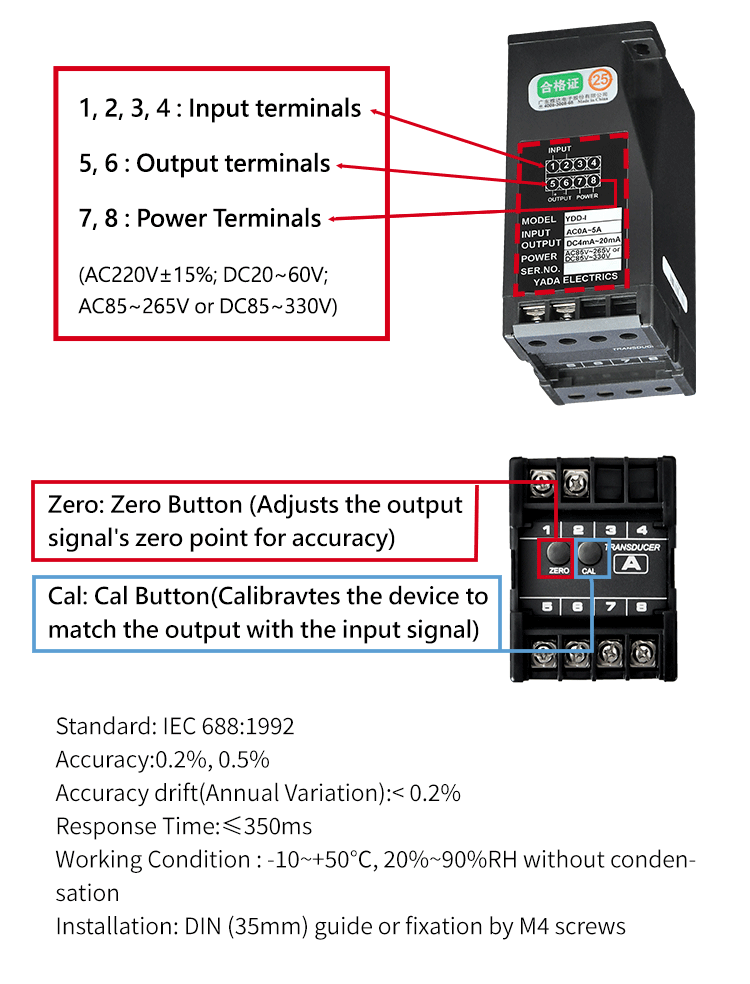

Technical Index

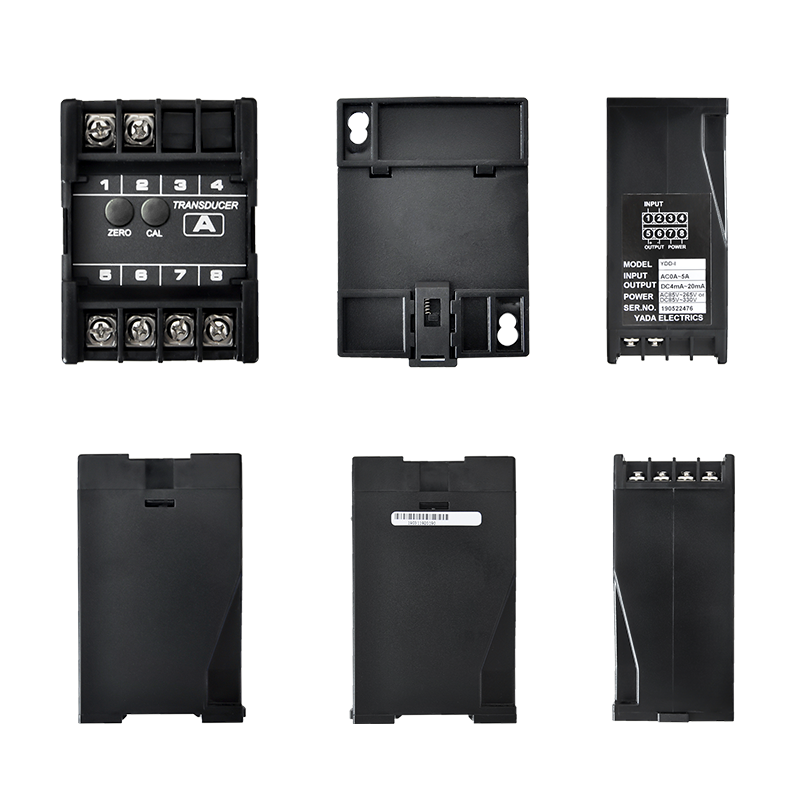

| Standard | GB/T13850-1998 idt IEC 688:1992 |
| Accuracy | 0.2%, 0.5% |
| Overall Power | ≤3VA |
| consumption | |
| Accuracy drift | (Annual Variation) <0.2% |
| Working frequency | AC2.0kV/min.1mA |
| withstand voltage | (between Input/output/power) |
| Insulation Resistance | ≥20MΩ (DC500V) |
| Surge Voltage | 4kV(peak value), 1.2/50µS |
| Response Time | ≤350ms |
| Input Range | AC0~30A; AC0~500V(Optional), 50/60Hz |
| Absorbed Power | <0.5VA/450V, <0.2VA/100V, <0.1VA/5A |
| Overload Capacity | Current: 2 times continuum, 30 times/1s |
| Voltage: 800V continuum | |
| Load Resistance | Current output：RL≤550Ω; |
| Voltage output：RL≥2KΩ(5V) | |
| RL≥3KΩ(10V) | |
| Working Conditions | -10~50℃ |
| 20%~90%RH without condensation | |
| Storage Conditions | -40~70℃ |
| 20%~95%RH without condensation | |
| Installation | DIN (35mm) guide apparatus or fixation by M4 |
| screws | |

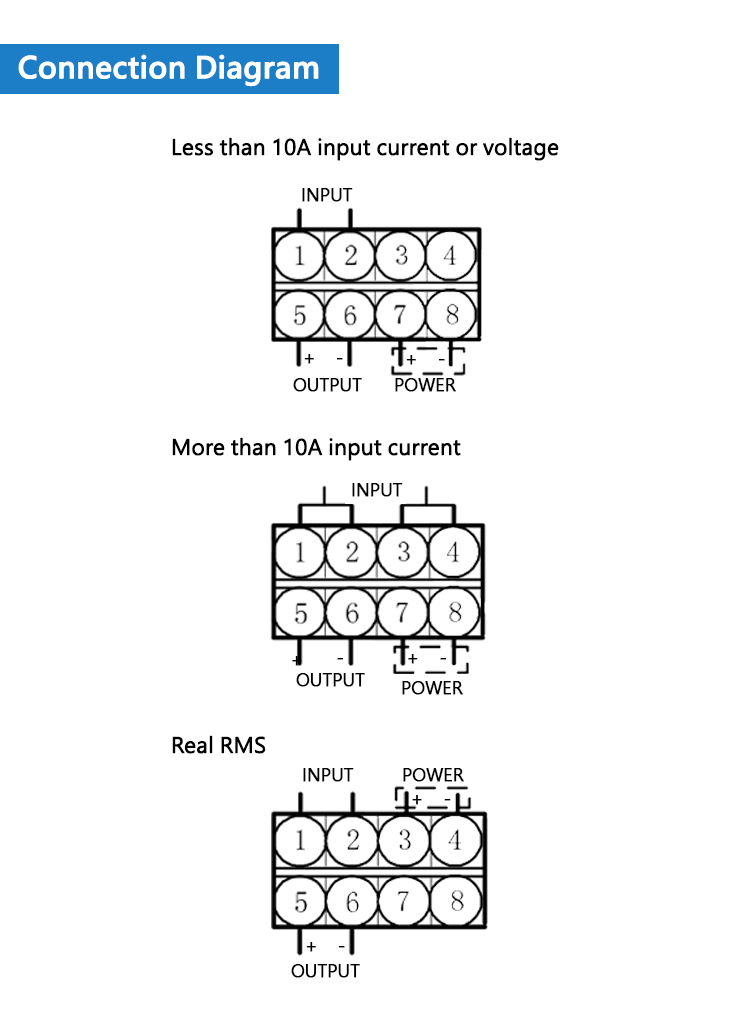

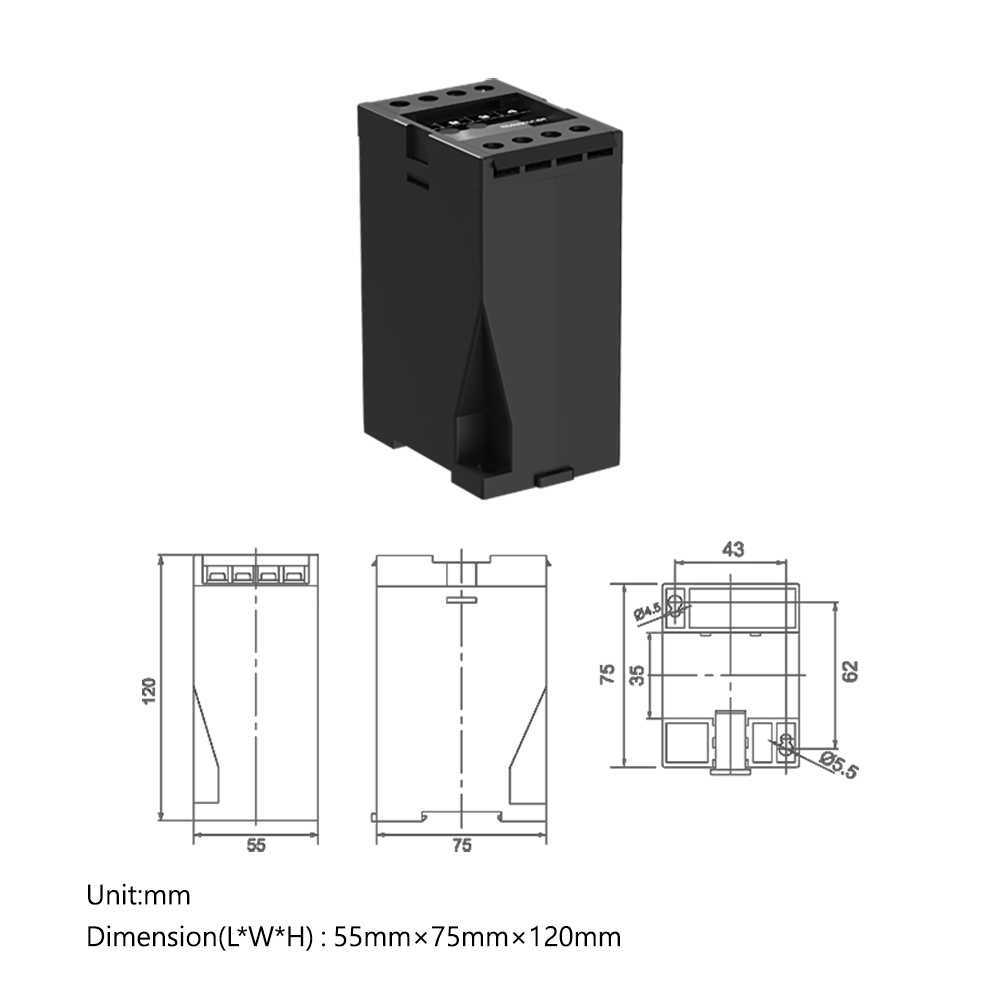

| Dimension | 55mm×75mm×120mm |
Key Featues
-
High Accuracy Measurement: Provides precise current measurement in the range of 0-30A, ensuring reliable data for power monitoring and control.
-
Compact and Durable Design: Built to withstand tough industrial conditions while delivering long-term, accurate performance.
-
Versatile Applications: Perfect for use in energy management systems, power meters, industrial automation, and other electrical monitoring setups.
-
Wide Input Voltage Range: Supports input voltages from AC 85V to 265V, offering flexibility for various power systems.
Applications
-
Industrial Power Monitoring Systems: Ideal for monitoring current in factories, warehouses, and other industrial environments.
-
Energy Management Solutions: Perfect for integrating into systems designed to monitor and optimize energy consumption.
-
Power Distribution Systems: Reliable for monitoring power flow in electrical grids and distribution networks.
-
Industrial Automation: Essential for real-time monitoring of electrical equipment in automated processes.
Why Choose YADA AC Current Transducer?
-
Reliability: YADA is a trusted name in industrial power measurement, providing products with a focus on durability and high performance.
-
Global Standards Compliance: Certified for use worldwide, ensuring seamless integration into international projects and systems.
-
Flexible Integration: Easy integration into existing monitoring and control systems with adaptable output options.
