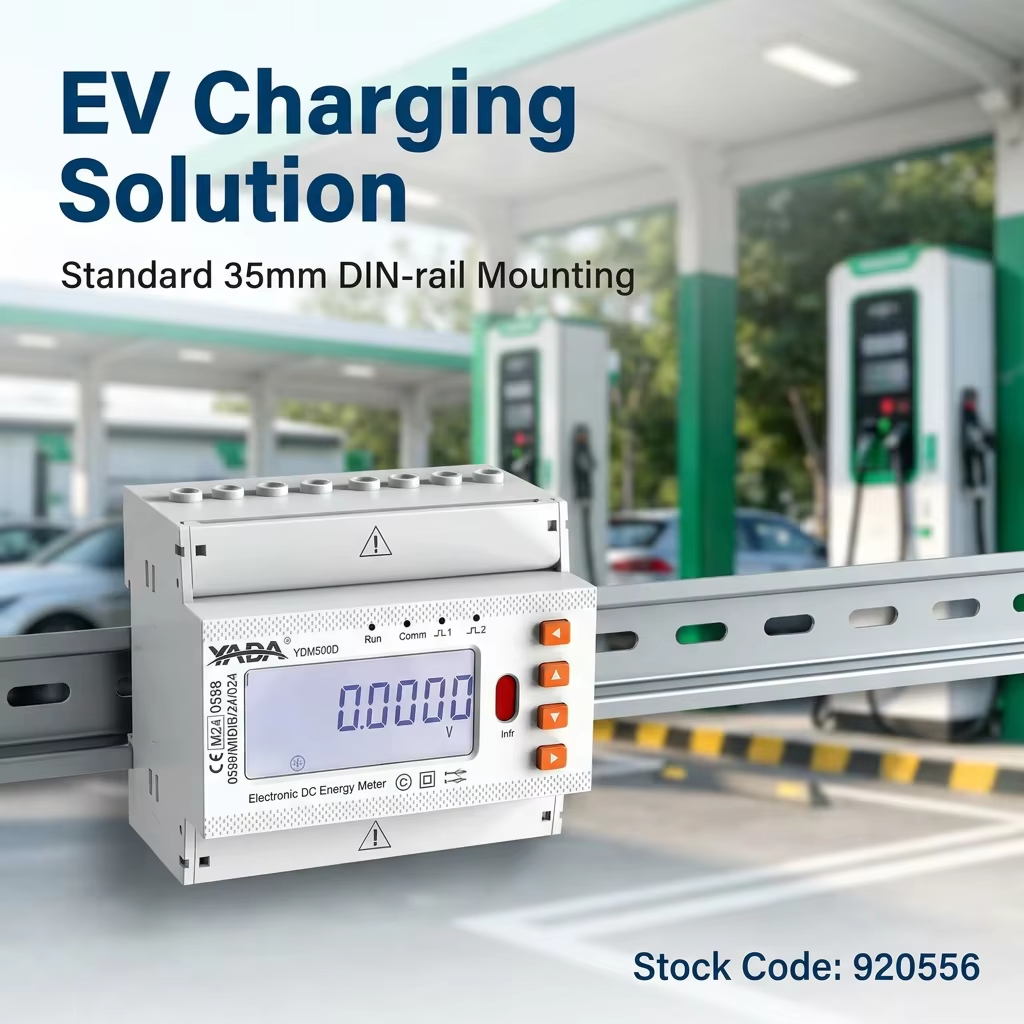

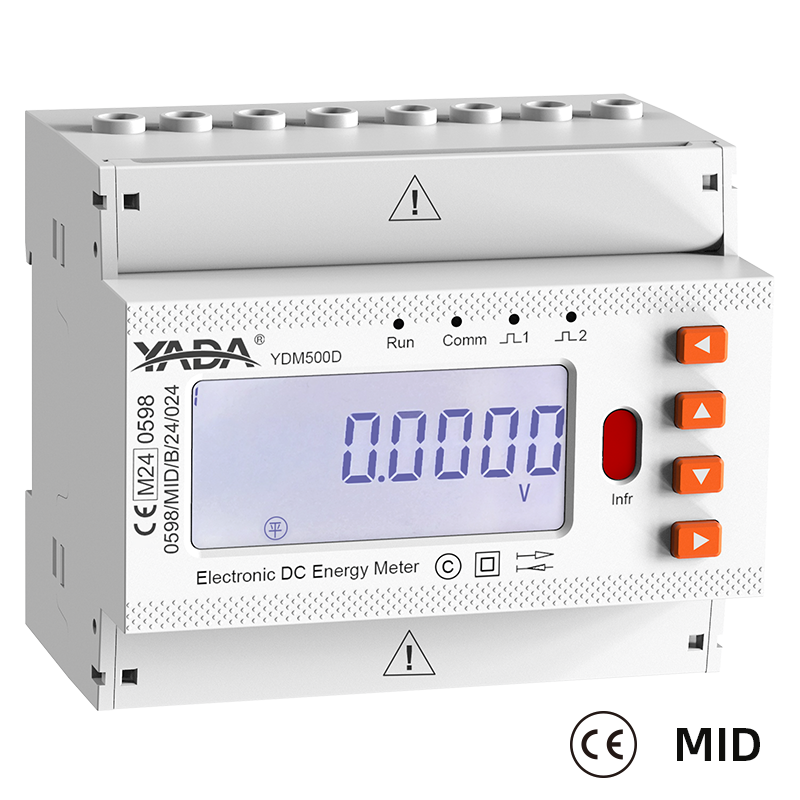

Product Overview
The YADA YDM500D is a high-precision (Class 0.5) DC energy meter designed for accurate measurement of DC voltage, current, power, and energy in renewable energy and industrial applications.It supports RS-485 Modbus RTU communication, making it ideal for integration into energy management systems (EMS), EV charging stations, solar power plants, and energy storage systems.
With a compact structure and excellent EMC performance, the YDM500D ensures stable and reliable operation under demanding environments.
- Built for smart charging infrastructure-accurate, compliant, and ready for scalable EV networks.
- MID-certified accuracy ensures reliable billing-grade performance for commercial EV charging operations.
- Supports up to 1000V DC systems, fully compatible with high-power fast charging platforms.
- Dual RS485 communication enables seamless integration with charging control and cloud management systems.
- Shunt-based architecture delivers stable, high-accuracy measurement with flexible current ranges.
- Built for smart charging infrastructure-accurate, compliant, and ready for scalable EV networks.
| Product Name | YADA YDM500D Dual Channel DC Energy Meter for EV Charging | |||
| Model No. | YDM500D | |||
| Brand Name | YADA | |||
| Display Type | LCD Display | |||
| Measuring Energy Range | 0-99999.99kWh | |||
| Accuracy Class | Class 0.5 | |||
| Operating Temperature | -25℃~ 60℃ | |||
| Communication | RS485(Modbus-RTU) | |||
| Installation | 35mm DIN rail | |||
| Input current | 50A-600A, with 75mV(Via diverter) | |||
| Input Voltage | DC48V~DC1000V | |||
| Certificate | MID, UKCA, RCM, CE Certification(EN61010-1:2010/A1:2019, EN IEC61010-2-030:2021, EN 61326-1:2013, EN 61326-2-1:2013, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013 | |||
| +A1:2019+A2:2021 ) | ||||
| Warranty | 2 Years | |||
| Dimensions | 90.0mm*77.8mm*65.0mm | |||
| Appication | Data center, Telecommunication, Charge station, Industrial, IoT, Household and other Power Management System. | |||
Model description
| Model | Specifications | Main Function |
| YDM500D | Single | Single DC measurement,
one electric power pulse output, one second pulse output, one independent RS485 ports. |
| Double | Double DC measurement,
two electric power pulse output, one second pulse output, two independent RS485 ports. |
Key Features
-
⚡ DC Measurement – Accurately measures voltage, current, power, and energy in DC circuits
-
🔗 RS-485 Modbus RTU – Enables real-time communication with monitoring systems
-
🧠 Smart Energy Monitoring – Supports data collection, logging, and remote reading
-
🧩 Wide Measurement Range – Compatible with multiple DC voltage and current inputs
-
🔒 High Accuracy – Ensures precise data for energy billing and system optimization
-
💡 LCD Display – Clear, multi-line digital screen for real-time data viewing
-
🏗️ Industrial-Grade Reliability – Built to withstand continuous operation in harsh conditions
-
🔌 Easy Integration – DIN-rail mounting and flexible wiring options for quick installation

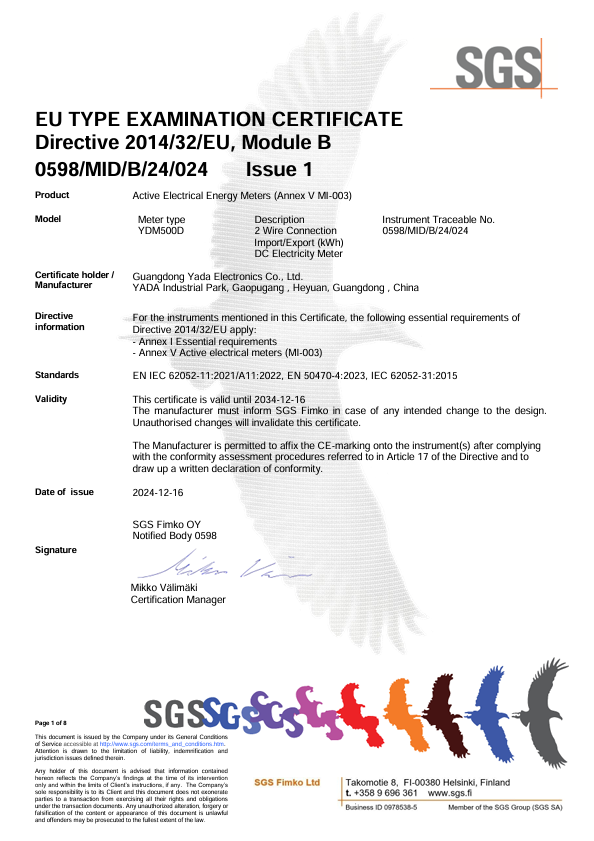

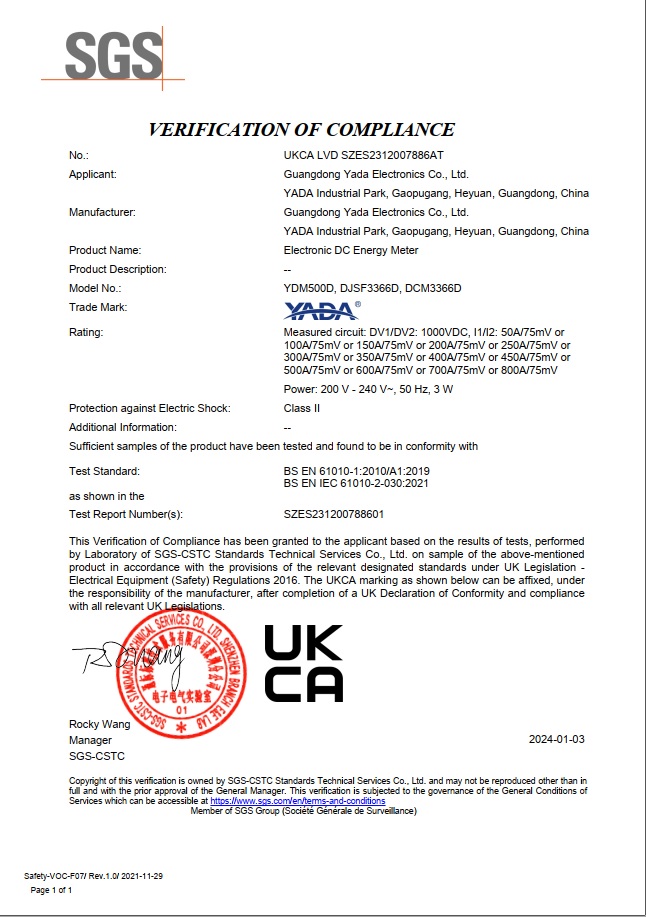

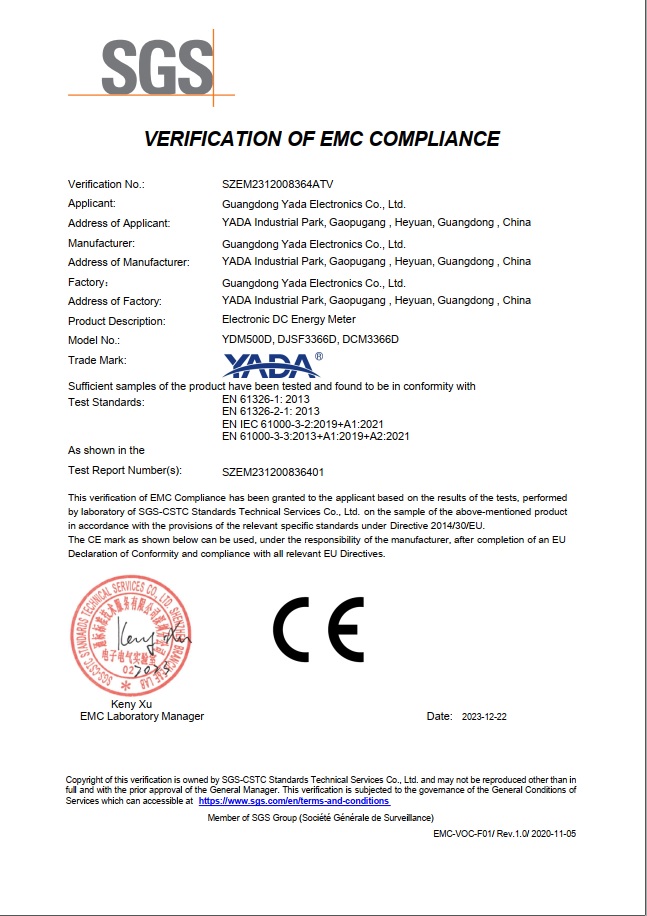

Certificates

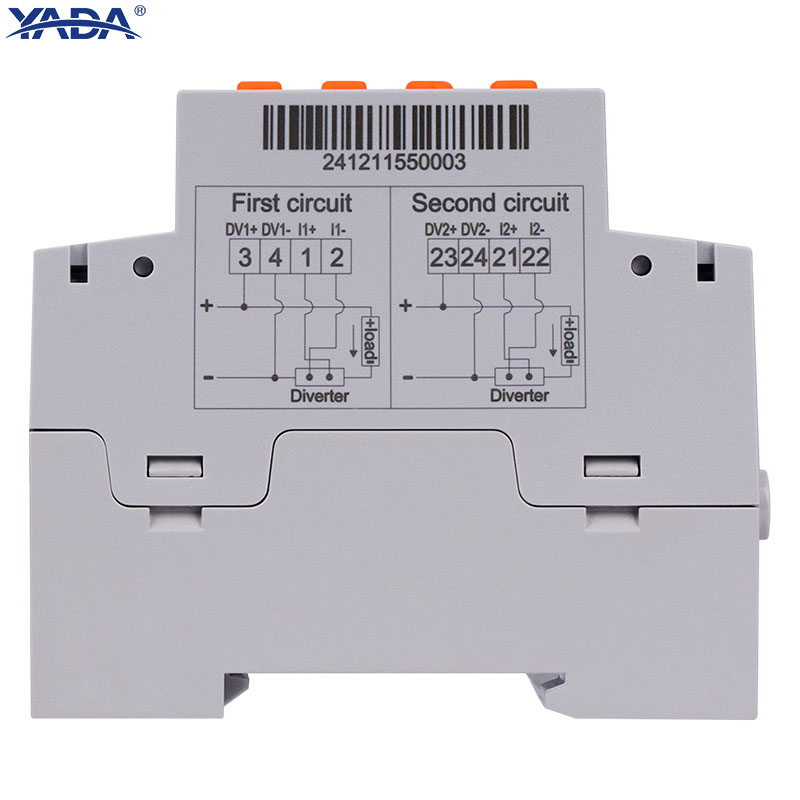

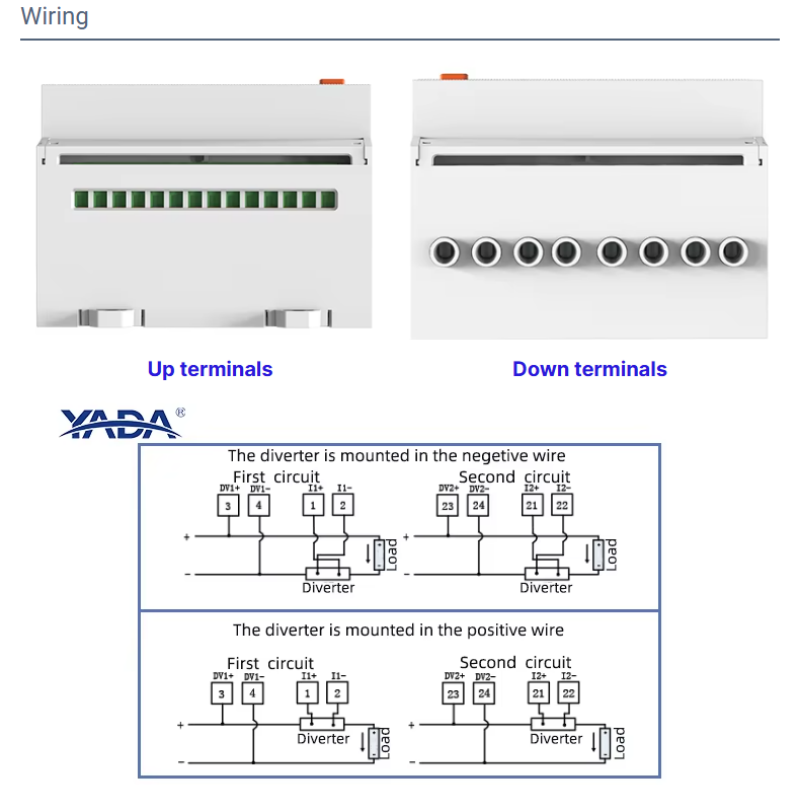

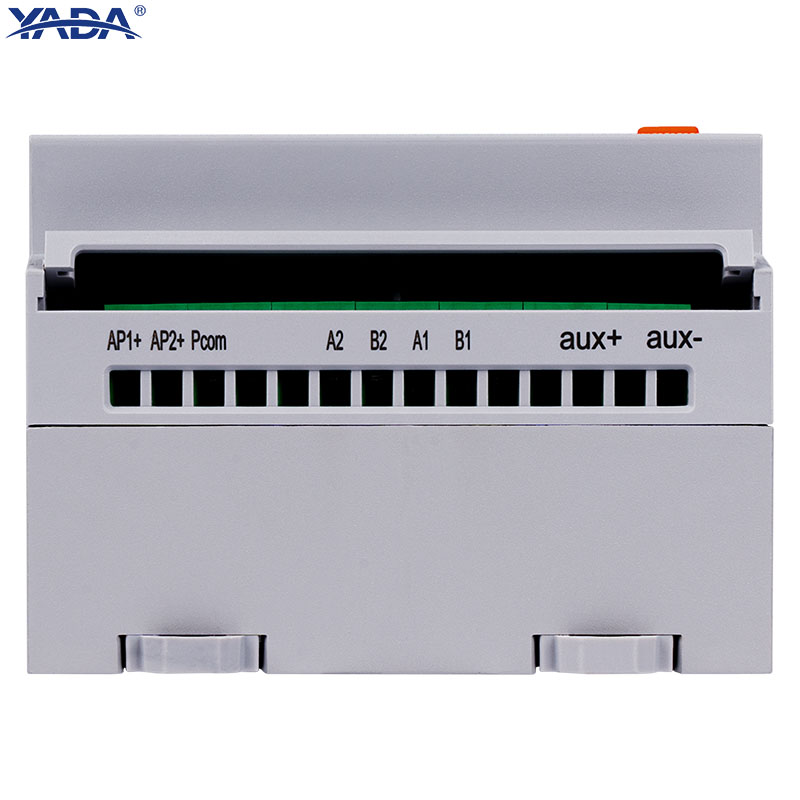

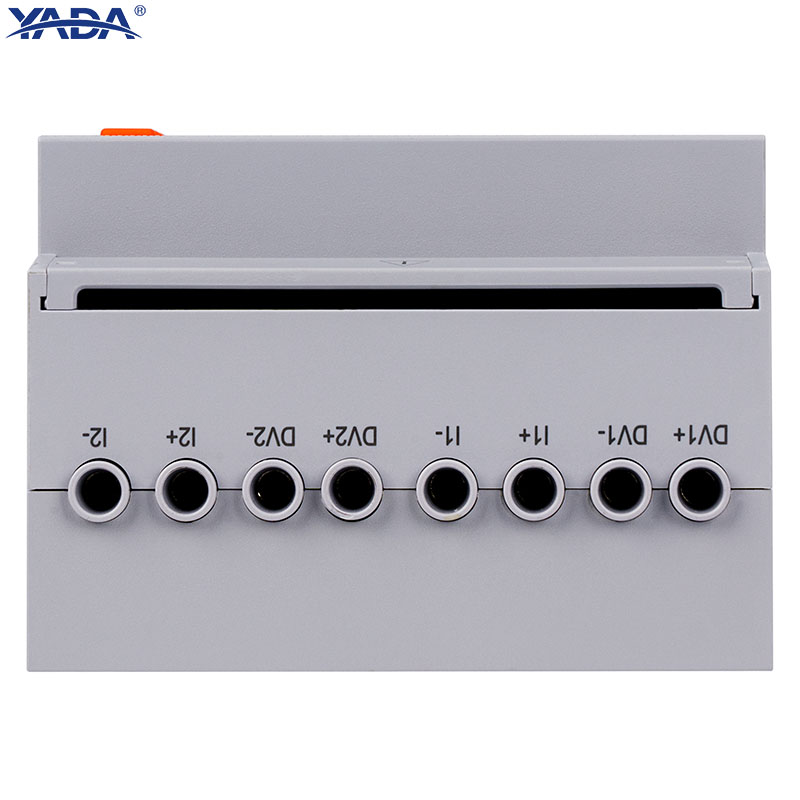

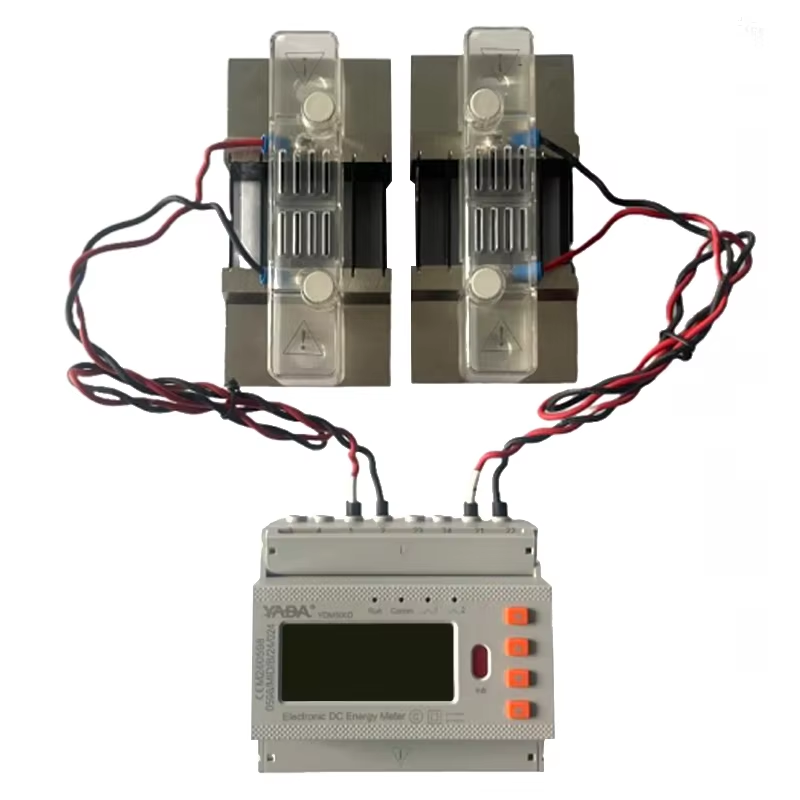

Wiring
Communication

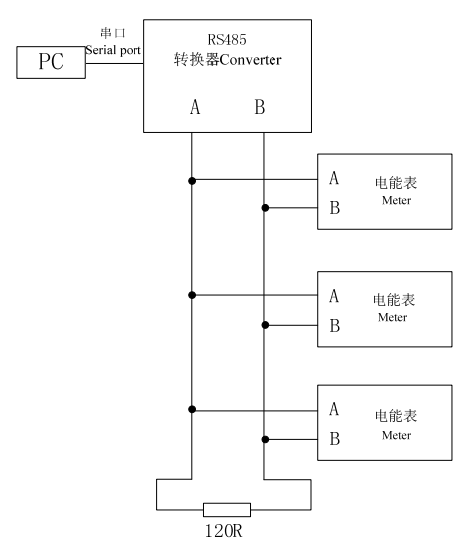

Each RS-485 communication interface allows up to 32 instruments to be connected to a bus. Communication cable can use ordinary shielded twisted pair, the total length should not exceed 1200m, the positive and negative polarity of RS-485 port of each equipment must be connected correctly. If the shielding twisted pair is long, it is recommended to have a resistance of about 120 Ω at its end to improve the reliability of the communication.

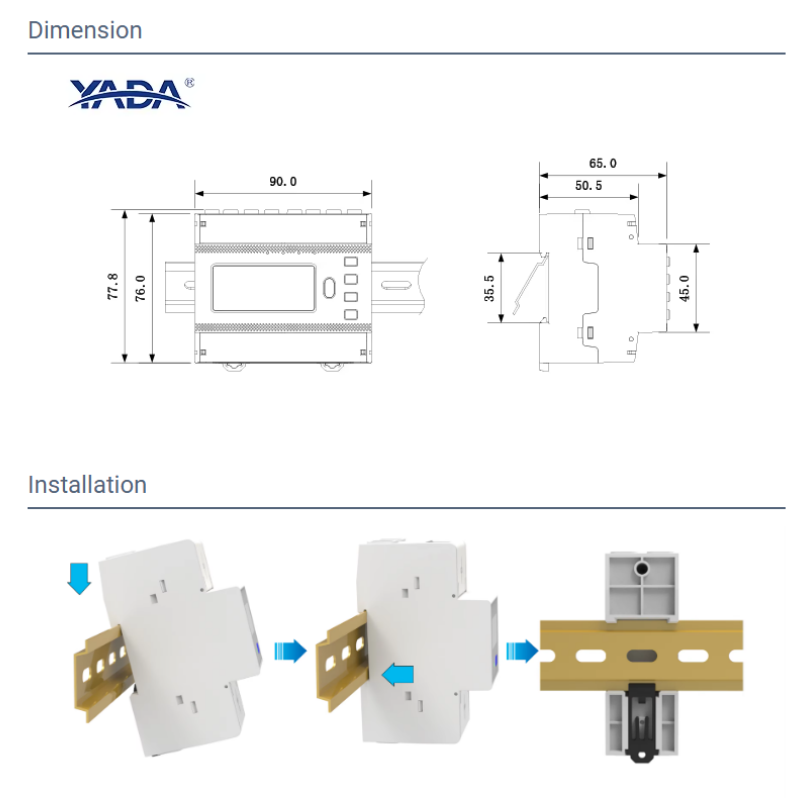

Dimension & Installation
Applications
-
🌞 Solar PV Systems – Measure generation and load on DC side
-
🔋 Energy Storage Systems (ESS) – Track charging and discharging energy flow
-
🚗 EV Charging Infrastructure – Monitor DC charging power and energy usage
-
🏭 Industrial DC Equipment – Real-time DC power monitoring for control cabinets
-
⚙️ Laboratories / Test Benches – High-accuracy DC data for measurement & verification
Advantages for B2B Buyers
-
✅ High Measurement Accuracy for billing and performance analysis
-
✅ Supports Modbus RTU – Easy integration with third-party SCADA / EMS
-
✅ Proven Reliability – Long service life and stable operation
-
✅ OEM & ODM Customization available (logo, voltage range, interface)
-
✅ Compliance-Ready for global projects (CE,MID,UKCA Certificates.)
FAQ
Q1: What parameters can YDM500D measure?
A1: It measures DC voltage, current, power, and cumulative energy (kWh).
Q2: Is it suitable for solar and EV applications?
A2: Yes, the YDM500D is widely used in PV systems, charging stations, and energy storage monitoring.
Q3: Does it support data communication?
A3: Yes, it supports RS-485 Modbus RTU for remote monitoring and integration with BMS/EMS systems.
Q4: Can the current range be customized?
A4: Yes, it supports external shunt inputs and can be customized according to project requirements.
Q5: What is the accuracy level?
A5: Typically Class 0.5, ensuring precise measurement for billing and auditing.
